Ручная машина для наполнения жидкостью 5-50 мл крем-паста шампунь косметический

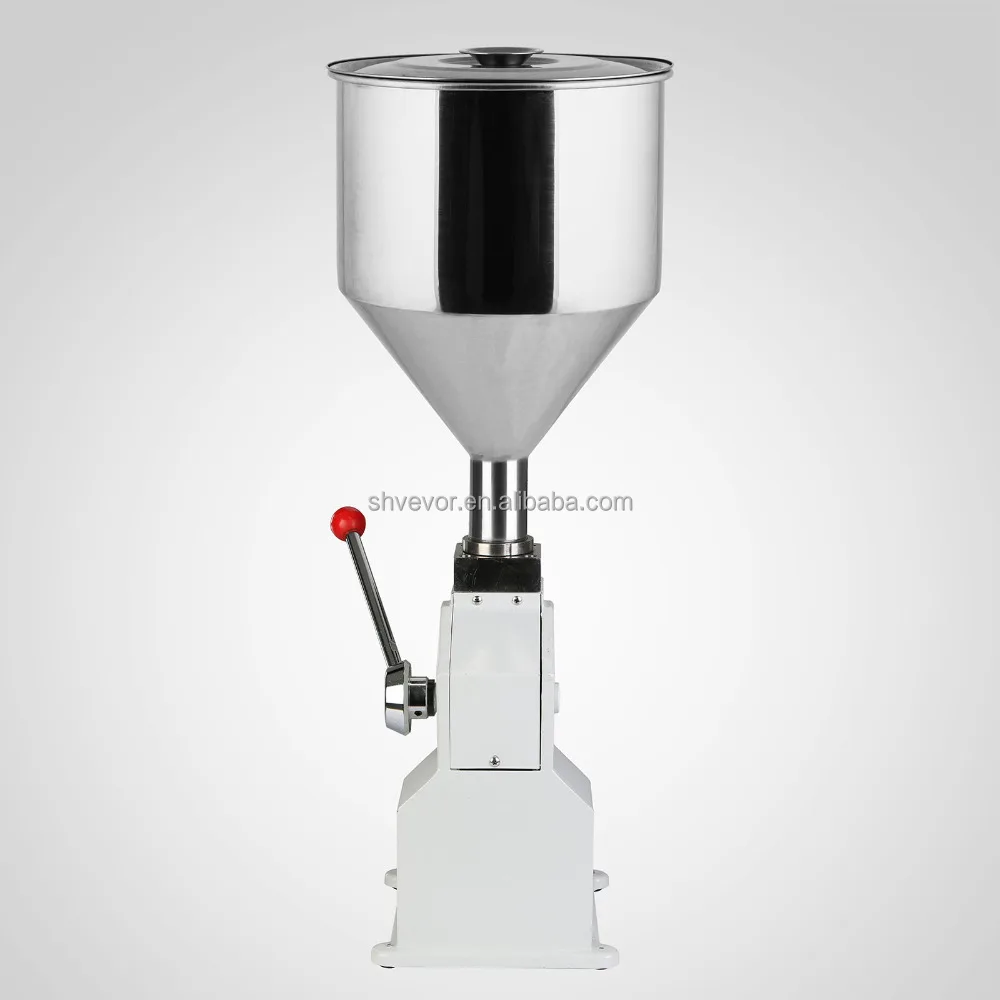

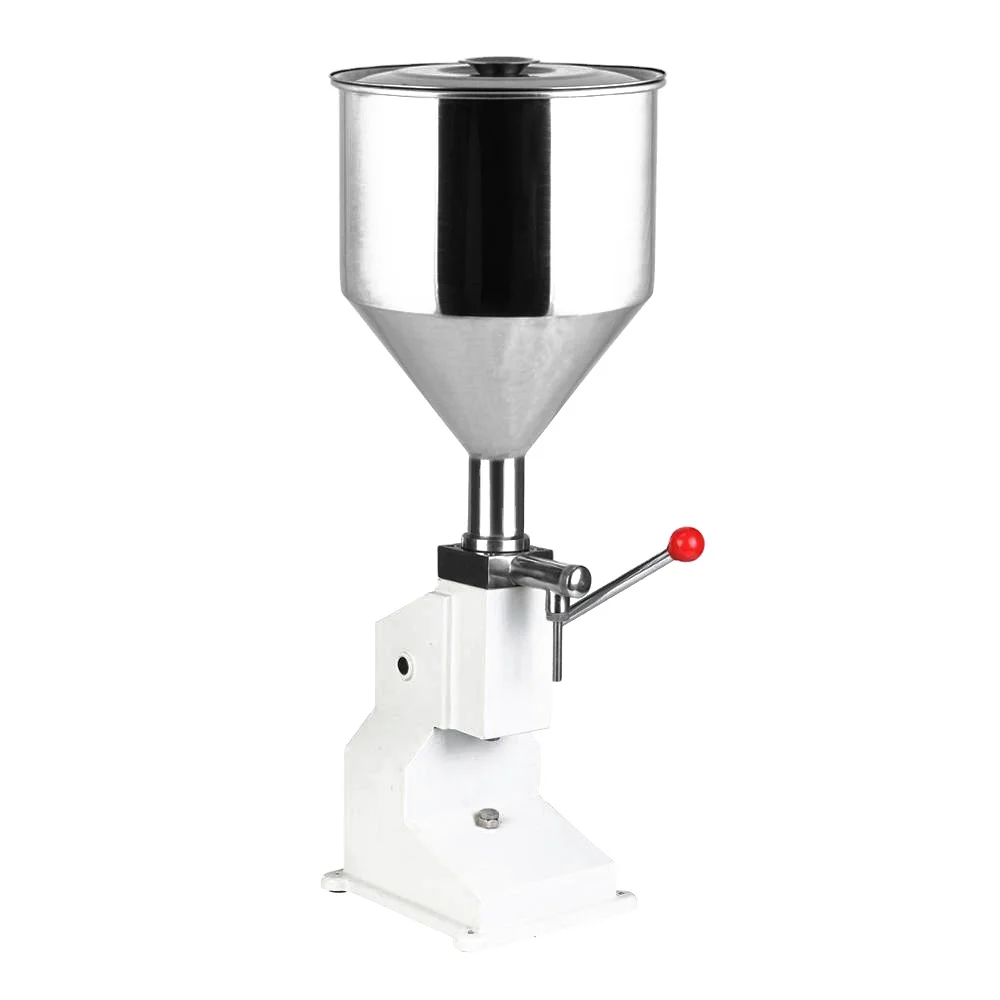

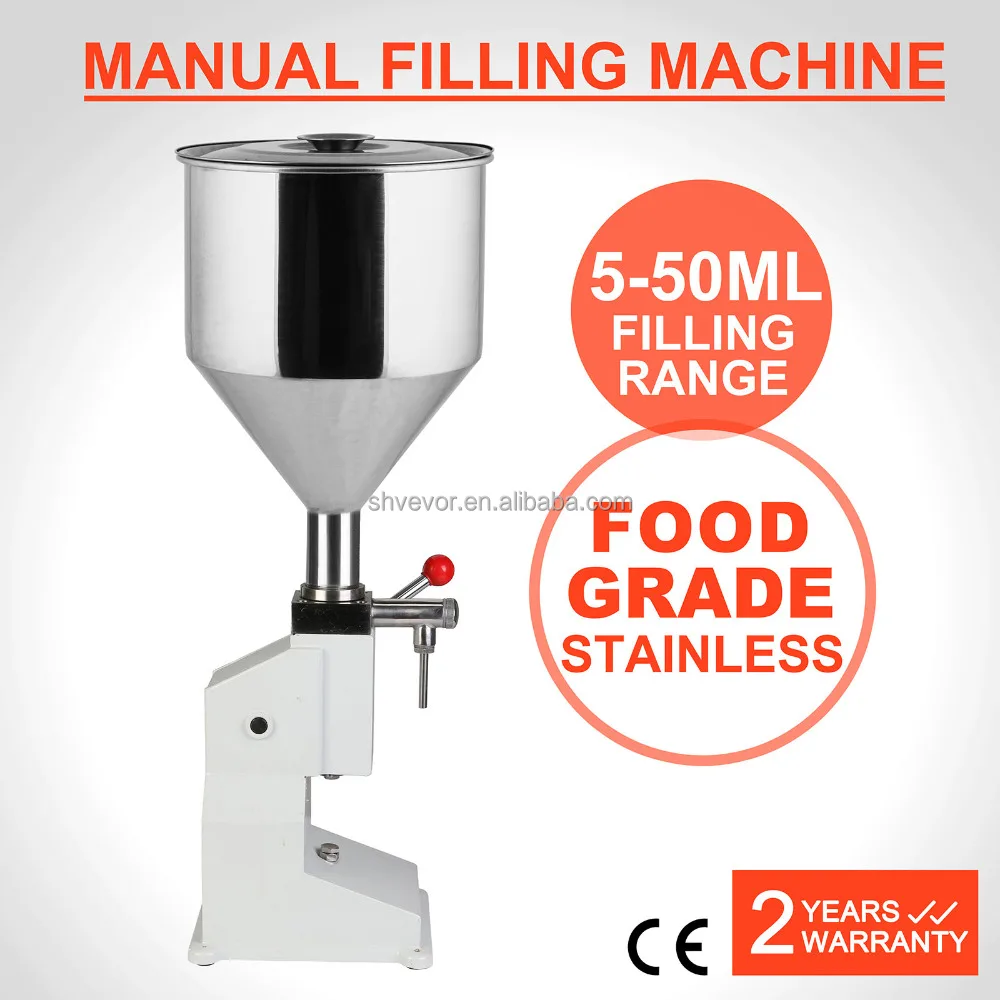

Our Innovative Newest BSC-A03 series manual filling machine adopts a piston type structure, the liquid for 0-50g quantitative filling. This product can only be used for liquid with good liquidity. Applicable to the pharmaceutical, cosmetic,food, pesticides and special industries,and also can be used for sealing the hose has the quantitative filling.

This manual filling machine has been especially designed by our factory for medium or small size enterprises including laboratories,hospitals,and beauty parlors.Its design is compact,efficient, and easy to use.All parts of the machine that touch the material being filled are Made of stainless steel and Polytetrafluoroethylene and meet food grade standards.On average the machine can fill 40 bottles per minute (depending the operation speed,product density, draw length, and fill speed). Stainless steel construction, a rugged rotary valve system,and a completely pneumatic operation design serve toextend service life.The silica gel O-ring system can withstand 392° Fahrenheit heat. Piston feed speed is adjustable and a no-drip option is included.The machine is extremely accurate (+/- 1%) and simple to operate.It is also very easy to clean and maintain thanks to sanitary stainless steel quick disconnect fittings.

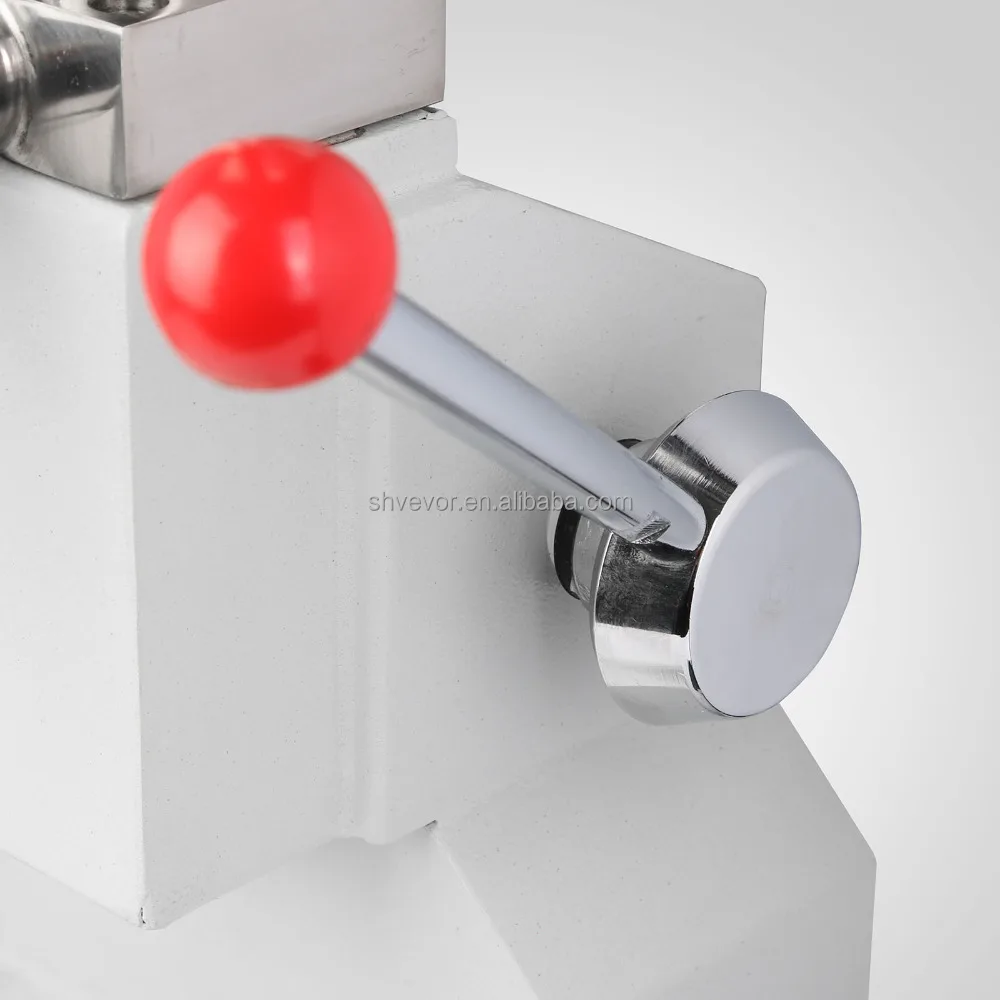

The machine has simple and reasonable structure,convenient manual operation,without any energy.With the filling volume regulator knob, quantitative discharging,filling rate and filling speed can be controlled manually.The material contact part uses stainless steel,suitable for use under acidic medium, to meet the food,pharmaceutical production and health requirements.The machine hopper capacity of 10 kg,the user can be set on the filling capacity.

• can only be used for liquid with good liquidity


• All Parts in Contact with Product are Food Grade (SS 304/316).


• Stainless Steel Construction.


• 40 bottles/min (depending on operator speed, product density, draw length, a fill speed, among others).


• Rugged Rotary Valve System Design.


• Pneumatic Operation.


• Silica gel O-ring System (cam bear 200 Celsius degree).


• Piston Feed Speed Adjustment.


• No-drip Option Included and Installed.


• Extremely Accurate (+/- 1%).


• Extremely Easy to Clean and Maintain.


• Sanitary Stainless Steel Quick Disconnect Fittings.


• Extremely Easy to Operate.


• Quick Connect/Disconnect Pneumatic Fittings.


• Completely Pneumatic, no electric.

Technical

• Filling Range: 5-50ml


• Capacity of Hopper: 22lbs/10kg


• Height range: 7.87"/200mm


• Bottle diameter range: 3-15 mm


• Filling material: liquid with good liquidity


• Filling accuracy: ±1%


• Machine size: 10.6 x 10.6 x 27.5 inch/ 270 x 270 x 710 mm


• Packing size: 13.4 x 13.4 x 31.1 inch/ 340 × 340 × 790 mm


• Net weight: 28.5lbs/13 kg


• Gross weight: 37.5lbs/17 kg

Including

• A03 Manual Filling Machine: 1Pcs


• Nozzles: 1Pcs(4mm/8mm)


• O-Ring: 5Pcs


• Screwdriver: 1Pcs


• Guide Manual: 1Pcs
