Мощная газовая турбина работающая на СНГ мощность 85 кВт кВА с фирменным
- Категория: Gas Turbine Generators >>>
- Поставщик: Chongqing,Kongka,Machinery,Co.,Ltd.,[Chongqing,China]Chongqing
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 2075874.57 $* | 2179668.80 $* |
| Aug-17-2025 | 2058430.84 $* | 2161352.22 $* |
| Jul-17-2025 | 1726988.95 $* | 1813337.91 $* |
| Jun-17-2025 | 2023541.78 $* | 2124718.26 $* |
| May-17-2025 | 1761876.74 $* | 1849970.65 $* |
| Apr-17-2025 | 1988652.36 $* | 2088085.92 $* |
| Mar-17-2025 | 1971208.60 $* | 2069768.47 $* |
| Feb-17-2025 | 1953764.58 $* | 2051452.49 $* |
| Jan-17-2025 | 1936320.54 $* | 2033136.58 $* |
Характеристики

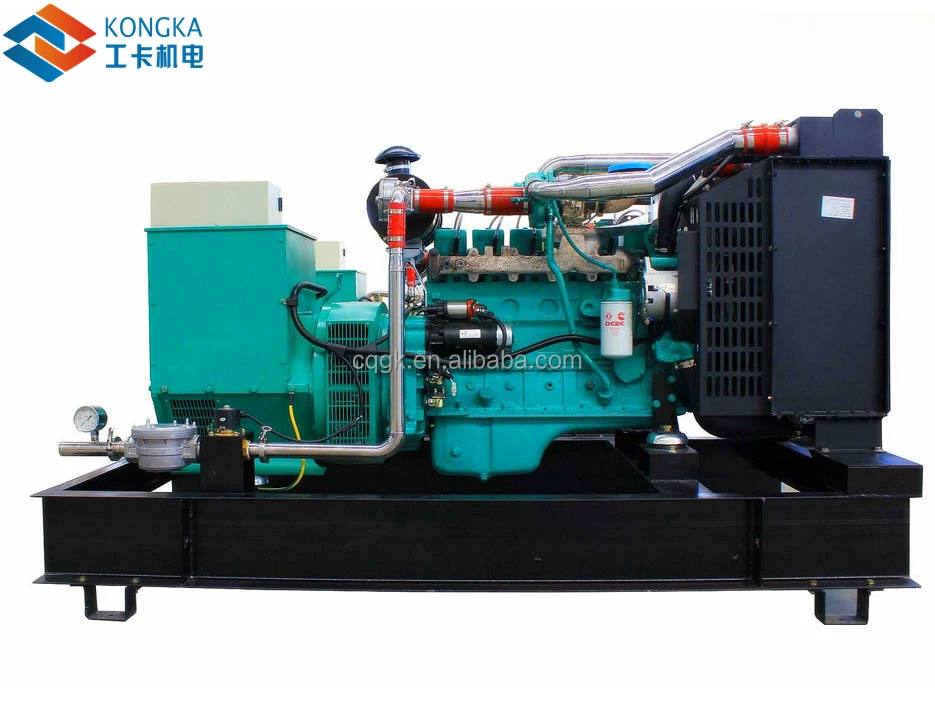

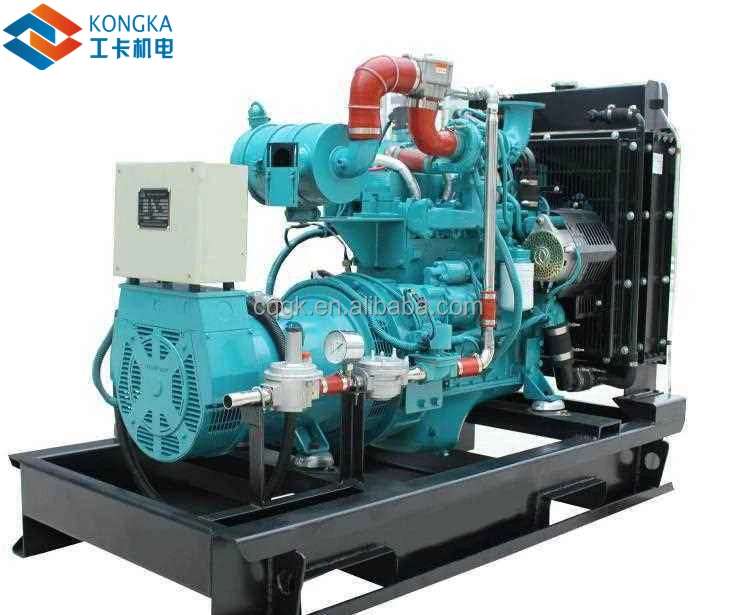

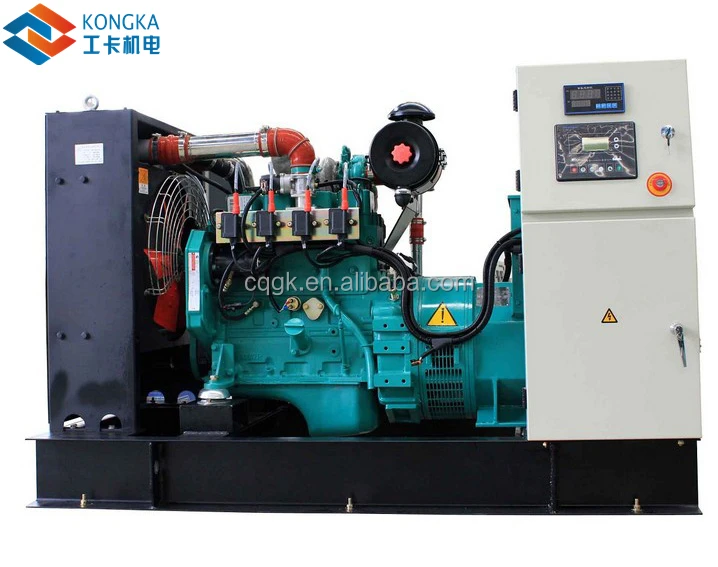

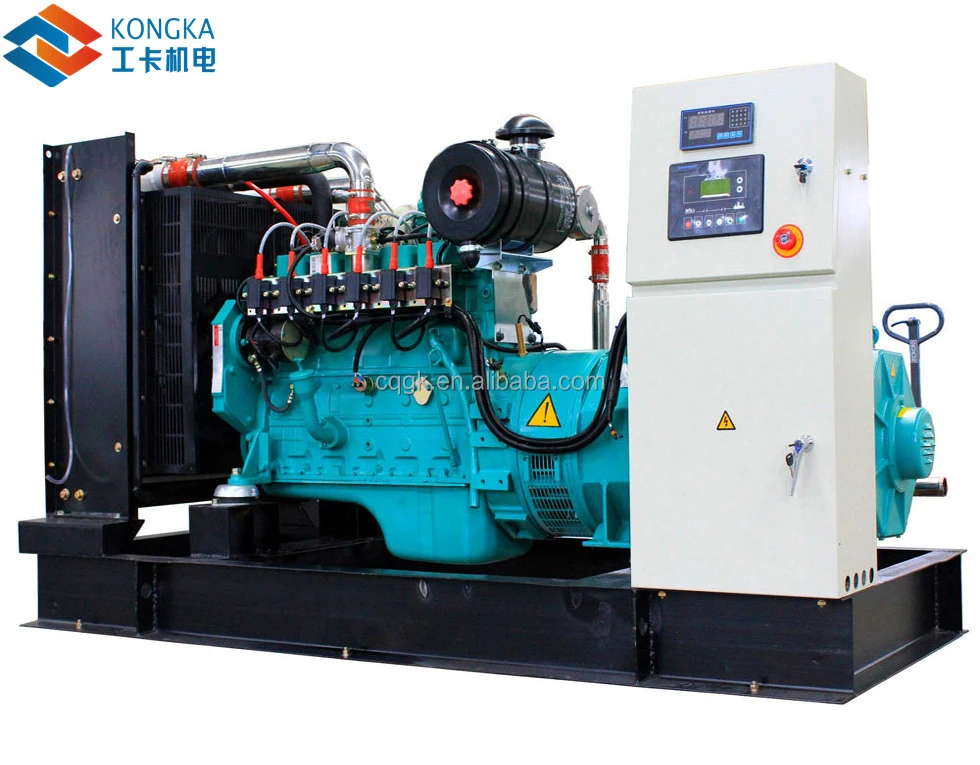

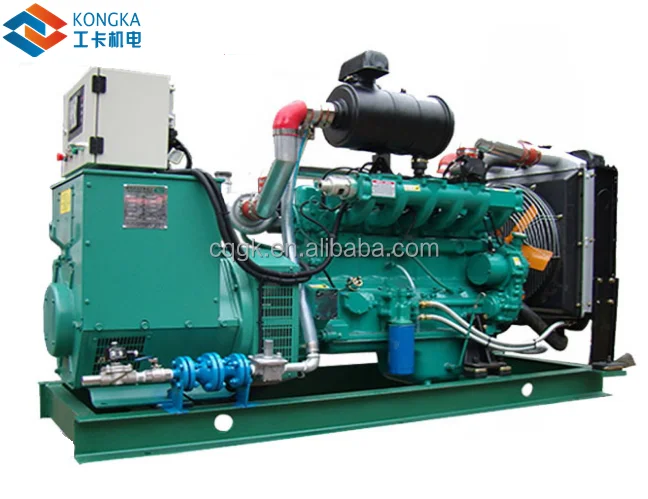

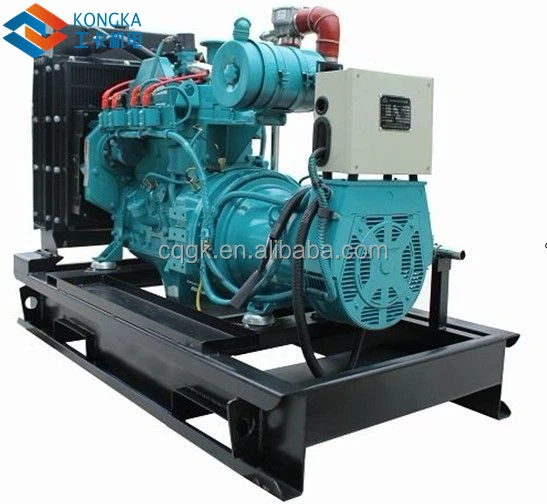

powerful lpg gas turbine generating 85kw 100kva with brand engine
Item | Model | KKLPG-75GC | KKLPG-85GC | KKLPG-100GC |
Generator Set | standby power(kVA/kW) | 103/83 | 117/94 | 138/110 |
prime power (kVA/kW) | 94/75 | 106/85 | 125/100 | |
frequency(Hz) | 50 | |||
rated voltage(V) | 400 | |||
rated current(A) | 135.3 | 153.4 | 180.4 | |
power factor(COSΦ) | 0.8 | |||
controller cabinet | 9902 | |||
controller brand | SmartGen | |||
display | LCD | |||
fuel | Tank LPG | |||
dimension (open type) | 2250*1050*1560 | 2250*1050*1560 | 2460*1010*1700 | |
net weight (open type)(kg) | 1350 | |||
protection level | IP23 | |||
warranty period | 1000 hrs. or 1 year | |||
gas consumption(g/kW.h) | 260-300 | |||
Engine | model | K-6CTAA | K-6CTAA | K-6LTAA |
displacement(L) | 8.3 | 8.3 | 8.9 | |
speed(RPM) | 1500 | |||
compression ratio | 10:1 | |||
bore*stroke(mm*mm) | 114*135 | |||
cooling method | water cooled | |||
oil capacity(L) | 18.9 | 18.9 | 27.6 | |
oil cooler | with | with | with | |
mixer | IMPCO, USA | |||
ignition system | made in Canada | |||
speed governor | WOODWARD | |||
vaporizer (evaporator) | IMPCO, USA | |||
Alternator | brand | Marathon | ||
model | MP-75-4 | MP-90-4 | MP-104-4 | |
phase | 3 phases, 4 wires | |||
connecting method | SAE standard | |||
way of excitation | brushless, self-excitation | |||
insulation grade | H level | |||
Product Description
Packaging & Shipping
Our Services
Sale guarantee
BEFORE SERVICE: According to the clients requirement and actual situation, we will furnish the technology consultation and kinds of information.
AFTER SERVICE: Guarantee for one year or 1000 running hours (accord to whichever reach first) from installed date. During the guarantee period, our company will provide the free easy damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts by customer incorrect man made operation. After expiration, our company provides cost spare parts maintenance for gensets .
