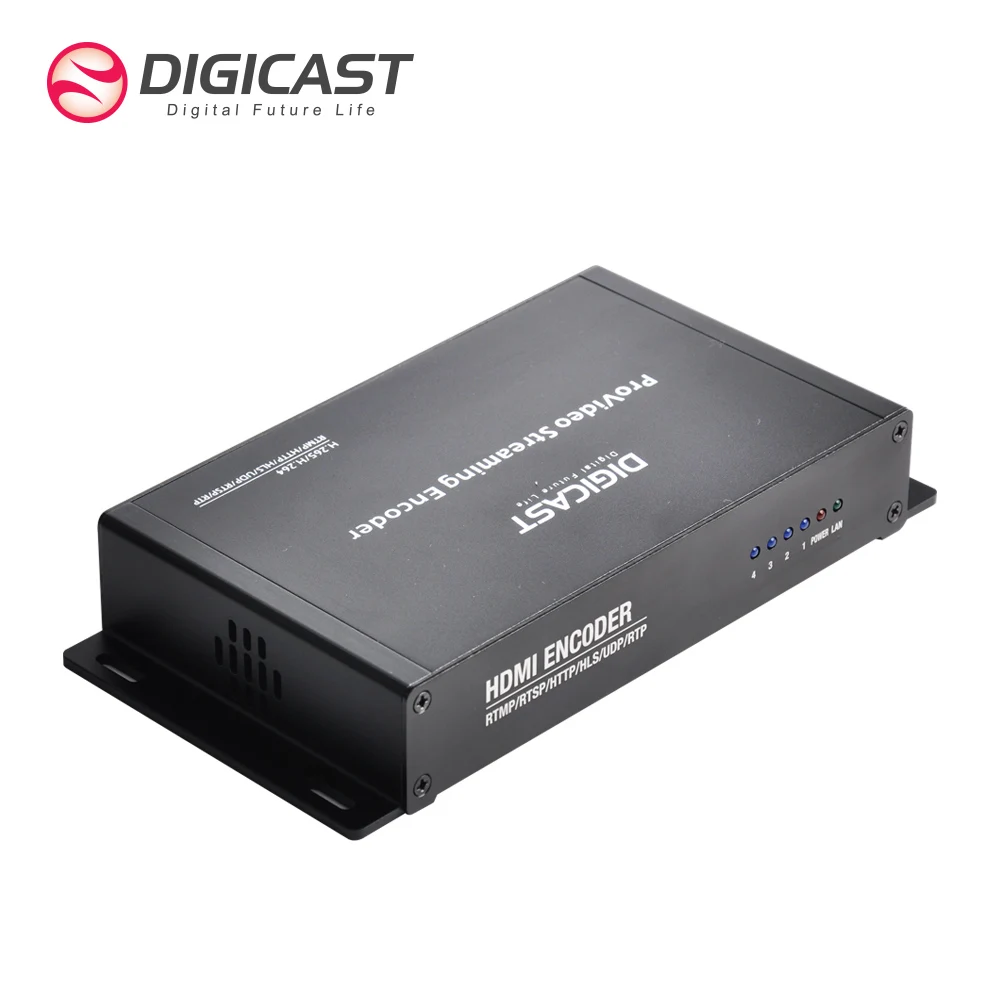

DMB-8904A-EC H.265 4 в 1 1080p HD цифровой 4-канальный ТВ IP видео кодировщик для головного оборудования

Digicast multiscreen multiprotocol series IPTV Encoder are designed to address the increasing demand for video delivery to Internet and mobile devices. DMB-8904A-EC Classic H.264/H.265 HD 4 Channel IPTV Encoder supports audio and video collection by 4-Ch HD HDMI input. For HDM input, each channel of HDMI input supports output 4 groups IP streams with four different resolution (up to 1080p) and four different bitrates to meet different size screen and different bandwidth condition. Each group of IP stream supports kinds of main protocols output (HLS, RTMP, HTTP, RTSP, UDP), this enable Encoder to deliver H.264/H.265 IP streams by independent IP output to various servers for IPTV & OTT application. Such as Facebook Server, YouTube Server, Ustream Server, Adobe Flash Server, Wowza Media Server, Windows Media Server and some other servers based on HLS/UDP/RTSP/RTMP/HTTP/ONVIF protocols. Moreover, providing username, password matching function which required from destination server, to avoid the streaming which do not authorized.

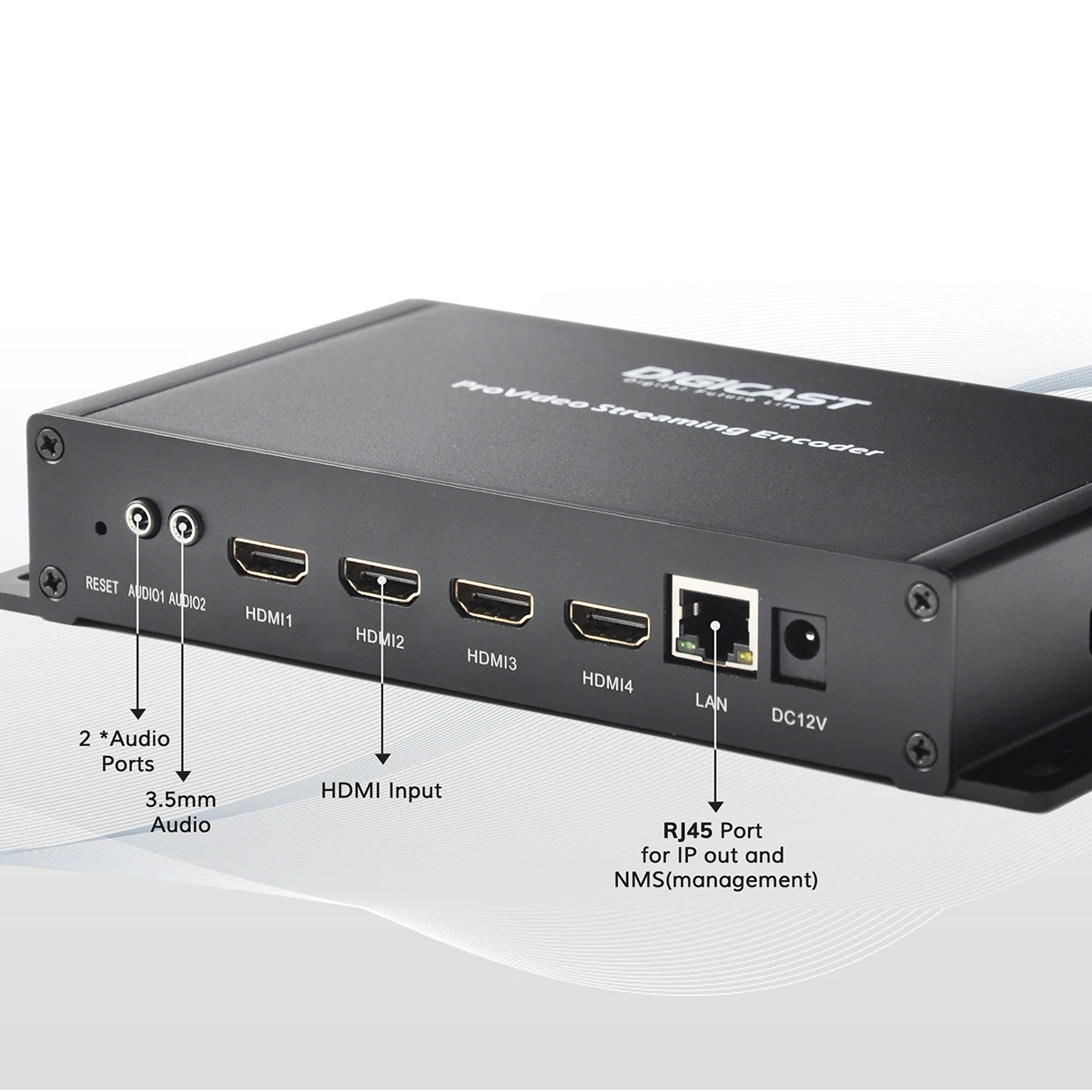

*Video Input: 4-Channel HDMI work simultaneously
*Video Compression: HD H.265/H.264/MPEG-4 AVC, up to 1080P@30fps
*Dolby AC3 audio compression
*Support H.265/H.264 High/Main/Baseline Profile and AC3, AAC, MP3, MP2 audio compression
*All protocols (HLS, RTMP, HTTP, RTSP, UDP) can be working simultaneously
*Support output up to 4 groups TS over IP streams with 4 different resolutions and 4 different bitrates by each HDMI channel input
*Having 2*Jack(3.5mm) and 4*HDMI embedded audio input
* Support RTMP User name and Pass word for authentication of IPTV Server
*Capable of OSD settings for logo, text and Scroll Caption; Adjustable of audio gain;
*Bitrate mode: CBR/VBR
*Capable of image parameter settings

*Configurable of Multi-Screen, Multi-Protocol, Low bitrate with high quality image.

*Any iOS browsers (iPhone, iPad, MacBook etc.) can have streams from IPTV Streaming Encoder in Anytime, Anywhere by HLS protocol without install any software players.
*Any terminal devices/decoders can have streams from IPTV Streaming Encoder directly by RTMP protocol with software players (such as VLC).
*Support HDCP protocol
*Support ONVIF Network Video Protocol
*Support multiple equipment display at the same time on a computer
*System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64, LINUX
*Web-based management.
*Full-duplex mode 1000M

OEM/ODM is available
