1000 мм ход самосвал лифт 10 дюймов диаметра гидравлический цилиндр
US $169.00-$296.00
Экономически эффективный гидравлический простой подъемной системы для резервуар строительства/бак строительство фермы
- Категория: Гидравлические цилиндры >>>
- Поставщик: Wincoo,Engineering,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 972.95 $* | 991.2 $* |
| Jul-19-2025 | 788.87 $* | 804.6 $* |
| Jun-19-2025 | 956.33 $* | 975.63 $* |
| May-19-2025 | 949.56 $* | 968.94 $* |
| Apr-19-2025 | 757.72 $* | 772.65 $* |
| Mar-19-2025 | 933.99 $* | 952.36 $* |
| Feb-19-2025 | 926.47 $* | 945.8 $* |
| Jan-19-2025 | 918.24 $* | 936.67 $* |
Характеристики
Product Description
The equipments are mainly used for vertical tank top to bottom construction.Also it can be used for mega work piece jacking or lifting.
Model | 16t |
25 t | |
50t | |
80t | |
Customized |
Detailed Images
The following short description gives the working procedure in outline. It can in certain details be modified when required.
Step 1. The tank bottom – plates are placed on the prepared foundation and welded together.
Step 2. The beams or lattice work of the roof are assembled and finally joined to the upper rim of the shell ring.

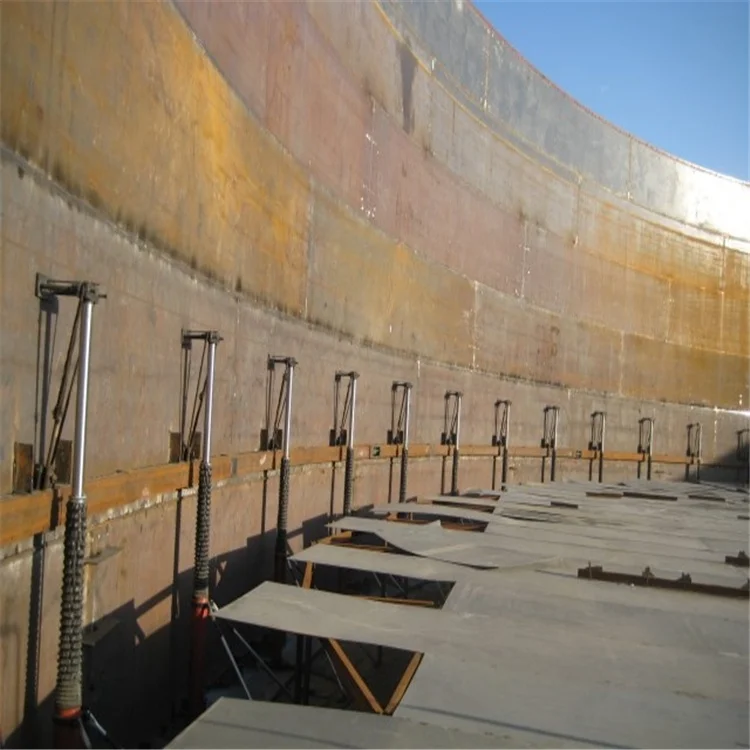

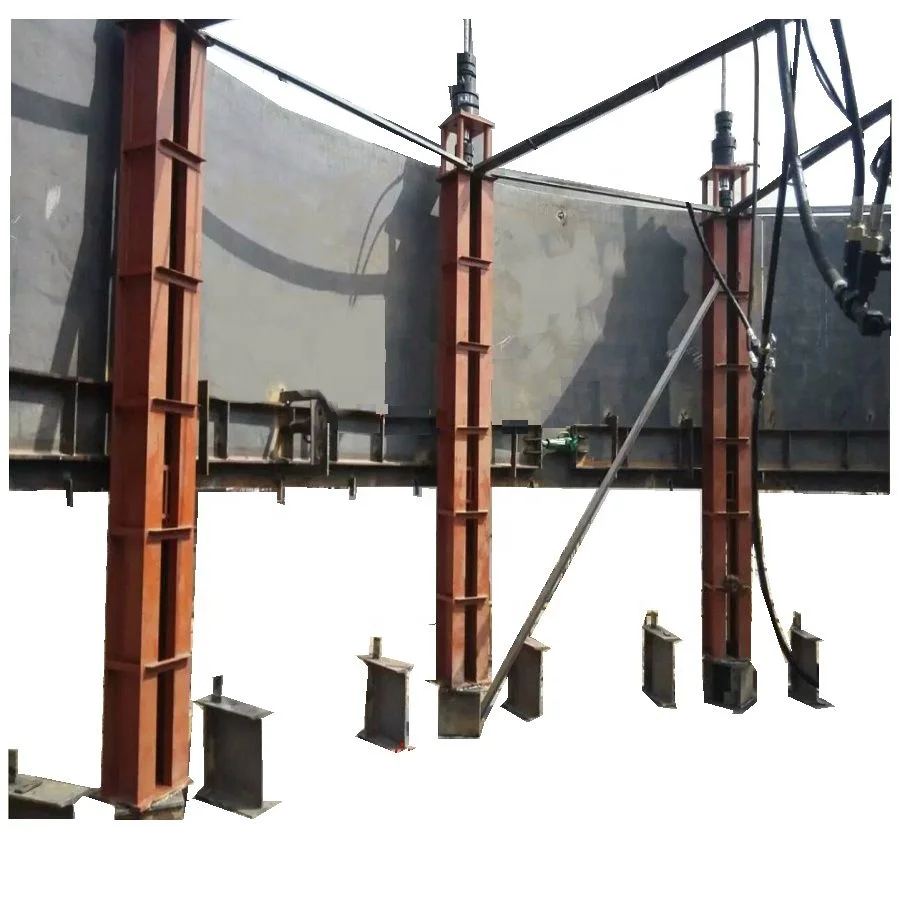

Step 3. The jacking equipment is installed in the tank. The plates of the second shell ring (next to the top ring) are positioned outside the first one.
Step4. The completed part of the tank (roof and top shell ring) is lifted hydraulically to a height at which the plates of the
second ring can be moved into place and the roof sheeting can be completed.
Step5. The plates of the second shell ring are located exactly and welded together to the lower edge of the first ring.
Step6. The plates of the third shell ring are placed outside the second shell ring.
Step7. The completed part of the tank (roof the two uppermost shell rings) is lifted.
Step8. The above cycle of operations is repeated until the last (bottom) shell ring is finished.
Step9. The entire tank is lowered down to the bottom plate and welded to this.
Step10. The lifting equipment is dismantled.
Step 1. The tank bottom – plates are placed on the prepared foundation and welded together.
Step 2. The beams or lattice work of the roof are assembled and finally joined to the upper rim of the shell ring.
Step 3. The jacking equipment is installed in the tank. The plates of the second shell ring (next to the top ring) are positioned outside the first one.
Step4. The completed part of the tank (roof and top shell ring) is lifted hydraulically to a height at which the plates of the
second ring can be moved into place and the roof sheeting can be completed.
Step5. The plates of the second shell ring are located exactly and welded together to the lower edge of the first ring.
Step6. The plates of the third shell ring are placed outside the second shell ring.
Step7. The completed part of the tank (roof the two uppermost shell rings) is lifted.
Step8. The above cycle of operations is repeated until the last (bottom) shell ring is finished.
Step9. The entire tank is lowered down to the bottom plate and welded to this.
Step10. The lifting equipment is dismantled.
Size Information
Size Chart of Machine
Power input | 380V/3ph/50hz | |
Working capacity | will recommend as per tank lifting weight | |
Diameter | will recommend as per tank diameter | |
Plate width | 1.5 – 2.7m | |
1 x 60 Hydraulic Power Pack | ||
Rated Pressure | 25MPa | |
Rated Flow | 60L/min | |
Output flow | 0 -58L/min | |
Power of motor | 22kw | |
Oil pump | 400L | |
Net Weight | 680kg | |

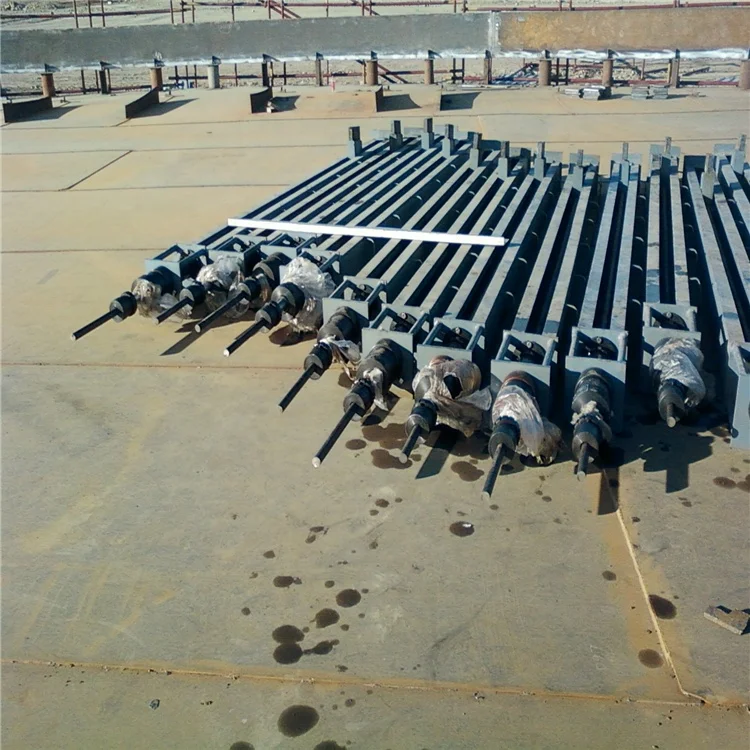

32 x SQD-160 Tank Trestle | ||
Rated Lifting Capacity | 160KN | |
Rated Oil Pressure | 20MPa | |
Effective travel of hydraulic jack | 100±3mm | |
Effective lifting height | 2500mm + 200mm | |

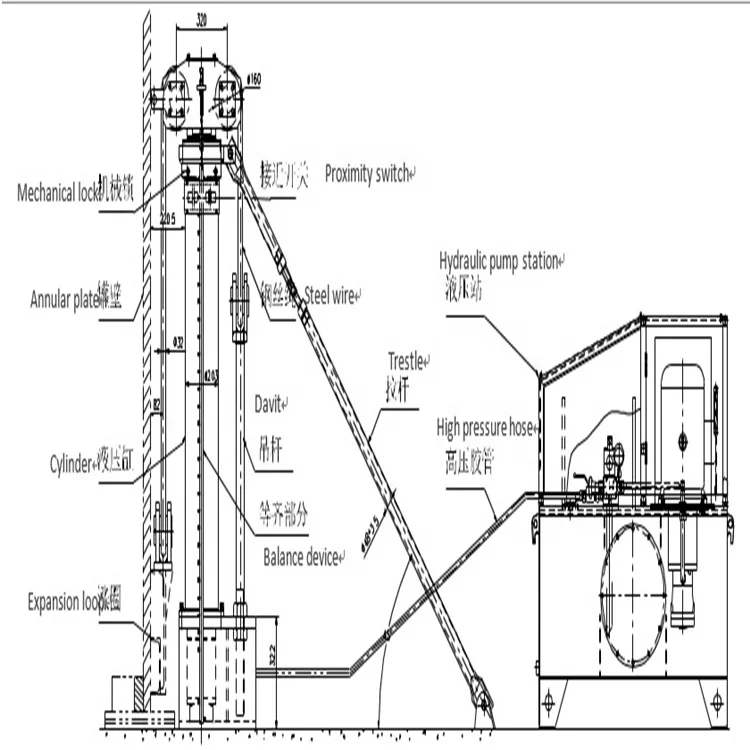

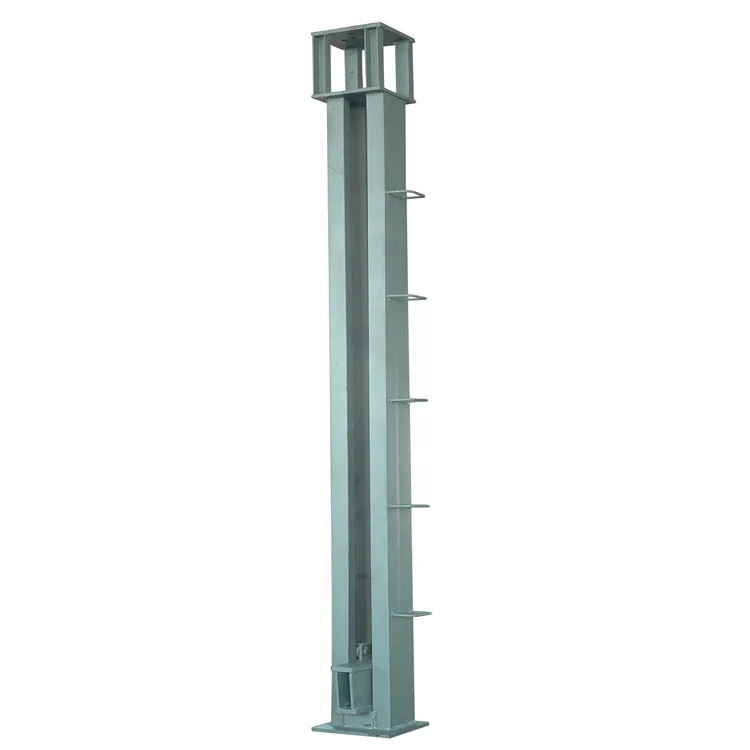

1 x column 1 x leaning stay 1 x ball-and socket joint 1 x hydraulic jack(16 tons) 1 x high pressure oil hose 1 x lifting arm | ||
Packing&Shipping
We will provide professional export packaging and choose the appropriate mode of transportation, or we can follow the requirements of customers.
After Sales Service
After sale service
Professional technical support and product quality assurance.
Company Introduction
Wincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipments for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction,industrial production lines, clean energy project and other industrial field.
Our Services & Strength
We have ability of providing workable solutions to support clients to be awarded with shorter project execution time, fewer
man-hour cost and higher efficiency construction/fabrication method and better quality during phase of project bidding.
Based client’s facility/site space availability, we are able to study/design and present matched configurations on project
schedule, quality, cost and productivity to guarantee production pace is accordance with project requirement.
To support project execution, we are always ready to work as fireman to give prompt supply on project materials from different consumables, tools, equipments/machines to special merchandise. With flexibility, we are also glad to perform as procurement agent in China to seek required supply resources.
man-hour cost and higher efficiency construction/fabrication method and better quality during phase of project bidding.
Based client’s facility/site space availability, we are able to study/design and present matched configurations on project
schedule, quality, cost and productivity to guarantee production pace is accordance with project requirement.
To support project execution, we are always ready to work as fireman to give prompt supply on project materials from different consumables, tools, equipments/machines to special merchandise. With flexibility, we are also glad to perform as procurement agent in China to seek required supply resources.
