Плоский бетонный балласт для крыши треугольная система крепления кронштейна на


Поделиться:


Цена:0,05 $ - 0,10 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-20-2025 0.29 $* 0.86 $*
Aug-20-2025 0.3 $* 0.40 $*
Jul-20-2025 0.66 $* 0.7 $*
Jun-20-2025 0.26 $* 0.35 $*
May-20-2025 0.36 $* 0.45 $*
Apr-20-2025 0.94 $* 0.70 $*
Mar-20-2025 0.51 $* 0.11 $*
Feb-20-2025 0.81 $* 0.90 $*
Jan-20-2025 0.93 $* 0.78 $*

Характеристики



Product Details

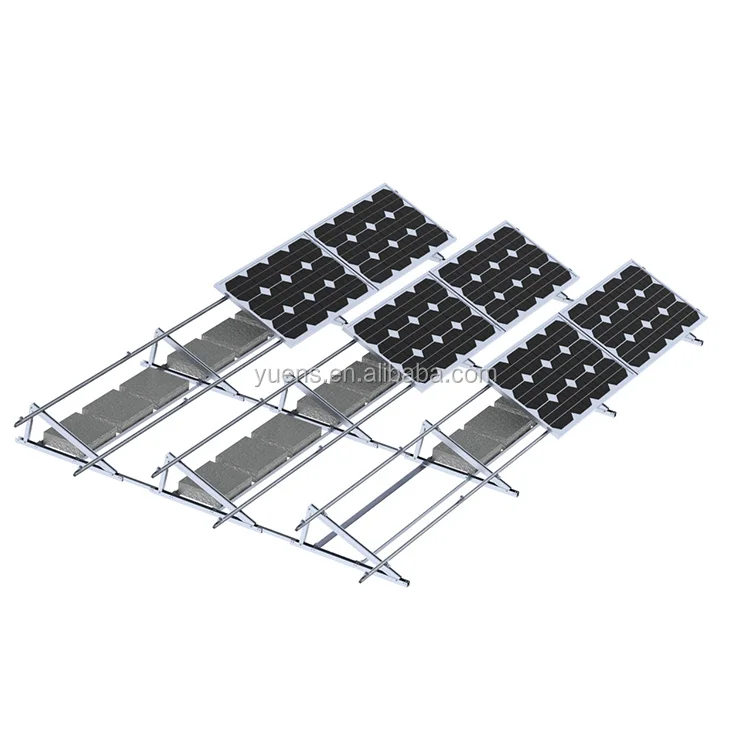

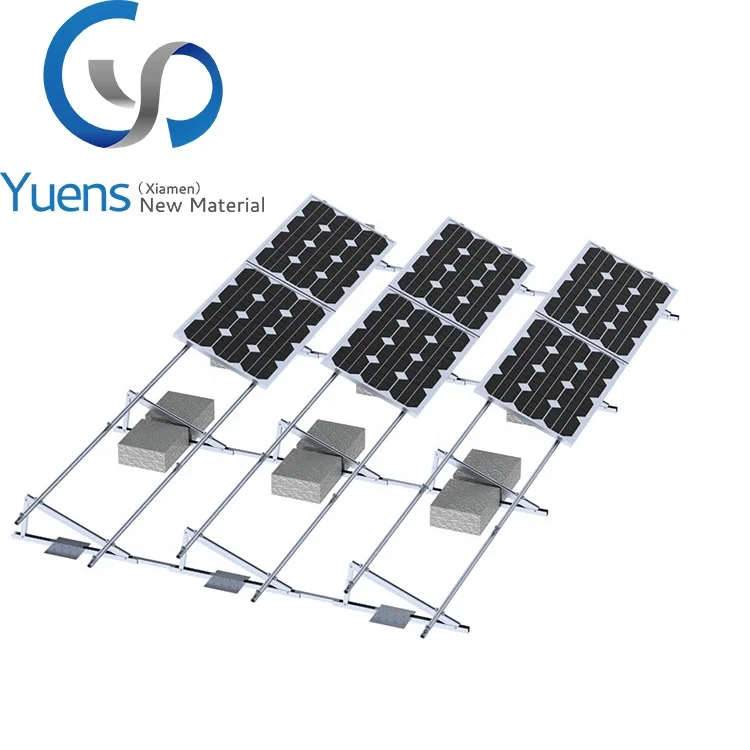

Flat Concrete Roof Ballast Triangle Solar Bracket Mount System

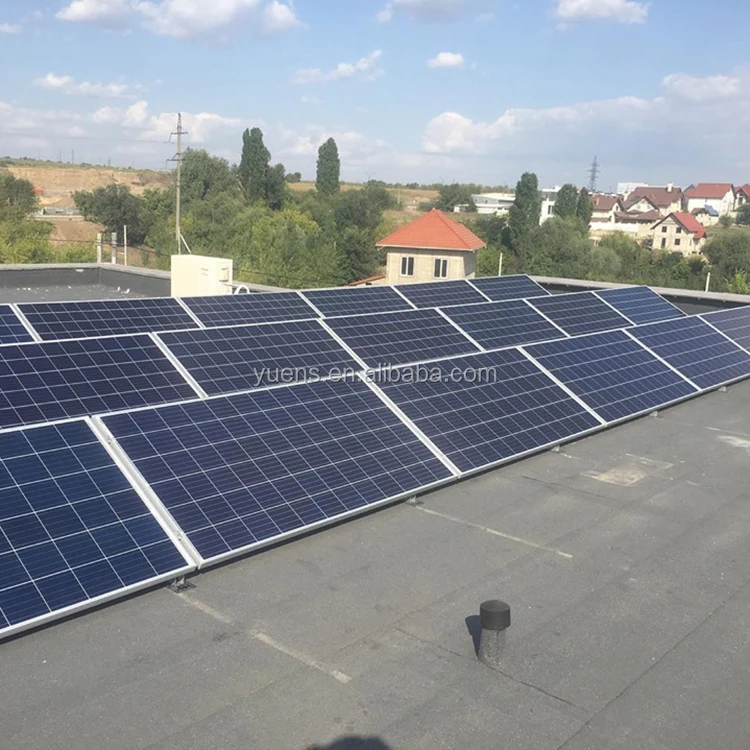

Application Case





Technical Parameter


Install Site:
Flat & Open fild
Max. Wind Speed:
60m/s
Snow Load:
1.4kN/m2
Color:
Natural
Adjustable Tilt Angle:
10-15°, 15-30°, 30-45°
Material:
AL 6005-T5 & Stainless Steel 304
Warranty:
12 years warranty; 25 years service life
Max. Building Height:
up to 65ft(22cm), customized available


BOM List for a project with 3000W:



ITEMS
DESC.
QTY.
Solar Panel
1640*992*40mm
12pcs.
Support Frame

12pcs.

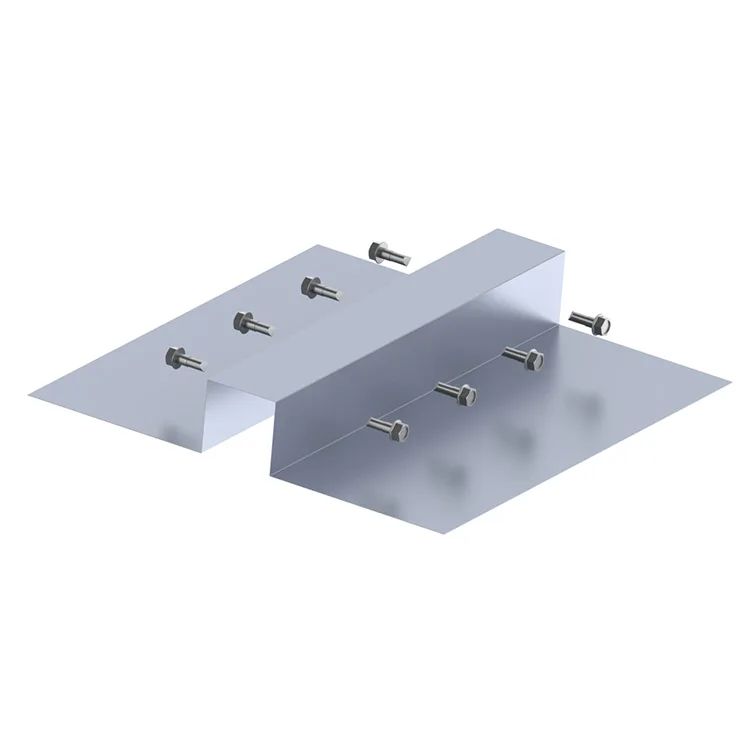

Frame Splice

8pcs.
Rail
L=3360mm
12pcs.
Rail Splice
L=200mm
6pcs.
Fixing Component
L=1935mm
18pcs.

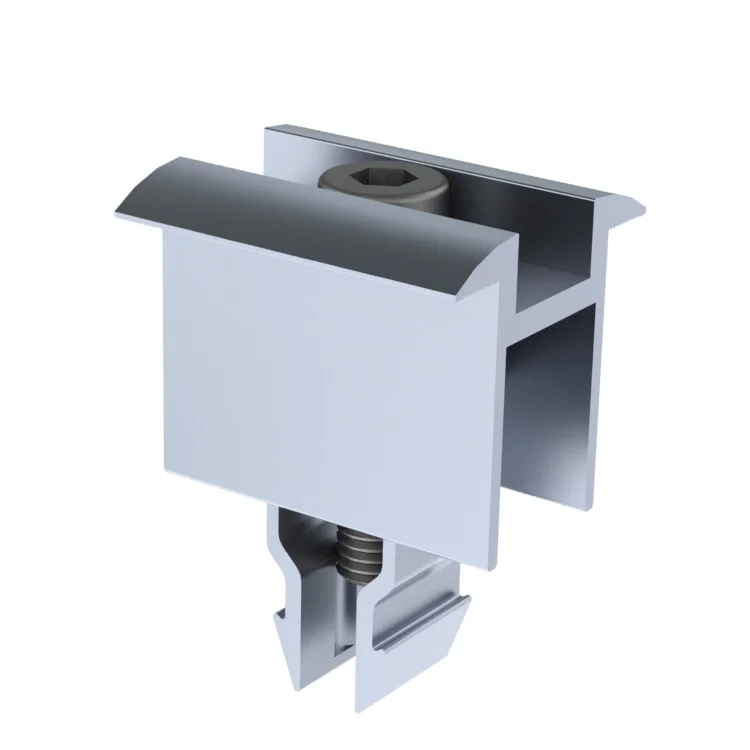

Mid Clamp
L=40mm
18pcs.
End Clamp
L=40mm
12pcs.
Fixing Clamp
L=40mm
24pcs.
Small L-Feet
L=40mm
36pcs.
Grounding Washer
L=40mm
18pcs.
Grounding Lug
L=40mm
6pcs.

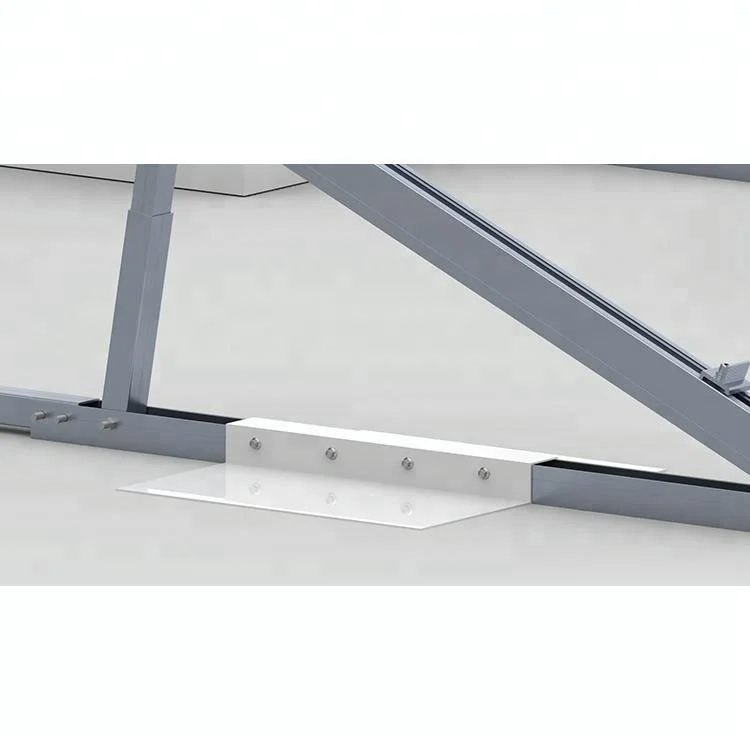

Main Components


Click below pictures to get more details.
Contact us to get sample and catalog :-)






















Related Products


Click below pictures to get more details ;-)



Thin Film Panel Clamp

Available for glass panels with thickness from 5-9mm

Solar Tile Roof Hooks (OEM)

SUS 304 / EN-1.4301
Design for different types of roof tiles

Metal Roof Short Rail

Cost-effective & Easy-Install
The combination of clip lock kit and short rail for stand seam roof


Ballasted Flat Roof Mount

(Adjustable) Triangle mount solution for concrete flat roof


Ground Mount w/ Screw Anchor

Mounting solution for large-scale area

Single Post Solar Carport

2017 new design T-frame solar carport



Installation Steps


Contact us to get the detail installation manual :-D





1. Preassemble the ballasted support frames.





2. Install triangle fixing component with small L-feet.





3. Connect two rails with rail splice if the rails are not long enough.

4. Fix the rail on ballasted support frame with fixing clamps.





5. Fix panel on the rail at the end of panel by end clamp.

6. Fix panel on the rail in the inner part by mid clamp.





7. Well done! You have installed the flat roof mounting system successfully.



Processing & Packing




Yuens


is a professional company, engaged in research, manufacturing, and marketing of aluminum products for the solar mounting system, curtain wall system, and other architectural constructions. We have been committed to providing high-level quality products and related technical support service.







Solar Show




Yuens attended the Solar Show Philippines 2017 in Manila.
