> Total quality management system.

Wuhan Lansun CNC cutting machine, To Be your reliable business partner!

Brief introduction

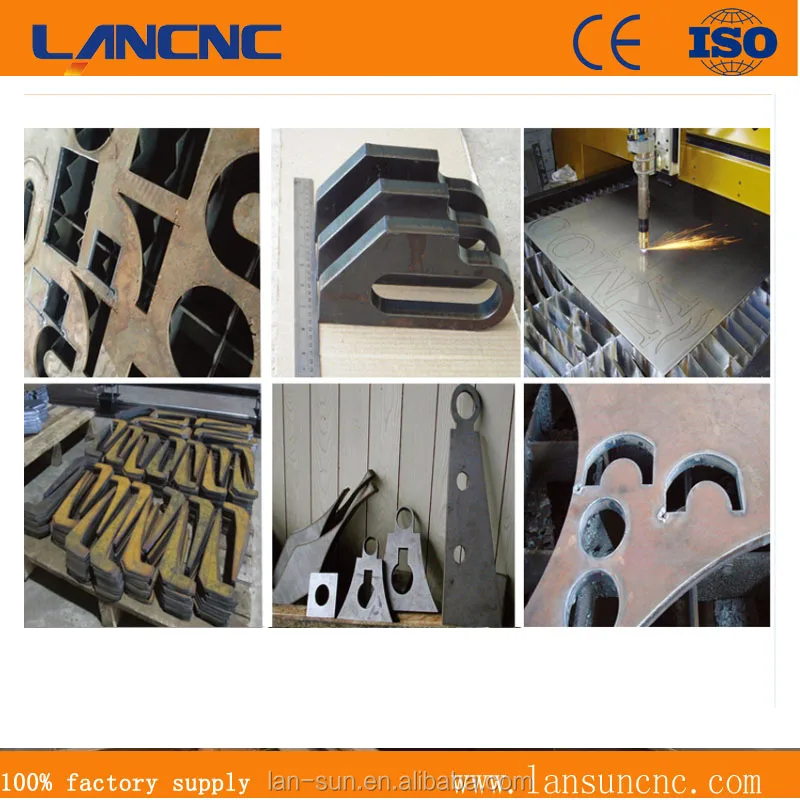

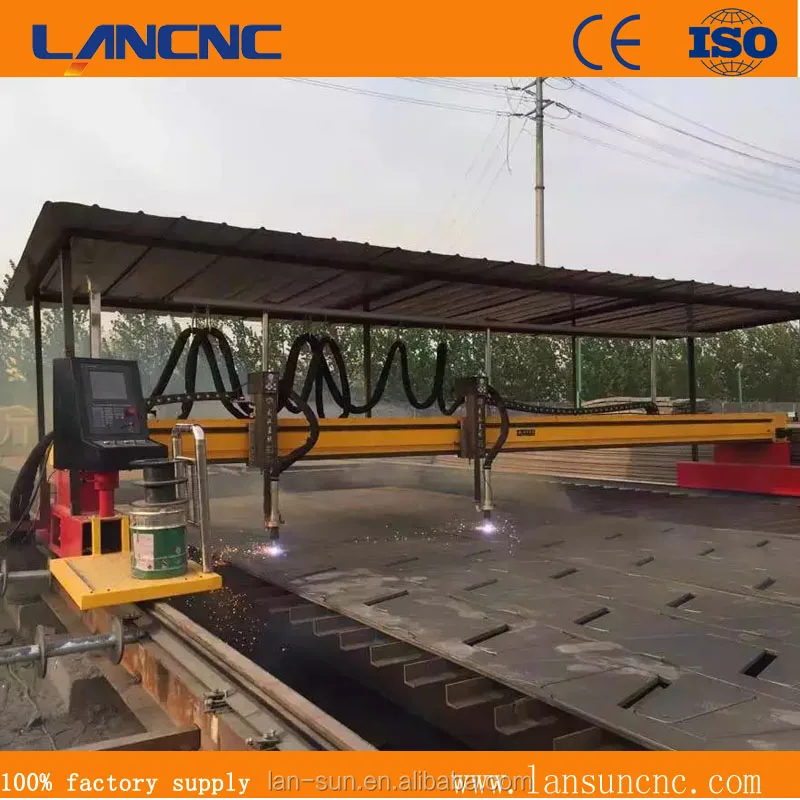

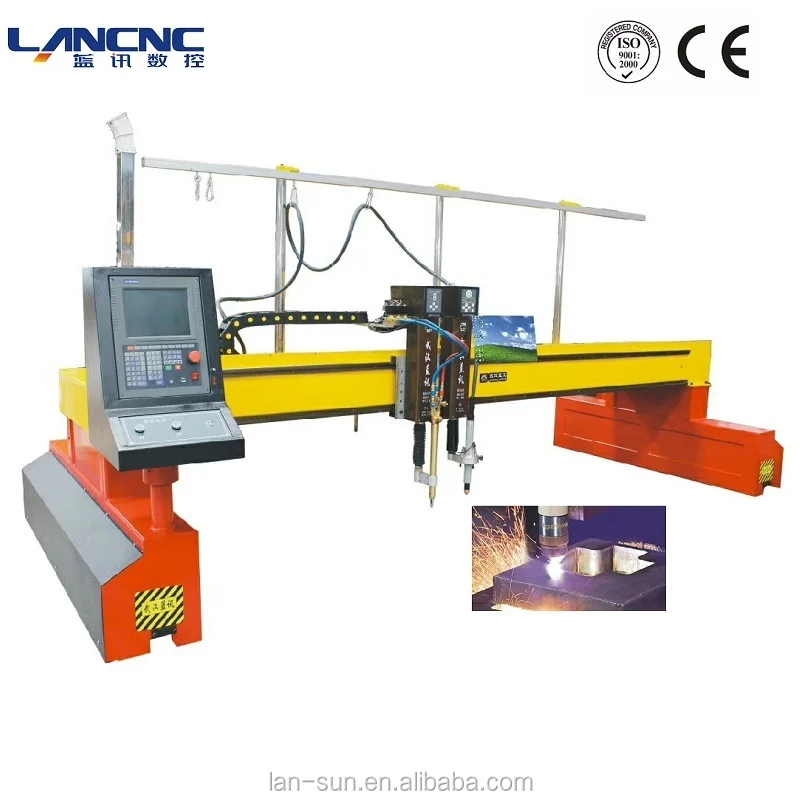

The gantry CNC plasma and flame cutting machine is specially designed for metal plate cutting,it is characterized of high automation and efficiency,easy operation and long service time. This CNC plasma and flame cutting machine is gantry structure with double-driven system, working size can be customized upon requirement.It can be used for cutting carbon steel, stainless steel and non-ferrous metal in any 2 d graphics,thus is widely used in metal cutting fields.

Features

1. Steel hollow beam design ensures good heat dissipation without deformation.

2. The gear-rack driving motions without engagement gap ensure the machine running smooth at high speed.

3. Fully functionalized CNC system and optocoupler device enhance the super anti-jamming capability of the plasma system.

4. World’s top branded components and circuits ensure long service life.

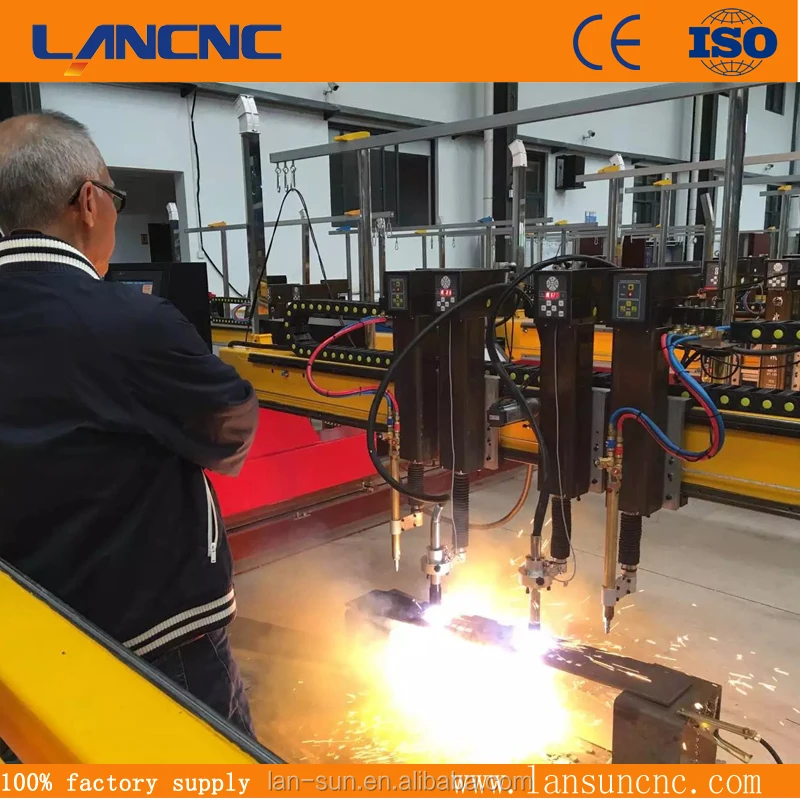

5. Multiple cutting torches can be configured. Both flame and plasma torches are optional to meet the needs of cutting different materials in a range of thickness.

Parameters

Model	ZLQ-4H
Cutting Mode	Plasma	Flame	Flame and Plasma
Driving Mode	Servo motor or stepper motor , Dual-side
Cross beam Width(m)	4m~7m or customize
effective Working Width(m)	1m less than track width
Guide rail Length (m)	According to your cutting demands
effective working length (m)	2m less than guide rail length
Flame Cutting thickness(mm)	5-200 (specific type up to 300)
Plasma Cutting thickness(mm)	According to the plasma generator, common 1-30mm
Number of Cutting Torch	At customers’ requests
Cutting Speed (mm/min)	50-8800
Running speed (mm/min)	12000
NC Controller	Beijing or Shanghai or import System you want
Plasma Power	100A ,120A , 200A ,300A ect . China , USA brand
Programming software	China or Australia professional nesting software
Operation language	English or Chinese or Russian

Machine main configuration

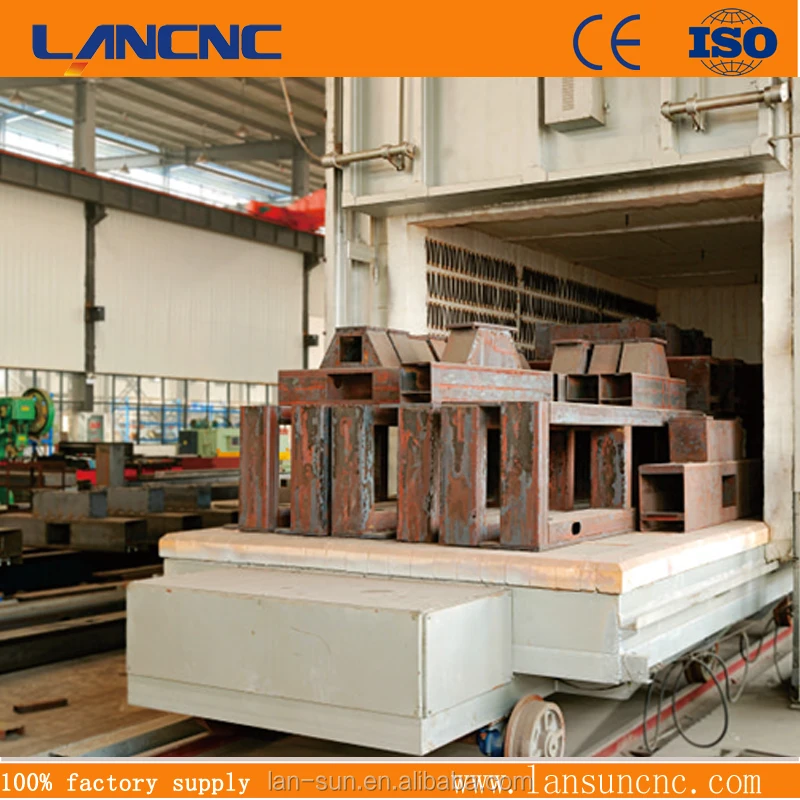

Machine body structure 1.Box weldment structure process tempering 2. Excellent rigidity and intensity. 3.Single drive adopts three-point fix structure. 4.Dura drive adopts symmetrical structure.
Transmission 1.Rack and gear mesh transmission. 2.Gear box: SEW, high output torsion low noise. 3.Horizontal torch transmit by steel belt. 4. These devices are durable and long life device.
Drive Model: Japan AC servo motor High stability of walking Convenient maintenance
Guide rail : Material :U71Mn Intensity:No less than700N/mm²; Loading capacity no less than = 10T(per meter), Rail tensile strength no less than 883Mpa, Compression strength no less than 1000T. Process mode:High precision grinder. Longitudinal rack accuracy :7grade Unit length:1.0M Pitch:CP6 Error:±0.06mm/800mm
Torch carrier and torch : Torch carrier assembly including: Motor Lifting device Torch, holder Gas valve Flashback arrester
CNC System : 1).10.4 inch LCD display 2).Metal operation key 3).USB port support, figures display 4).Indicator lights showing working condition 5).Operation menu displayed instantly on monitor 6).Batched production 7).Easy figures programmed directly 8).Don't be interfered by the electro magnetic wave, etc 9).Pause, forward, backward, and movement while machine working
