Hebei шарнирный зажим трафаретная

Hebei Hinge clamp screen printing

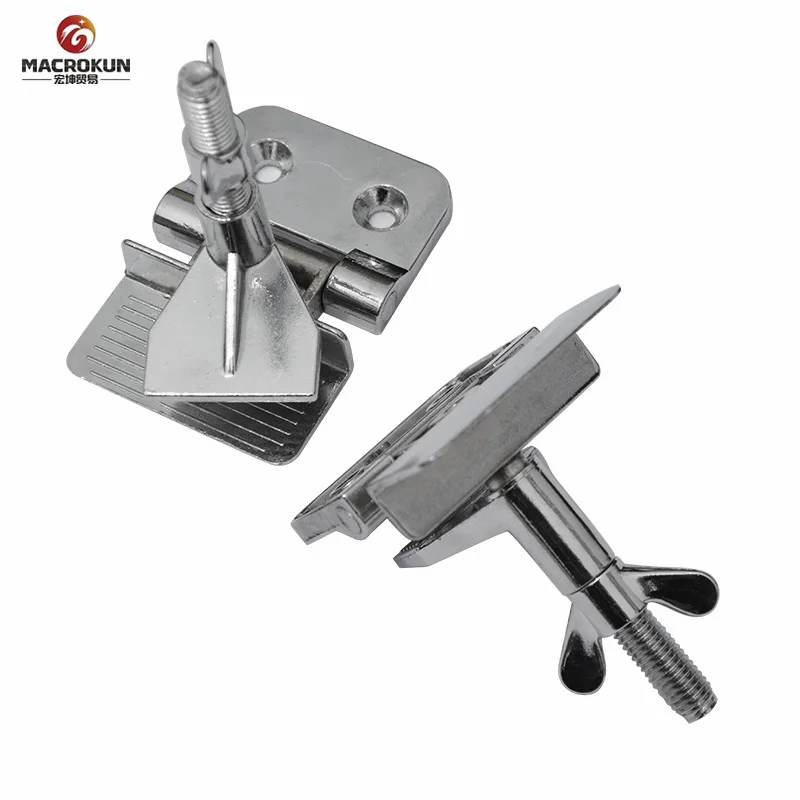

Two screen printing clamps / screen printing holders to affix the screen printing frame.The clamps are perfectly suited to our Screen printing frames. The clamps can be attached with the help of screws on a wooden board. The frame is then fixed in the clamps and screwed tight. The frame can now be easily folded up and down.The advantage: The frame will not shift during printing and it is always positioned exactly. Especially for t-shirts or poster prints, this is a cheap alternative to our equipment.Maximum available frame profile: 4cm in height.

Hebei Hinge clamp screen printing specifications

1. circular clamp

2. perfect registration

3. excellent leak tightness

4. hold a frame up to 2" thickness

Products description:

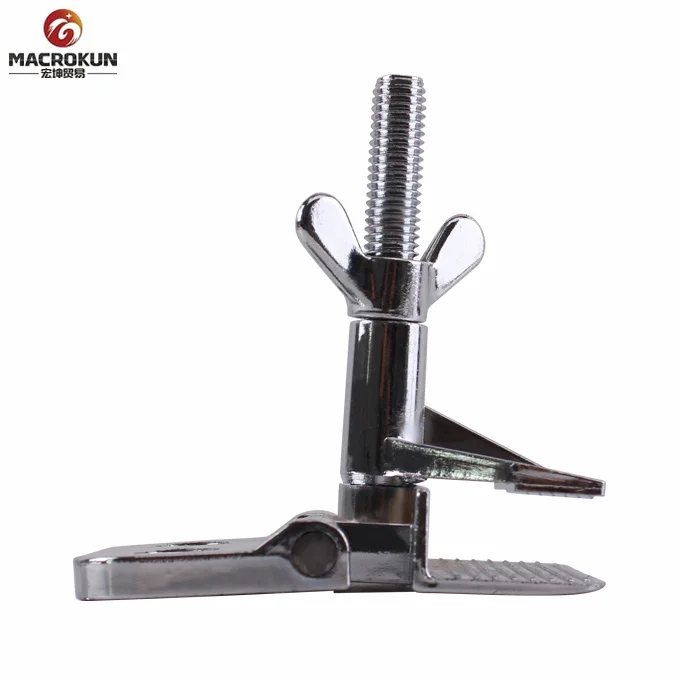

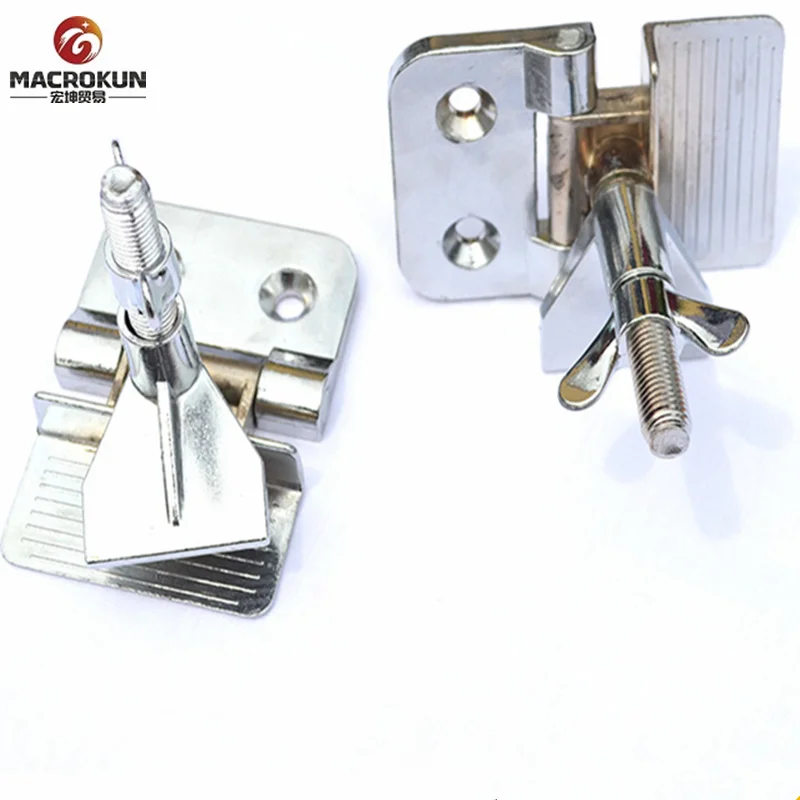

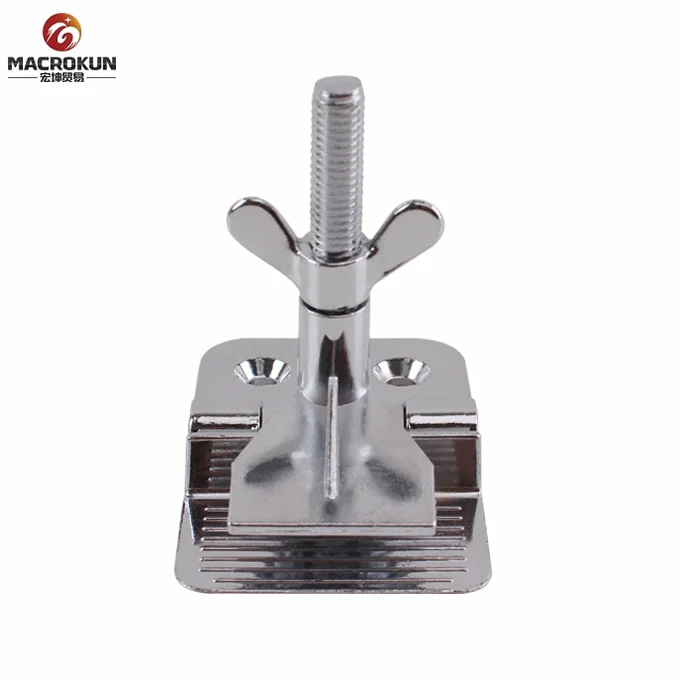

Screen hinge clamps constructed of steel to hold all wood or metal screens from 5/8" to 2" thick.

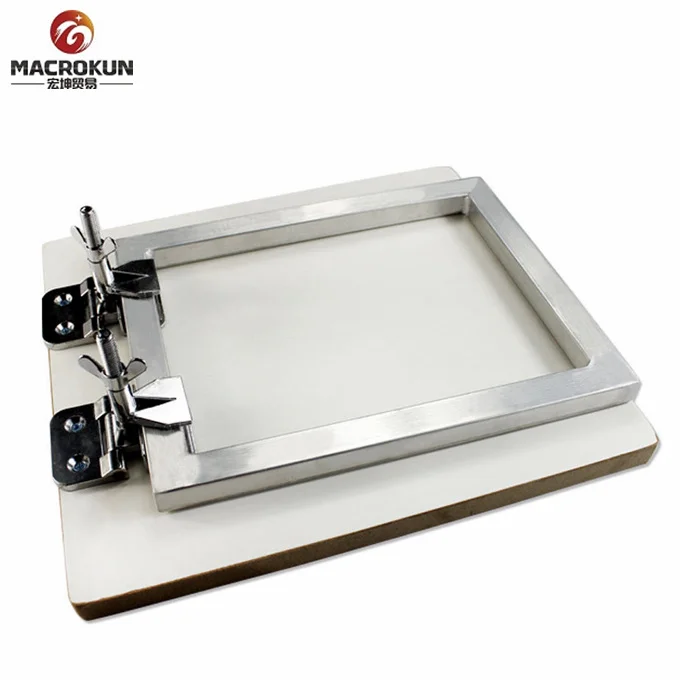

Hinged Clamps, when attached to a table top, hold the frames in position to make an inexpensive printing press.
You can use a stick, a block of wood or a weighted rope to hold the frame up while changing substrates.

Parameters:

Application Thickness of Screen: below 2" (51mm).
Height: 3.5" (90mm)
Length of Clamp: 2.4" (60mm)
Net Weight: 0.44Lb(0.2kg)

Hebei Hinge clamp screen printing features:

1. Easy to use screen hinge clamps
2. Constructed from steel
3. Holds all wood or metal screens from 5/8" to 2" ( 1.5 to 5 cm ) thick.
4. Locking action firmly holds screens in place for positive registration
5. Allows fast changeover between jobs

Hebei Hinge clamp screen printing applicatioin:

This screen printing hinge clamps is used for fixing screen frame when it is printing, we also call it screen print butterfly clamp,This hinge clamps are durable cast aluminum clamps that feature wide-wing thumb screws for firm fastening to the wooden or aluminium frames. They are easy to install and are positive locking for perfect registration. Durable and rust-resistant. Use to secure your screen frame to a table or work surface.

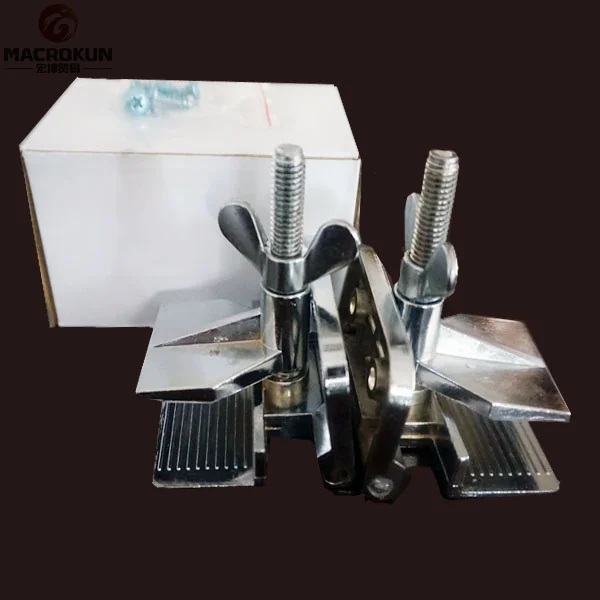

Packing

Our normal packing: packed the goods in cartons.
