Фильтры для очистки водопроводных труб серии

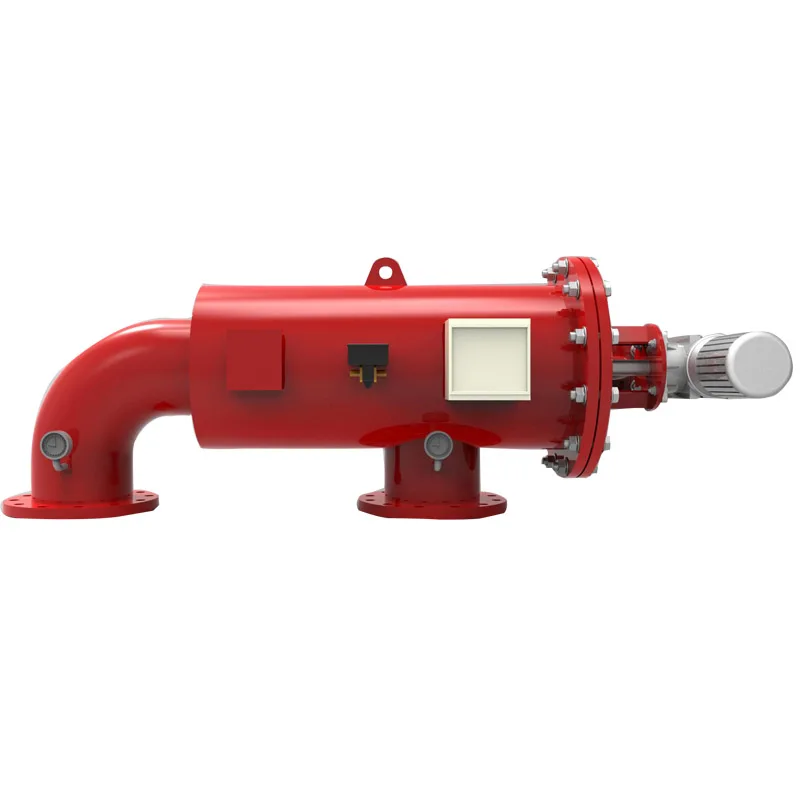

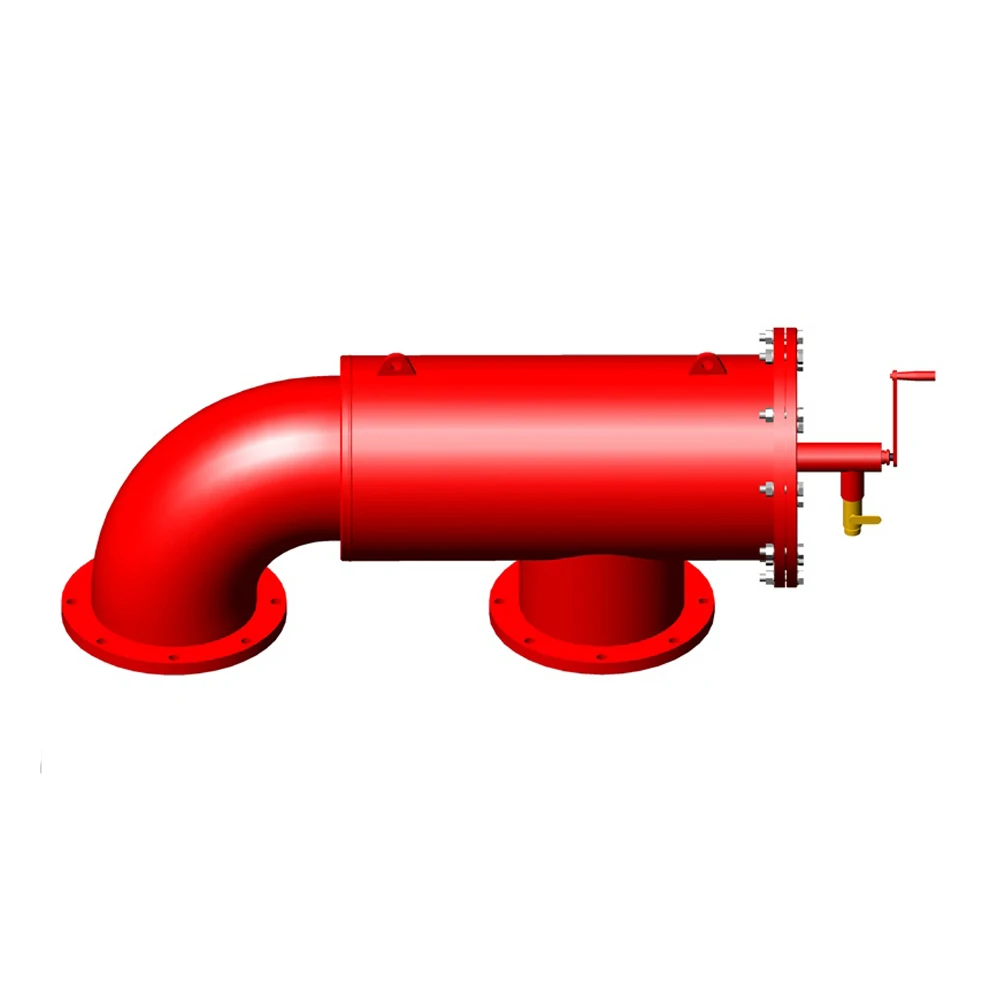

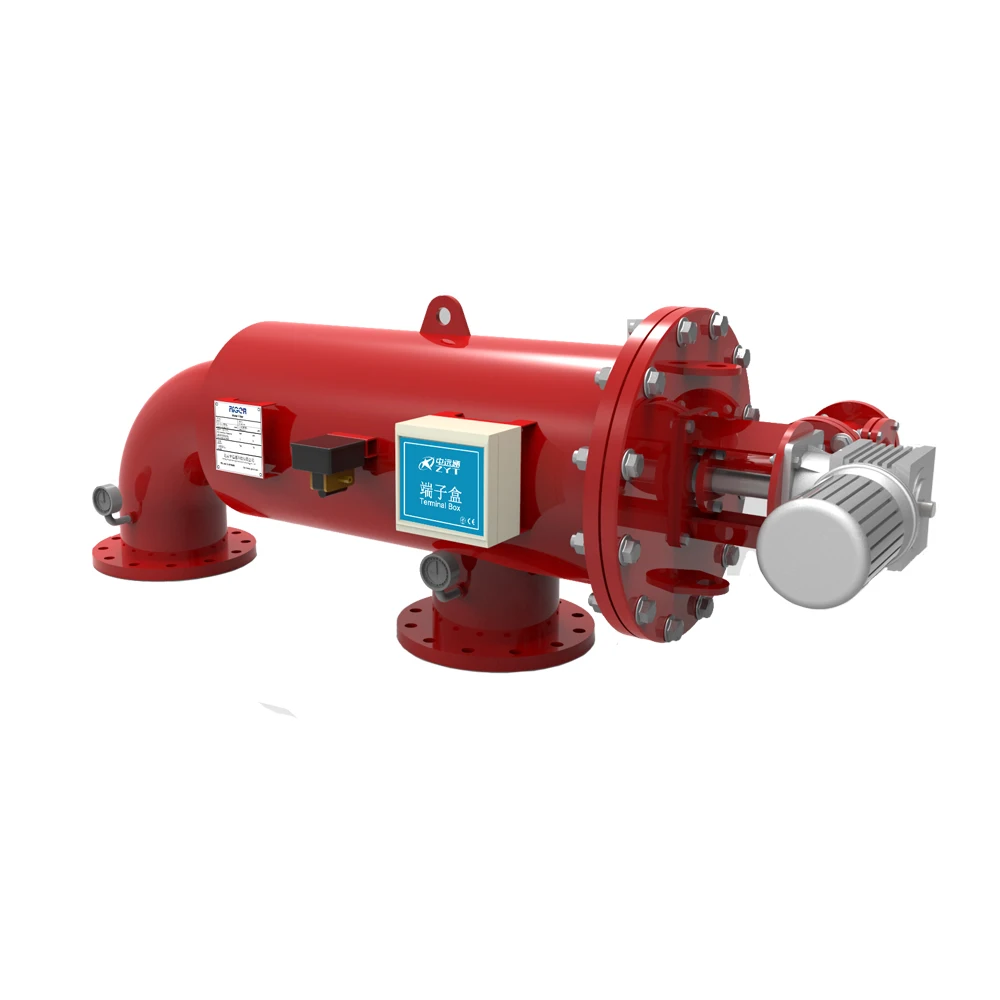

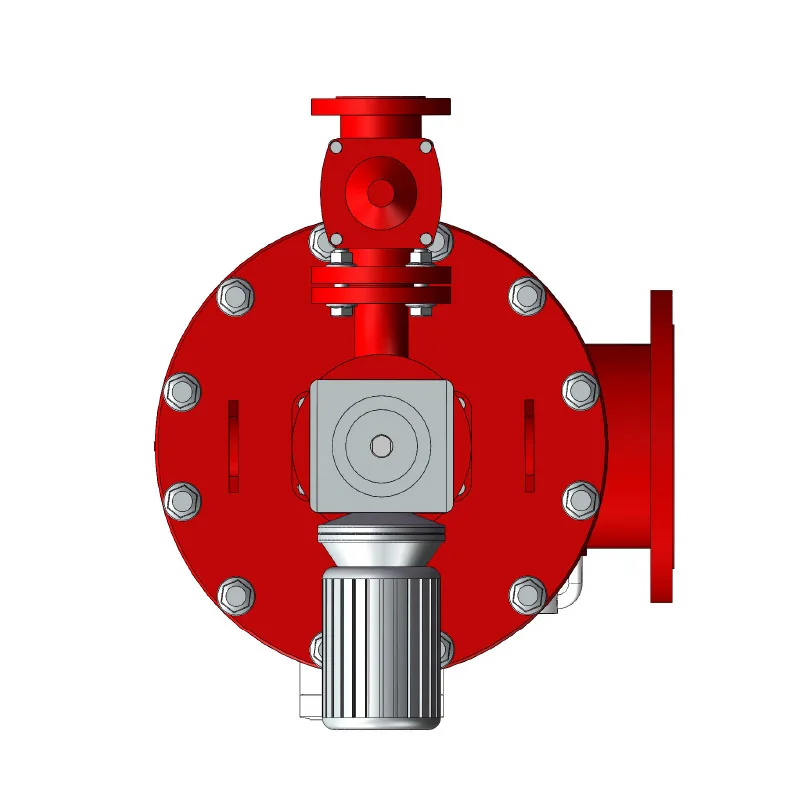

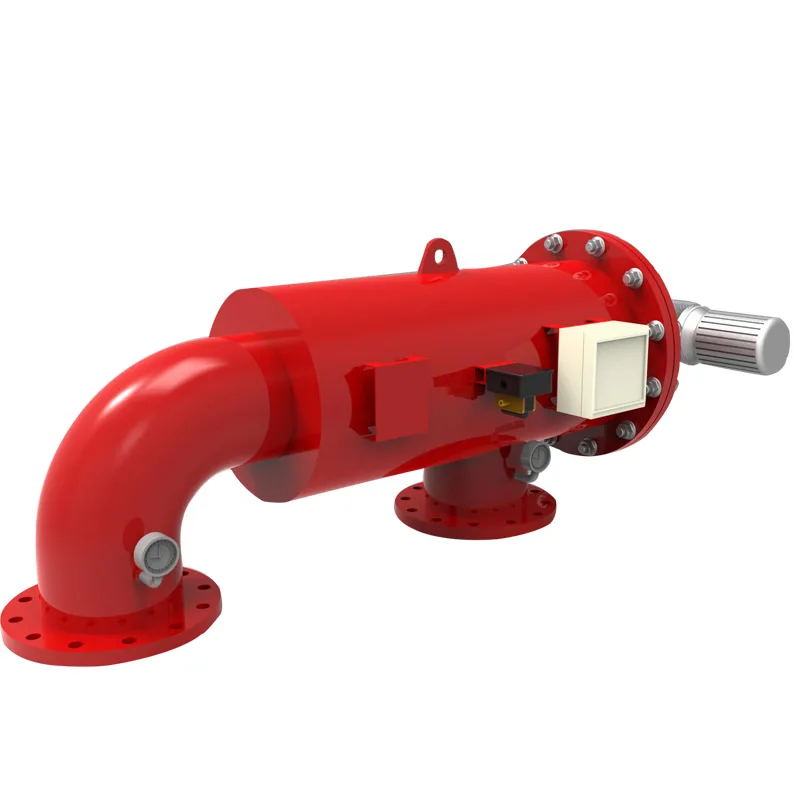

 These automatic electric filters combine the advantages of high quality filtration from different water sources (sewage, reservoirs, rivers, lakes, etc.) with a self-cleaning feature, offering the customer a continuous water supply.
The filters are designed for use in a wide range of industrial, municipal and irrigation applications.
The inner element is made of stainless steel in order to withstand high dirt load and pressure. Cleaning of the screen is performed once the pressure loss (ΔP) across the filter has reached the preset value [up to 0.5 bar (7psi)].
The flushing valve opens and pressure in the inner chamber is lowered. At the same time the electric motor rotates the brushes around and they effectively clean the entire screen. The whole process takes 15-20 seconds.
During the whole process water supply is uninterrupted.

Control System
Two types of control boards are available: PLC/Timer/Manual.
The self cleaning cycle begins under any one of the following conditions:

1. Receiving a signal from the Pressure Differential Switch

2. Time interval parameter set at the control board

3. Manual Start

 Our company can manufacture the filter according to the user's requirements of size,material (eg.carbon steel, stainless steel), color and other special requirements.

AIGER Filter is widely used in agricultural irrigation, municipal project, power industry, paper making, coal, metallurgy and other industries.

 Packing :

The equipment is wrapped in plastic film and then loaded into the wooden box.

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 25 days, and it is also according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Sorry, we could not offer the sample for free charge.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
