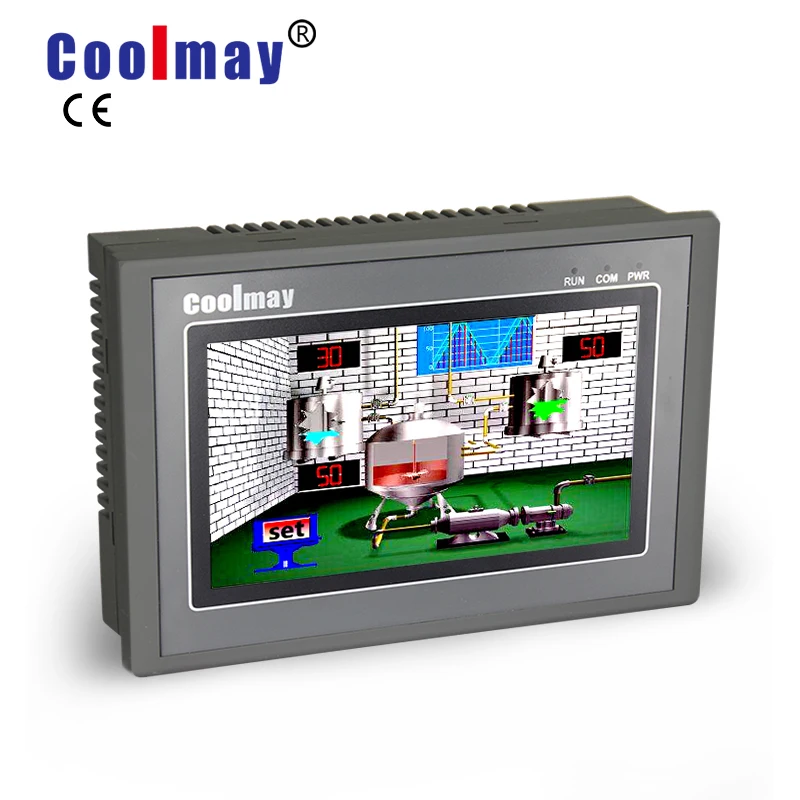

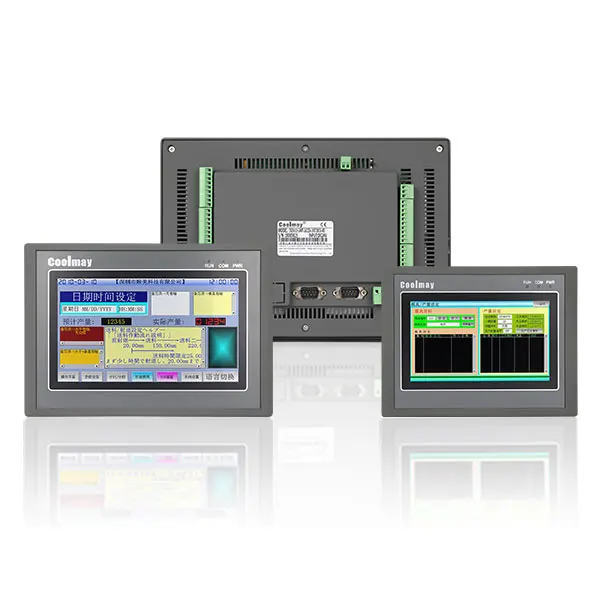

7 "HMI интеграции с ПЛК «Все-в-одном» Wince modbus аналоговые по индивидуальному

Basic version

EX2N-43H

EX2N-43KH/50KH

EX2N-70H

EX2N-100HA

MX2N-43HB

MX2N-70HB

Upgrade version

EX2N-43HA

EX2N-43KHA/50KHA

EX2N-70HA(S)

Dimension

134*102*30mm

150*93*32mm

212*148*40mm

275*194*36mm

134*102*30mm

212*148*40mm

Cutout size

119*93mm

143*86mm

194*138mm

261*180mm

119*93mm

194*138mm

HMI

Features

60K true colors resistive touch panel, support USB flash disk storage, support WINCE system,RS485/RS232/Audio optional

60K true color resistive touch panel

Display size

97*56mm

97*56/108*65mm

154*87mm

222*133mm

97*56mm

154*87mm

Resolution(pixels)

480*272

43KH:480*272

50KH:800*480

H/HAS:800*480

HA:1024*600

1024*600

480*272

800*480

RAM

H series with 64MB,HA(S) series with 128MB

32MB

64MB

ROM

128MB

Operating system

HA/KHA/HAS:WINCE 7.0 version;H/KH:WINCE 5.0 version

Null

CPU

H/KH series with ARM9 core 400MHz     HA/KHA/HAS series CORTEX A8 720MHz-1GHz

ARM9 series 216MHz

ARM9 core 288MHz

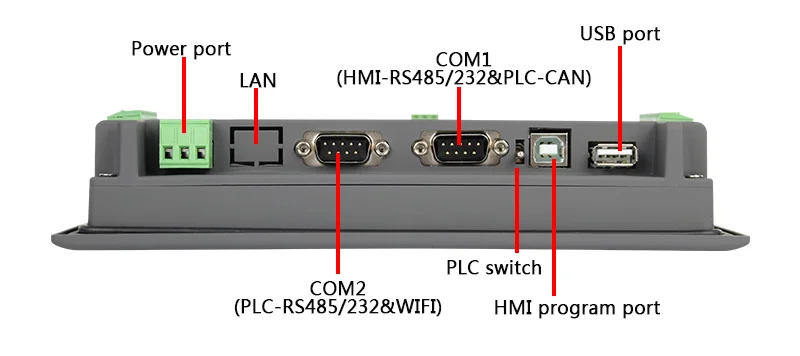

COM port

1 TP download port, 1 USB port

1 RS232 optional

1 RS485 or RS232,Ethernet port optional

1 RS485 or 1 RS232

Programming software

CoolMayHMI programming software

PLC

Digital I/O

Up to 12DI/12DO

Up to 24DI/20DO(At most 18 relay output)

Up to 12DI/12DO

Up to 24DI/20DO

I/O level

Low level NPN,COM connect negative

Digital output type

Relay MR/transistor MT/mixed MRT,

Maximum load of transistor is 500mA;

Maximum load of relay is 5A

MOS tube MT/Relay MR,

Maximum load of MOS tube is 2A; Maximum load of relay is 5A

High-speed counting

Normally 2 channel single counting (X0/X3) or 2 channel AB phase(X0-X1/X3-X4)10KHz

Normally 6 channel single phase (X0-X5) or 2 channel AB phase

(X0-X1/X3-X4)10KHz

6 channel single phase counting(4 channel 100KHz,2 channel 10KHz) or 3 channel AB phase counting(2 channel 100KHz,1 channel 10KHz)or 3 channel ABZ phase channel (2 channel AB phase 100KHz,Z phase 10KHz,1 channel ABZ phase 10KHz) can be customized

6 channel single phase counting 100KHz or 3channel AB phase counting 100KHz or  3 channel ABZ phase counting (AB phase 100KHz, Z phase 10KHz) can be customized

6 channel single counting (4 channel 60KHz,2 channel 10KHz) or 2 channel AB phase counting (2 channel 60KHz) can be customized

High-speed pulse

Normally 4 channel 20KHz,Y0/Y1/Y6/Y7

Normally 4 channel 20KHz,Y0-Y3

4 channel 200KHz can be customized

5 channel 200KHz can be customized,the fifth channel is Y10

2 channel 200KHz and 2 channel 100KHz can be customized

Analog I/O

AI:0-10V/0-5V/4-20mA/0-20mA/PT100/PT1000/EKSJ thermocouple/NTC10K/NTC50K/NTC100K

etc(7inch and 10inch support -5V~5V and -10V~10V  )

AI:

0-5V/0-10V/0-20mA/NTC10K/NTC50K/EKJ

Note:1 channel NTC10K or NTC50K or EKJ will occupy 2 AD points, at most 2 channel can be available

AO:0-10V/0-5V/0-20mA or mixed

Up to 4AI/2AO

Up to 12AI/8AO

Up to 16AI/8AO

Up to 4AI/2AO

Up to 8AI/2AO

1 channel weighing can be customized(occupy 2 AD points)

PLC COM port

1  RS232

1 RS485 optional

1 RS232 or 1 RS485 optional

Null

1 RS485( can not coexist with default RS232)

Software

Compatible with Mitsubishi programming software GX8.52 and WORKS 2

Regular models :EX2N-43H(A)/43KH(A)/50KH(A)-16MR/24MR/24MT(-4AD2DA-485P/232H)

               EX2N-70H(A/AS)-16MR/24MR/44MT/44MRT(-12AD8DA-485P/232H)

               EX2N-100HA-16MR/24MR/44MT/44MRT(-12AD8DA-485P/232H)

               MX2N-43HB-16MR/24MR/24MT(-4AD2DA-232H)

               MX2N-70HB-38MR/38MT(-8AD2DA-485P/232H)

               485P/232P means 485/232 added in PLC; 485H/232H means 485/232 added in HMI

 Detailed info. Refer to :COOLMAY EX2N series HMI/PLC all in one programming manual  Coolmay MX2N series PLC programming manual

              EX2N series HMI/PLC all in one user manual  CoolMayHMI HMI user manual
