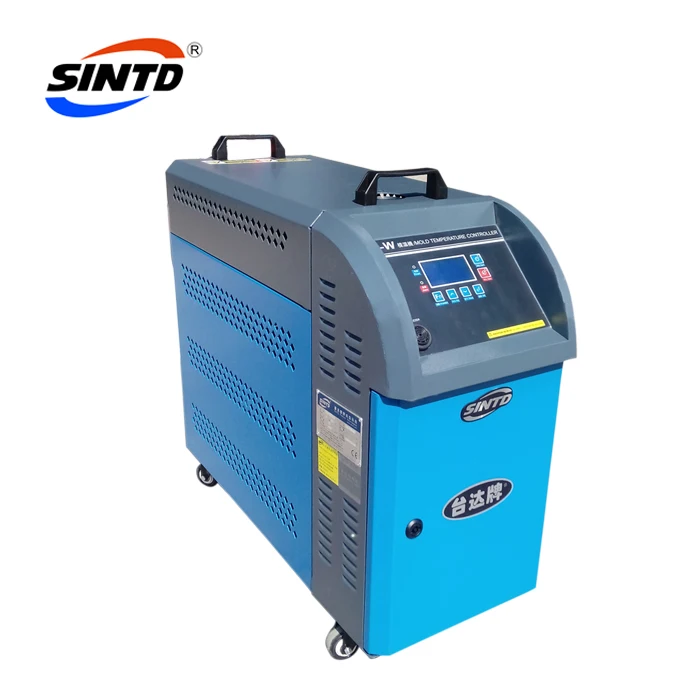

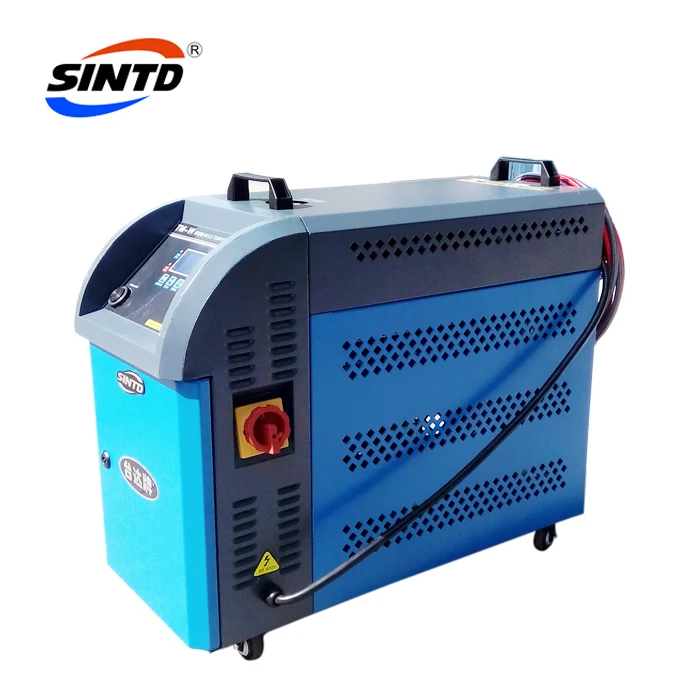

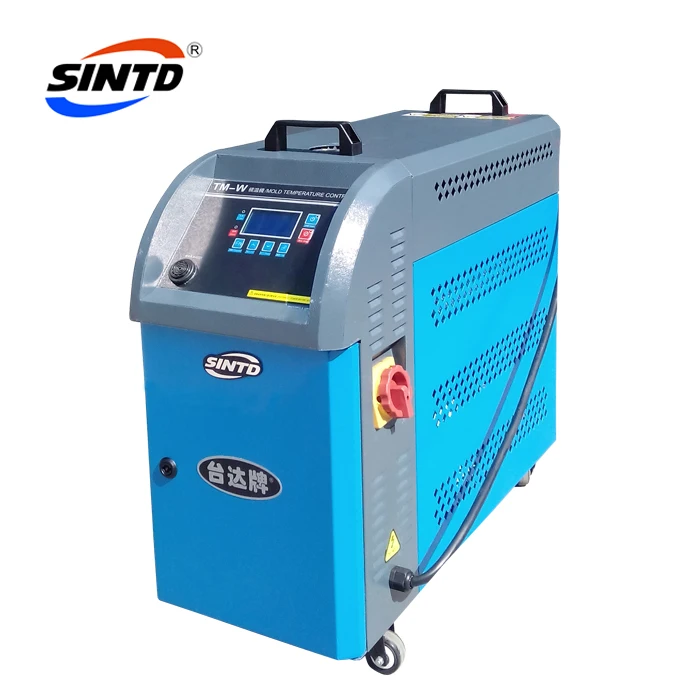

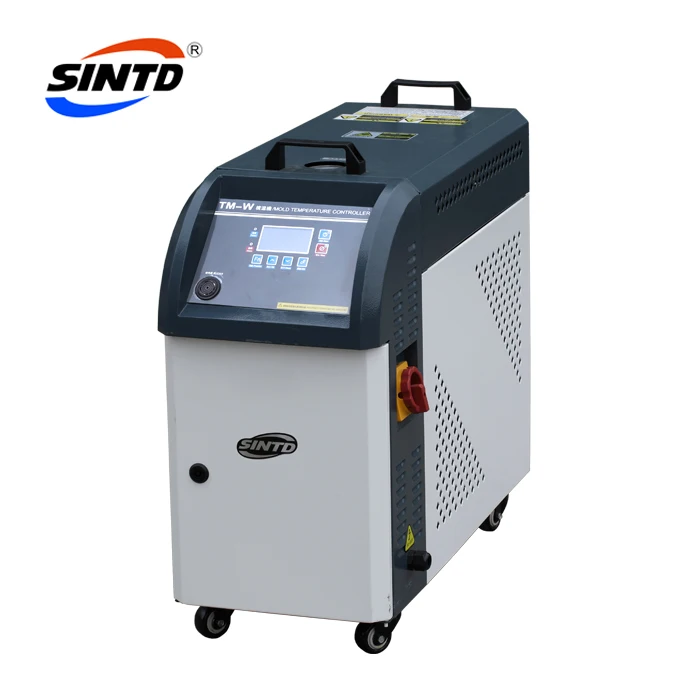

Chemical Industry Water Mold Temperature Controller





 The TM-W series of water heaters are used to heat up the mould and maintain this temperature.Besides, they can also be used in other similar applications,high temperature water from the mould is cooled by direct cooling and then sent to the pipe heaters via high-pressue pump for heating to a constant temperature.With our optimised design,water can reach a maximum of 120 degree,equipped and the accurate PID multi-stage temperature control system can maintain an accuracy of ±1 degree.



Features:

1:PID multi-stage temperature control system can maintain a mould temperature with accuracy ±1 degree;

2:Multipe satefy devices can automatically detect abnormal performance and indicate this via visible alarm;

3:Accurate temperature control achieved by direct cooling and quick heat transfer by automatic water supply facility;

4:Inner parts made from stainless steel to ensure corrosion-free operation;

5:Attractive appearance,easy to access and maintain;





Applicable scope:

Heaters are used to heat up the mould and maintain this temperature,Beside,they can also be used in other similar applications;



System flowfor TM-W(indirect cooling)

High temperature water water retures to the machine and then be pressured by pump to the heaters, after being heated,water will be forced to mould and continue the circle,in the process, if the temperature is too high,the system will activate the solenoid valve to let cooling water cool down the temp...directly until the water is down to the system requirement.If the tem...keep increasing and reach to the set point of EGO,system will alarm and stop operation.The system will have low pressure alarm and stop working if cooling water pressure doesn't reach set point.





Specification:

Model	Max Temp	Heater(KW)	Pump(KW)	Max pump flow(L/MIN)	Heating chamber number(L)	Heating Barrel Nu mber		Mould couping (inch)	Dimesion/mm (H*W*D)	Net weight (KG)
TM-600W	120℃	6	0.37	42	2.8	1		3/8“(2*2)	640*320*820	60
TM-600W-D	120℃	6*2	0.37*2	42*2	2.8	2		3/8“(4*2)	750*340*810	100
TM-900W	120℃	9	0.75	56	3.8	1		3/8“(2*2)	650*240*330	72
TM-900W-D	120℃	9*2	0.75*2	56*2	3.8	2		3/8“(4*2)	655*510*740	105
TM-1200W	120℃	12	1.5	110	4	2		3/8“(4*2)	640*320*870	120
TM-1800W	120℃	18	2.2	315	2.6	2		3/8“(4*2)	650*310*850	140
TM-2400W	120℃	24	2.2	315	2.6	2		3/8“(4*2)	650*310*850	140
TM-3600W	120℃	36	4	367	4	4		3/8“(4*2)	980*415*930	165

Note:

1:In order to maintain stable tem. of  heat transfer media,cooling water pressure should be no less than 2kg.cm³,but also not more than 5kg/cm³;

2:Automatic drain facility can be added for all models as optional feature.(Model denotes"R")

3:"D" stands for double stage;

4:Pump testing standard:Power of 50Hz,purified water at 20.



TM-PW series high temperature type specification form:

Model	Max Temp	Heater (KW)	Pump (KW)	Max pupm flow(L/min)	Heating chamber number	Heating tank capacity(U)	Cooling method	Mould couping (inch)	Dimensions	Weight
TM-600-PW	180℃	6	0.37	42	1	3.4	Indirect	3/8“(2*2)	800*350*950	80
TM-900-PW	180℃	9	0.75	56	1	3.4	Indirect	3/8“(2*2)	780*350*980	85
TM-1200-PW	180℃	12	1.5	110	1	3.4	Indirect	3/8“(4*2)	795*340*820	95
TM-1800-PW	180℃	18	2.2	315	2	7.4	Indirect	3/8“(4*2)	795*340*820	95

Note:

1:"PW" stands for high temp.water heaters;

2:To ensure stable water temperature, cooling water pressure should not be less than 2kg/cm³,but also not more than 5kg/cm³;

3:Pump testing standard:power of 50/60Hz,purified water at 20(there is 10% tolerance for either max,flowrate or max pressure);

4:Power supply:3Φ,380V,50Hz.



Model selection guide for TM-W:

Mould clamping force(T)	Moulding capacity(kg/hr)	Pump flow(U/min)
Less than 25	Less than 3	10
25-50	3-6	25/27
50-100	6-12
100-200	12-25
200-300	25-40	40/38
300-650	40-80	60/58
More than 650	More than 80	120/100
