Характеристики
Product Category
High efficiency and factory price trommel drum screen separator
Product Description
Introduction
High efficiency and factory price trommel drum screen separator has wide range of sizes and capacities,High efficiency and factory price trommel drum screen separator is a mechanical screening machine used to separate materials.High efficiency and factory price trommel drum screen separator consists of a perforated cylindrical drum that is normally elevated at an angle at the feed end,motor,reduction unit,screen frame and sealing cover.When materials flow towards along the inclined rotating drum,materials jump and roll,he undersized material smaller than the screen apertures passes through the screen, while the oversized material exits at the other end of the drum.
Advantages and Features
1.Designed to fit your operation- Trommel screen can be customized to meet different capacity and working site
2.Free from pollution- Fully enclosed structure,no dust pollution,improve working conditions for operators as well
3.Variable application range-Compost,chemical,coal,plastic,recycling,metallurgy,mineral-selecting etc.
4.Superior design-Simple structure,easy maintenance,steady operation,low energy consumption
5.Less blockage-Automatic cleaning brush on the top of trommel screen to avoid the blockage
6.Screen long life span-Screen is made of 16Mn with strong strength, good abrasion resistance and high screening efficiency.

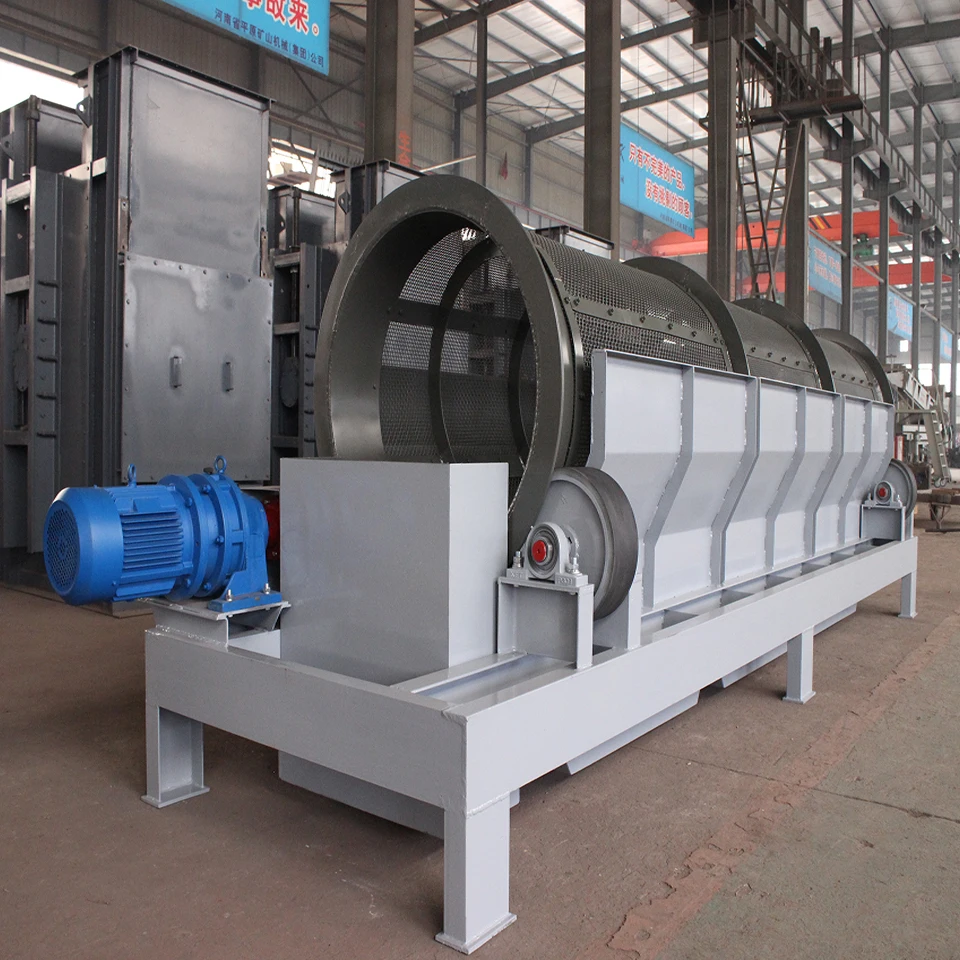

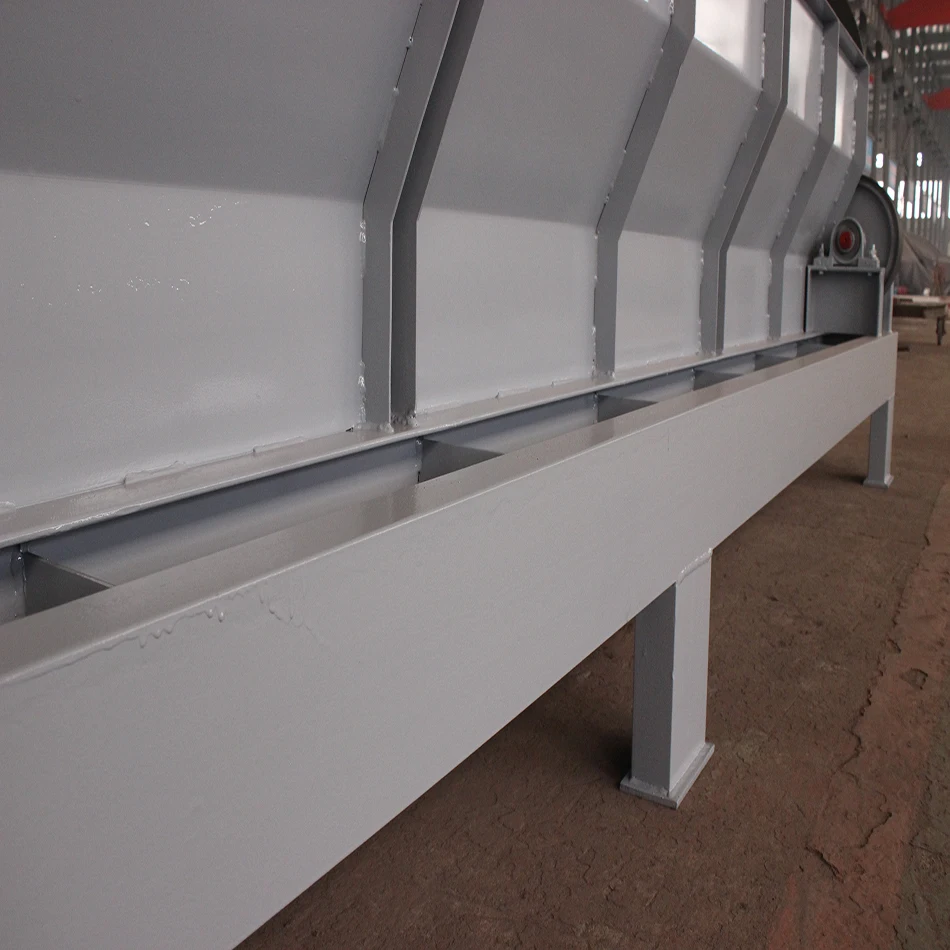

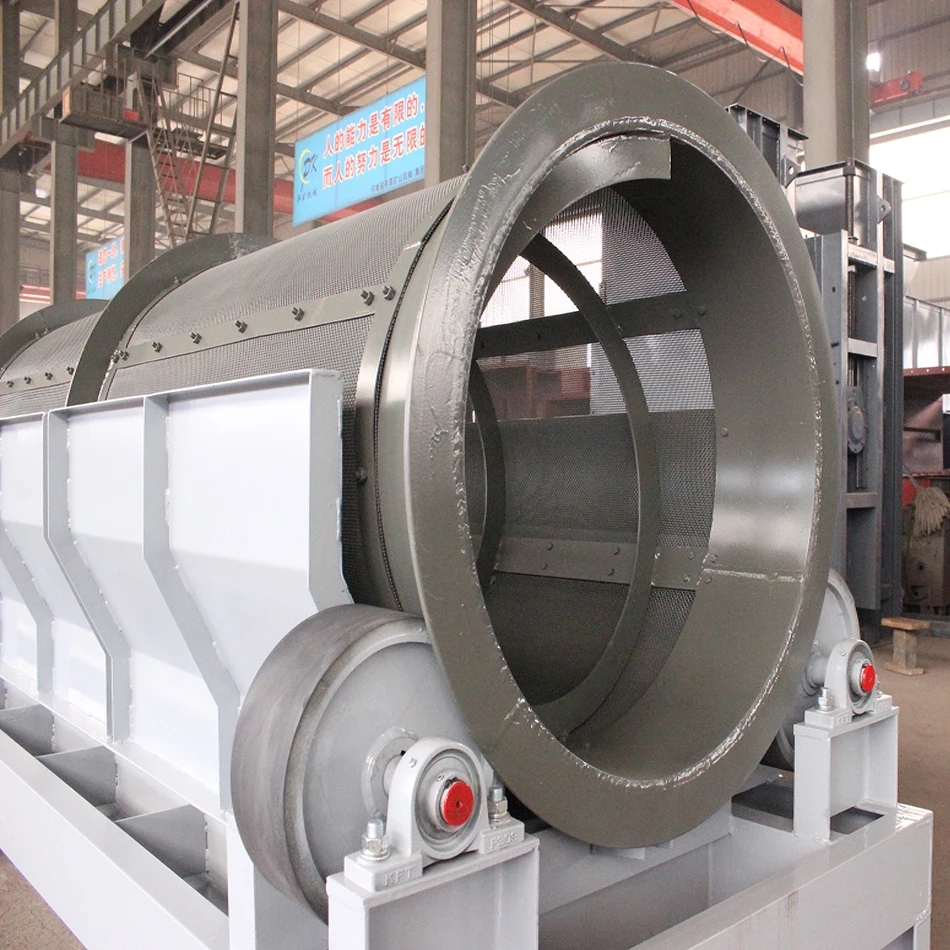

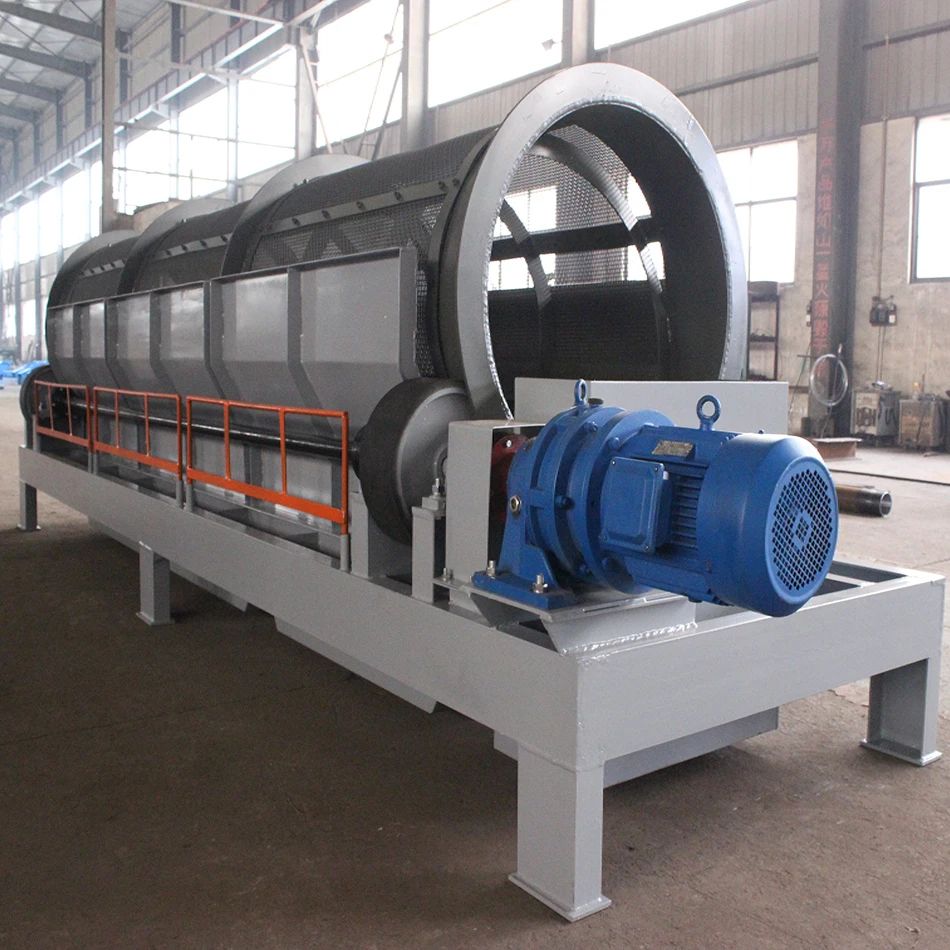

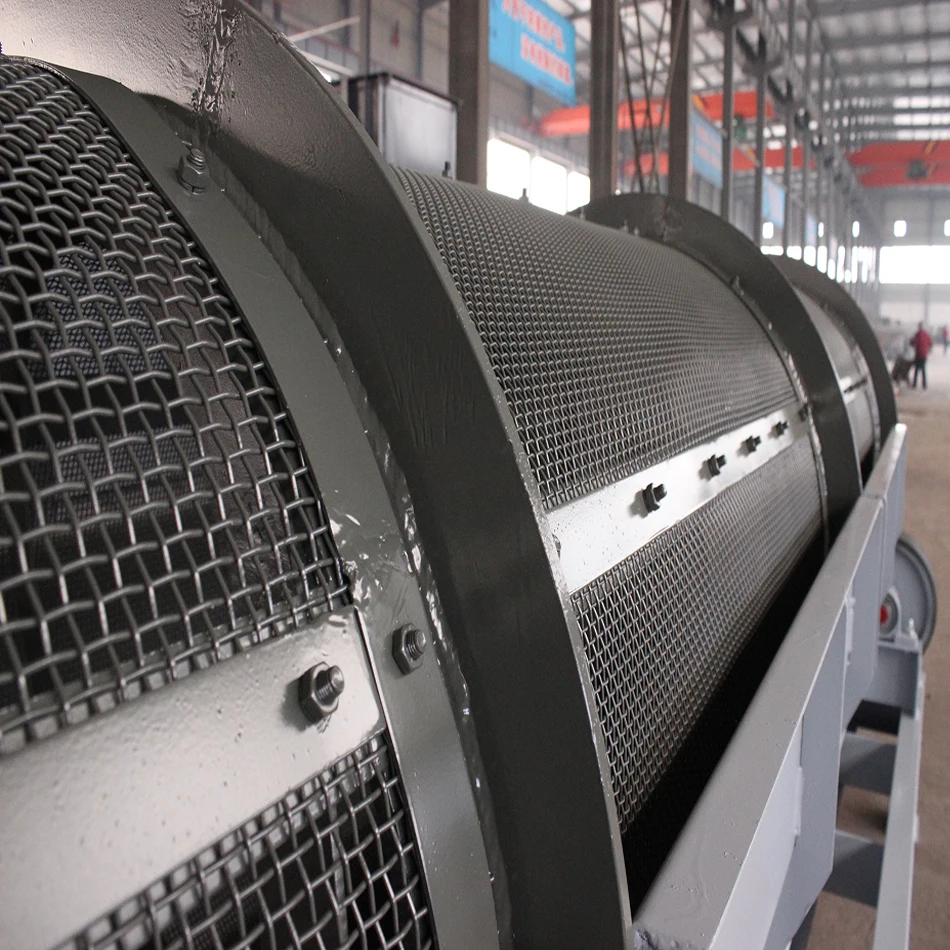

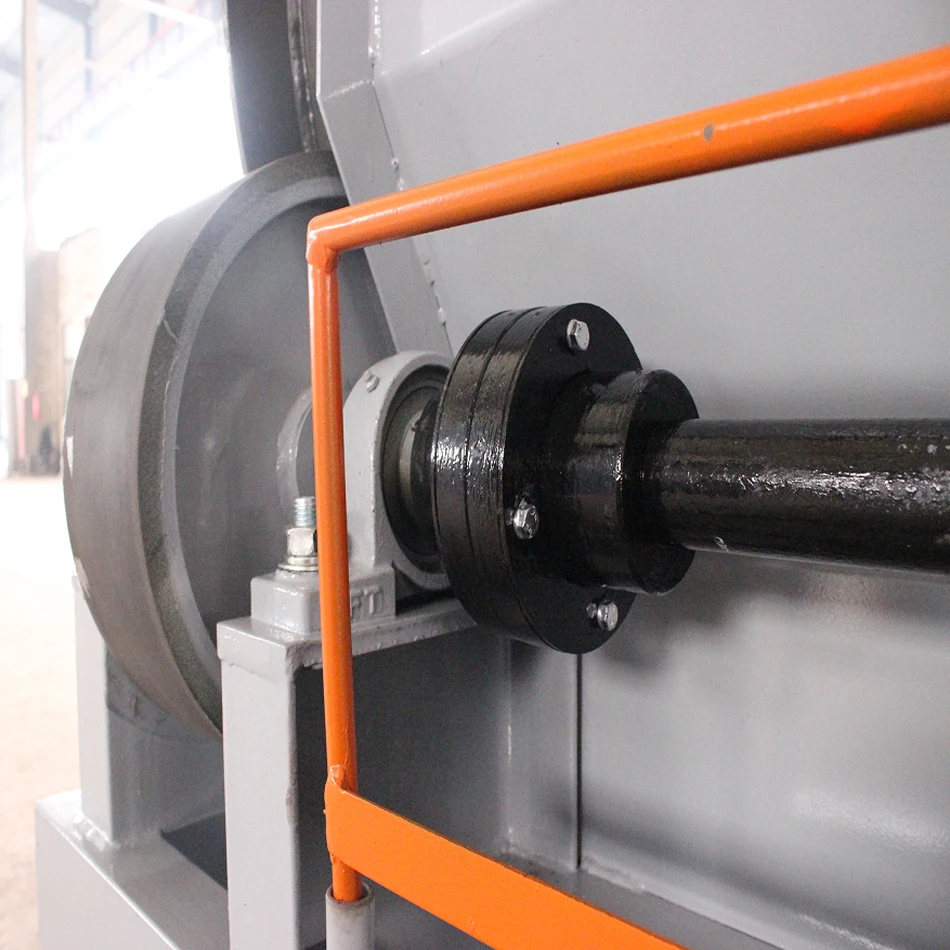

Detailed Images
Technical Parameters
Model | Length (m) | Screen Deck/Layer No. | Aperture Size (mm) | Power (kW) | Inclined Angle (degree) | Max. Material Size (mm) | Rotating Speed (r/min) |
GTSφ600 | 2-4 | 1-2 | 5-35 | 2.2-3 | 0-7 | 50 | 15-18 |
GTSφ800 | 2-5 | 1-3 | 5-40 | 3-5.5 | 0-7 | 60 | 15-18 |
GTSφ1000 | 2-6 | 1-4 | 5-50 | 4-7.5 | 0-7 | 80 | 15-18 |
GTSφ1200 | 3-8 | 1-4 | 5-60 | 5.5-11 | 0-7 | 100 | 15-18 |
GTSφ1500 | 3-10 | 1-5 | 5-60 | 7.5-1 5 | 0-7 | 150 | 15-18 |
GTSφ2000 | 4-12 | 1-5 | 5-75 | 7.5-18.5 | 0-7 | 180 | 15-18 |
GTSφ2500 | 5-12 | 1-6 | 5-90 | 11-18.5 | 0-7 | 200 | 15-18 |
Packaging & Shipping
1.We can deliver High efficiency and factory price trommel drum screen separator timely .
2.Standard sea shipping packaging.
Company Information
Our Services
Certifications
Certification---ISO9001:2015, BV, SGS, CE certification
