Лучшее качество цена Стандартный Портативный стальной станок для прокатки резьбы от гидравлического

Z28-150 type Steel bar thread rolling machine main purpose
 The model Steel bar thread rolling machine is compact, solid, reasonable design, easy maintenance and other characteristics by the majority of customers.This product is better than other similar models of products for normal thread,shaped bolts,thread thread processing,free transfer disorder.

The machine is made of cast steel,reasonable structure,easy operation,reliable quality,is the production of non-standard thread,standard parts (bolts) the ideal equipment

Product parameters of Steel bar thread rolling machine

The complete machine are of whole castling,bigger than the same serials thread roller and more stable perform

Processing principle of Steel bar threadrolling machine:

The machine is mainly used for cold forming,can be in the rolling range,in the cold state of the workpiece thread,twill, ruled, trapezoidal thread, modulus thread,straightening,rolling,shrinking and various shapes Rolling,ergonomics than cutting improve several times or even dozens of times,but also save material and reduce labor intensity. (Users need to bring their own rolling wheel).
The machine is mainly used for hydraulic all kinds of threads, including ordinary thread, thread and modulus threads,but also on the workpiece forming, straightening,rolling and other hydraulic processing.
Materials suitable for rolling elongation should be greater than 10%, the tensile strength should be small 100kgf / m of various carbon steel,alloy steel and non-ferrous metals.Main structure,performance and features
The two spindles of the machine are synchronized and rotate in the same direction.The active spindles are fed in the horizontal direction under hydraulic propulsion,and the hydraulic helical gears of the two rollers make the required threads and other shapes.
The machine is mainly composed of a machine frame,a transmission box,a fixed spindle seat,a hydraulic system and an electrical part of a movable spindle tailstock.
Fixed spindle seat and movable spindle seat is mainly used for installing rolling wheel, hobbing position adjustment,as well as the workpiece thread taper adjustment.
The machine's two spindle center distance adjusted for the two spindle seat,respectively,that is,when the hydraulic workpiece is in the center of the machine.Long hydraulic components should be more convenient to pass through the gearbox.The angle between the main axis and the mating surface can be adjusted between 5 °.The feed speed of the movable spindle during hydraulic pressure can be determined according to the number of workpieces and the mechanical properties of the workpiece materials, so as to avoid the disturbance.

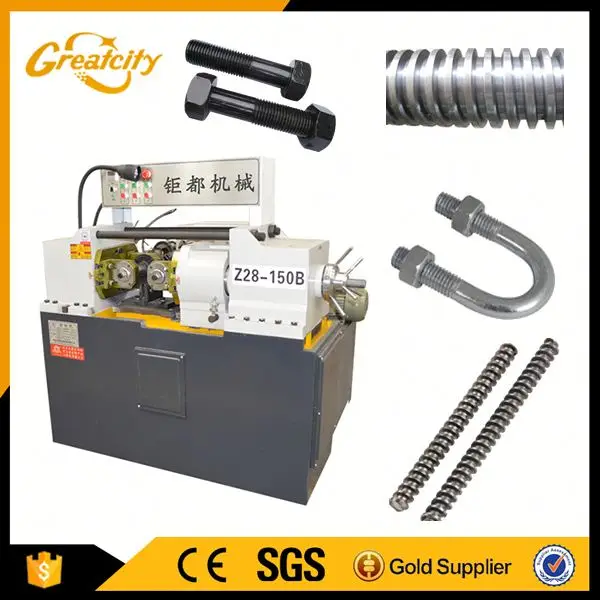

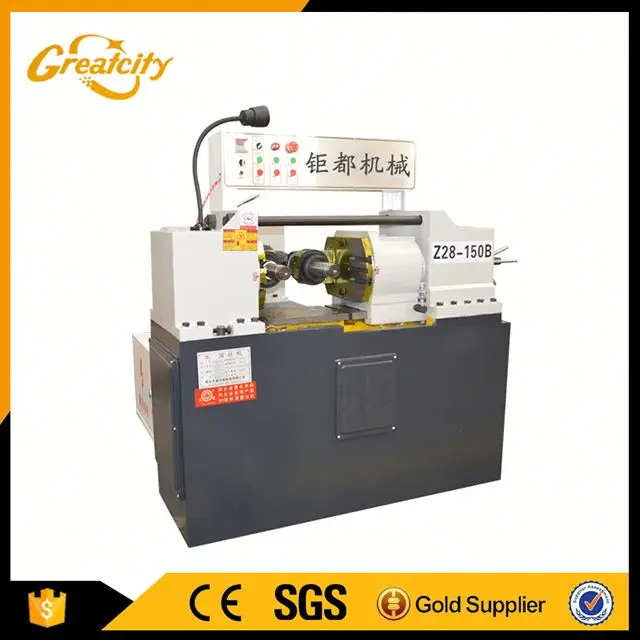

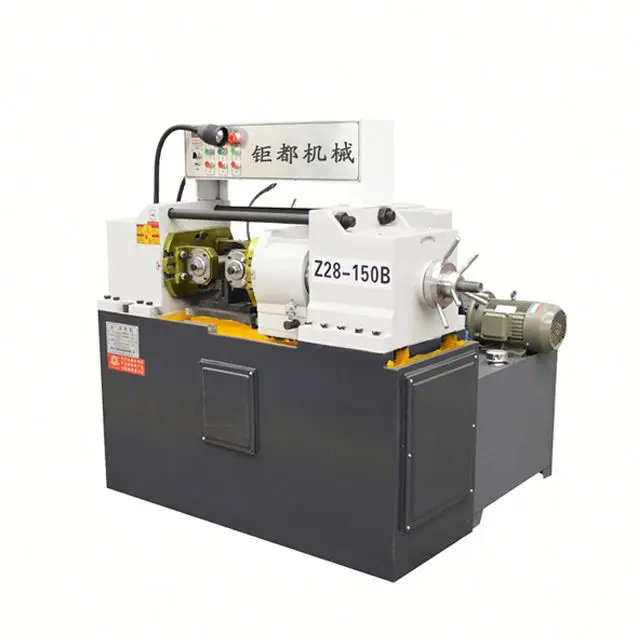

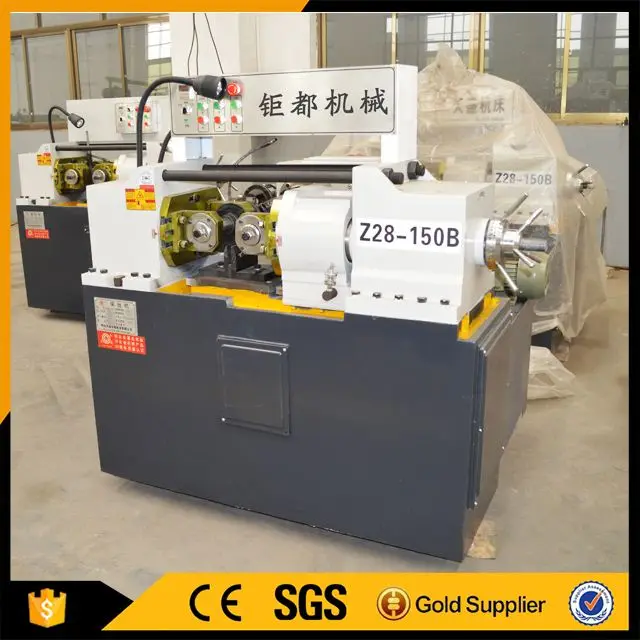

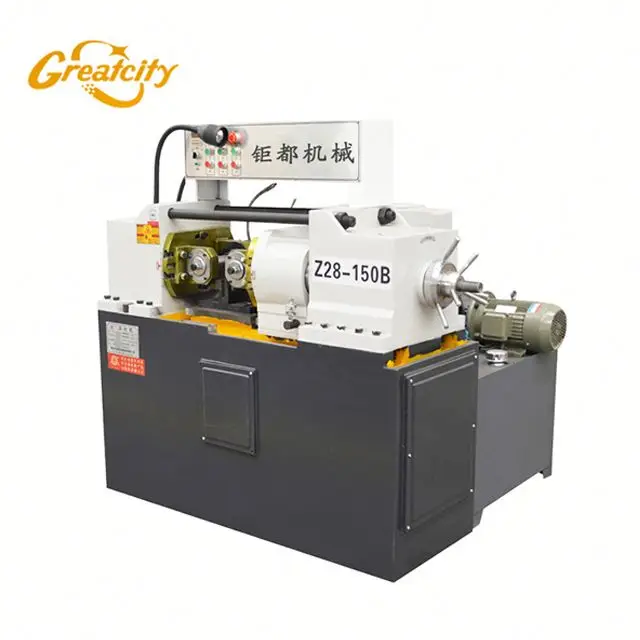

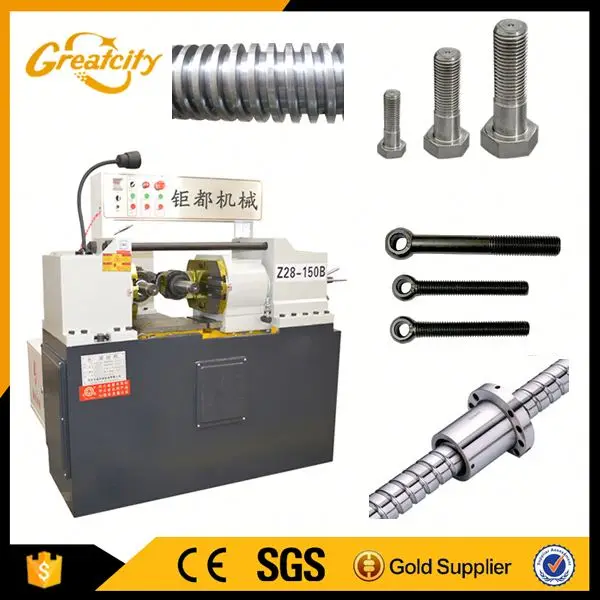

 Z28-150 type steel bar threading rolling machine make shape as follow:

We have Many models Steel bar thread rolling machines, Z28-215,  Z28-150B, Z28-80B, Z28-50, Z28-40C, Z28-200,and so on.

All the diameter we can thread rolling, pls provice us the diameter and the type of your raw material, then i will recommed you the best model fit for you.

Steel bar thread rolling machine is pofessional export CTN,WOODEN CASE.

Shipping is FCL,LCL,train within 5-7 days,any port

• All inquiries replied after 12 hours by email or phone call
• For more details for steel bar thread rolling machine,some expert can provide information in different language (Chinese,French,Spanish,Arabic, English)
• Available for any contact in different social net work.
• Any visit to our factory authorized.
• Servce at customer request.

Found since 1999, Xingtai GreatCity Machinery Company has developped a category of machines that it is useful for customer in steel bar thread rolling machine area.We do believe that this evolution permits us to offer you a good and high quality of machine at a lowest price for your satisfaction and in order to get a high level of efficiency.

Welcome to consult our steel bar thread rolling machine and visit our factory,feel free to contact me if having any questions
