Характеристики

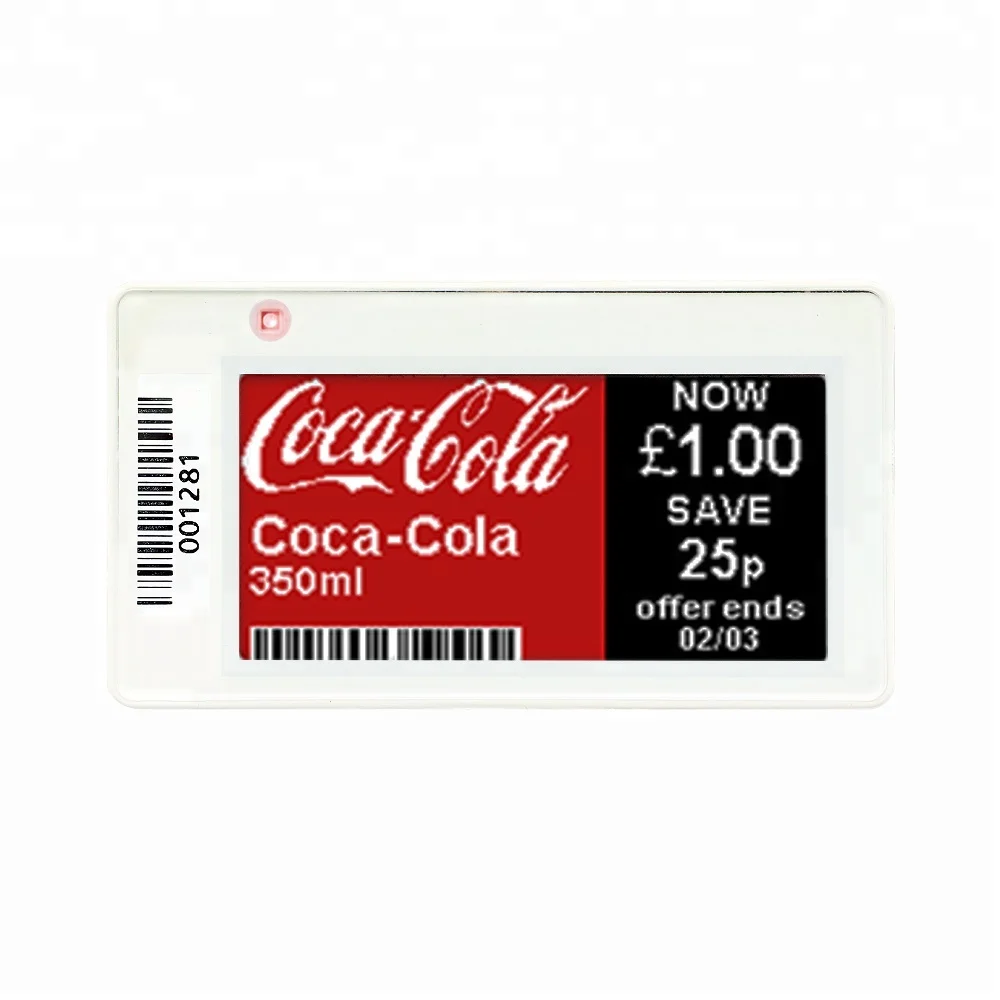

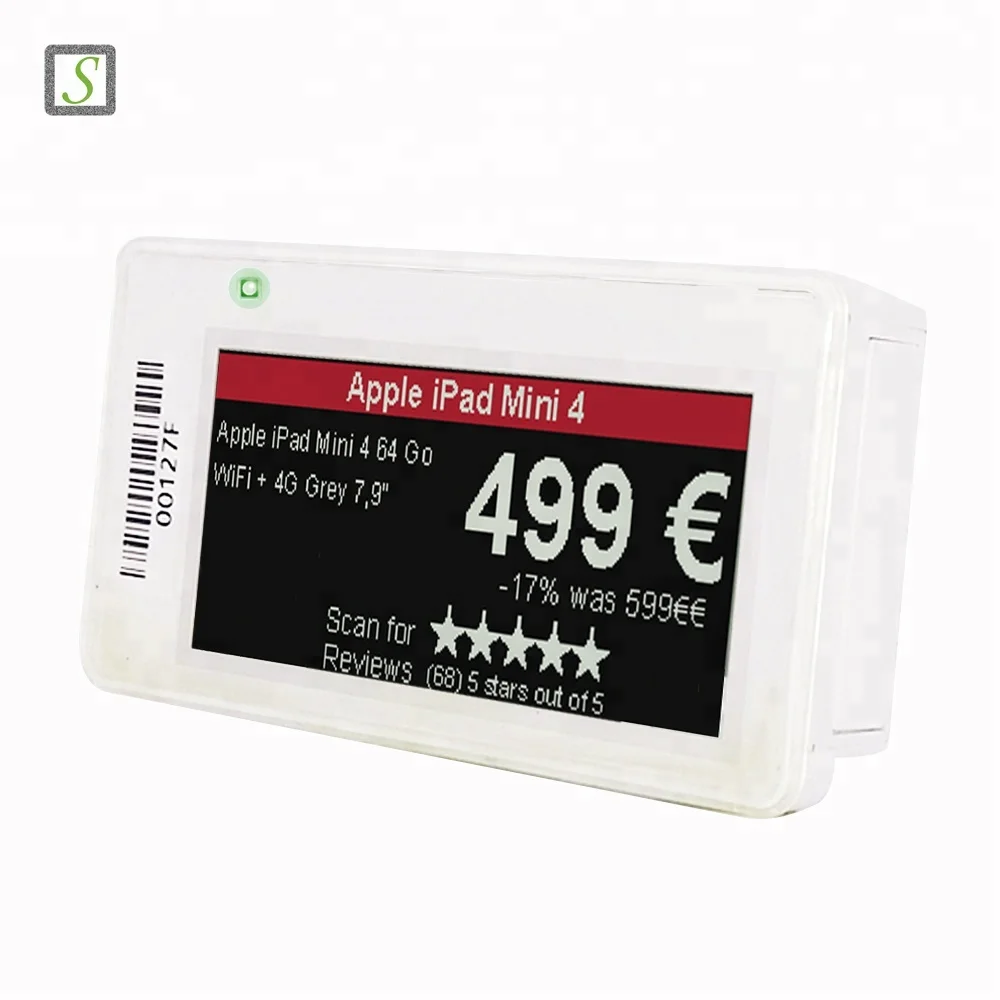

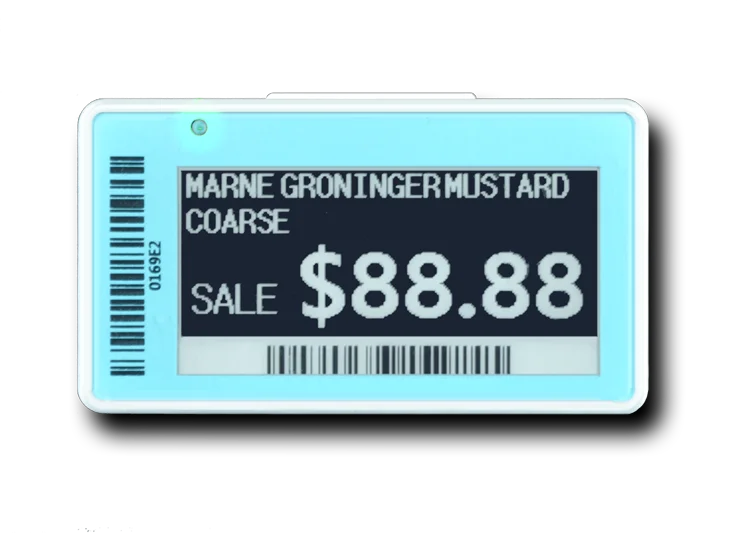

Supermarket E-ink Digital Display Epaper Price Tag Shelf Electronic Label
HOT SALES
Product Description
Click here to get more details

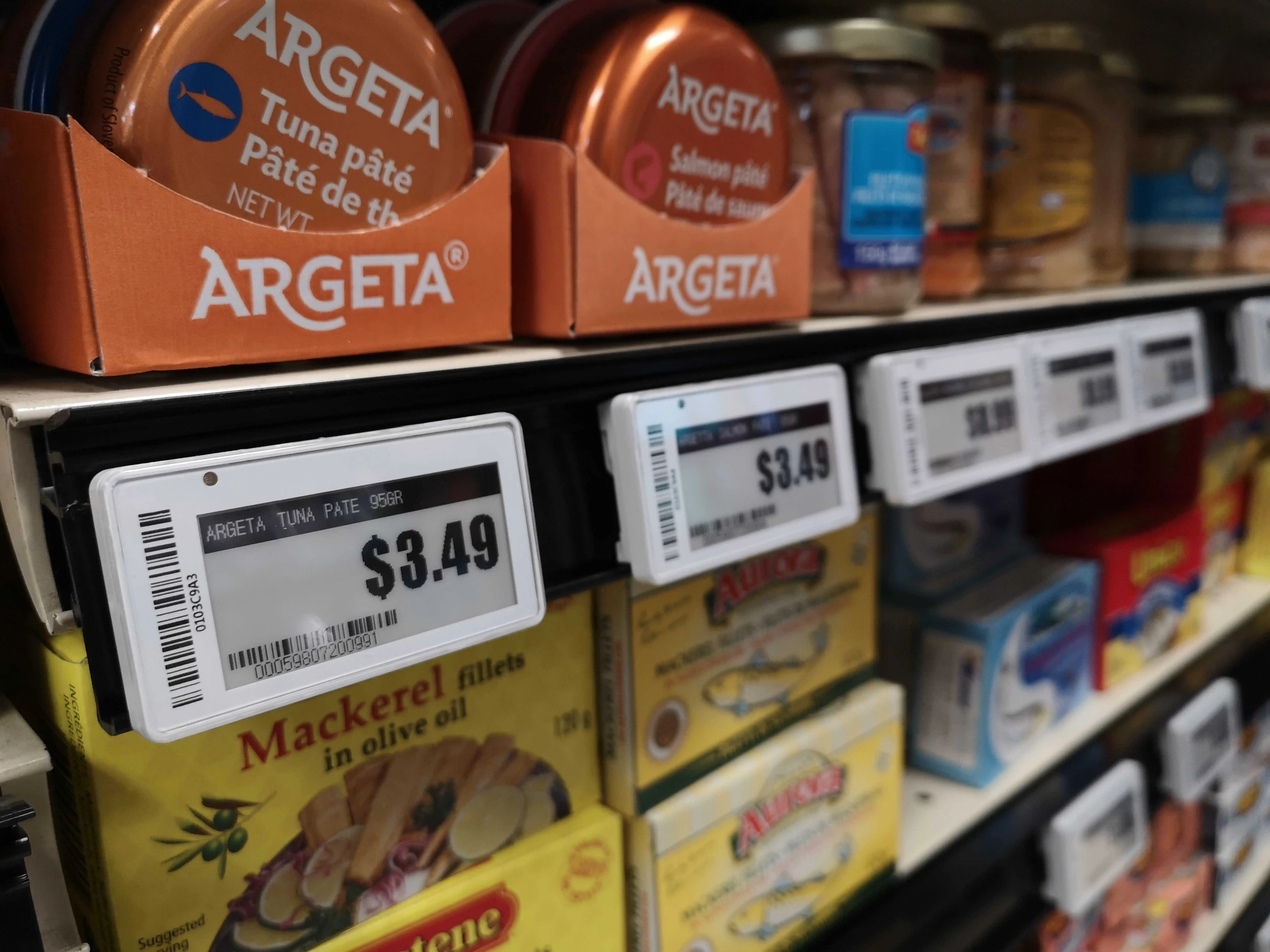

Application Area
Click here to get more details
Our Customer Feedback
Click here to get more details
What is Suny Electronic Shelf Label?
Our Electronic Shelf Label System make up by three parts: Electronic Shelf Label, Base Station, Software.
Working principle : PC(software) control Station by LAN, Station control price tag by
Wireless(433MHz).
Here is the cover range of our ESL wireless base Station, one station can control 65,000 pcs ESL in R=50M (max, open environment).
But in the real using environment, we only suggest the customer calculate one station can control the ESL tag in R=16~24M, 800 ~ 1,800 M3 area.
Click here to get more details
Technology
|
Model |
2.13 inch |
|||||
|
Dimensions L*H*T |
66*36*14 |
|||||
|
Resolution |
212*104 |
|||||
|
Display Active Area |
48.6*24 |
|||||
|
Pixel |
22,048 |
|||||
|
Display Color |
Black+ White / Black+White+Red / Black+White+Yellow |
|||||
|
Display |
Dot-matrix E-ink Epaper Display |
|||||
|
LED Light |
3colors up to 7combination(R,G,B,C,M,Y,W) |
|||||
|
Frequency |
433MHz Sub-GHz ISM |
|||||
|
Protocol |
Private |
|||||
|
Transmission Distance |
R=16-24M,(R=50M in open environment) |
|||||
|
Response Speed |
5s (2colors ESL) / 10s (3colors ESL) |
|||||
|
Viewable Angle |
Close to 180° |
|||||
|
Replacement Battery |
Quick-Release |
|||||
|
Battery Life |
≥ 5 years |
|||||
|
Usage |
Price Display, Digital Signage, Inventory Info |
|||||
|
Temperature Monitoring |
Support |
|||||
|
Voltage Monitoring |
Support |
|||||
|
Operate Temperature |
0℃-40℃ |
|||||
|
Parameter Name |
Parameter Value |
Remark |
|
|
Structure size |
120*120*30mm(L x W x H) |
|
|
|
Operating Voltage |
DC 5V, <=200mA |
Needs stable power, don’t use other power sources. |
|
|
Weight |
160g |
|
|
|
Data Interface |
Standard network cable interface |
The mode of data transmission with the host computer. |
|
|
Wi-Fi network interface |
Optional module. |
||
|
Indicator |
Working status indication |
Red, Yellow, Blue |
|
|
Environment |
Operating Temperature |
-20 ~ 55℃ |
|
|
Storage Temperature |
-30 ~ 75C℃ |
|
|
|
Operate Humidity |
5% - 80% (no condensation) |
|
|
|
Storage Humidity |
5% - 85% (no condensation) |
|
|
|
Frequency |
430~435MHz |
|
|
|
Protocol |
Private |
|
|
|
Transmit power |
10db |
|
|
|
Receiver sensitivity |
-110db |
|
|
|
Communication distance |
20~70 meter |
Depend on using environment |
|
>>>Click Here to view the datasheet
Company Information
Click here to get more details
Our Services
Packaging & Shipping
Click here to get more details
FAQ
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
SUNY ESL

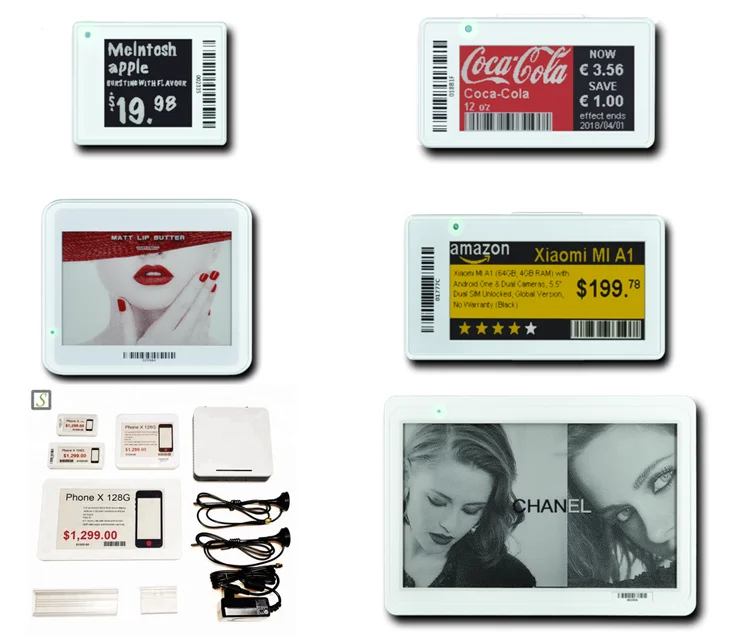

1.Demo kit : include software, base station, five different sizes of label and accessories.
2.SDK/API: our SDK is in .Net version and .Net core version.
3.Battery Life: can last 5 years (based on 1 times/day).
4.Support System: Our existing system is base on Windows OS.
5.Integrated system: We will offer the SDK to you, you can develop your own software or integrate your own system (POS/ERP).
Payment
1.Please create a personal buyer account before you buy from Alibaba
2.Write your email address, when place an order.
3.Go to your email and click the link, “Send Initial Payment / Pay Balance “or “go to pay" ,
4.Then choose “+Add a new card to pay in USD ($)"
5.Fill in the bank card information, "Confirm and Pay" , that charge from your card directly, place an order successfully
Shipping
1.Delivery time: 1~3 working days after payment
2.Main mode of transport: by express, DHL, UPS or FedEx. Other mode of transport also support
3.Get tracking no.: The tracking number will send to you once our forwarder deliver the goods to the express company, it need around 1~2 days.
