Высококачественное испытательное оборудование для вибрации машина испытания Электромагнитной
- Категория: Testing Equipment >>>
- Поставщик: Dongguan,Xinbao,Instrument,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.98 $* | 0.53 $* |
| Aug-20-2025 | 0.22 $* | 0.85 $* |
| Jul-20-2025 | 0.20 $* | 0.57 $* |
| Jun-20-2025 | 0.49 $* | 0.40 $* |
| May-20-2025 | 0.59 $* | 0.62 $* |
| Apr-20-2025 | 0.54 $* | 0.78 $* |
| Mar-20-2025 | 0.6 $* | 0.52 $* |
| Feb-20-2025 | 0.82 $* | 0.87 $* |
| Jan-20-2025 | 0.66 $* | 0.19 $* |
Характеристики
Products Description

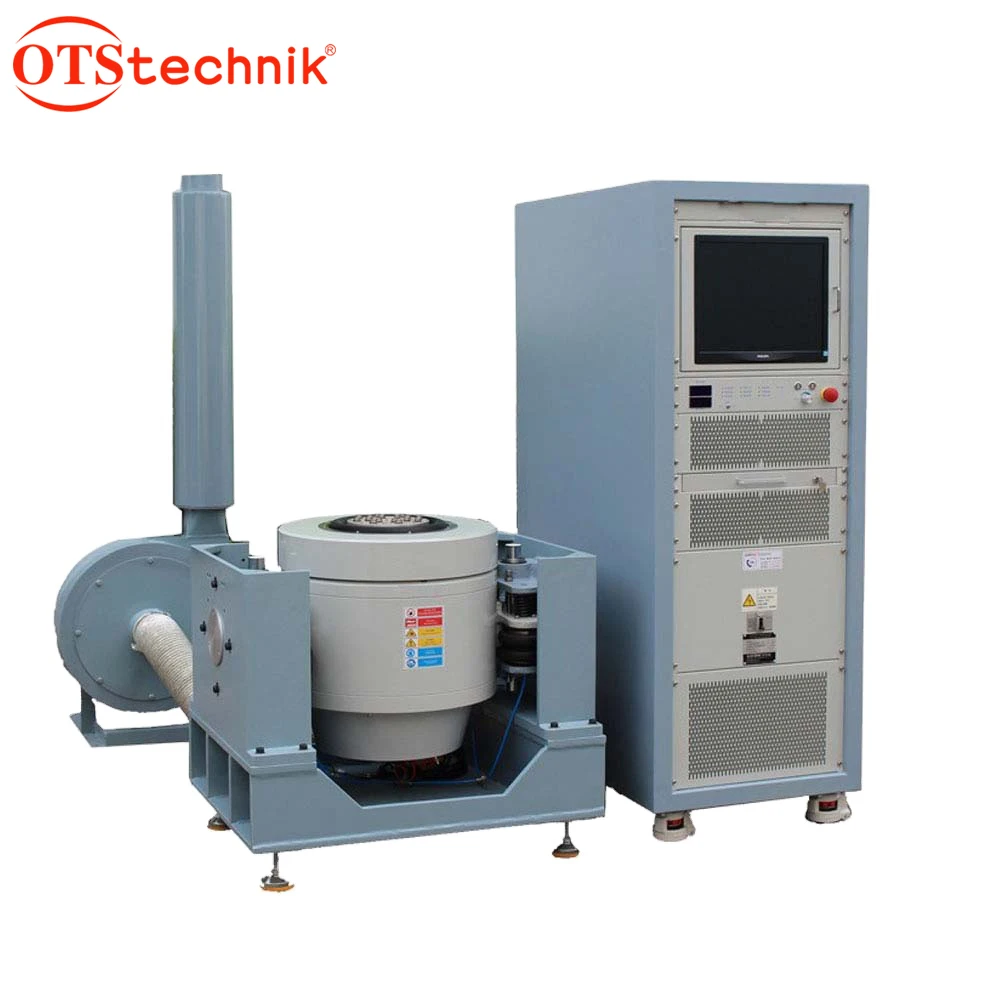

Vertical Vibration Reliability Test
Through the vibration controller of the signal source output to the power amplifier, amplified by the signal and then input to the vibration table body, generating excitation source, simulate the actual situation of the specimen to the vertical vibration test; through the acceleration sensor signal acquisition and input to Vibration control device, the output signal and feedback signal stacking calculation, to achieve the excitation source and the target spectrum of high degree of coincidence. The system is given by the signal target spectrum, to complete the vibration test of the specimen, the test specimen vibration durability, integrity and so on.
Product Paramenters
Sine thrust | 600kgf | |
Random thrust | 600kgf | |
Impact thrust | 1200kgf | |
Frequency Range | 5～2000Hz | |
Continued displacement | 51mm | |
The impact of displacement | 51mm | |
Maximum speed | 2m/s | |
Maximum acceleration | 981m/s2 | |
Moving coil diameter | Φ150mm | |
Allow eccentric moment | ＞190N.m | |
Load connection point | 6 piont | |
Equivalent mass of moving parts | 6kg | |
Countertops screw size (standard) | M8 | |
Screw layout table (diameter, circumference) | 8 on Φ100mm，8 on Φ,200mm. | |
Axial isolation frequency | ＜3Hz | |
Maximum load | 120Kg | |
Magnetic flux leakage | ＜1mT | |
Dimensions (without packaging)（L×W×H） | 1600mm×985mm×850mm | |
Vibration table Weight | 1850kg | |
**Design Criteria:GB4757.5-84 JISZ0202-87 ISO2248-1972(E) | ||

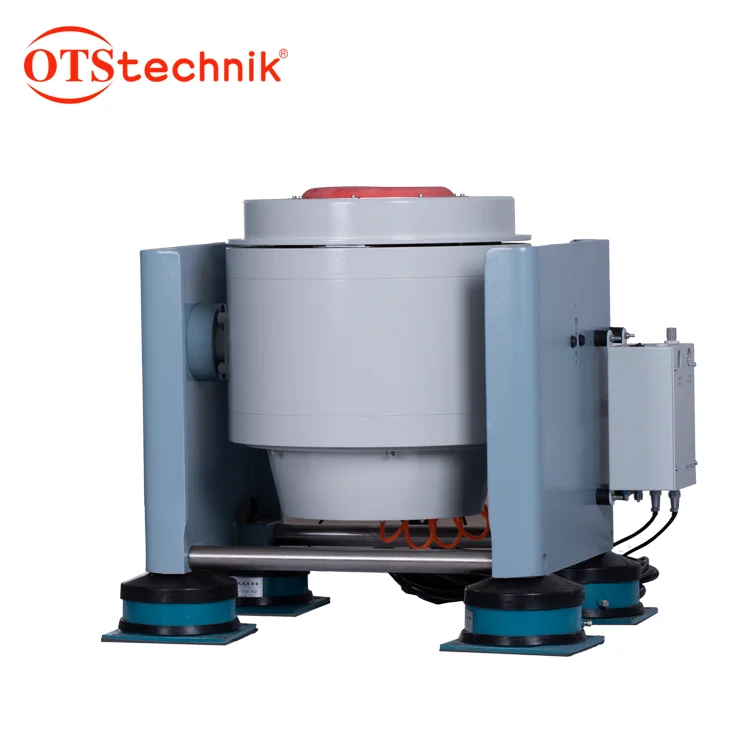

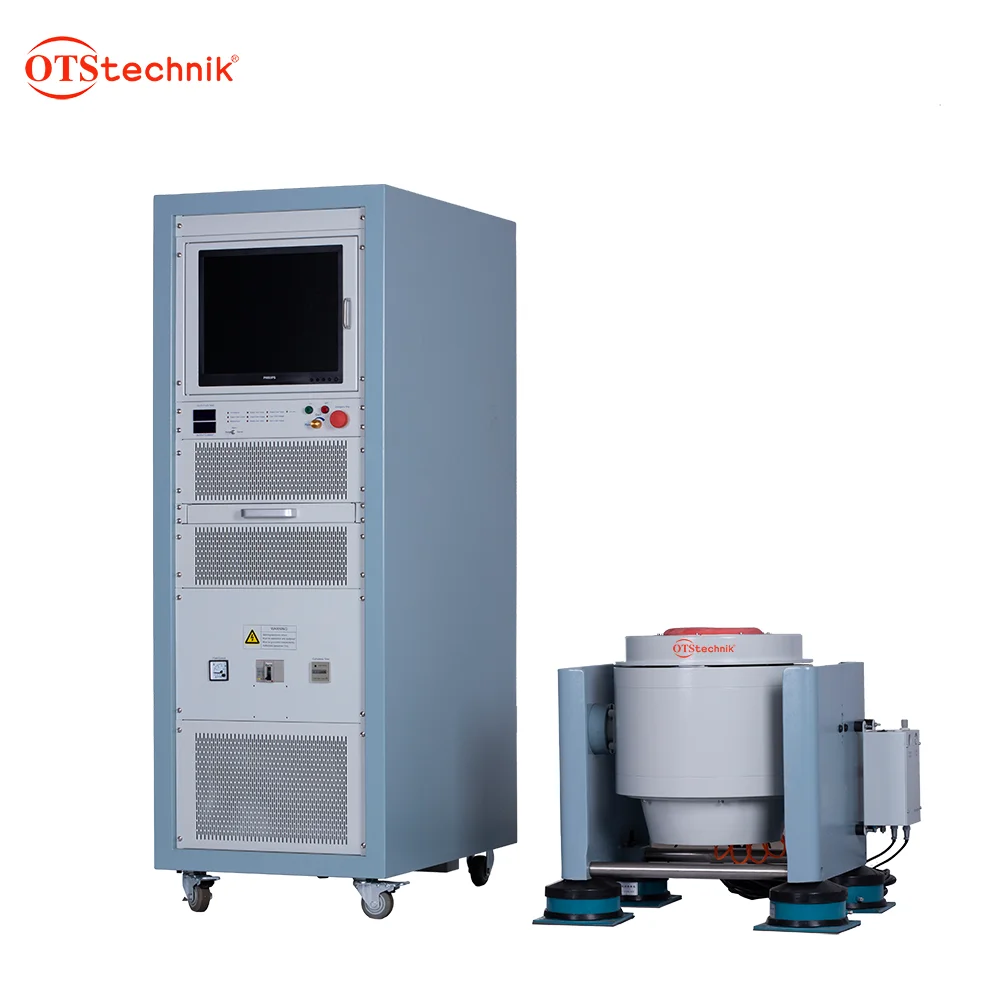

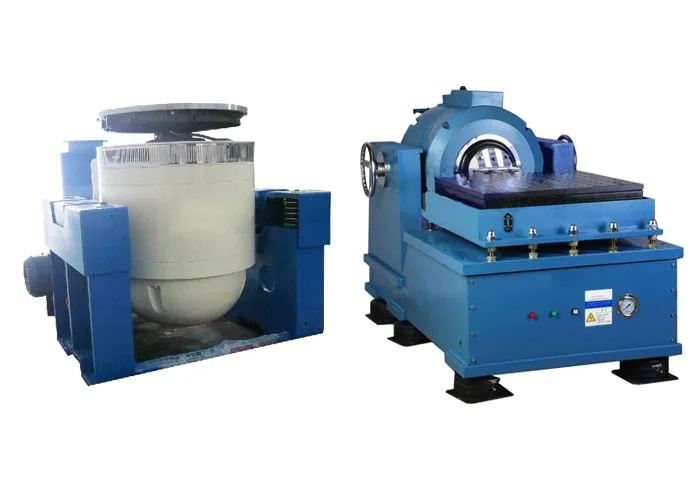

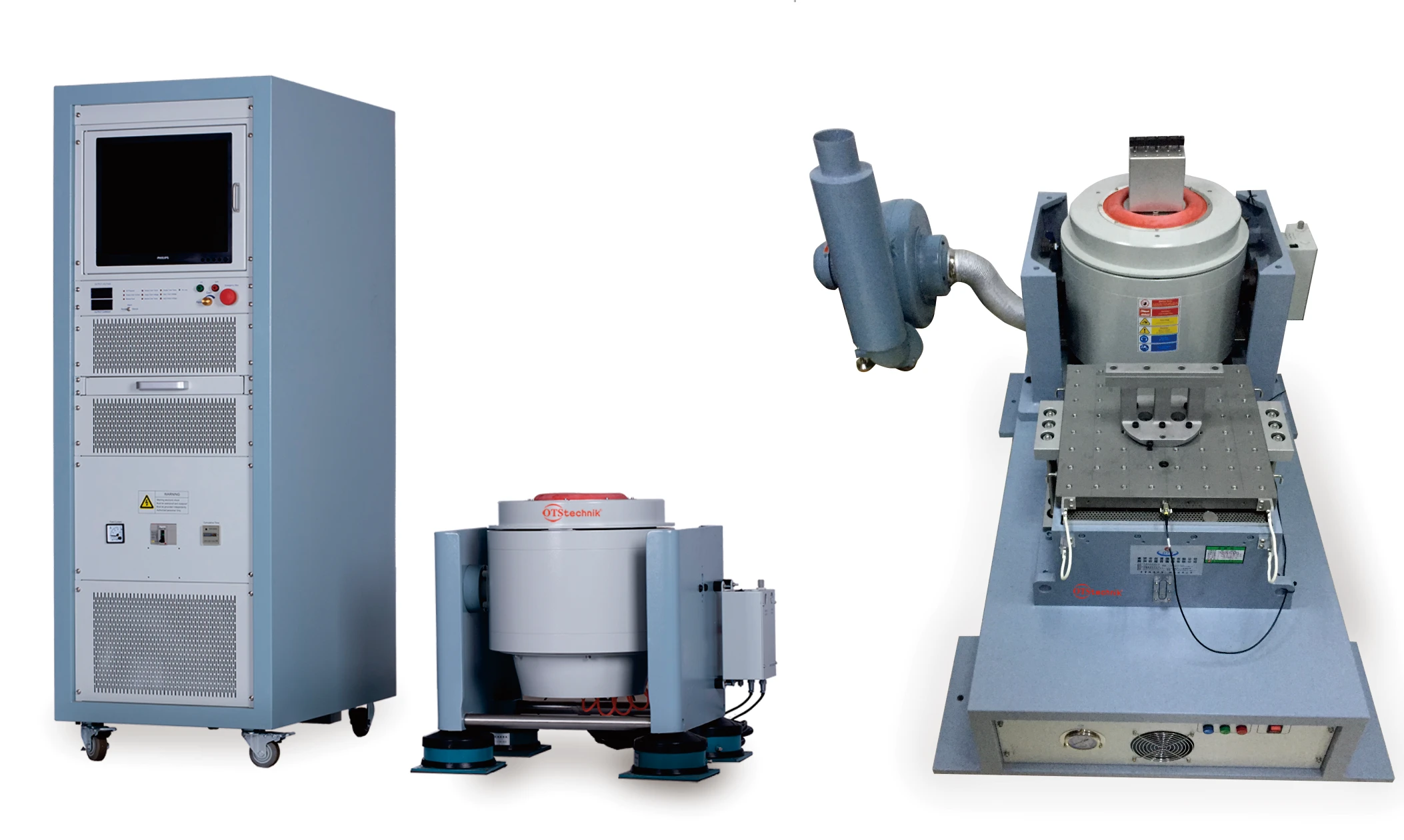

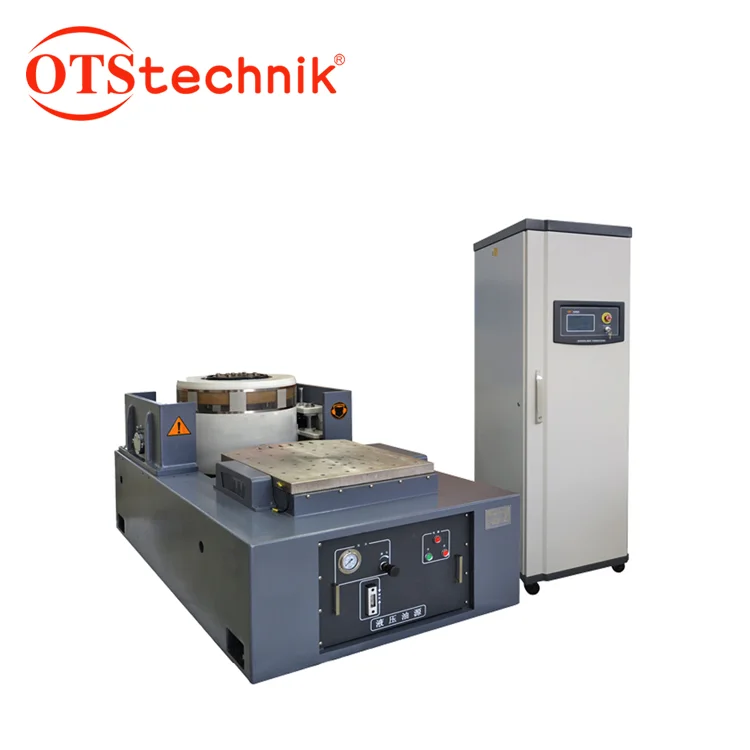

Details Images
The typical impact test
Products in the processing, transportation and use of the process are often subject to a variety of transient impact load, the impact may cause product structure and performance damage or even failure. In order to determine the suitability of the product in the use and transportation process, it is necessary to carry out the simulated impact test of the product in the laboratory. The typical impact test function uses the transfer function equalization method to carry on the closed-loop control, supports all kinds of pulse type simulation.
Operation specification
* Easy maintenance : interchangeable power module box , compact , space-saving , easy maintenance, repair and quick.
* LCD : logic module using CPU microcomputer chip processor , LCD display ; system can display a variety of detailed data ( true RMS value of the output amplifier , attach additional data ) and operating status and fault diagnosis . And has a remote control , telemetry, remote functions , user-friendly, easy to operate.
* Protection function : Set the power amplifier overvoltage, undervoltage power grid phase, logical failure , power module protection , power module temperature, output overcurrent, output overvoltage , power supply , Taiwan displacement , platform temperature , external interlock protection circuit , when any fault occurs , turn off the output, sound and light alarm .
* high conversion efficiency ( greater than 95% ) , high switching frequency modulation .
* High Performance indicators : using sinusoidal pulse width modulation frequency doubling technology, high switching frequency, high signal to noise ratio , total harmonic distortion sex .
* high power factor : The power factor compensation device , amplifier power factor up to 95% , making the grid capacity can be fully utilized .
* data record : logic module can record the running time , a fault condition , the maximum output .
* LCD : logic module using CPU microcomputer chip processor , LCD display ; system can display a variety of detailed data ( true RMS value of the output amplifier , attach additional data ) and operating status and fault diagnosis . And has a remote control , telemetry, remote functions , user-friendly, easy to operate.
* Protection function : Set the power amplifier overvoltage, undervoltage power grid phase, logical failure , power module protection , power module temperature, output overcurrent, output overvoltage , power supply , Taiwan displacement , platform temperature , external interlock protection circuit , when any fault occurs , turn off the output, sound and light alarm .
* high conversion efficiency ( greater than 95% ) , high switching frequency modulation .
* High Performance indicators : using sinusoidal pulse width modulation frequency doubling technology, high switching frequency, high signal to noise ratio , total harmonic distortion sex .
* high power factor : The power factor compensation device , amplifier power factor up to 95% , making the grid capacity can be fully utilized .
* data record : logic module can record the running time , a fault condition , the maximum output .
Advantage
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
ØISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
ØISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
Customer Support Services
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
Product packaging
Recommend Products
Company Profile
Dongguan Xinbao Instrument Co., Ltd
Anual sales over 1,500,000USD; 30,000㎡ manufacturing base, equppied with advanced machine, 120 technicians and over 50 sales engineers, Dongguan Xinbao Instrument Co., Ltd, with its self-owned brand--OTS, has been dedicating in providing professional testing equipment with top quality since its establishment in 1978.
We own sophisticated and advanced technologies in producing environmental test chambers and mechanical test machines like temp humidity chamber, thermal shock test chamber, rain and dust test chamber, salt spray chambers ,walk in /drive in test chambers, tensile testing machine, vibration test machine, other customized test euipment and so on.
We own sophisticated and advanced technologies in producing environmental test chambers and mechanical test machines like temp humidity chamber, thermal shock test chamber, rain and dust test chamber, salt spray chambers ,walk in /drive in test chambers, tensile testing machine, vibration test machine, other customized test euipment and so on.
Production process
FAQ
1. Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE
maintenance,while considering of sea transportation, we can extend 2 months for our customers.
Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE
maintenance,while considering of sea transportation, we can extend 2 months for our customers.
If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or sky video chat if necessary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after
deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after
deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine.
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine.
4. How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our officail website directly.
Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.
We will send you operating instructions, English video by Email. Or you can download on our officail website directly.
Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.
