Mitsubishi  Melsec  Q series PLC



Product Description




Mitsubishi MELSEC-Q Series PLC


MELSEC-Q Series: its powerful performance takes the Q Series to levels rarely seen by other PLCs before.


As the requirements of manufacturing evolve daily, the next generation MELSEC-Q Series, with its nano speed processing, can dramatically improve system and machine performance.






























































































































































































































































































































































































































































































































































































CPU
Q00JCPUProgram step: 8k steps CPU integrated with power supply and base
Q00CPUProgram step: 8k steps
Q01CPUProgram step: 14k steps

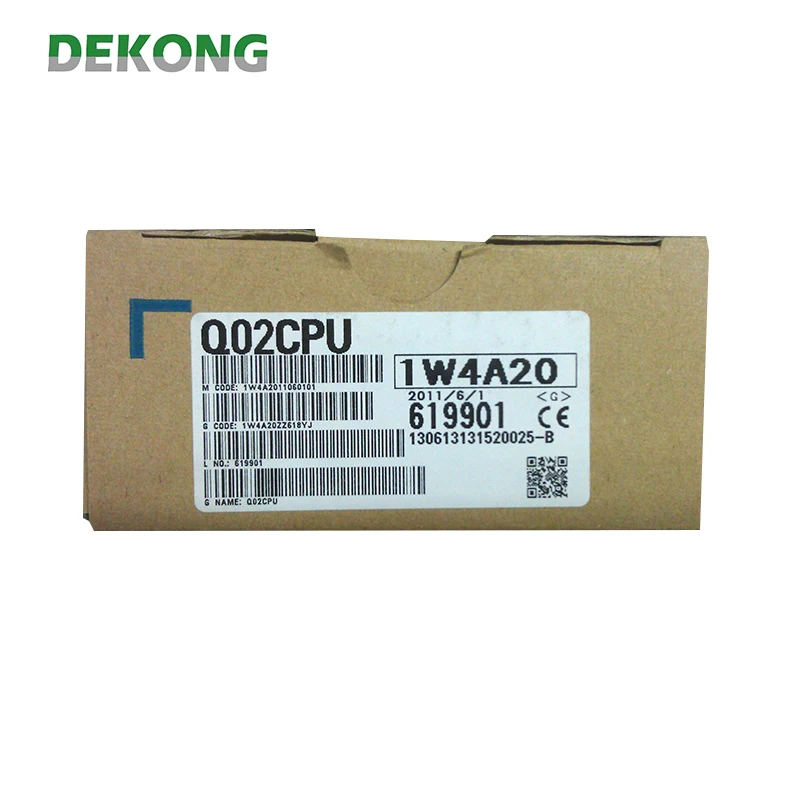

Q02CPUProgram step: 28k steps
Q02HCPUProgram step: 28k steps
Q06HCPUProgram step: 60k steps
Q12HCPUProgram step: 124k steps
Q25HCPUProgram step: 252k steps
Q12PHCPUProgram step: 124k steps
Q25PHCPUProgram step: 252k steps
Q172CPUFor 8-axis control
Q173CPUFor 32-axis control
Q6BATReplacement battery for Q02/Q02H/Q06H/Q12H/Q25HCPU
Extension cable
QC05B0.45m (1.48feet)
QC06B0.6m (1.96feet)
QC12B1.2m (3.93feet)
QC30B3m (9.84feet)
QC50B5m (16.4feet)
QC100B10m (32.8feet)
Input module
QX10100-120VAC/7 to 8mA, 16 points, response time: 20ms, terminal block
QX28240VAC, 8 points, terminal block
QX4024VDC/4mA, positive common, 16 points
QX40-S124VDC positive common, 16 points, terminal block, for high-speed input
QX4124VDC/4mA, positive common, 32 points
QX4224VDC/4mA, positive common, 64 points
QX705-12VDC input shared between positive common and negative common, 16-point terminal block
QX715-12VDC input shared between positive common and negative common, 32-point connector
QX725-12VDC input shared between positive common and negative common, 64-point connector
QX8024VDC/4mA, negative common, 16 points, response time: 1/5/10/20/0ms, terminal block
QX8124VDC/4mA, negative common, 32 points, response time: 1/5/10/20/0ms, connector
Output module
QY10240VAC/24VDC, 2A/point 8A/common, 16 points (16 points/common)
QY18A240VAC/24VDC, 2A/point 8 independent contact output points, block, without fuse.
QY22240VAC/0.6A, 16 points, terminal block, without fuse
QY40P12/24VDC 0.1A/point, 1.6A/common, 16 points (16 points/common)
QY41P12/24VDC 0.1A/point, 2A/common, 32 points (32 points/common)
QY42P12/24VDC 0.1A/point, 2A/common, 64 points (32 points/common)
QY5012/24VDC 0.5A/point, 4A/common, 16 points (16 points/common)
QY68A5-24VDC, 2A/point, 8A/module, 8 points, all points independent, sink/source, terminal block
QY705/12VDC, 16mA/point, 16 points (16 points/common), output delay: 0.3ms
QY715/12VDC, 16mA/point, 32 points (32 points/common)
QY8012/24VDC 0.5A/point, 4A/common, 16 points (16 points/common),
QY81P12/24VDC 0.1A/point, 2A/common, 32 points (32 points/common)
Analog module
Q64AD4 channels, analog-to-digital conversion: voltage/current input
Q68ADV8 channels, analog-to-digital conversion: voltage input
Q68ADI8 channels, analog-to-digital conversion: voltage input
Q62DA2 channels, digital-to-analog conversion: voltage/current output
Q64DA4 channels, digital-to-analog conversion: voltage/current output
Q68DAV8 channels, digital-to-analog conversion: voltage output
Q68DAI8 channels, digital-to-analog conversion: current output
I/O composite
QH42P24VDC positive common input: 32 points (response time: 1/5/10/20/70ms)
QX48Y5724VDC positive common input: 8 points
Power supply module
Q61P-A1100-120VAC input/5VDC 6A output
Q61P-A2200-240VAC input/5VDC 6A output
Q62P100-240VAC input/5VDC 3A, 24VDC 0.6A output
Q63P24VDC input/5VDC 6A output
Q64P100-120/200-240VAC input/5VDC 8.5A output
I/O module connector
A6CON1Soldering 32-point connector
A6CON2Solderless terminal connection 32-point connector
A6CON3Flat cable pressure-displacement 32-point connector
A6CON1ESoldering 32-point connector (for QX81, QY81P)
A6CON2ECrimp-contact connection 32-point connector (for QX81, QY81P)
A6CON3EFlat cable pressure-displacement 32-point connector (for QX81, QY81P)
Temperature inputmodule
Q64RDchannels, platinum temperature measuring resistor input (3/4-wire type)
Temperature control module
Q64TCTTThermocouple input-transistor output
Q64TCTTBWThermocouple input-transistor output with wire breakage detection function
Q64TCRTPlatinum resistance thermometer input-transistor output
Q64TCRTBWPlatinum resistance thermometer input-transistor output
Channel-isolated pulse input module
QD60P8-G8 channels, 5/12 to 24VDC input, input filter setting, with pre-scale function
High-speed counter
QD622 channels, 200kpps, 5/12/24VDC input, sink transistor output (Note 2)
QD62D2 channels, 500kpps, differential input, sink transistor output (Note 2)
QD62E2 channels, 200kpps, 5/12/24VDC input, source transistor output (Note 2)
Positioning module
QD75P11-axis, open collector output (Note 2)
QD75P22-axis, open collector output (Note 2)
QD75P44-axis, open collector output (Note 2)
QD75D11-axis, differential output (Note 2)
QD75D22-axis, differential output (Note 2)
QD75D44-axis, differential output (Note 2)
QD70P44-axis, pulse output (Note 2)
QD70P88-axis, pulse output (Note 2)
Ethernet module
QJ71E71For 10BASE-5/10BASE-T
QJ71E71-B2For 10BASE-2
QJ71E71-100For 10BASE-T/100BASE-TX
MELSECNET/H module
QJ71LP21-25SI/QSI optical cable, duplex loop, for control, ordinary or master station
QJ71LP21GGI optical cable, duplex loop, for control, ordinary or master station
QJ72LP25-25SI/QSI optical cable, duplex loop, for remote I/O station
QJ72LP25GGI optical cable, duplex loop, for remote I/O station
QJ71BR11Coaxial 75Ω cable, simplex bus
QJ72BR15Coaxial 75Ω cable, simplex bus for remote I/O station
Q80BD-J71LP21-25MELSECNET/H board for personal computer
Q80BD-J71LP21GMELSEC/H board for personal computer
Q80BD-J71BR11MELSECNET/H board for personal computer
CC-Link module
QJ61BT11For master/local
Serial communication modul
QJ71C24RS-232 1 channel, RS-422/485 1 channel
QJ71C24-R2RS-232 2 channels
Modem interface module
QJ71CMOBuilt-in modem 1 channel/RS-232 1 channel
Intelligent communication module
QD51RS232 2 channels
QD51-R24RS232 1 channel, RS422/485 1 channel
SW1IDV-AD51HP QD51 software package
SW1NX-AD51HPQD51 software package
AS-i master unit
QJ71AS92Master module : complies with AS-i standard Ver.2.11.
Extension base unit
QA1S65BPower supply + 5 I/O slots for AnS series modules
QA1S68BPower supply + 8 I/O slots for AnS series modules
QA65BPower supply + 5 I/O slots for large A series modules
IC memory card
Q2MEM-1MBSSRAM card: 1M bytes
Q2MEM-2MBSSRAM card: 2M bytes
Q2MEM-2MBFFlash card: 2M bytes (Flash ROM)
Q2MEM-4MBFFlash card: 4M bytes (Flash ROM)
Q2MEM-8MBAATA card: 8M bytes (ATA flash ROM)
Q2MEM-16MBAATA card: 16M bytes (ATA flash ROM)
Q2MEM-32MBAATA card: 32M bytes (ATA flash ROM)
Q2MEM-BATReplacement battery for Q2MEM-1MBS
Base unit
Q33BPower supply + CPU + 3 I/O slots for Q series modules
Q35BPower supply + CPU + 5 I/O slots for Q series modules
Q38BPower supply + CPU + 8 I/O slots for Q series modules
Q312BPower supply + CPU + 12 I/O slots for Q series modules
Q63BPower supply + 3 I/O slots for Q series modules
Q65BPower supply + 5 I/O slots for Q series modules
Q68BPower supply + 8 I/O slots for Q series modules
Q612BPower supply + 12 I/O slots for Q series modules
Q52B2 I/O slots for Q series modules (power supply module unnecessary)
Q55B5 I/O slots for Q series modules (power supply module unnecessary)
DIN rail
Q6DIN1DIN rail mounting adaptor for Q38B/Q312B/Q68B/Q612B
Q6DIN2DIN rail mounting adaptor for Q35B/Q65B
Q6DIN3DIN rail mounting adaptor for Q33B/Q63B
