Below are only several model sizes we have for the Copper Rotary Scrubber. There are still many other model sizes available. Our engineer will configure the right model size for you according to your required capacity and ore information.



Model	Drum Size  (mm)	Screen  size  (mm)	Rotation  speed  (r/min)	Feeding  size  (mm)	circulating  water (t/h)	Water  consumption (M3/h)	Angle of  inclination (°)	Capacity  (T/h)	Power  (Kw)	Weight  (T)
RXT1030	Φ1000×3000	≤20	27.9	≤80	20-30	1	≤10	40	15	3.8
RXT1136	Φ1100×3600	≤25	27.6	≤80	32-50	1.2	≤10	65	15	4.6
RXT1230	Φ1200×3000	≤25	27.6	≤100	35-60	1.3	≤10	70	22	4.7
RXT1430	Φ1400×3000	≤25	27.6	≤100	40-70	1.5	≤10	80	22	4.9
RXT1545	Φ1500×4500	≤25	21	≤160	60-110	1.7	≤10	120	30	6.9
RXT1860	Φ1800×6000	≤25	21-23	≤210	80-130	1.8	≤10	150	37	8.5
RXT2265	Φ2200×6500	≤50	19	≤230	90-150	1.8	≤10	180	37	15.9

 Gold Washing Trommel Gold Washing Trommel Gold Washing Trommel

 Gold Washing Trommel Gold Washing Trommel Gold Washing Trommel

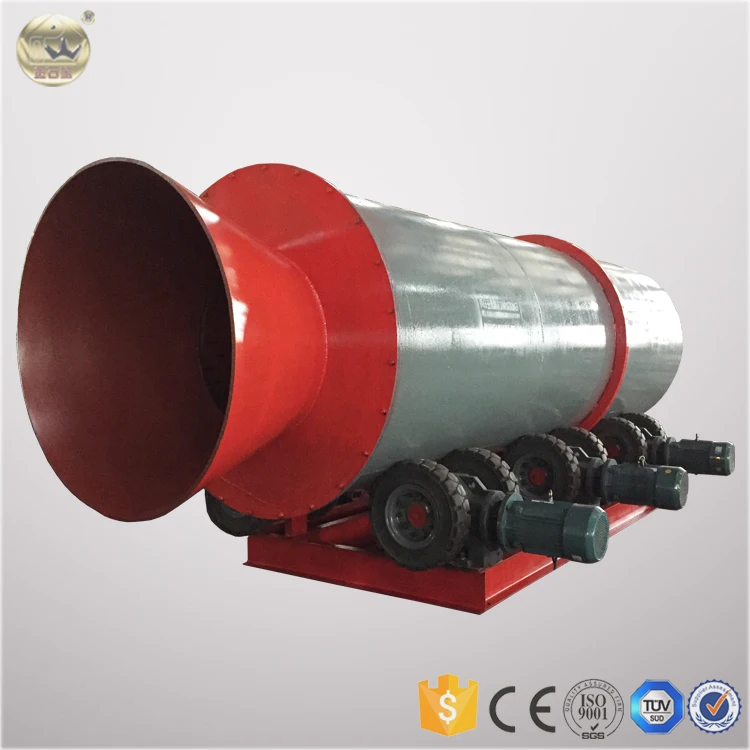

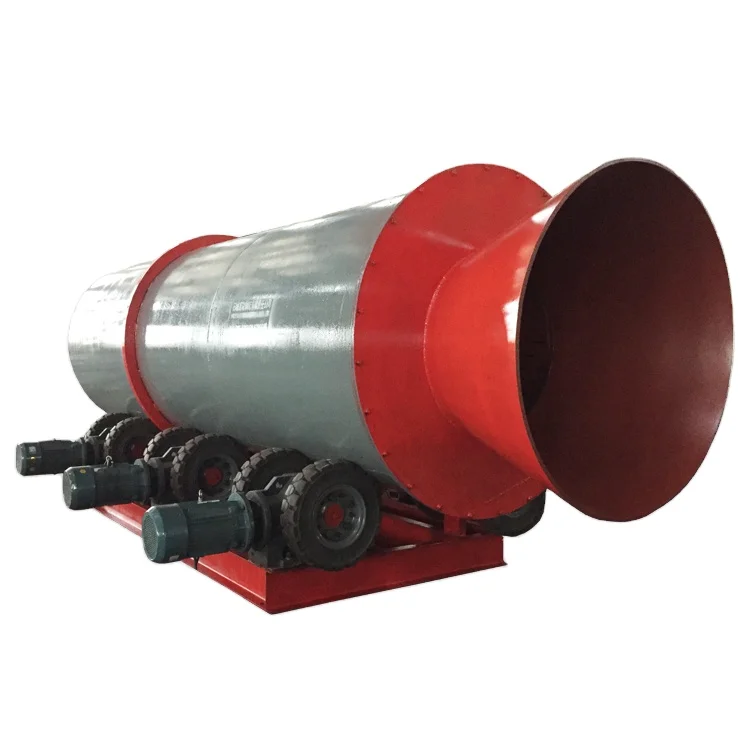

1. The following picture shows us the tyre drive and the inner scrubbing drum of the Copper Rotary Scrubber.

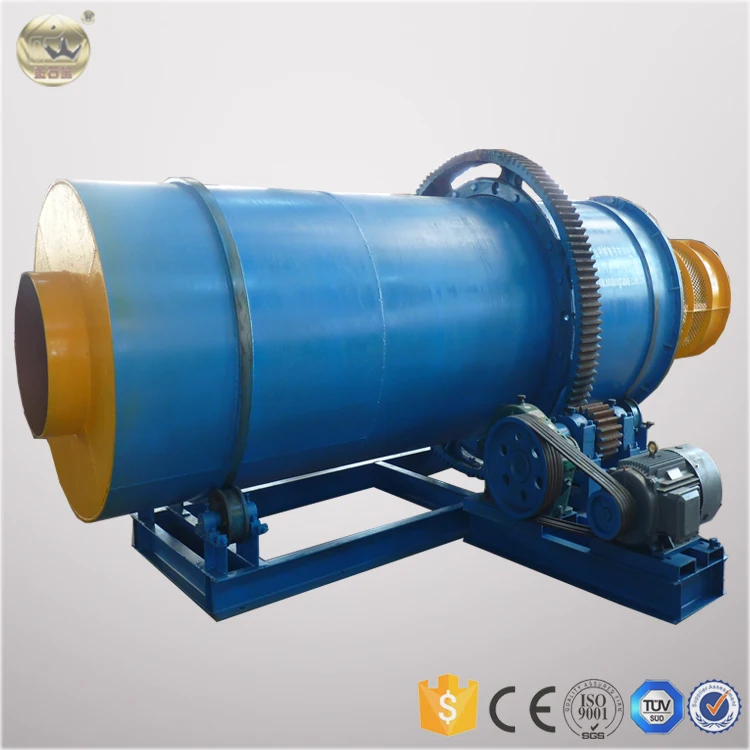

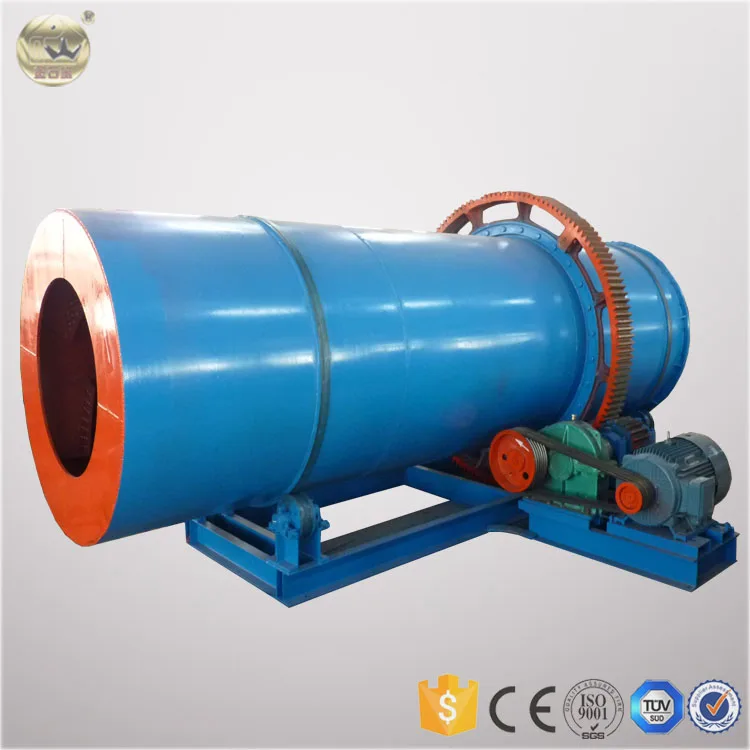

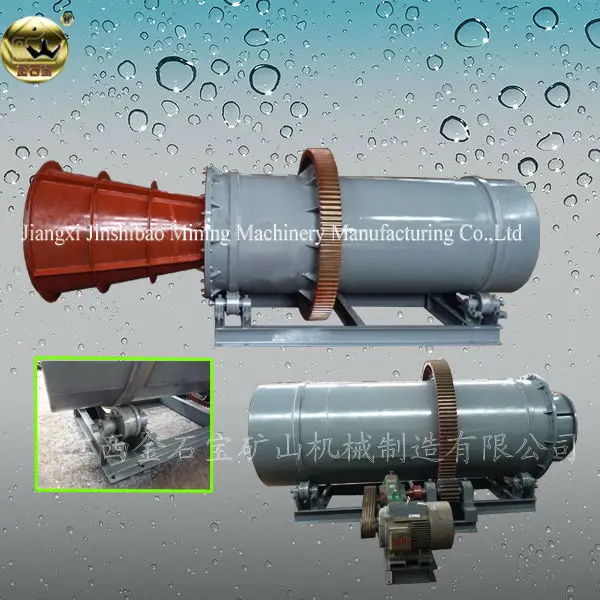

     Tyre drive: The larger models are suggested to use the tyre drive for more stable performance and longer using life. Totally 12 tyres and 3 motor engines ensure the machine to work in a very good condition. (The smaller models are usually equipped with gear drive for higher Cost-Effective.)

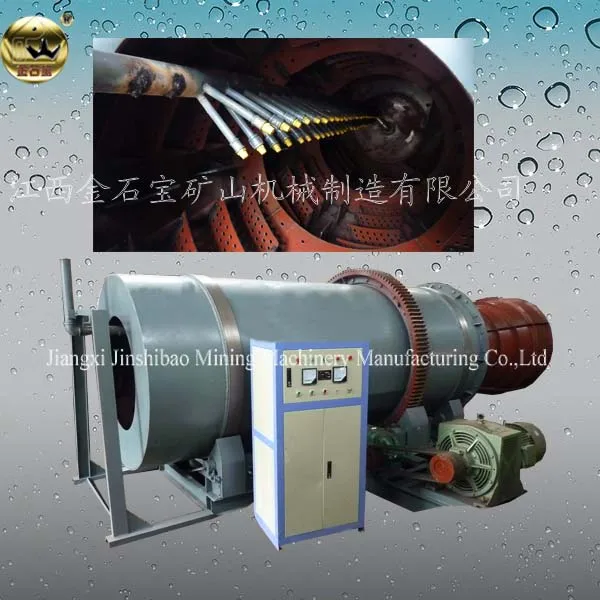

     Scrubbing drum: The washing scrapers are welded inner the scrubbing drum wall. It's able to high effectively break the clay lumps and wash the clays off the ore sands or stones. With the help of pressure water from the central water sprays, the clay ores can be very efficiently washed.





 Gold Washing Trommel Gold Washing Trommel Gold Washing Trommel

2. Below picture shows the different sieve types for the screening drum. Usually there are 3 types: the woven sieve, the punched-hole sieve, and the PU sieve. Our engineer will configure the most suitable one for you as per the required sieve opening size as well as the ore condition. It could be also defined as per your requirements.



 Gold Washing Trommel Gold Washing Trommel Gold Washing Trommel

3. Our Copper Rotary Scrubber is carefully manufactured by our workers. Please rest assured about the quality of it.



Gold Washing Trommel Gold Washing Trommel Gold Washing Trommel

4. Our Copper Rotary Scrubber are well working on different customers' working sites.



The following plant is one of our Senegal customer's alluvial gold plant. The Copper Rotary Scrubber is used in the first step so as to wash the raw ore and remove the barren rocks. His general flowsheet is as:



Hopper --- Rotary Scrubber--- Gold concentrator --- Gold sluice box --- Shaking table



Gold Washing Trommel Gold Washing Trommel Gold Washing Trommel



As the dimension of the Copper Rotary Scrubber are always quite large, it is not suitable for shipping in bulk. As a result, it is usually loaded in container for shipping.



Gold Washing Trommel Gold Washing Trommel Gold Washing Trommel

Jiangxi Jinshibao Mining Machinery Manufacturing Co, Ltd was founded in 2001. It is mainly engaged in:



1. Mining machinery manufacturing

2. Experimental analysis on sample ore

3. Flow chart designing

4. Installation and debugging

5. Technical support services



Its main products contain shaking table, ore washing machine, centrifugal concentrator, spiral chute, crusher, ball mill, vibrating screen, classifier, flotation machine, Jigger and so on.
