Квалифицированная машина для производства арматуры
- Категория: Other Plastic & Rubber Machinery >>>
- Поставщик: Shandong,Gold,Lead,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.78 $* | 0.85 $* |
| Aug-17-2025 | 0.37 $* | 0.3 $* |
| Jul-17-2025 | 0.18 $* | 0.4 $* |
| Jun-17-2025 | 0.77 $* | 0.21 $* |
| May-17-2025 | 0.42 $* | 0.25 $* |
| Apr-17-2025 | 0.33 $* | 0.88 $* |
| Mar-17-2025 | 0.10 $* | 0.54 $* |
| Feb-17-2025 | 0.96 $* | 0.9 $* |
| Jan-17-2025 | 0.33 $* | 0.97 $* |
Характеристики
Machine Description
Technical Parameter
| Description | Qty | Technical Data |
| Roving Creel | 2pcs | Combined structure |
| each to hold about 100 roving bobbins | ||
| ceramic bushes on the side board | ||
| optional moveable roller at the bottom of stand | ||
| Resin Bath | 1pc | Mild steel/stainless steel/constant temperature type |
| optional 1/2/3 layers | ||
Heating Device (winding & unwinding parts) | 1pc | two winding heads which can produce two pieces of rebar at the same time |
soft steel wire to form the rib/thread screw, which can unwind after curing, recycling use. Fiberglass winding on the surface is also optional | ||
10 temperature heating zones, frequency control motor | ||

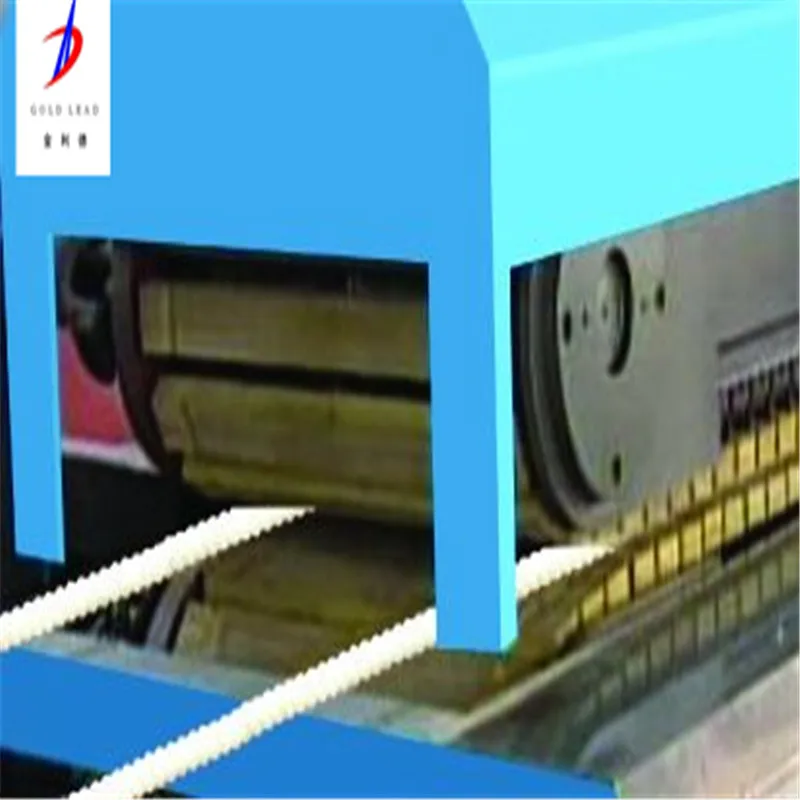

| Puller | 1pc | Caterpillar type |
| rubber gripper, clamping envelope 500mm (W) *110mm(H) | ||
| clamping length:1200mm | ||
| clamping force 40-80KN | ||
| pulling speed 0.1-1.0m/min | ||
| open-close type puller, easy for adjustment | ||
| high precision (1/1000),low noise and save energy (pulling power 1.1KW) | ||
| Cutter | 1pc | Automatic cutter with dust vacuum cleaner, fix-length cutting with limit switch or speed sensor control |
| Racks for Finished Products | 1pc | Roller type/auto unloading type |
Detailed Images
Certifications
Company Information
Visiting Customer
Packaging & Shipping
