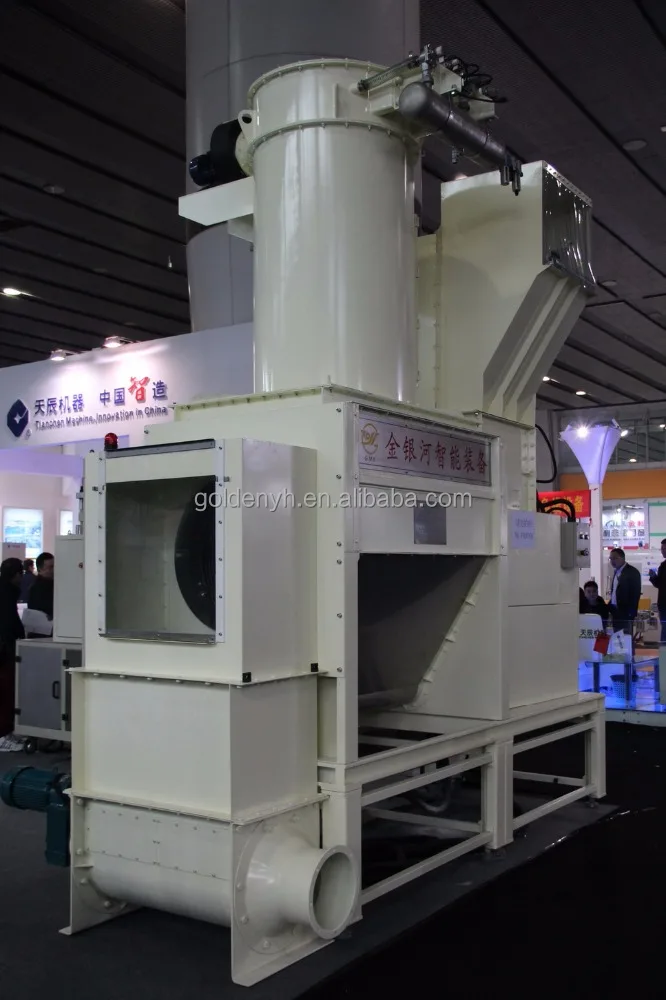

CBJ-200 Automatic Unpacking Device For Calcium Carbonate

Product Description

1.high efficiency, fast unpacking ,240 bag/h

2.compact structure ,closed environment, no dust.

3.effective separation of materials and bags, less residue material.

4. for a variety of sizes and packaging materials.

5. All the parts in contact with the ingredient are made of stainless steel which will not contaminate materials.

Details

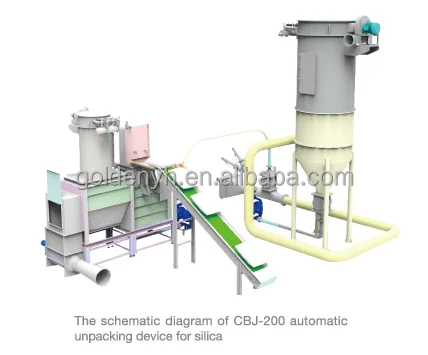

Technical configuration

No.	Type	Item Name	QTY	Model/Specification	Remark
1	Belt conveyor	worm decelerator	1	0.75KW ,IP55	Liming
2	Belt conveyor	Photoelectric sensor	1	WS/WE2S-F213	SICK
3	Bag cutting device	worm decelerator	2	2.2KW	Liming
4	Bag cutting device	Solenoid valve	1	SY5120-5YO-01F-Q	SMC
5	mixed transport	parallel shaft helical gear reducer	1	4KW ,IP55	JIANGLANG
6	Separation system	worm decelerator	1	0.75KW	Liming
7	Separation system	level-sensing device	1	SP-YC-250	SPES
8	Powder conveying	parallel shaft helical gear decelerator	1	2.2KW ,IP55	JIANGLANG
9	Bags discharge	parallel shaft helical gear reducer	1	3KW ,IP55	JIANGLANG
10	Dust removal system	Blower	1	CY200	JIUYI
11	Dust removal system	Pulsed electromagnetic valve	1	DMF-Z-25S	SNS

The technical parameters of the device

1	Maximum production capacity	200 bags / hour
2	Maximum compatible bag sizes	L1020mm × W720mm × H330mm
3	Conveying method	transporting the materials and bags by screw conveying
4	Air source	nitrogen and compressed air
5	Air pressure	0.5-0.7Mpa
6	Air Consumption	about 1800L/min
7	Total Power (KW)	≤ 16KW
8	Power AC	3 * 220V, 60HZ
9	Unpacking device Dimensions	L3550mm × W1130mm × H4000mm
10	Belt conveyor Dimension	L3600 × W670mm × H2550mm

The electrical cabinet

S / N	Standard
1	control: a logic circuit, DC24V
2	Power: AC 3 × 220V 60Hz (per requirement)
3	The parts such as contactors, air switches, circuit breakers are Siemens brand
4	relay: Japan IDEC brand
