Limited switch for cnc cutting and engraving machine in stock



Introduction

Limit switch is a commonly used small current master device. The use of production machinery moving parts of the collision so that the contact action to achieve or switch

off the control circuit to achieve a certain control purposes. Usually, this type of switch

is used to limit the position or stroke of mechanical movement, so as to automatically stop the movement machinery according to a certain position or stroke, reverse movement, variable-speed movement or automatic reciprocation movement.



Parameter

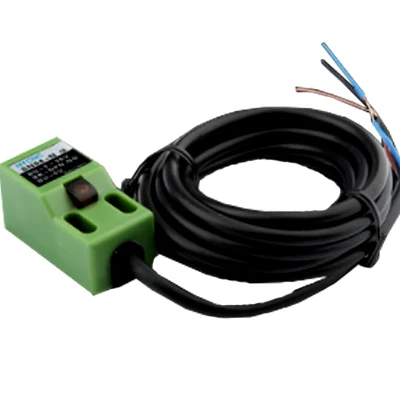

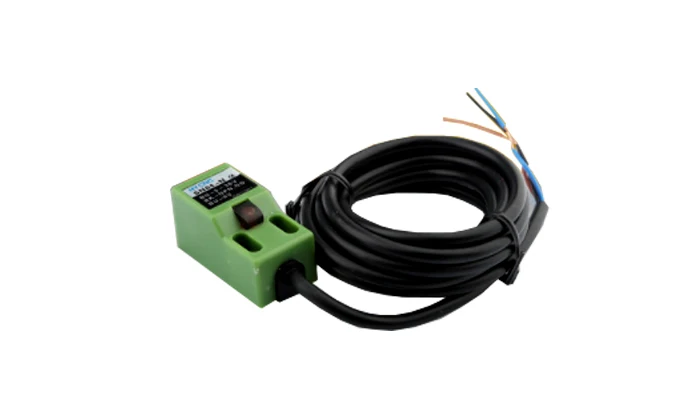

Green limit switch parameters
Product number	SN04-N
Name	Green light proximity switch
Restricted specification	Three-wire system
Product Size	18*18*36mm
Detection distance	5mm±10%
BN brown	5-30DC(connect 5V)
BK black	OUTPUT(connect signal)
BU blue	OV NPN ON(Connect G terminal)
Response frequency	DC:0.5Khz  AC:25HZ
Standard induction	Iron 18*18*1mm
Magnetic metal (detection distance is reduced when non-magnetic metal)



Feature

1. Sensing performance, equipped with optical components, reflective sensitivity.

2. Strong anti-interference ability, integrated circuit technology and SMT surface mounting process.

3. Frequency response, pulse-modulated active photoelectric detection system switch.

4. Good insulation, photoelectric switch output circuit and input circuit are electrically isolated.
