Высокопрочная T-образная Солнечная Установка для парковки углеродистая сталь
- Категория: Монтажная система на солнечной батарее >>>
- Поставщик: Yuens,(Xiamen),New,Material,Co.,Ltd.Yuens,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 119.6 $* | 125.51 $* |
| Aug-20-2025 | 118.12 $* | 124.66 $* |
| Jul-20-2025 | 99.46 $* | 104.31 $* |
| Jun-20-2025 | 116.46 $* | 122.59 $* |
| May-20-2025 | 101.10 $* | 106.39 $* |
| Apr-20-2025 | 114.44 $* | 120.2 $* |
| Mar-20-2025 | 113.74 $* | 119.20 $* |
| Feb-20-2025 | 112.89 $* | 118.33 $* |
| Jan-20-2025 | 111.23 $* | 117.40 $* |
Характеристики
Product Details

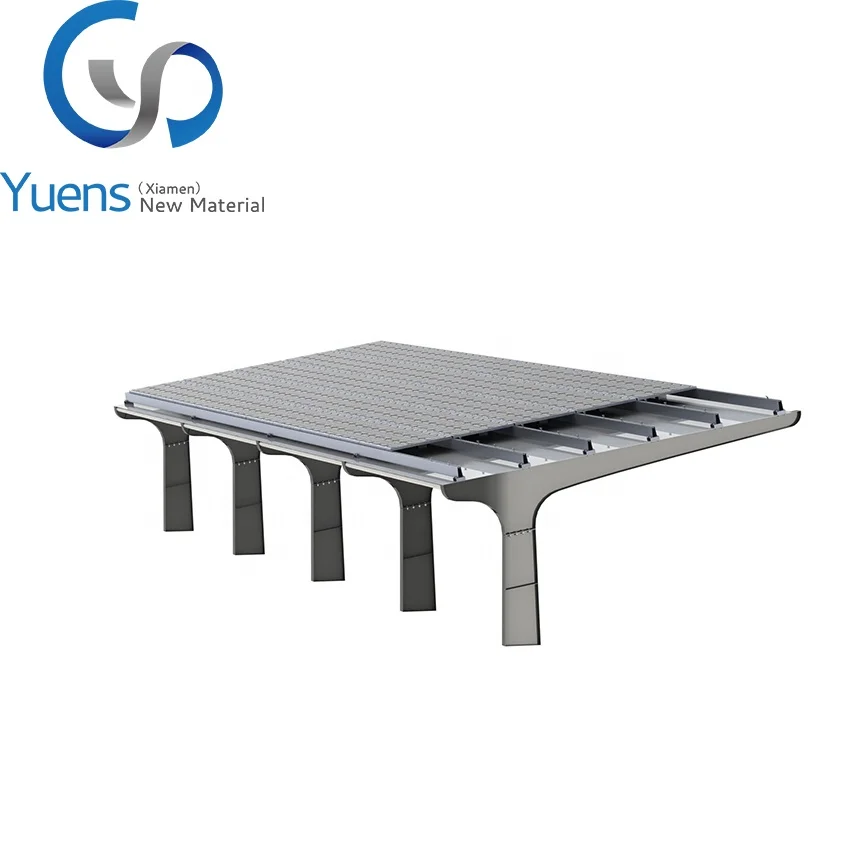

High Strength T-shape Solar Mounting Car Park Carbon Steel Solar Carport
CL-3 Single T-Frame Solar Carport Mounting, standard installations maintain 4,000mm maximum clearance. No field welding, drilling or other on-site fabrication needed. Water control with decking.
\t\t\t\t\t\t\t\t\tDrawing Design \t\t\t\t\t\t\t
Free bom list and drawing design pls contact me.
Drawing sample as below:
Installation Steps
Contact us to get the detail installation manual :-D
1. Install the support post on precast concrete foundations by M16x300 anchor bolt, nut, flat washer, and spring washer.
2. Connect support post and support rack with M20x25 outer hexagon, nut, flat washer and spring washer.
3. Connect the rails with rail splice if the rails are not long enough.
4. Fix the rail on the square tube with fixing clamps.
5. Fix the solar panels with end clamps.
6. Fix the solar panels with mid clamps.
7. Well done! You have installed the single T-frame solar carport successfully.

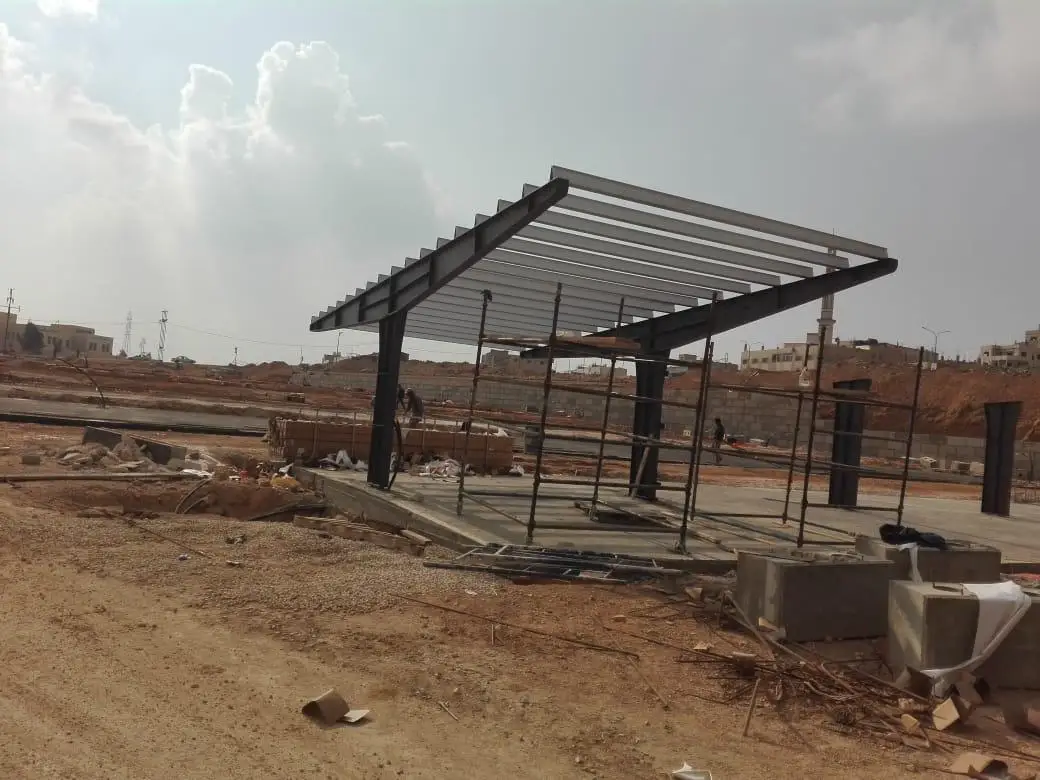

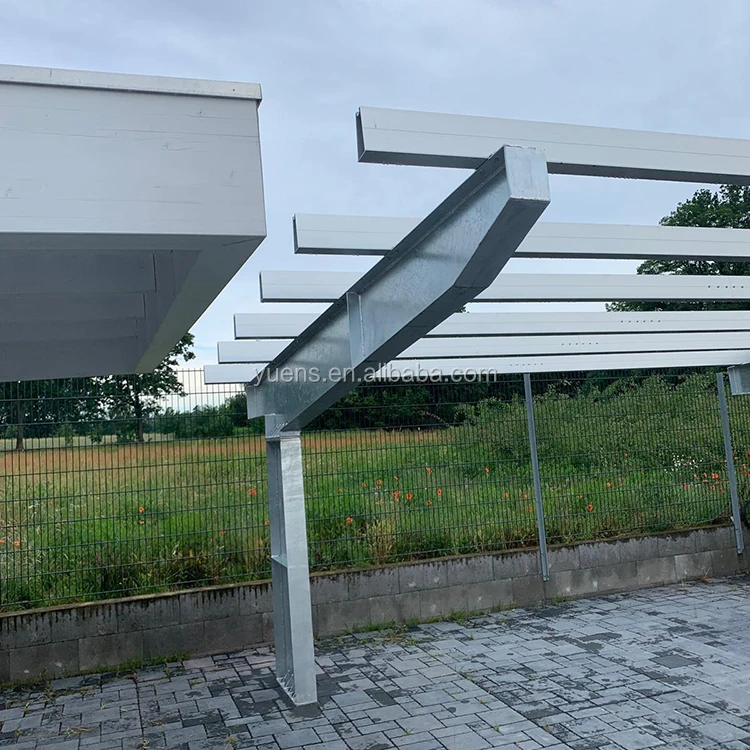

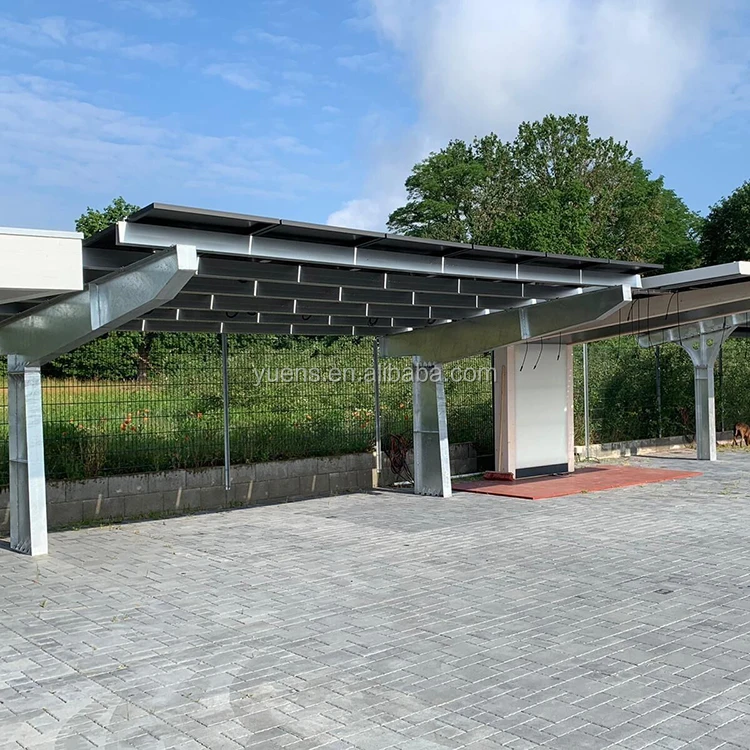

\t\t\t\t\t\t\t\t\tProject Photo \t\t\t\t\t\t\t
Packing
The solar components are packed by carton.
Each carton is clearly marked packing quantity inside.
The cartons are packed in one polywood pallet.
Metal Pallet Packing
The aluminum profiles are packing by metal pallet. It can protect product from damages.
Solar Show
Yuens attended the Solar Show in Vietnam, Malaysia, German, Egypt etc.
Free bom list and drawing design pls contact me.
Yuens
is a professional company, engaged in research, manufacturing, and marketing of aluminum products for the solar mounting system, curtain wall system, and other architectural constructions. We have been committed to providing high-level quality products and related technical support service.
