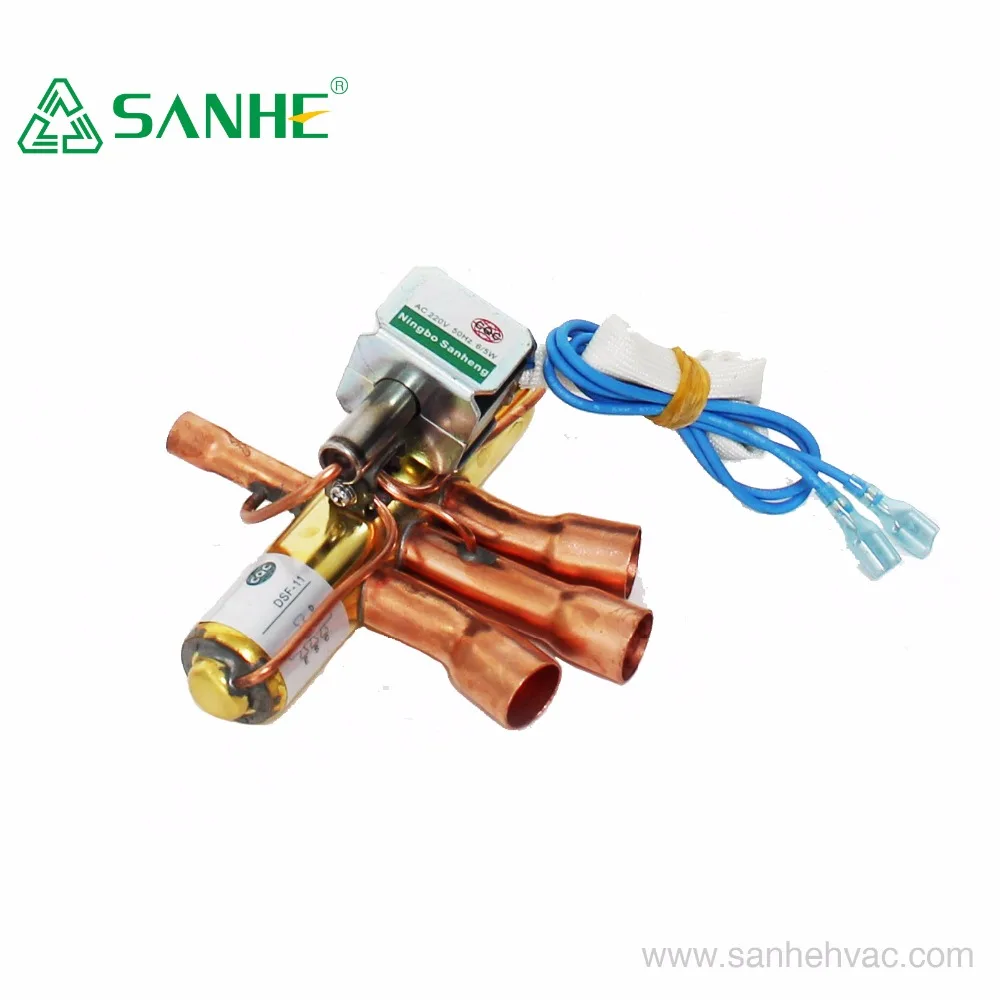

Авто детали для кондиционирования воздуха HVAC части DSF-11 4 способа Реверсивный

 Parameter

Max. Working Pressure

R134a, R407C: 3.0 Mpa; R410A: 4.15 Mpa

Ambient Temperature

-20ºC ~ 55ºC

Allowable Fulid Temperature

-20ºC ~ 120ºC

Ambient Humidity

Less than 95% R.H.

Applicable Voltage

AC24V, AC100V, AC115V, AC120V, AC220V, AC240V, AC277V, DC24

Allowable Coil Power And Temperature Limits

5 ~ 8 W, ≤130ºC

Refrigerant

407C, R134a, R410A

 Features

Model

Port Size (mm)

Max. O.P.D(MPa)

Min.O.P.D(MPa)

Nominal Capacity

Applicable (Valus for reference)

Internal leakage

Connection (ODF)

R407C

R410A

R407C, R140A

TON

HP

L/min

Discharge

Suction

DSF-4U

8

2.5

3.1

0.2

1

0.75 ~ 1.5

≤1.0

ø8.0

5/16'

ø9.52

3/8'

DSF-9U

11.1

0.25

2

1.5 ~ 3.7;

0.75 ~2.0

≤1.5

ø9.52

3/8'; 5/16"

ø12.7

1/2'

DSF-11U

11.5

0.3

2 ~ 3

2.5 ~ 4.2;

2.0 ~ 4.0

≤2.0

ø9.52 3/8'

ø15.9

5/8'

DSF-11

11.5

0.3

2 ~ 3

2.5 ~ 4.2;

2.0 ~ 4.0

≤2.0

ø12.7

1/2'

ø15.9

5/8'

DSF-20U

15.5

0.34

4 ~ 6

4.0 ~ 6.0;

2.0 ~ 8.0

≤4.0

ø12.7

1/2'

ø19.05

3/4'

DSF-20

15.5

0.34

4 ~ 6

4.0 ~ 6.0;

2.0 ~ 8.0

≤4.0

ø12.7

1/2'

ø22.2

7/8'

DSF-34

20

0.34

10

6.5 ~ 12.0;

6.0 ~ 12.0

≤6.0

ø19.05

3/4'

ø22.2

7/8'

DSF-45

26

0.34

12 ~ 15

15 ~ 20;

8 ~ 20

≤8.0

ø28.6 1-1/8'

ø35

1-3/8'
