Стальной стержень горячекатаный сплав Круглый стальной sae 1020 сталь цена за
- Категория: >>>
- Поставщик: Shanghai,Hengtie,Steel,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 1309.4 $* | 1374.68 $* |
| Aug-18-2025 | 1298.25 $* | 1363.63 $* |
| Jul-18-2025 | 1089.83 $* | 1143.36 $* |
| Jun-18-2025 | 1276.39 $* | 1340.42 $* |
| May-18-2025 | 1111.54 $* | 1167.62 $* |
| Apr-18-2025 | 1254.57 $* | 1317.81 $* |
| Mar-18-2025 | 1243.69 $* | 1305.83 $* |
| Feb-18-2025 | 1232.13 $* | 1294.8 $* |
| Jan-18-2025 | 1221.59 $* | 1282.92 $* |
Характеристики
1020 steel bar Hot Rolled Alloy Round
Product Description
Specification:
Steel Grade: | 20MnCr5 / 20MnCrS5 | Application: | Machinery Steel, Engineering Steel |
Shape: | Round Bar | Standard: | DIN, EN |
Dimension: | 10-1500mm | Surface: | Black or Machined |
Technique: | Hot Rolled, Forged | Ultrasonic Test: | 100% UT Passed |
Equivalence
AISI / SAE | DIN / W.Nr | JIS | GB |
5120 | 20MnCr5 20MnCrS5 1.7147 | ---- | 20CrMn |
Chemical Composition (%)
Steel Grade | C | Si | Mn | P | S | Cr |
20MnCr5 | 0.17 0.22 | ≤ 0.40 | 1.10 1.40 | ≤ 0.035 | ≤ 0.035 | 1.00 1.30 |
20MnCrS5 | 0.17 0.22 | ≤ 0.40 | 1.10 1.40 | ≤ 0.035 | 0.020 0.040 | 1.00 1.30 |
Dimensions
| Hot Rolled | Forged |
Diameter (mm) | 10-260 | 100-1500 |
Length (mm) | 3000-5800 | 3000-5800 |
Delivery Condition
EAF+LF+VD, Forged, Black or Machined, Annealed, UT 100% Passed
Characteristics
DIN 20MnCr5 / 20MnCrS5 grade is a low-alloy steel containing chromium as
strengthening agent. The steel has good strength and toughness in low temperature, hardenability and machinability, less deformation after heat treatment, but poor
weldability

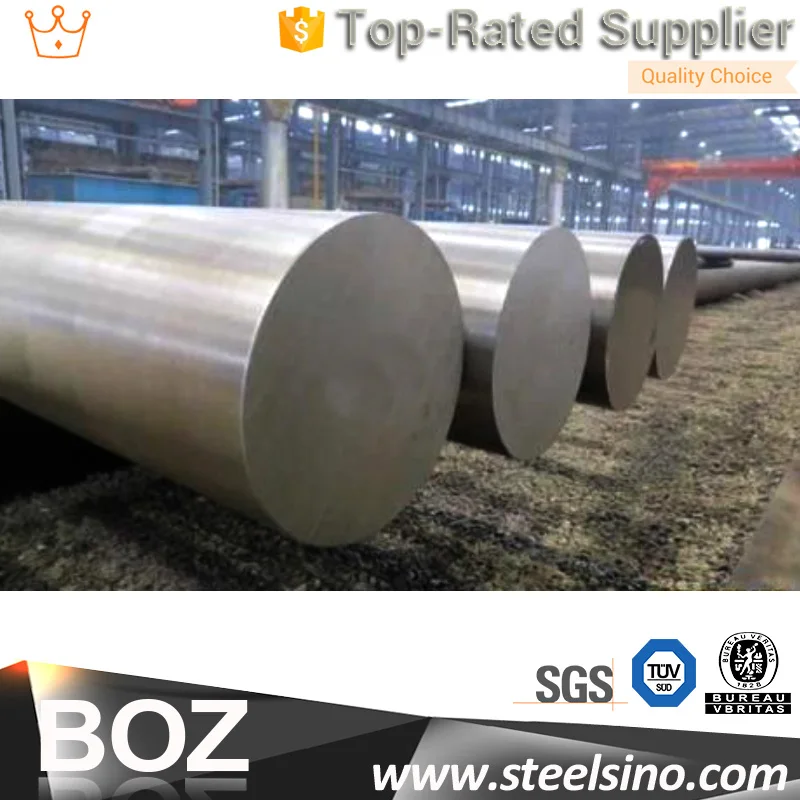

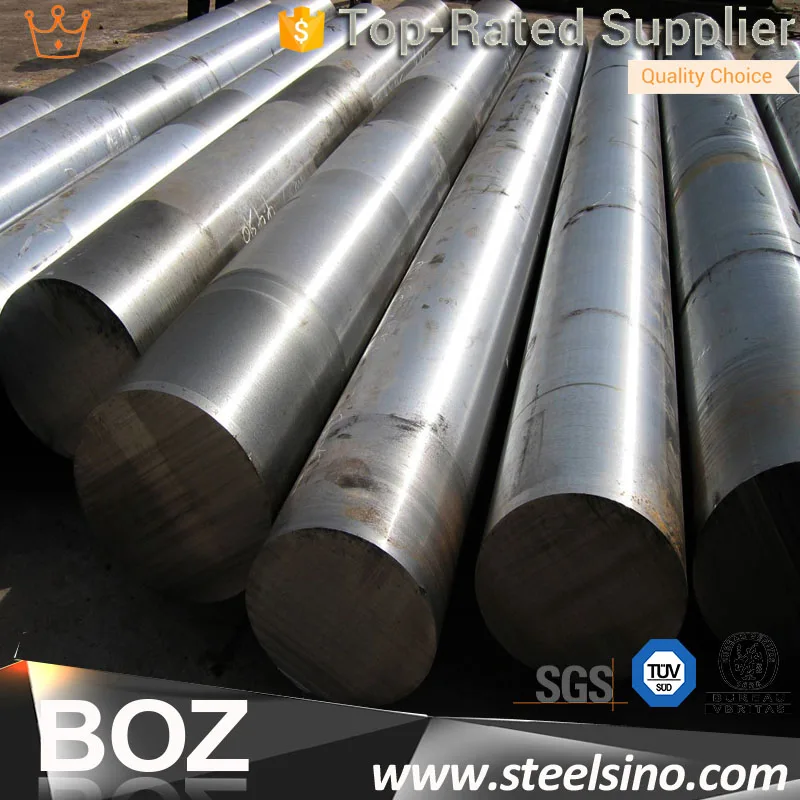

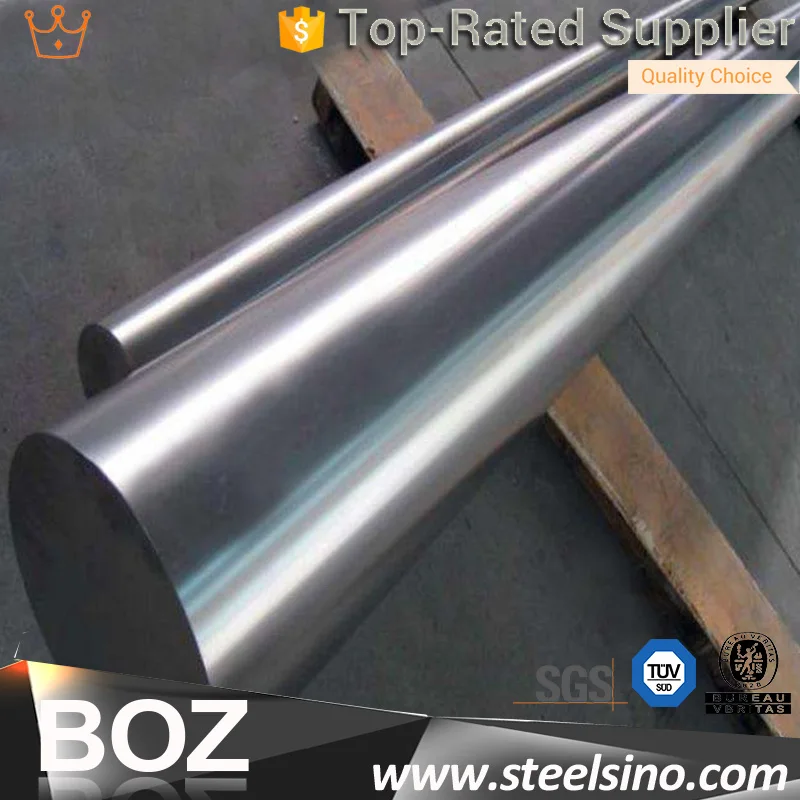

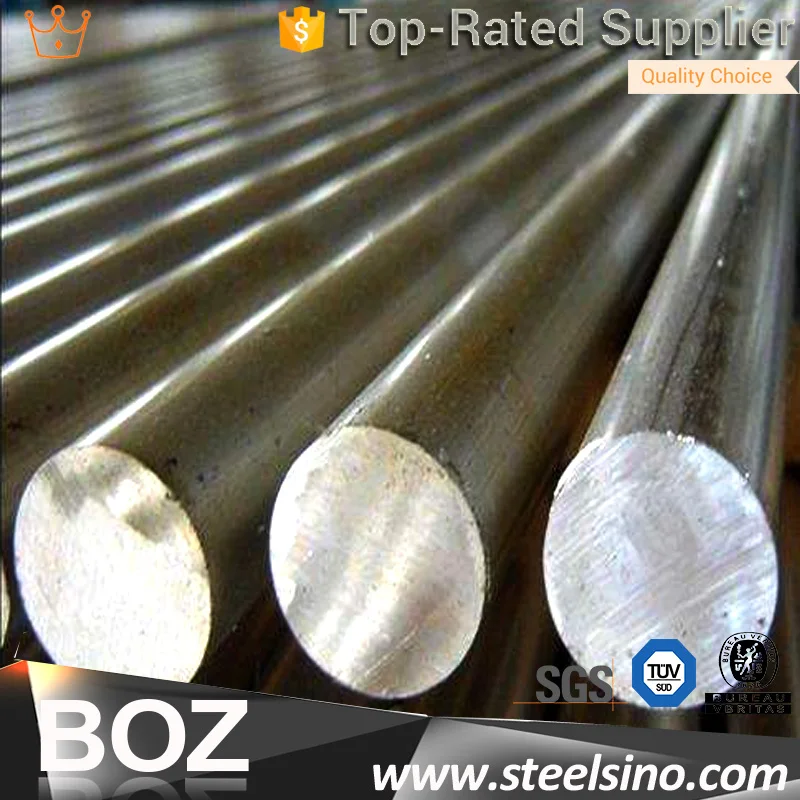

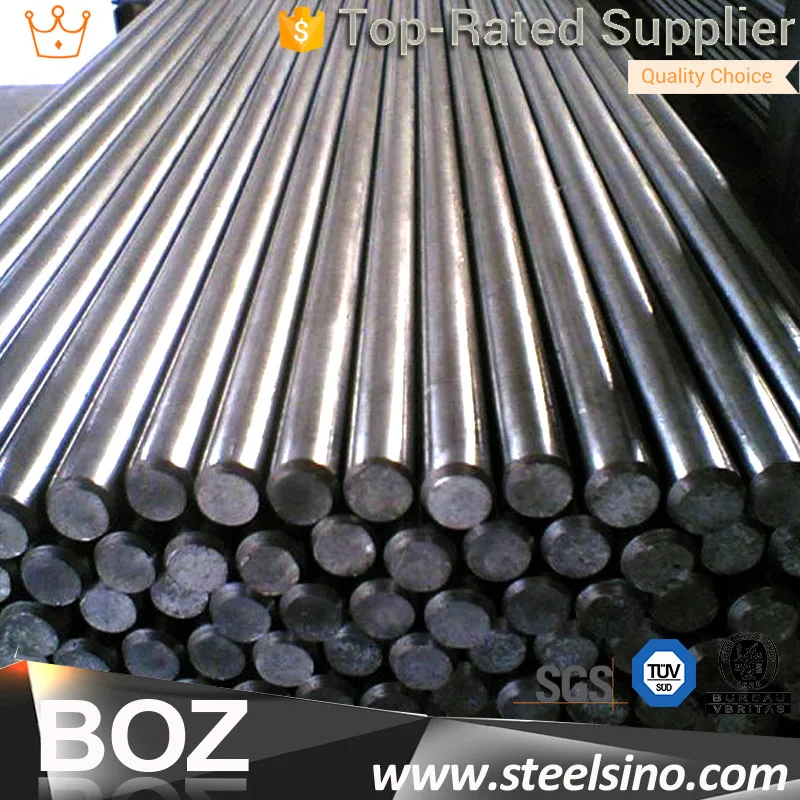

Material Photo
Application
This low-alloy steel can be case hardened, or quenched and tempered, for carburized parts
as well as quenched and tempered parts with large section under heavy bent load and
speed, such as gear, connecting rod, shaft, worm, sleeve, friction wheel, gear pump without heavy impact, water pump rotor, clutch, bolt for high pressure vessel, etc.
Wrkshp&Wrhse&Shppg
Quality Assurance
Below inspection will be done in the production.
(1) ray detection---RT;
(2) ultrasonic testing---UT;
(3) Magnetic Particle Testing-MT;
(4) penetration testing-PT;
(5) eddy current flaw detection-ET
Company Inoformation
Bozhong Group Mainly supply in forms of coil, sheet, plate, rod, bar, tube, pipe, beam, angle, flange, wire, strip, channel, etc., with various varieties, wide range of dimensions, high purity, stable chemical composition, high dimensional accuracy and excellent surface quality. The products are mainly used in the fields of industries such as automobile engineering, railway transportation, aviation, aerospace, machinery, petrochemical, energy, environmental protection, offshore, chemical, oil & gas, military, power plant, nuclear power, pressure vessel, boiler equipment, mold manufacture, etc.
l steel coil
l steel plate
l steel sheet
l steel bar/rod
steel round bar
steel flat bar
steel square bar
l steel pipe/tube ( welded or seamless )
steel round pipes
steel square pipes
steel welded tubes
steel seamless tubes
l steel strip
l steel beam
l steel angle
l steel channel
l steel flange
l Steel wire
Bozhong Group can supply a variety of structural steel, high-strength steel, wear-resistant steel plate, boiler and pressure vessel steel, marine engineering and stainless steel plate in the thick steel and various European standard bars and pipes and profiles.Our global sales and service network throughout all around the world to ensure that the goods reach the customer in the shortest time.
We can follow your drawings and requirements, to provide you with oxygen cutting, plasma cutting and laser cutting and other processing services. You can also perform ultrasonic testing in accordance with EN10160 standard, EN10164 standard test Z15, Z25, Z35, weld bending detection, PWHT detection,etc.
We have ISO9001: 2000 quality management system certification, and obtain the quality certification from all the well-known certification company, including TuV / LRS / GL / CE and so on.
Special steel includes as below:
Boiler and pressure vessel steel
Pipeline steel
Bridge steel
Nuclear power steel
Structural steel
Die steel
High strength steel
Abrasion resistant steel
Weathering, corrosion resistant and fire resistant steel
High rise building steel
Shipbuilding and offshore engineering steel
FAQ
Q: Are you a manufacturer or merely a trader?
A: We are group of companies and owned manufacturer bases and trading company. We specialized in special steel which include alloy structural steel and carbon steel and stainless steel, etc. All material are with high quality and competitive price.
Q: How do you guarantee the quality of your product?
A: Firstly, we can provide the certificates from the third party, such as TUV, CE, if you need. Secondly, we have a complete set of inspection system and every process is checked by QC. Quality is the lifeline of enterprise survival.
Q: Delivery time?
A: We have ready stock for most of material grades in our warehouse. If the material don’t have stock, the delivery lead time is about 5-30 days after receiving your prepayment or firm order.
Q: What is the payment term?
A: T/T or L/C.
Q: Can you provide a sample for our testing before confirm the order?
A: Yes. We can provide sample to you for approval before you place an order to us. Free sample is available if we have stock.
Q: Can we visit your company and factory?
A: Yes, warmly welcome! We can book the hotel for you before you come to China and arrange our driver to our airport to pick you up when you come.
