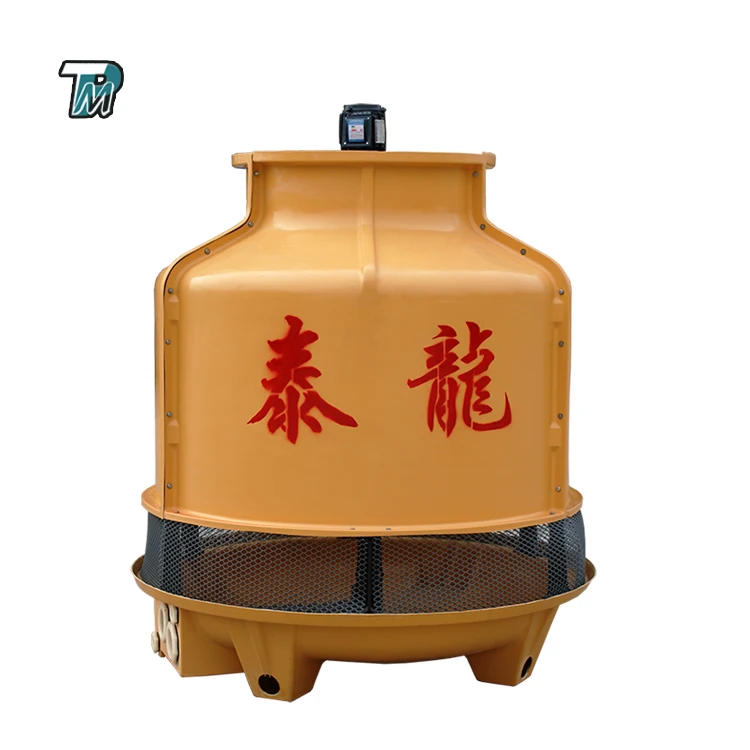

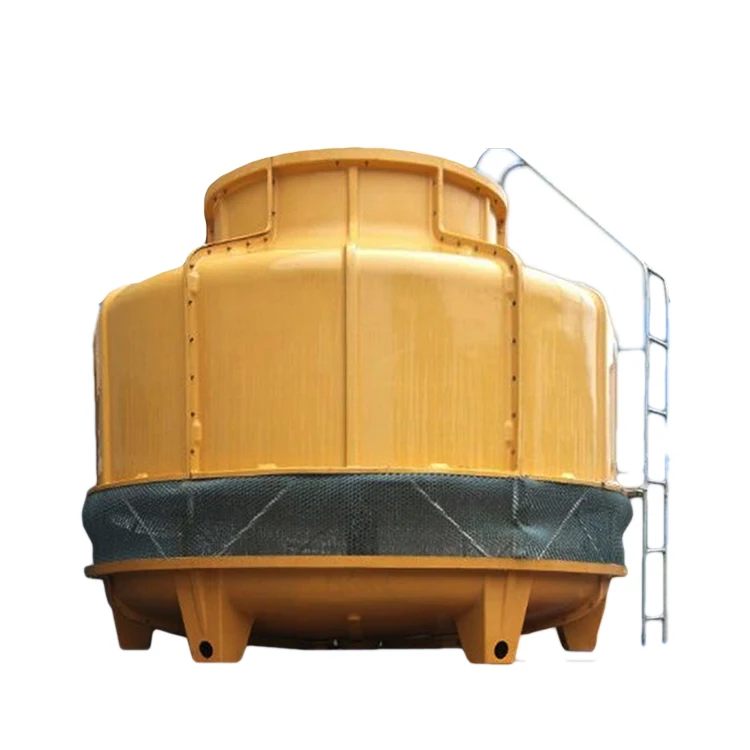

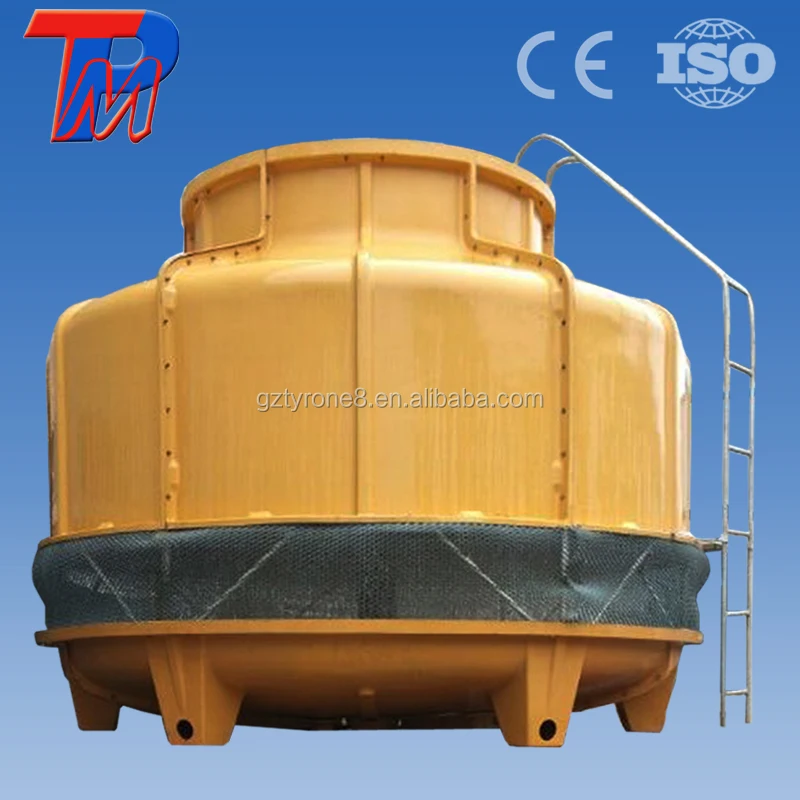

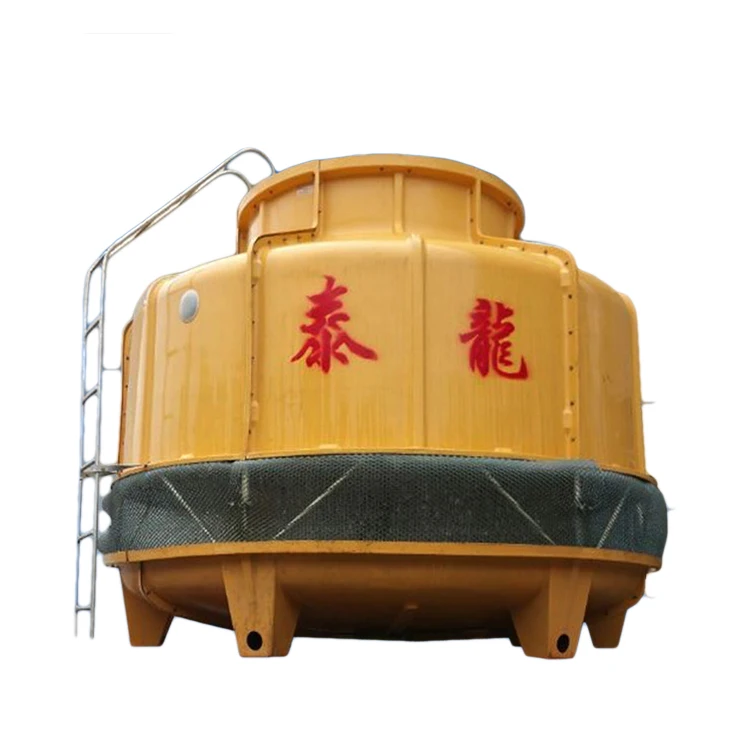

New condition FRP material closed type evaporative cooling tower

 * CT series cooling tower which use low-speed wind machine to avoid too much water spray in the air;

* CT series cooling tower which use water-proof sleeves on the water distribution pipes to collect spilled water;

*the ground frame of the cooling tower is larger than enclosure dameter and equiped with PVC shutters to avoid water spilling out of tower.

Model	8	10	15	20	25	30	40	50	60	80	100	125	150
Flowing volume (m³/h)	6.23	7.81	11.7	15.62	19.51	23.4	31.21	39.24	46.8	62.64	78.12	97.56	117
Motor (KW)	0.18	0.18	0.37	0.55	0.75	0.75	1.50	1.50	1.50	1.50	2.20	2.20	2.20
Net weight (KG)	42	46	54	67	98	116	130	190	240	260	500	540	560
Water inlet	40	40	50	50	80	80	80	80	100	100	125	125	150
Water outlet	40	40	50	50	80	80	80	80	100	100	125	125	150
Tower body (MM)	1380	1530	1415	1590	1820	1705	1775	1835	1955	2035	2370	2555	2555
Water bucket dia (MM)	945	945	1195	1195	1400	1650	1650	1830	2145	2145	2900	2900	2900

ALL COOLING TOWER SPECIFICATION

* offer 1 year warranty

* provide techhinal support for life

* guide maintenance online

* supply spare parts

* provide intergrated sollution

* supply one stop plastic euipment and recycle line
