Вертикальный самоочищающийся фильтр из нержавеющей стали серии A100 для

Вертикальный самоочищающийся фильтр из нержавеющей стали серии A100 для

Категория: Water Filter >>>
Поставщик: Beijing,ZhongYuanTong,Science,&,Technology,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.78 $*	0.53 $*
Aug-16-2025	0.26 $*	0.81 $*
Jul-16-2025	0.29 $*	0.65 $*
Jun-16-2025	0.20 $*	0.16 $*
May-16-2025	0.12 $*	0.36 $*
Apr-16-2025	0.52 $*	0.79 $*
Mar-16-2025	0.29 $*	0.27 $*
Feb-16-2025	0.44 $*	0.99 $*
Jan-16-2025	0.85 $*	0.30 $*

Характеристики

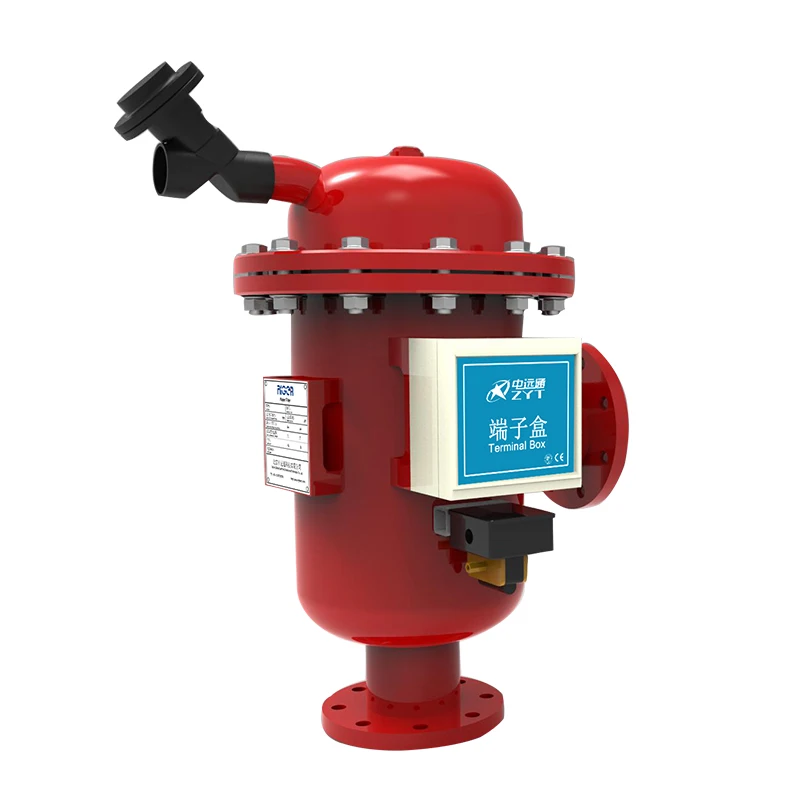

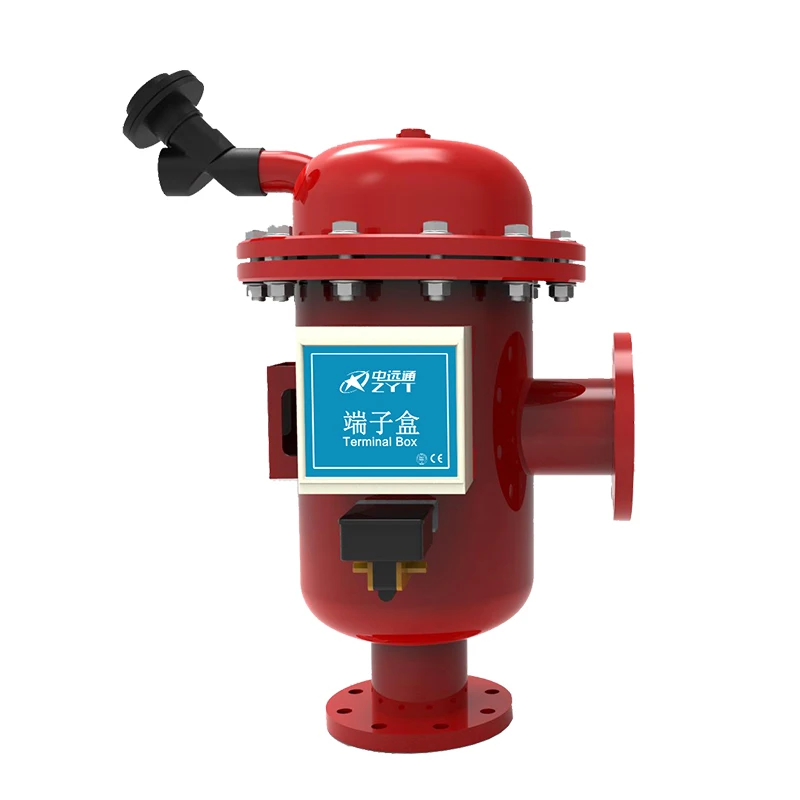

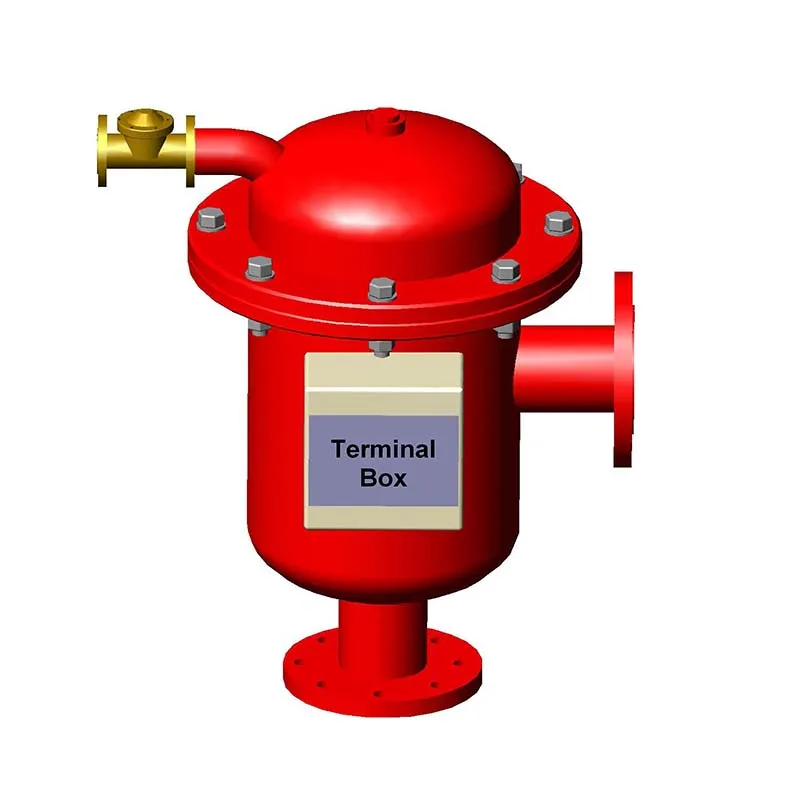

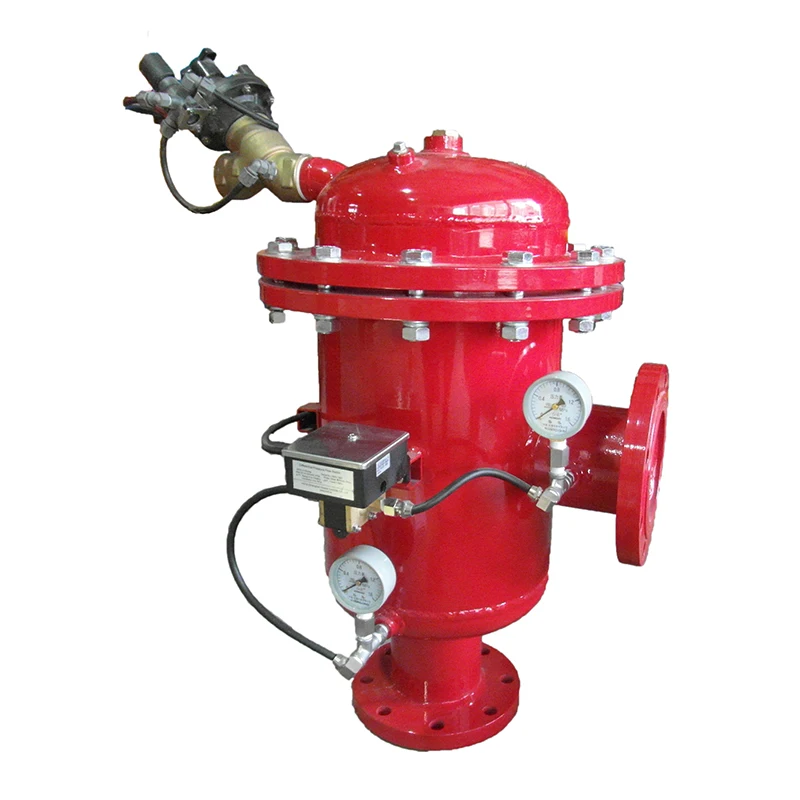

Vertical stainless steel A100 series self cleaning filter for irrigation

A100 series Automatic Backwash Self Cleaning Wastewater Filter adopts hydraulic drive suction nozzle models specially designed for low flow installations and can be used in low pressure pipeline filter. It possesses high filter grade, and adopts the timing and pressure difference control mode, vertical installation, convenient maintenance.

Operation

Cleaning of the screen is performed automatically once the pressure loss (ΔP) across the filter has reached the preset value up to 0.5 bar (7psi). The backwash valve opens, pressure is released from the hydraulic piston, and waste water is discharged through the backwash valve. Pressure in the hydraulic motor chamber and the dirt collector is significantly lowered causing the dirt collector nozzles move along and rotate cleanings the whole internal screen surface. The backwash cycle takes 10-15 seconds. The backwash valve closes at the end of the cycle; pressure reapplied to the piston, moving the nozzles back to their rest position, and the filter is cleaned. During the whole process water supply is uninterrupted.

Technical Parameter

Single filter water flow	15-60m³/h
Pressure rating	1.0Mpa/1.6Mpa/2.5Mpa
Working temperature range	0 ~ 65 °C / 98 °C
Filtering precision	50 ~ 3000 micron
Inlet and outlet Connection	Flange
Backwash time	10~15 sec
Backwash water	Total filtered water 1 to 3%
Control model	DP control/PLC timing control/Manual control
Cleaning way	Suction nozzle
Drive way	Hydraulic drive
Filter screen type	SS304/316L weave wire screen
Sewage way	Fully automatic

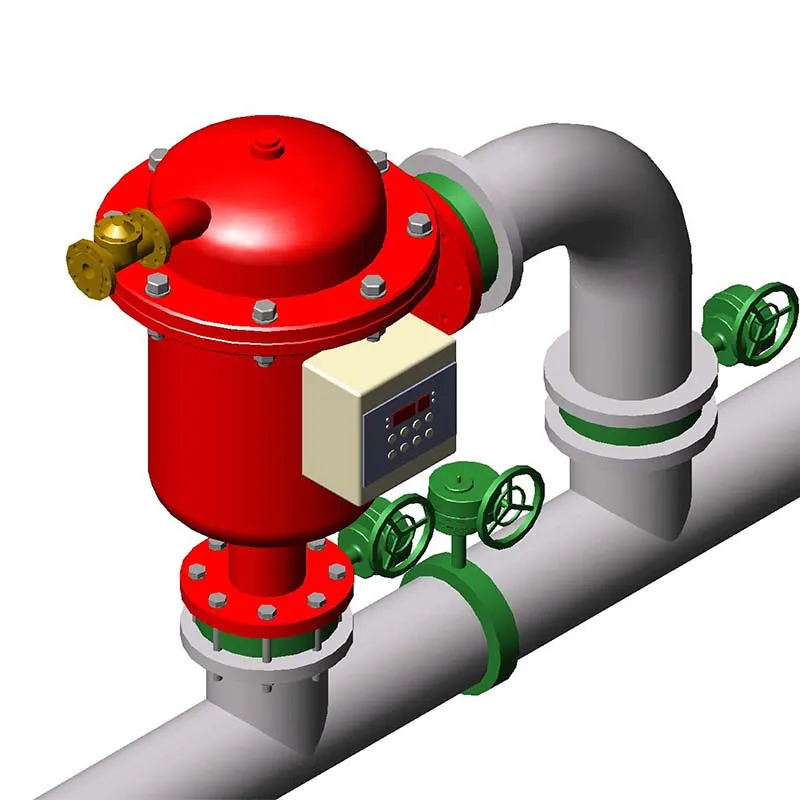

Installation	Vertical
Installation Environment	Outdoor/Indoor

Product Parameter

Our company can manufacture the filter according to the user's requirements of size,material (eg.carbon steel, stainless steel), color and other special requirements.

Model	DN		Flow	Filtration Area	Weight	Dimensions
	DN		Flow	Filtration Area	Weight	D	H	H1	H2	H2*	L1	L2
	inch	mm	m³/h	cm²	Kg	mm
A102	2	50	15	1030	63	273	350	590	636	300	280	250
A103	3	80	35	1030	65	273	350	590	636	300	280	250
A104	4	100	60	1420	70	273	350	643	689	500	280	250

Product Details

Application Area

AIGER Self-Cleaning Filter is widely used in agricultural irrigation, municipal project, power industry, paper making, coal, metallurgy and other industries.
