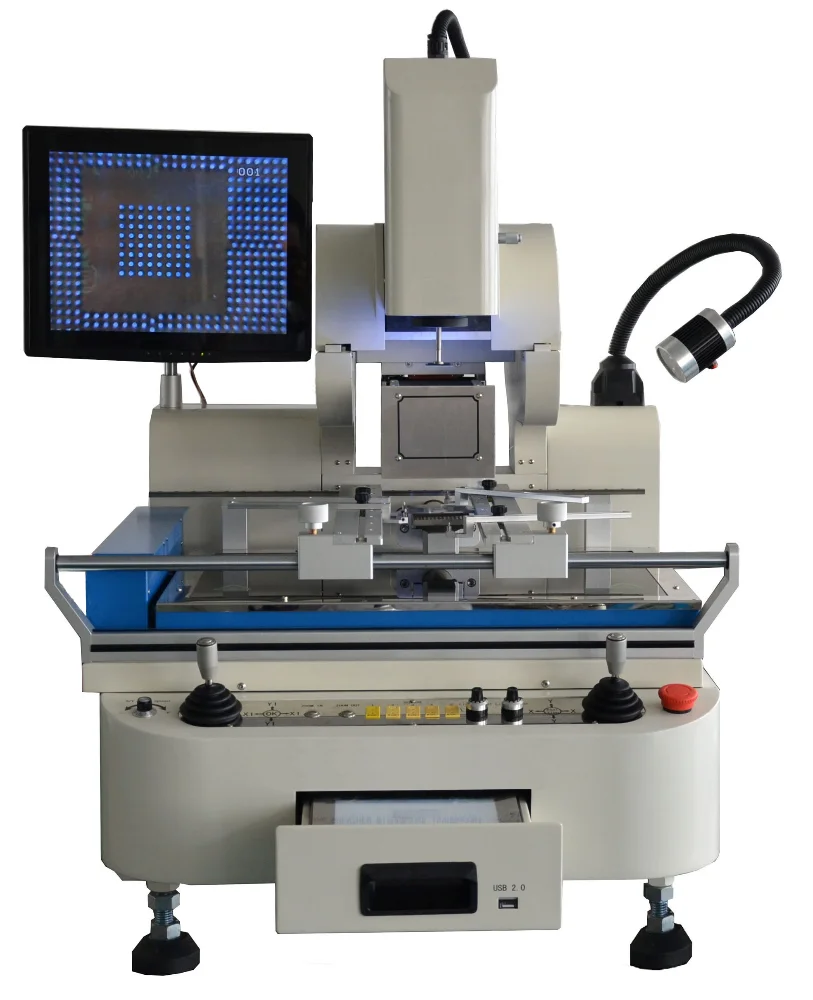

SMT 3 temperature zone desoldering and soldering bga rework station with optical alignment system
Products show
Product Description
Main parameter:
Total power
7600W
Upper heating power
1200W
Lower heating power
1200W

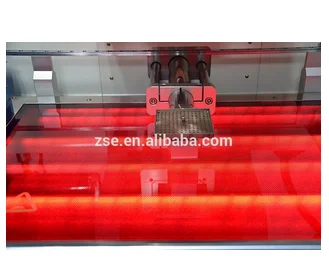

Infrared heating power
5000W (controlled by 2000W)
Power Supply
Two phase 220V, 50/60Hz
Positioning mode

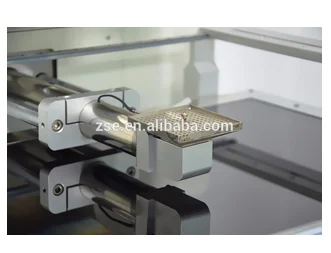

V type card slot fixed PCB, laser positioning light fast positioning, through joystick control motor, can freely move X, Y axis
temperature control
High precision K thermocouple (Ksensor) closed-loop control (Closed, Loop), independent temperature measurement, temperature control accuracy of up to + 1 degrees;
Electrical material selection
Taiwan touch screen + high precision temperature control module + Panasonic PLC + Panasonic servo + stepper driver
Maximum PCB size
650*610mm
Minimum PCB size
10*10mm
Temperature measurement interface quantity
5
Chip zoom in range
2-50 times
PCB Thickness
0.5~8mm
Applicable chip
0.8*0.8~80*80mm
Minimum chip spacing
0.15mm
Maximum load on Mount
1000g
Mount accuracy
+ 0.01mm
Machine size
L970*W700*H830mm
Machine weight
About 140KG
Our Services
1. Quick response within 24 hours;
2. Offer free spare parts and service within one year of warranty,but all the other relative cost should be on the buyer's account;
3. Technology Support: Provide Demo operation video for training;If you have time,welcome to our company,we will arrange engineers to show you the operation;
4. Good and professional after-sales service.
Packaging & Shipping
Packing method:
1)Standard box package for light and small item;
2)Strong wood package for heavy and large equipment;
Shipping way:
1)By air ,for sample and small package ,wordwide express like DHL,UPS,FedFX,EMS....
2)By sea, for large package and quantity;
3)By car or other ways as customer requested;
Company view
Shenzhen ZENS Electronics Co., Ltd.specializing in AOI machine,SMT pick and place machine, bga rework station,X-ray Inspection Equipment, etc. for 8 years. superb technology,sound equipment, and won the protection of access to customer support at home and abroad.also engineers available to service machinery overseas! we have the perfect after-sale service in PAKISTAN INDIA, AMERICA, MEXICO etc.,
FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
