2018 новейшая Вертикальная мини-машина для резки ключей JINGJI улучшенная


1.Callibration system indicated by LED light makes precisely cutting
2.X axis movement locking mechanism makes Y axis cutting stable, Z axis cutting depth locking mechanism makes accurate result
3.Additional adaptors for VAG and Benz makes cutting more easily
4.Cutter speed regulated to 12000rpm, cutting error limited within 0. 02mm
5.Additioned with Japan Dai Jie cutter,the blade is sharp and durable, result in smooth grooves
6.Straight line slide carriage makes cutting smooth and effortless

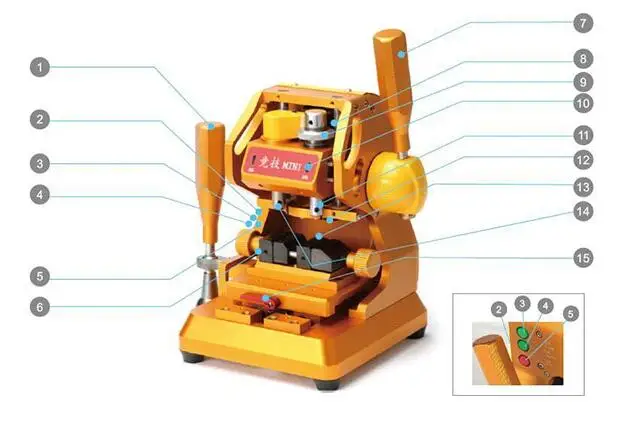

1.X,Y axis slide handle
2.Power socket AC110V/ 220V
3.Calibration button
4.Motor switch
5.Power switch
6.Clamp to secure key blank
7.Cutting depth locking handle
8.Dimple key activate lockring
9.Tracer depths adjustment knob
10.Calibration light
11.Tracer insert axis
12.LED light
13.Clamp to secure original key
14.Cutter insert axis
15.X axis movement locking bar

JINGJI MINI  Machine Parameters:

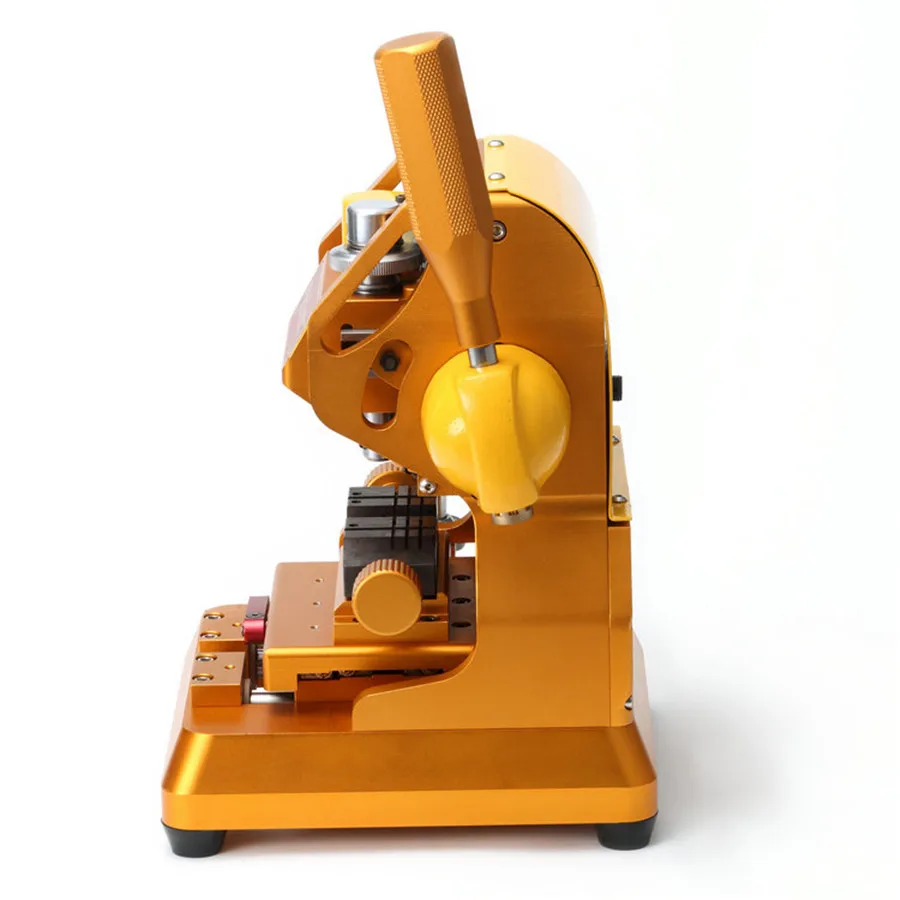

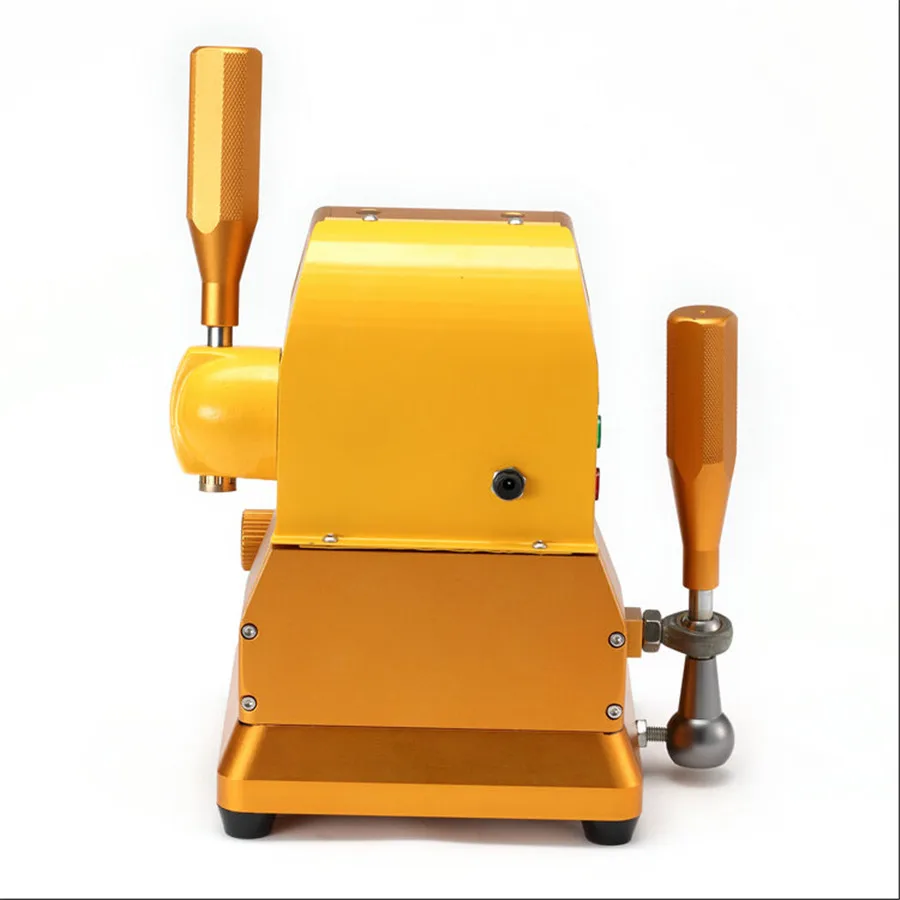

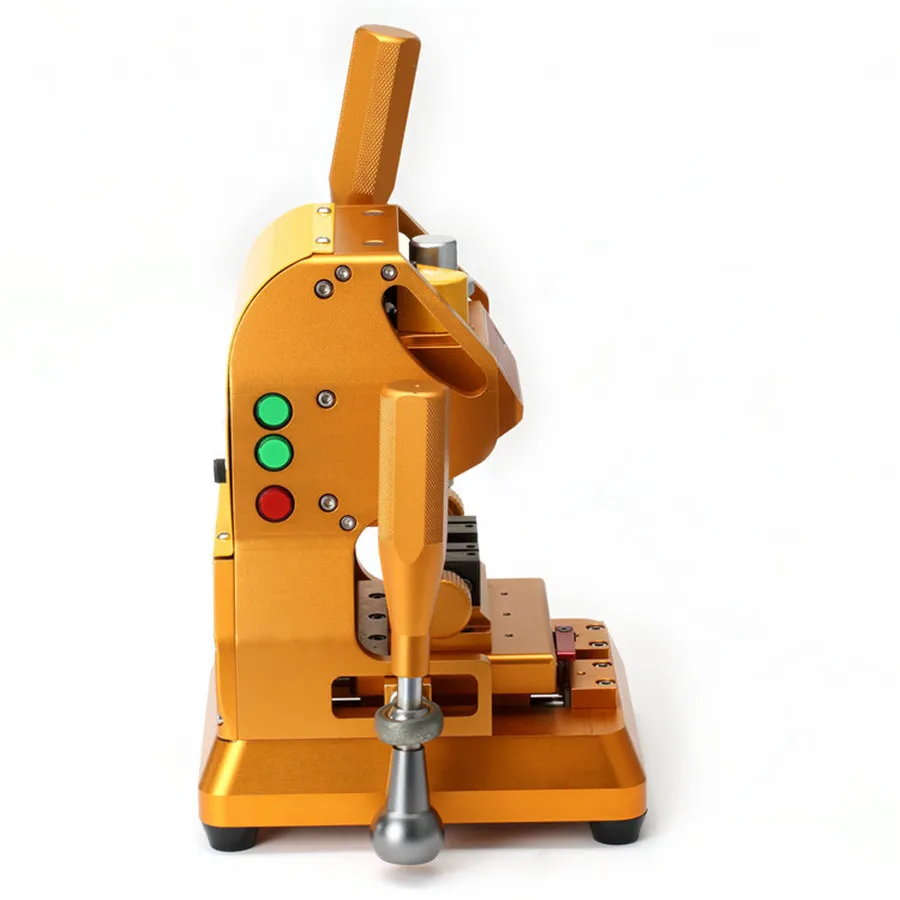

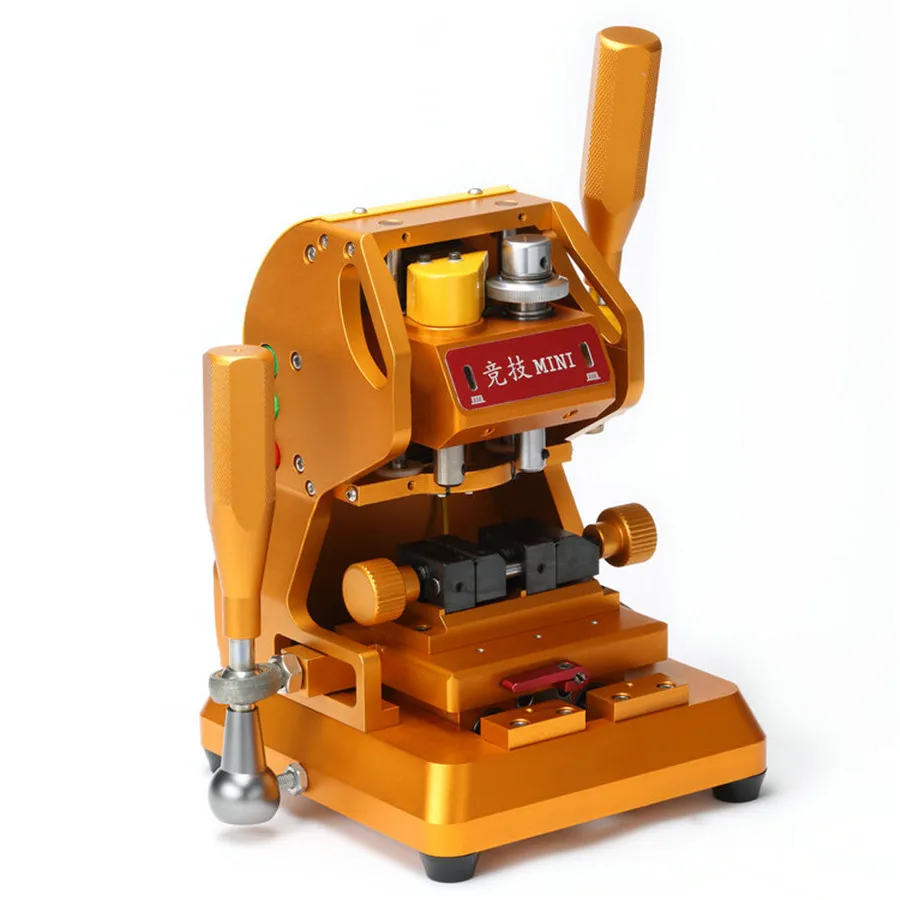

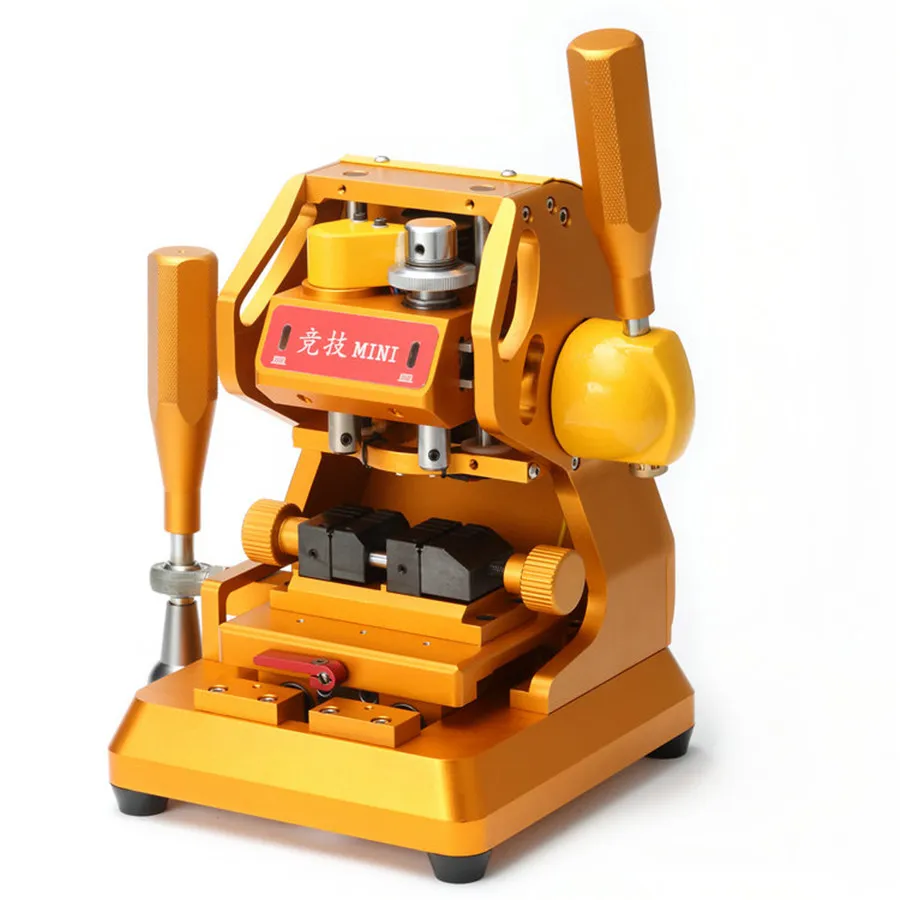

Product name: JingJi MINI vertical key cutting machine
Dimensions: L200MM*W200MM*H280MM
Working method: Manual
Error scope: ≤0.02mm
Callibration :LED indicating light
Keys: Dimple and laser keys
Jaw: Standard jaw,additoned with VAG/Benz adaptor
Voltage:AC110-220V/DC12V
Carriage: Straight line slide carriage
Material: Aluminum alloyed casting
Revolution: 1200rpm/min
Power: 80W 50-60HZ
Voice: 78.5

Machine Accessories List:

1pc x  JINGJI MINI Vertical Key Cutting Machine
