Гуанчжоу в наличии запчасти для фрезерного станка с ЧПУ A11 оригинальный контроллер DSP картой и кабелем

Описание и отзывы

Трекер стоимости

Характеристики

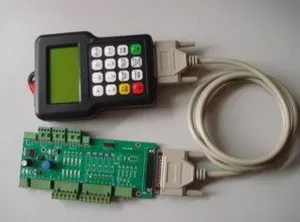

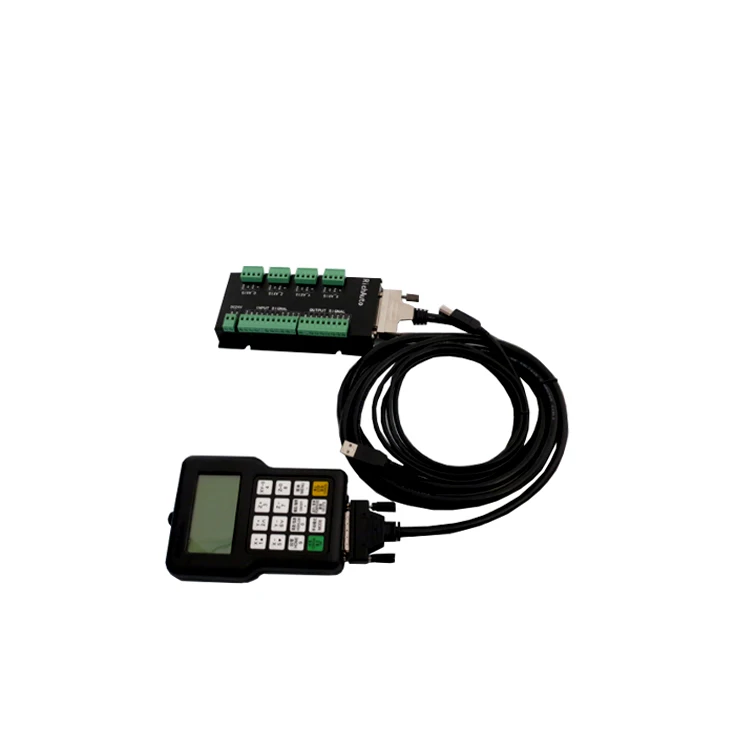

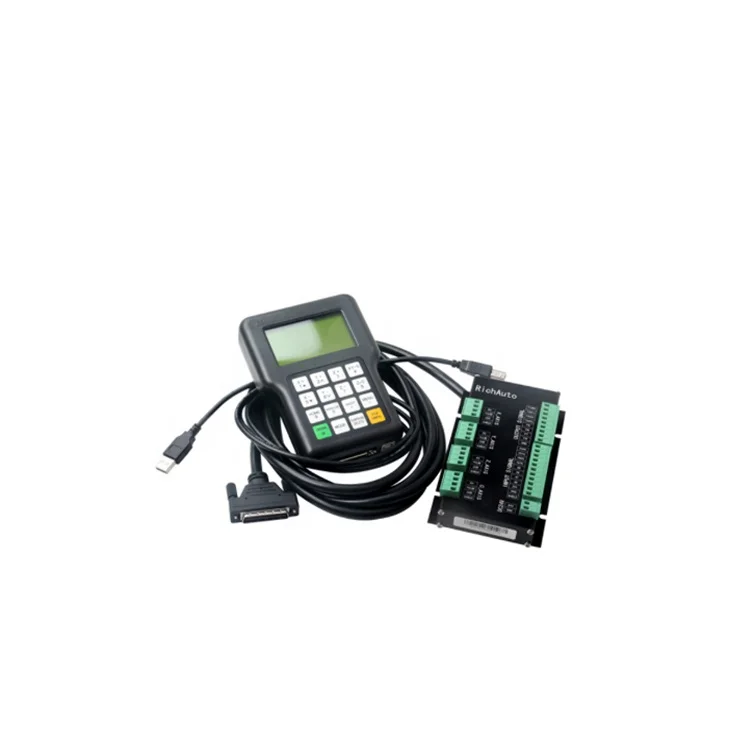

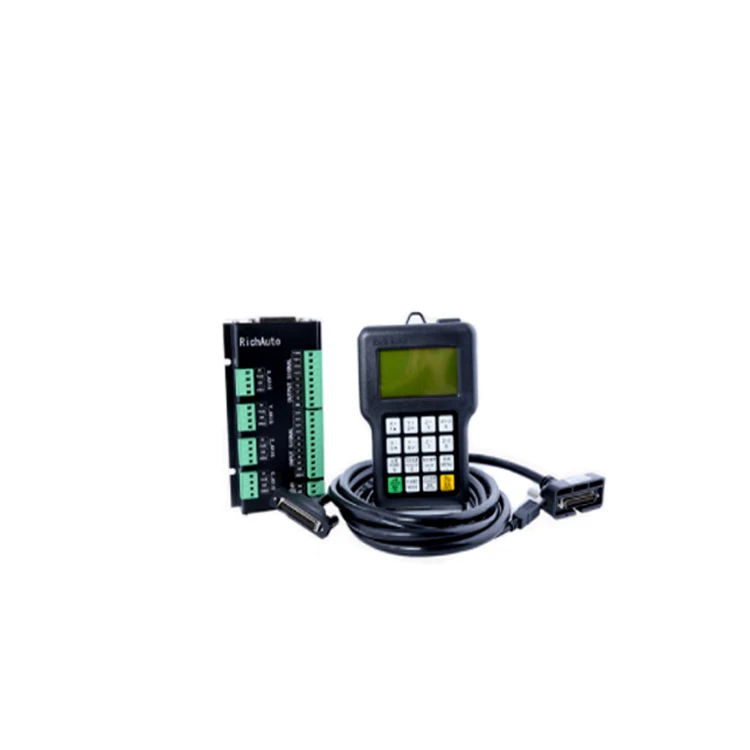

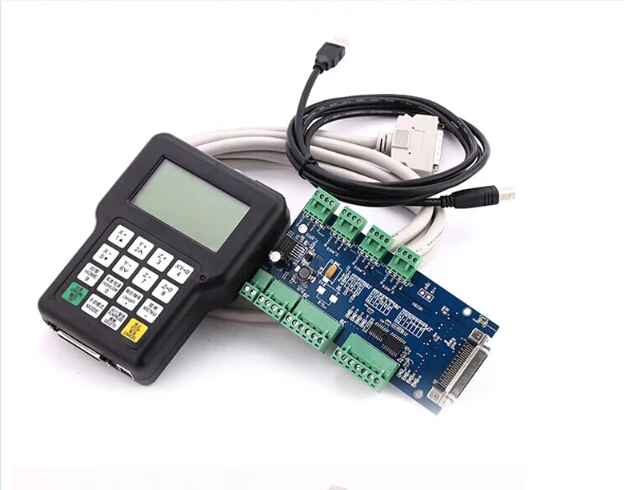

Guangzhou in stock cnc router spare part A11 original

DSP controller with card and cable for sale

Introduce

Adopting advanced DSP digital controlling system , USB Controller without computer, more user-friendly design. All these design will make you more

easily in operation. You can operate the CNC Router without connect direct

to PC.



Feactures

1.The handle is widely used in all kinds of engraving machine and milling machine with super quality and competitive price;

2.The handle can off-line work,read U dish,self check function,dynamic update.

3.Adopt power-off protection ,breakpoint restoration ,smooth processing

4.High subduviding,high precision,high speed and support straight line,arc interpolation.



Parameter

Product number	RichAuto-A11	processor	DSP
Built-in memory	512M	Display	3-inch monochrome LCD
Communication break	U disk / USB data cable	Number of linked axes	3 axis
control signal	Differential signal	Drive System	Stepper/servo motor
Minimum input unit	0.001mm	Arc ignition delay	Support
Automatic height adjustment	Support	External supply voltage	24V DC
Manual mode	Continuous/jog/distance	Interpolation method	Straight line/arc
Soft/hard limit	Support	Maximum pulse frequency	1Mhz
password protection	Support	Support language	Chinese/English

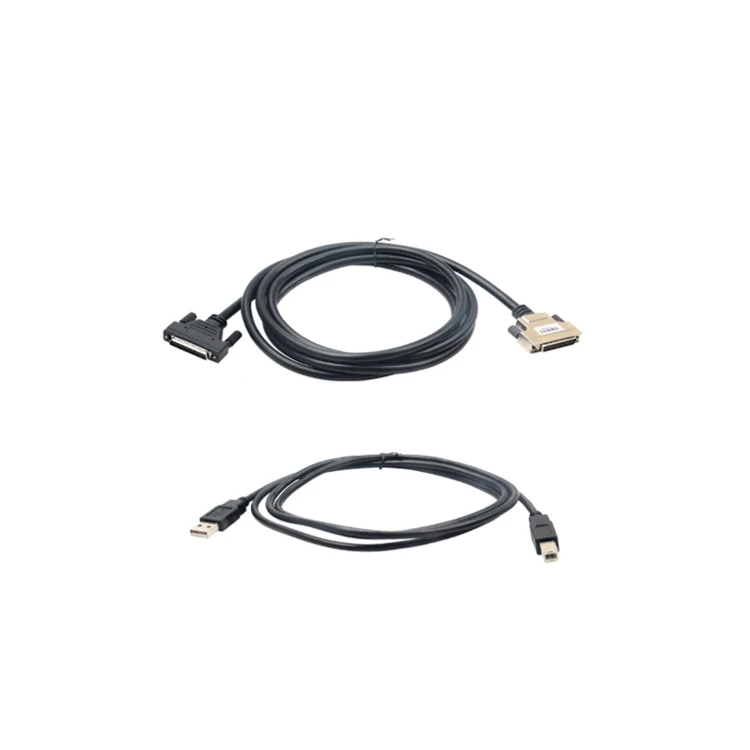

Standard configuration	1 handle controller / USB data line 1 / 50 pin data line 1 / 8 into 8 out wiring board 1
