Характеристики

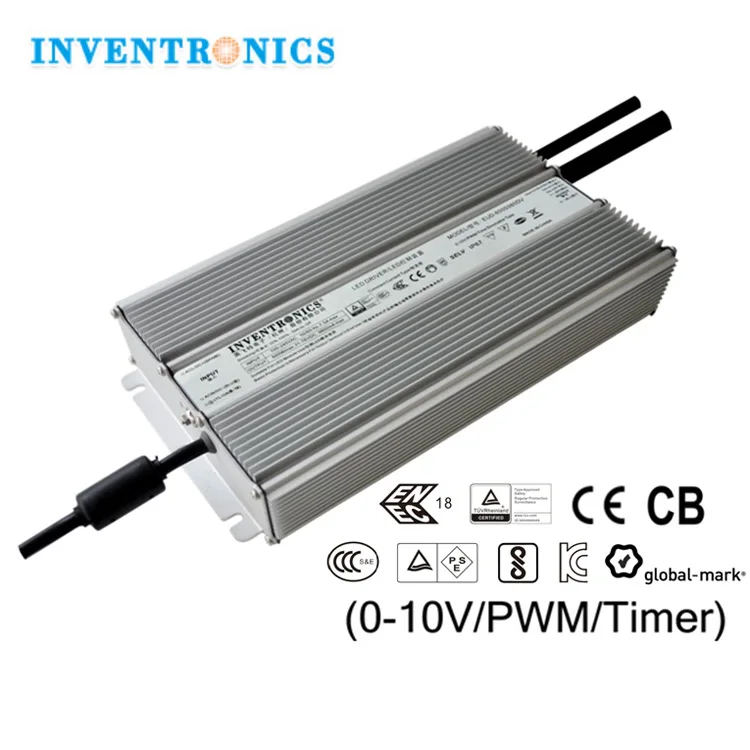

Inventronics 420W 450W 480W 550W 0-10V PWM Timer Dimmable 400W 600W 500W LED Driver
Features:
Ultra High Efficiency (Up to 95%)
Full Power at Wide Output Current Range (Constant Power)
Thermal Sensing and Protection for LED Module

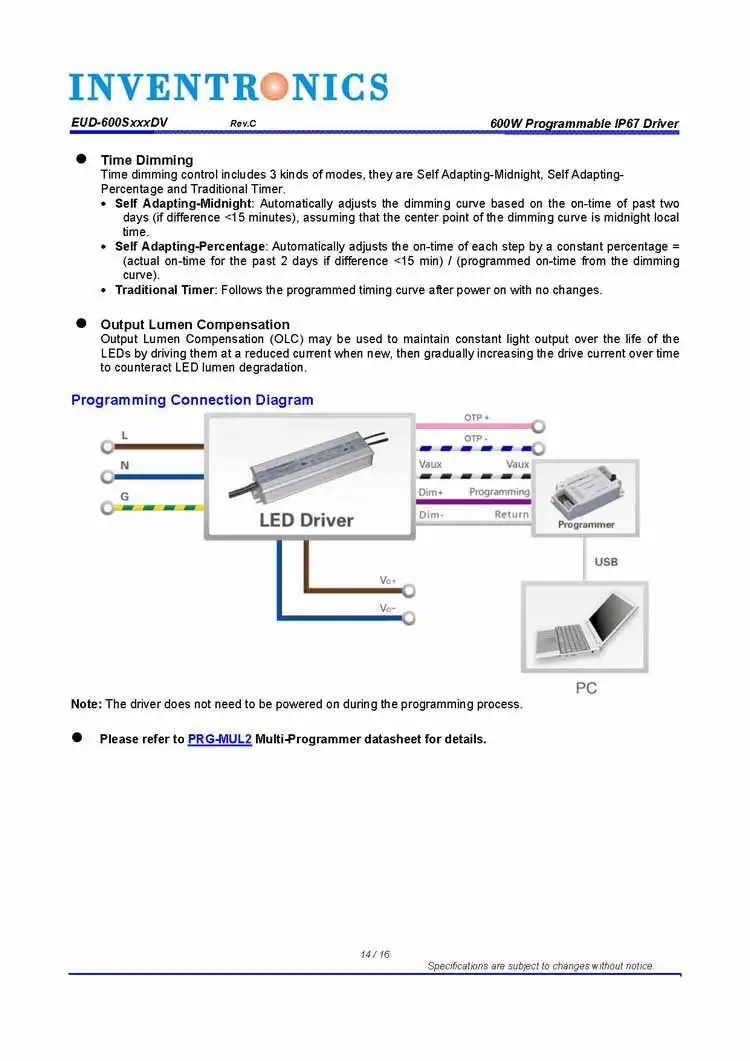

0-10V/PWM/Timer Dimmable (3 Timer Modes)
Dim-to-Off with Standby Power ≤ 0.5 W
Output Lumen Compensation
Input Surge Protection: 6kV line-line, 10kV line-earth
All-Around Protection: OVP, SCP, OTP
Waterproof (IP67)
SELV Output
Suitable for Independent Use

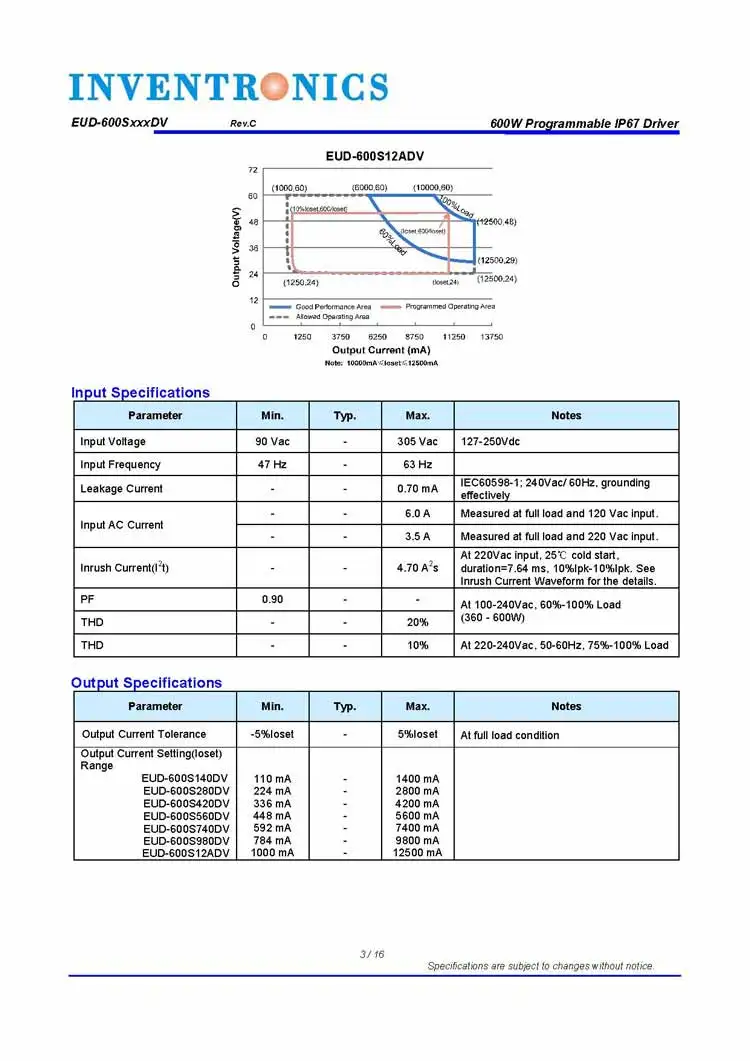

| Adjustable Output Current Range | Full-power Current Range (1) | Default Output Current | Input Voltage Range (2) | Output Voltage Range | Max Output Power | Typical Efficiency (3) | Power Factor | Model No. (3) | |
| 120Vac | 220Vac | ||||||||
| 110-1400mA | 1100-1400mA | 1400mA | 90-305Vac/ 127-250Vdc | 214-545Vdc | 600W | 95% | 0.99 | 0.96 | EUD-600S140DV |
| 224-2800mA | 2240-2800mA | 2800mA | 108-268Vdc | EUD-600S280DV | |||||
| 336-4200mA | 3360-4200mA | 4200mA | 72-178Vdc | 94.5% | EUD-600S420DV | ||||
| 448-5600mA | 4480-5600mA | 5600mA | 54-134Vdc | EUD-600S560DV | |||||
| 592-7400mA | 5920-7400mA | 7000mA | 41-101Vdc | 94% | EUD-600S740DV(5)(6) | ||||
| 784-9800mA | 7840-9800mA | 9800mA | 31-76Vdc | EUD-600S980DV(5)(6) | |||||
| 1000-12500mA | 1000-12500mA | 12500mA | 24-60Vdc | EUD-600S12ADV(6) | |||||
Click here to get professional guide from our Senior Customer Director & Engineer!
(For more details, please contact Chela Chen for the datasheet.)
