Acedrills Low Pressure Mining CIR 90 DTH Hammer Drilling Rock Drilling Tools for Drilling Machine



PRODUCT Introduction

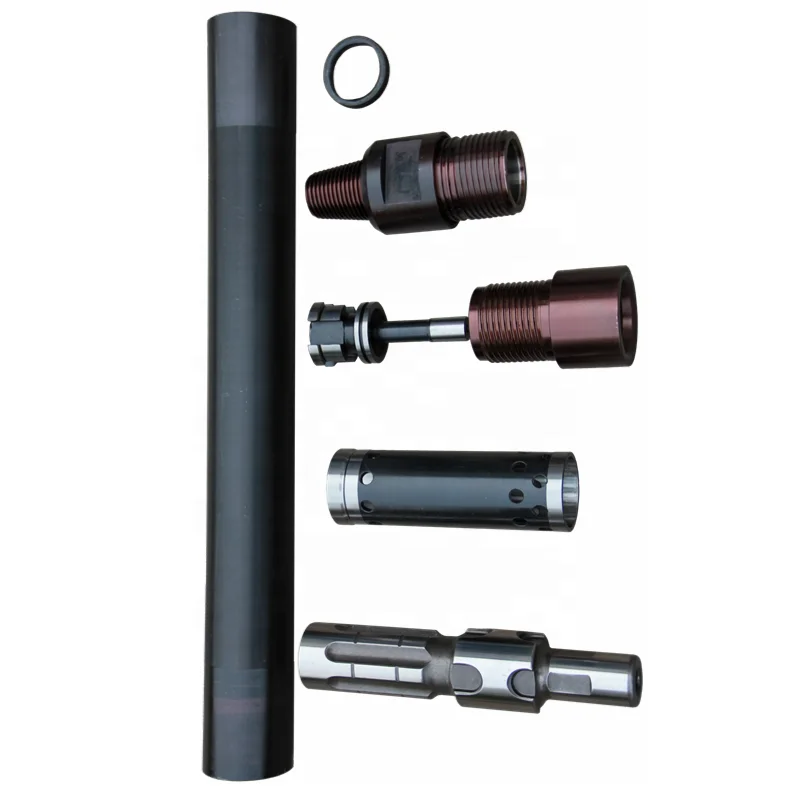

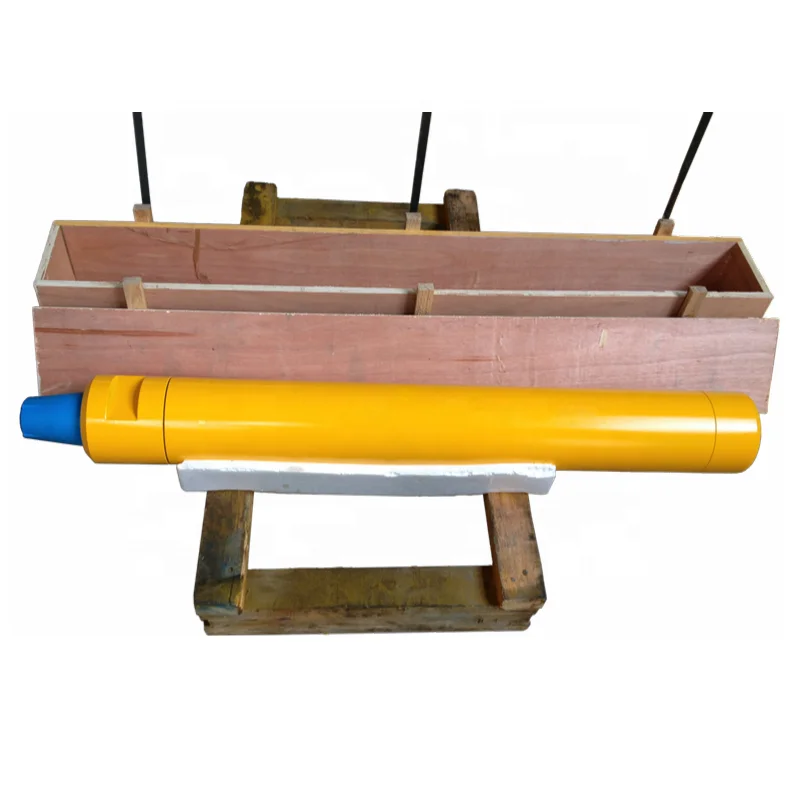

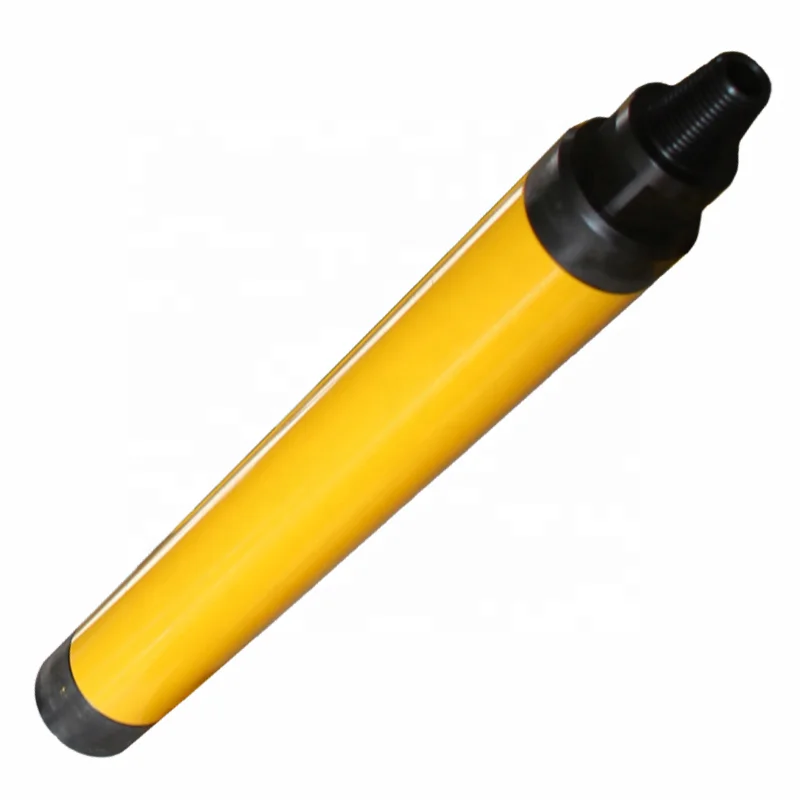

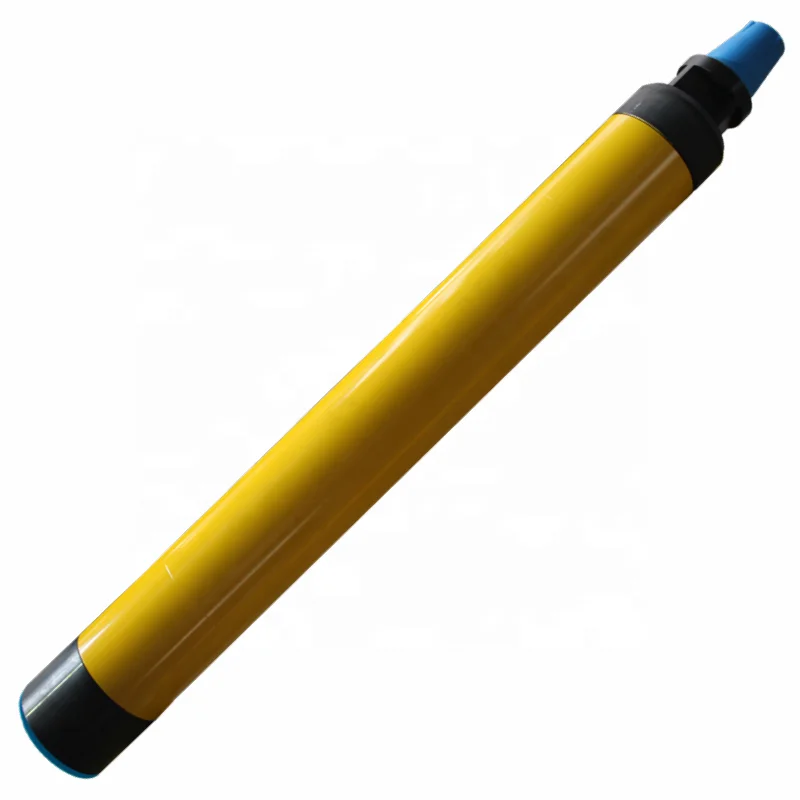

DTH Hammers: Acedrills’ DTH hammers are all simple structure, easy to assemble and disassemble, as well as reliable quality and long service life. Acedrills has various hammer models suitable to drill holes from 64mm to 1000 mm (2-1/2” ~ 39-3/8”) in diameter; and come with three kind: low pressure (5 ~ 7 bars), middle pressure (7 ~ 15 bar) and high pressure (7~ 30 bars).

Acedrills’ DTH hammers mainly be produced with shank type of DHD, QL, SF, COP, Mission, SD, BR, CIR and ACD series, Diameter ranging from 2” to 8” for mining and quarrying, and 6” to 32” for water-well drilling, oil-well drilling, foundation and so on;

	Hammer Size
	2”~3.5”
	4”~6”
	6”~32”
Shank Design
BR1/2/3, DHD3.5, Mission30
SD4, QL40, DHD350R, Ms60...
DHD360, QL80, NUMA125...
	Drilling Range
	64~115mm
	108~216mm
	150~1000mm



PRODUCT SPECIFICATION

High Pressure DTH Hammers:

Hammer Size	Hammer Type		Shank Design	Working Pressure		Drilling Range
	With Foot Valve	Without Foot Valve(1)		Bar	PSI (lb/in²)	mm	inch
				(0.1 MPa)

2.5”		AXD25	AXD2.5(2)	10~15	150~220	76~90	3 ~ 3 1/2
3.5”		AXD35I	DHD3.5	10~15	150~220	90~115	3 1/2 ~ 4 1/2
	AHD35I		DHD3.5	10~24	150~350	90~105	3 1/2 ~ 4 1/8
		AXD35M	Mission30	10~24	150~350	90~105	3 1/2 ~ 4 1/8
4”	AHD40I	AXD40I	DHD340A	10~24	150~350	108~135	4 1/4 ~ 5 3/8
		AXD40M	Mission40	10~24	150~350	108~135	4 1/4 ~ 5 3/8
	AHD40S	AXD40S	SD4	10~24	150~350	110~135	4 3/8 ~ 5 3/8
	AHD40Q	AXD40Q	QL40	10~24	150~350	110~135	4 3/8 ~ 5 3/8
5”	AHD50I	AXD50I	DHD350R	10~25	150~360	127~155	5 ~ 6 1/8
		AXD50M	Mission50	10~25	150~360	135~155	5 1/4 ~ 6 1/8
	AHD50S	AXD50S	SD5	10~25	150~360	135~155	5 1/4 ~ 6 1/8
	AHD50Q	AXD50Q	QL50	10~25	150~360	135~155	5 1/4 ~ 6 1/8
6”	AHD60I	AXD60I	DHD360	10~25	150~360	152~254	6 ~ 10
		AXD60M	Mission60	13~25	190~360	152~254	6 ~ 10
	AHD60S	AXD60S	SD6	10~25	150~360	155~203	6 1/8 ~ 8
	AHD60Q	AXD60Q	QL60	15~25	220~360	155~203	6 1/8 ~ 8
		AXD75I	DHD360	18~30	260~440	175~216	6 7/8 ~ 8 1/2
8”	AHD80I	AXD80I	DHD380	10~30	150~440	195~305	7 3/4 ~ 12
		AXD80M	Mission80	10~25	150~360	195~305	7 3/4 ~ 12
	AHD80S	AXD80S	SD8	15~25	220~360	195~254	7 3/4 ~ 10
	AHD80Q	AXD80Q	QL80	18~30	260~440	195~254	7 3/4 ~ 10
		AXD90Q	QL80	18~30	260~440	216~254	8 1/2 ~ 10
10”	AHD100S	AXD100S	SD10	15~30	220~440	240~311	9 1/2 ~ 12 1/4
	AHD100N	AXD100N	NUMA100	15~30	220~440	254~311	10 ~ 12 1/4
12”	AHD120I	AXD120I	DHD112	18~30	260~440	305~445	12 ~ 17 1/2
	AHD120S	AXD120S	SD12	18~30	260~440	311~445	12 1/4 ~ 17 1/2
		AXD120Q	QL120	17~24	250~350	305~445	12 ~ 17 1/2
	AHD120N	AXD120N	NUMA120	18~35	260~510	305~445	12 ~ 17 1/2
	AHD125N	AXD125N	NUMA125	18~35	260~510	305~445	12 ~ 17 1/2





Specification Notice



Notes:       Note1: The hammers without foot valve are with lower air       and energy consumption, and higher impact frequency; the       drilling penetration is 15% ~ 30 higher and oil consumption       10% lower than the ones with foot valve.         Note2: The AXD shank is Acedrills’ own design.   For brochure and more product information, please click here  to tell us the detail.



   To Chose the Right Products



Choosing the right hammer is largely determined by drill machines (mainly compressor output), drilling hole size and type of rock formation. Ideally, the size of the hammer should match the required hole dimension as closely as possible, leaving just enough space for compressed air to flush cuttings and clean the hole.



The optimum range of hole size for blast-hole drilling with DTH method is 90~254 mm (3-1/2” ~ 10”) with 3.5 ~ 8” hammers. Smaller blast holes are generally drilled with top-hammer tools, while larger holes typically with rotary drilling tools. In other applications, like foundation drilling, DTH hammers can be used in hole size up to 1,000 mm (39-3/8”).



Usually, the smallest hole diameter a DTH hammer can drill is its nominal size, for example, a 4” hammer would drill a 4” (100/102 mm) hole. The limiting factor is the outside diameter of the hammer, because, as hole diameter reduces, airflow is restricted. Maximum hole size for production drilling is the nominal hammer size plus 1”for 5” and smaller hammers and plus 2 for 6” and bigger hammers, for example, for a 4” hammer the maximum hole size is 5” (127/130mm) while for a 8” hammer the maximum hole size is 10” (254mm).
