Высокотемпературная проволочная конвейерная сетка из нержавеющей стали плоская Гибкая ленточный

In 1990, Ningjin County StarSpark wire belt  was established, the workshop is 2400m2, the main product at that time is silk screen, used for supplying biscuit factory, for later production of a variety of silk screen, chain plate, conveyor and other products laid a solid foundation.

So far, the total area of our main plant and branch plant has reached 10000m2.Our conveying equipment and accessories are widely used in food processing, leisure food, baking, heat treatment, forging, casting, ceramics, glass, automobile and other industries.

We are willing to develop together with you, welcome your inquiry!

Function:

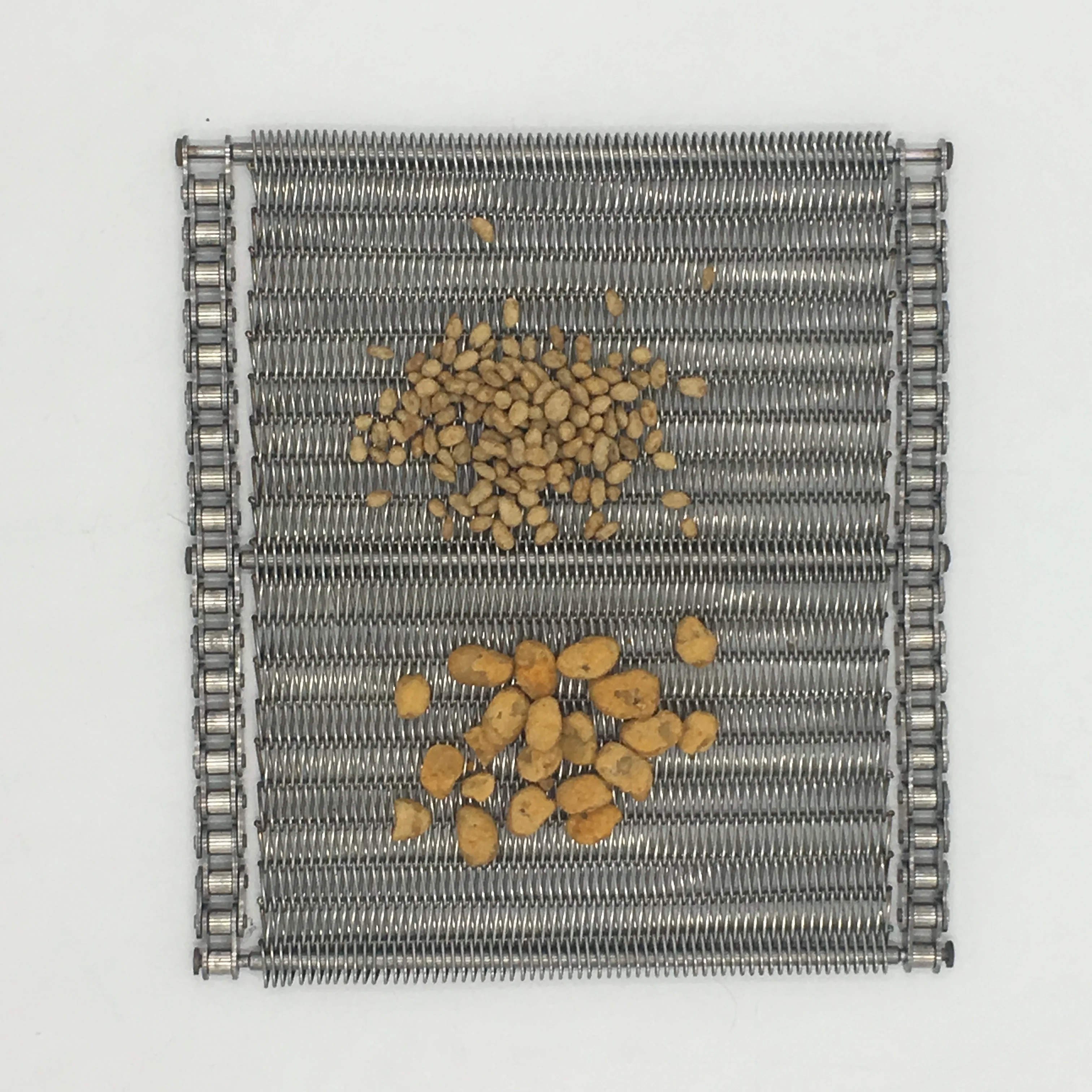

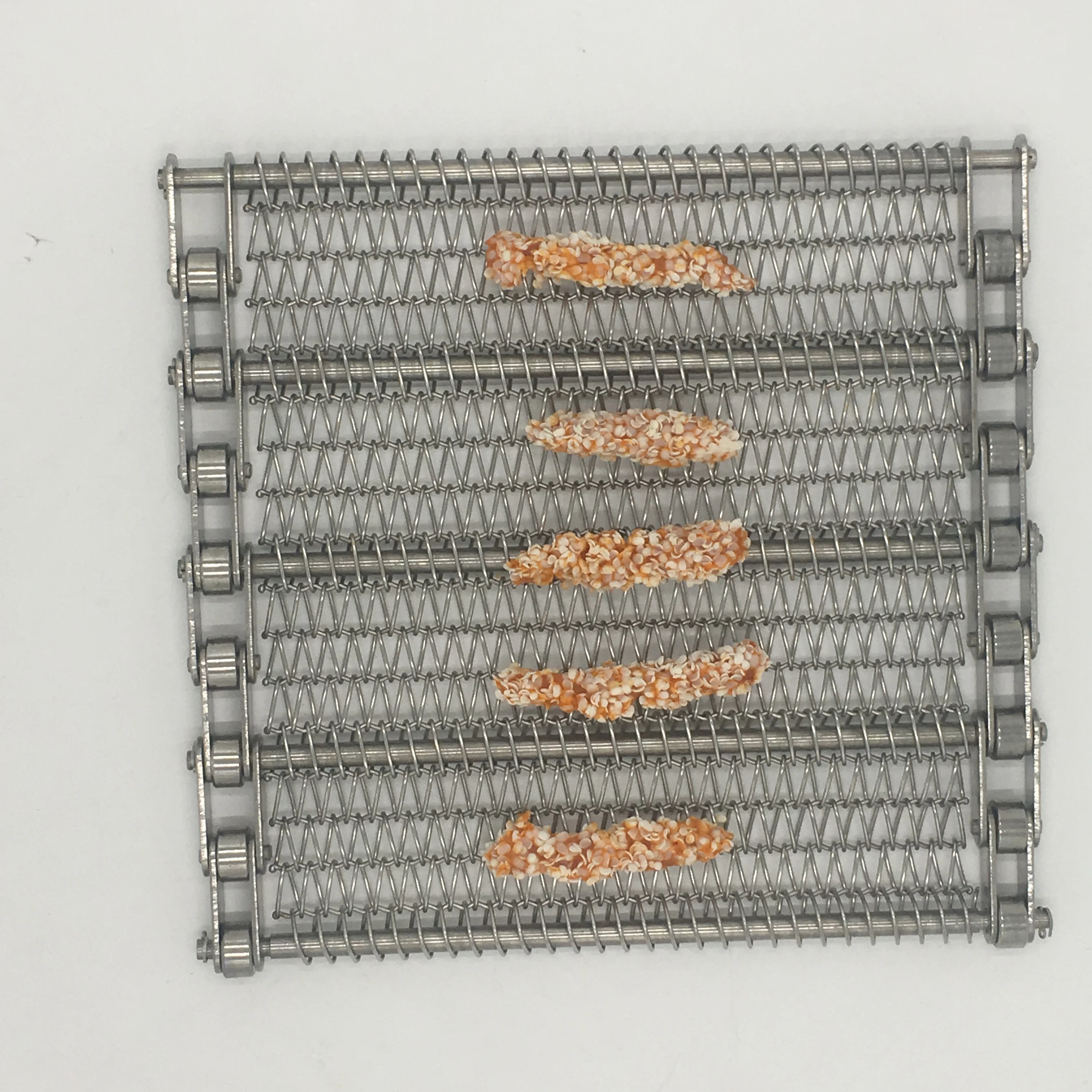

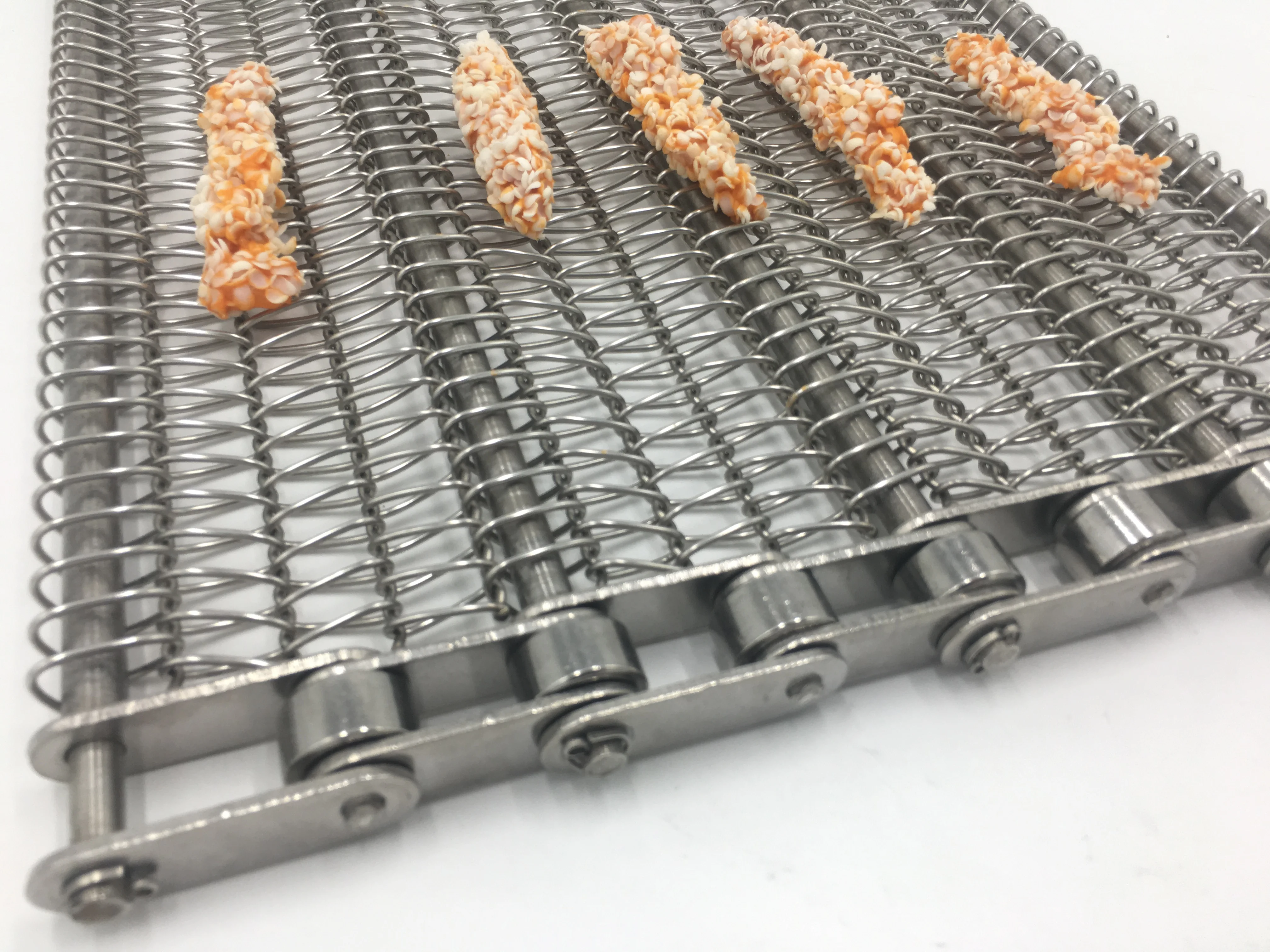

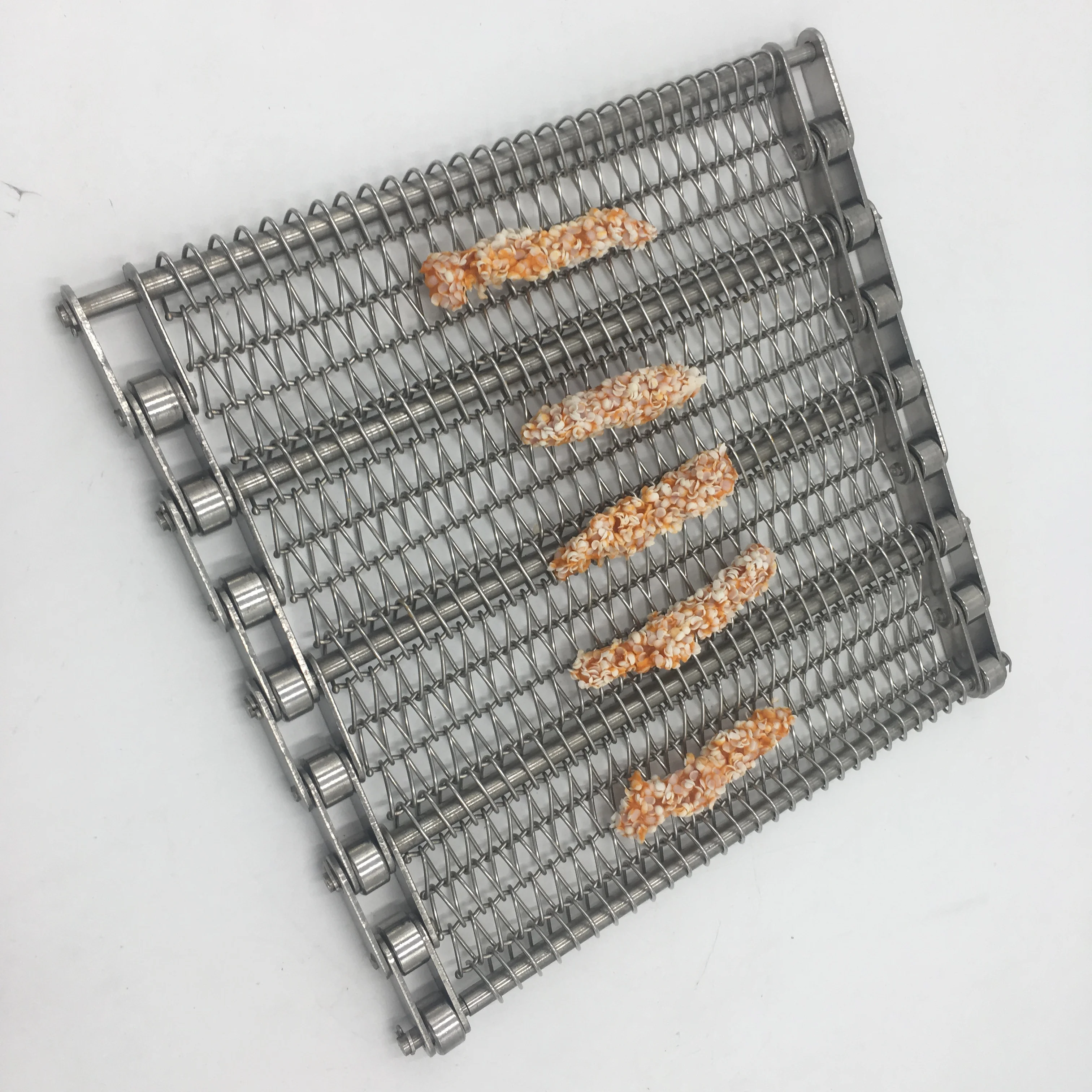

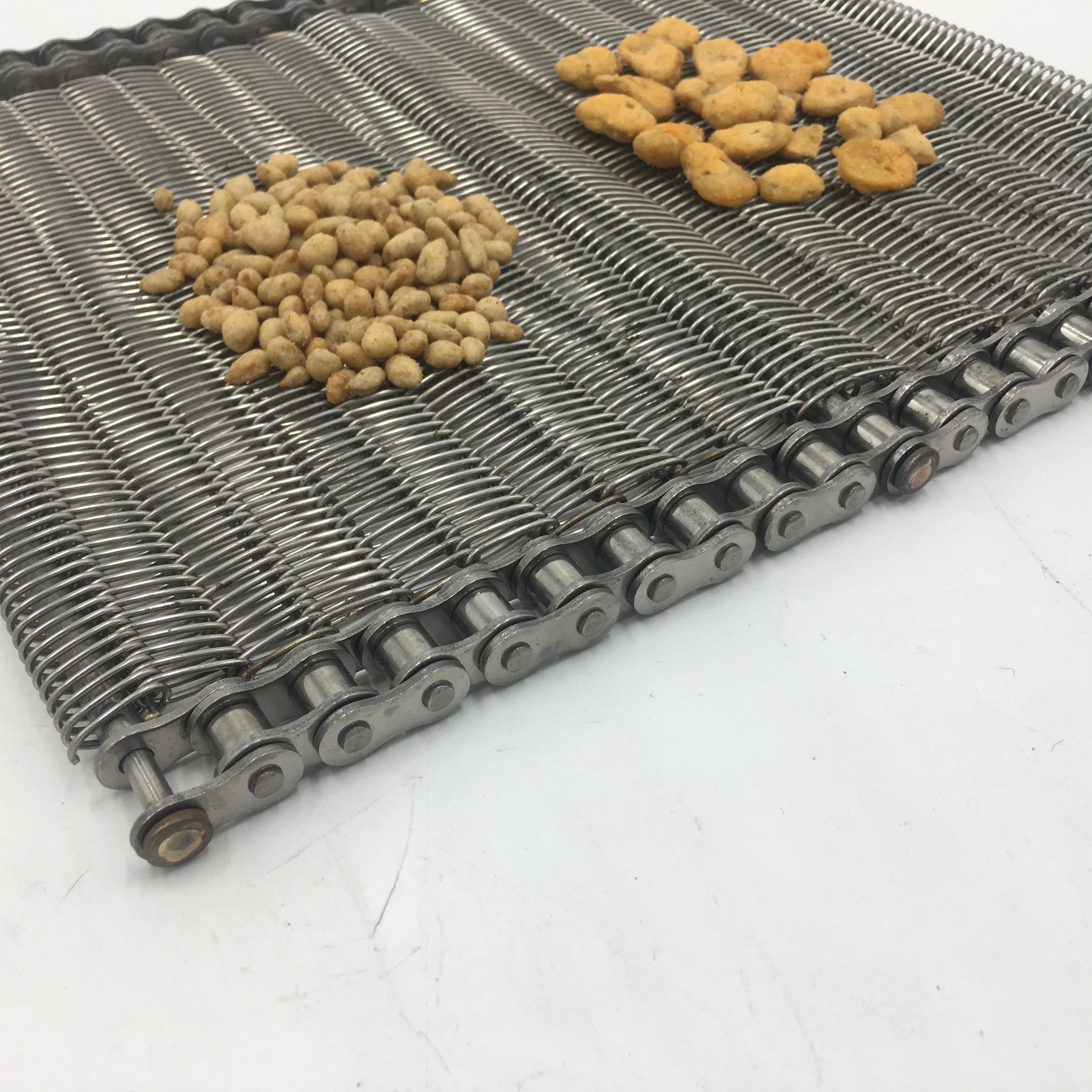

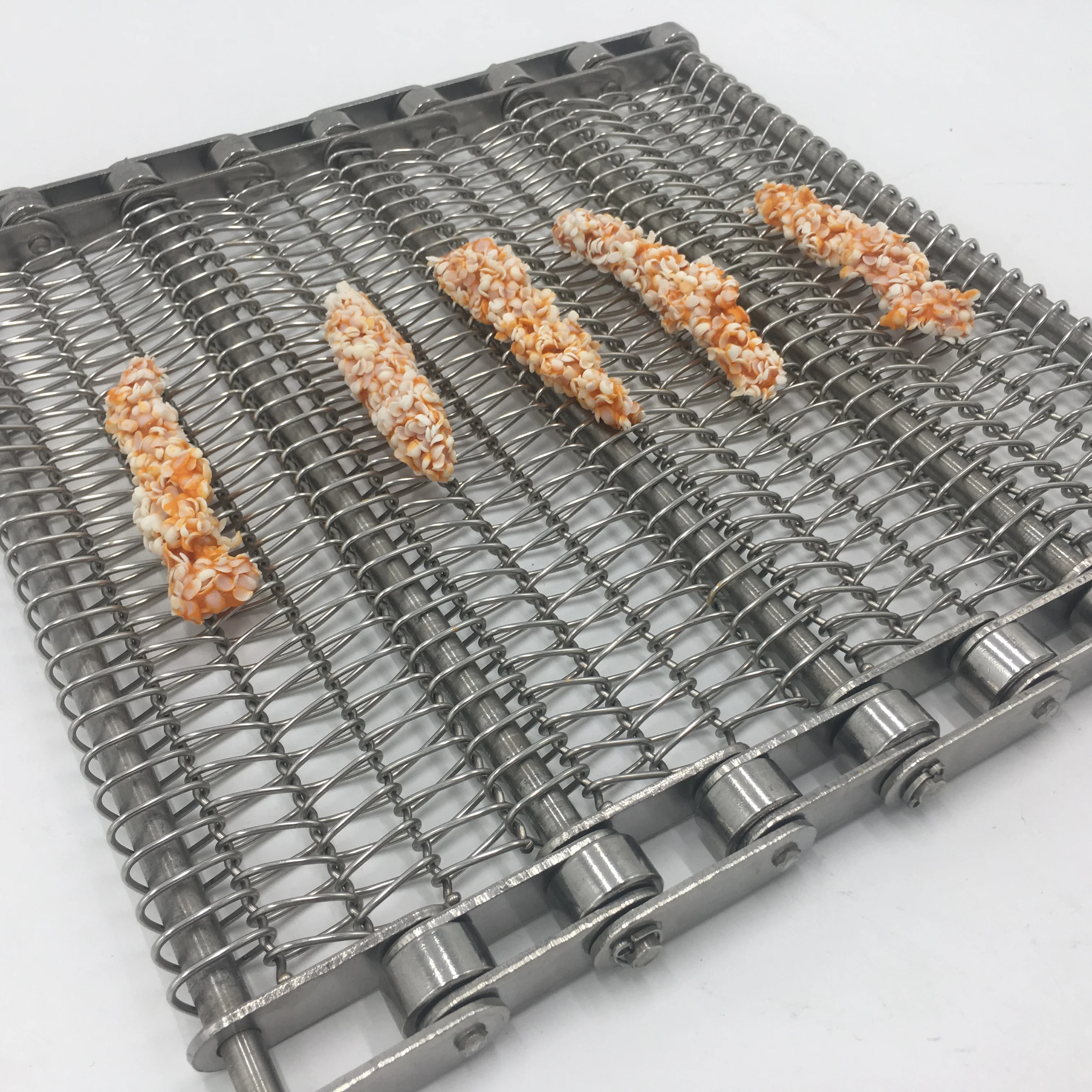

Chain driven belts are driven with a cross rod which connects the chain strands by either passing through or under the wire mesh fabric,the density of wire mesh fabric is choosen according to size of the product conveyed on the belt.

Chain driven belt characters:positive drive,smooth running ,little pressure on wire mesh fabric,from minus 55degree to 1150 degree,side guard and flight available,

Material:carbon steel,galvanized steel,stainless steel,weathering steel,high temperature steel,usually used in baking oven,quenching tank,washing machine,fryer,freezer etc.

Parameter:

Name: roller chain driven belt

Material data:Carbon steel,SS201,SS304,SS316,SS314

Chain pitch:9.525mm,12.7mm,15.875mm,19.05mm,25.4mm,31.75mm,38.1mm,50.8mm,63.5mm,76.2mm

Rod diameter:4.5-16mm

Overall width:100-6000mm

Spiral pitch:2.5-50mm

Rod pitch:7-60mm

Wire diameter:0.8-4mm

Special specifications are available.

Packing details

1. water-proof paper inside then with weaving bag or bubble,at last wooden case

2. Also can packed according to your requirement

Delivery terms: Within 10-15 days once we receive the confirmed order

After-sale service process:.

1. The contact must be numbered and kept in the user's file.

2. To assist customers in designing their product and send free sample.

3. To direct installation equipment free of charge and will be responsible commissioning

4. The company shall make regular inspection and maintenance of user’s equipment

After-sale service guaranty:

1. The host machine of the equipment enjoy 2 years free warranty and lifetime maintenance.

2.  The spare parts of the equipment are made by well-known manufacturers in the trade , ensuing the servuce life of the spare parts .
