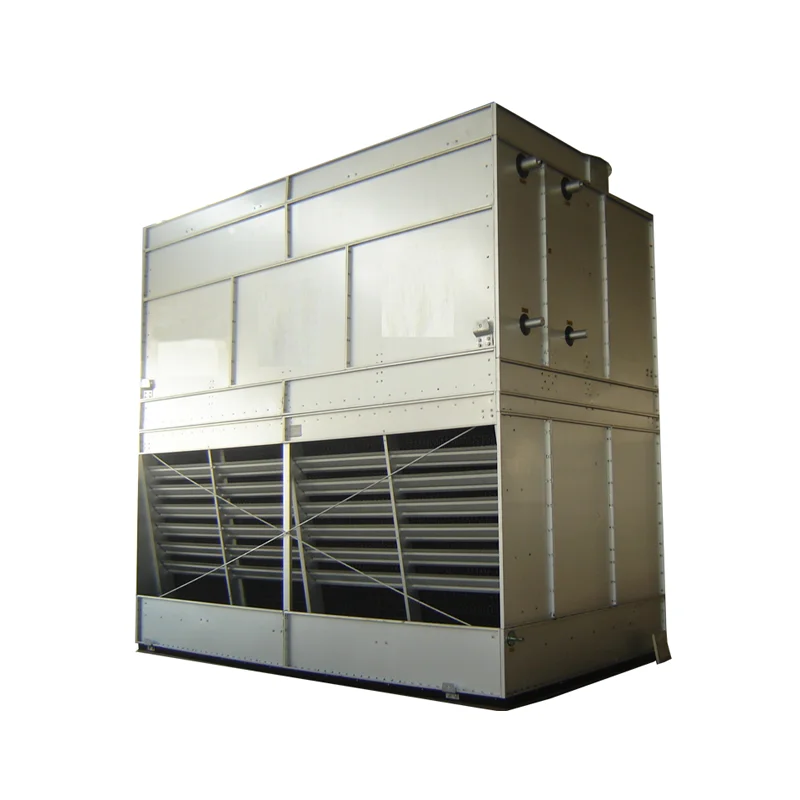

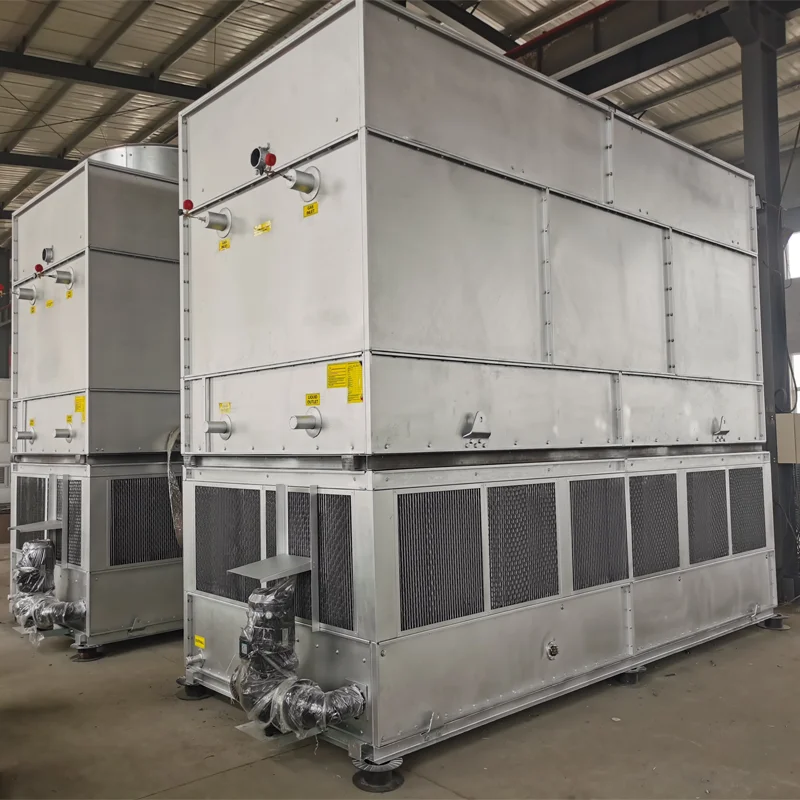

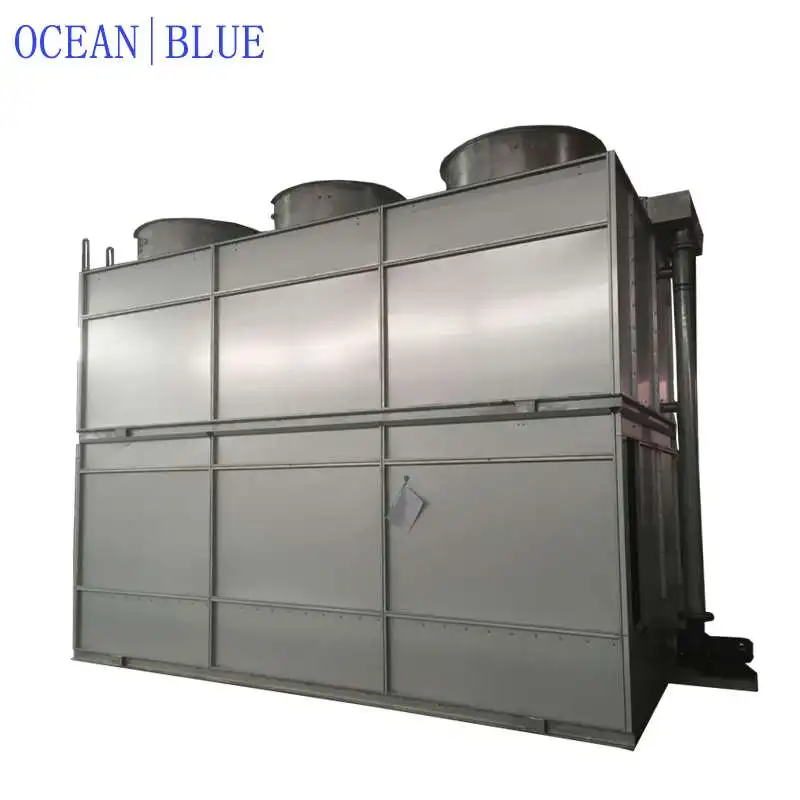

Китайский Испарительный конденсатор для теплообменника

 APPLICATION

1)The evaporative condenser is one of the most important parts of the whole refrigeration system.

2)The refrigerant gas changed into liquid inside the coil and complete a heat exchange circle.

3)The evaporative condenser is widely applied to cold storage, ice plant, chemical industry, supermarket and etc.

                          China ammonia heat exchanger evaporative condenser

 TECHNICAL PERFORMANCE

  How to choose a right model

* Compressor conditions

* Condensing capacity calculating

  Total cooling Capa. and motor capa. of the compressors : (A+B)xC
  Obtain a factor from Table 1/2 according to condensing temp.and wet bulb : t
  Total condensing capacity of the evaporative condenser :(A+B)xC x t

* For example

  Given:
  Compressor : R717; cooling capa.335 kw ;motor power 90kw ;2sets
  Working conditions :Condensing temp.35 ℃ and wet bulb temp.28 ℃

* Selection

  (335+90)x2x1.67=1419.5kw
  Therefore,select an Oceanblue model ECB1460 with condensing capacity of 1466kw .

Table1 - R22 and R134a Heat Rejection Factors .

Table2 - Ammonia(R717) Heat Rejection Factors .

How to installed the evaporative condenser

 Working principle : The air intake style is inlet from the bottom of the tower,which is a lternating direction interative with the fall down spray water and form to saturated vapor in the process.the heat is exhausted out of tower by the fan and the water is collected to bottom tank and circulate continuously by the special evaporator.There is no heat sinking fillings inside of the tower ,so more space is saved to increase coil’ sradiating area .Tight structure lead to little area take up.This apply especially to dealing with low temperature fluid.

Our evaporative condenser have been sold to many countrys ,such as America Russia ,Saudi Arabia ,Vietanam ,Myanmar ,Simgpore ,Malaysia ,India ,Indonesia ....

 Related products

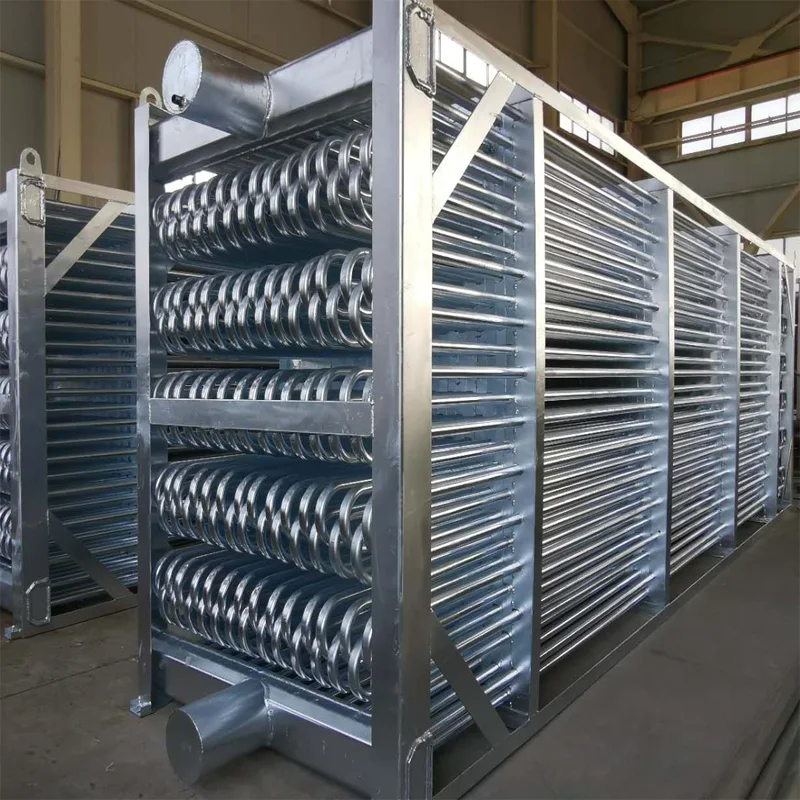

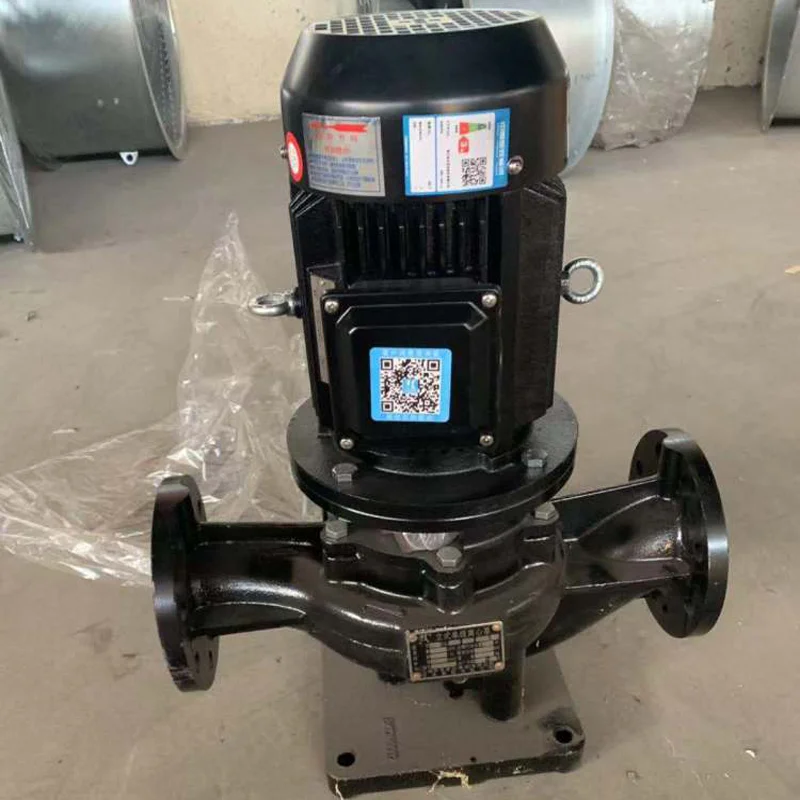

Except the evaporative condenser ,we also can offer the condenser coil ( heat exchanger ),fan ,high pressur receiver , refrigeration pump , valves ,compressore,air cooler ,IQF ,Plate freezer ,Evaporator ice can fro ice plant  .....

* If you want us quote you ,We should know some your basic detail requirement as follow :

 1.The Heat Rejection of evaporative condenser( ? KW ) ?

 2.Your local electrial power ( ?V ?HZ ?P )  ?

 3.Material of condenser coil ( stainless steel material or hot dip galvanized material can be choose ) ?

 4.Material of panel ( stainless steel material or hot dip galvanized material can be choose ) ?

 5.Counter flow type ( ECE series ) and Parallel flow type ( ECB series ) ,which type will you choose ?

Package :

IN NUDE OR WOODEN CASE

OCEANBLUE is one consulting and engineering company with main business line of Industry Refrigeration products.

 We offer solutions and advanced refrigeration equipments for all kinds of food processing, cooling, freezing and deep freezing projects.

OceanBlue is an energetic runner in market of Industrial Refrigeration, Freezing, and Cold Storage, focusing on offering solution and equipments with
advanced technology in market of industrialrefrigeration, cold storage, quick freezing and coldchain logistics.

Our rapid growth and success can be attributed to our dedication to quality, technical expertise, cost efficiency, and high technology capabilities.

Business Goal :
World’s Leading Refrigeration Equipments Supplier
Customer-Oriented Company Business Goal :
World’s Leading Refrigeration Equipments Supplier Customer-Oriented Company

Target Market :
Seafood Processing;
Fruit & Vegetable processing;
Meat processing;
Pharmaceutical
Chemical industry....

Q:Can you print my logo on the evaporative condenser ?OEM? and produce evaporative condenser as our design?

A:Yes, we can supply label printing service, we also can do silk-screen printing and hot stamping.We also can do customized packing for customers.If you need ,we are able to produce evaportative condenser as your design.

Q:What' s your normal delivery time?

A:We will send out goods in 20-35 days after received your payment.

Q:How to install the Evaporative condenser?

A:when we ship the machine to you ,instructions booklets along with the machine,you can read it ,and we will let our engineers help you install and debug in your country,pls rest about that.

Q:How about after-sales?

A:We have a large after-sale service team. All the technicians are very experienced, they always go to different countries to serve customers like you.

Whole machine 12 months warranty,  Maintenance for life.
