ZJS-A tablet капсула Счетчик счетная машинка для
- Категория: Tablet Counter >>>
- Поставщик: Shanghai,Universal,Pharmaceutical,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.47 $* | 0.98 $* |
| Aug-15-2025 | 0.50 $* | 0.32 $* |
| Jul-15-2025 | 0.72 $* | 0.92 $* |
| Jun-15-2025 | 0.71 $* | 0.26 $* |
| May-15-2025 | 0.65 $* | 0.21 $* |
| Apr-15-2025 | 0.19 $* | 0.80 $* |
| Mar-15-2025 | 0.78 $* | 0.15 $* |
| Feb-15-2025 | 0.37 $* | 0.65 $* |
| Jan-15-2025 | 0.86 $* | 0.81 $* |
Характеристики

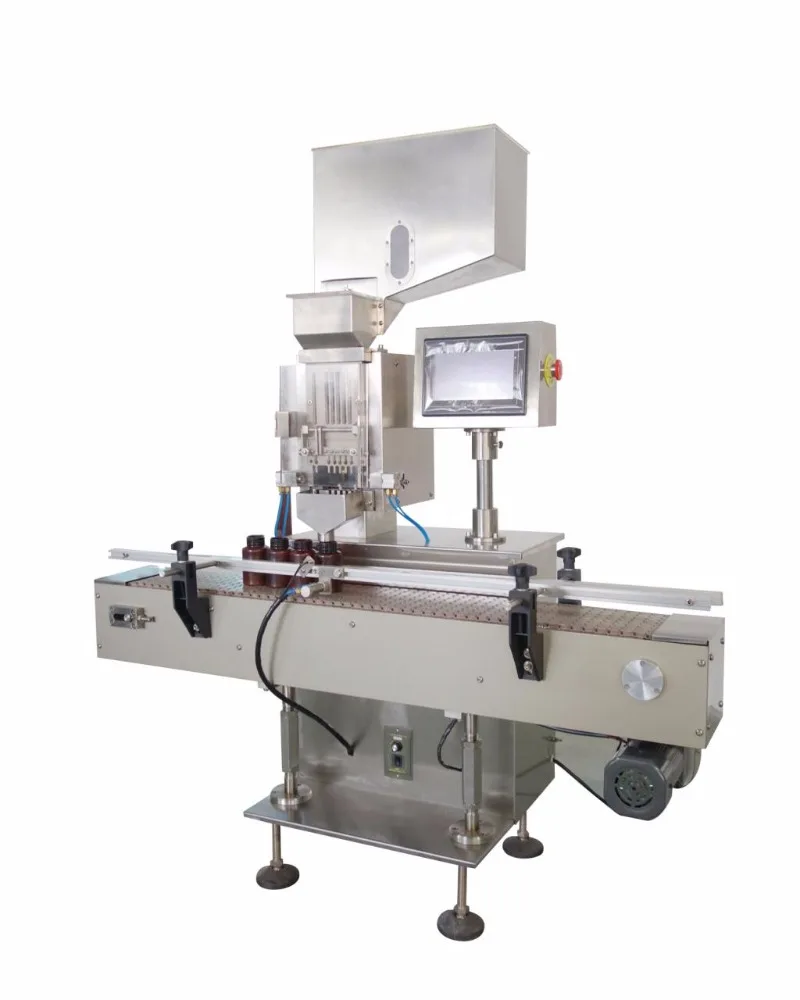

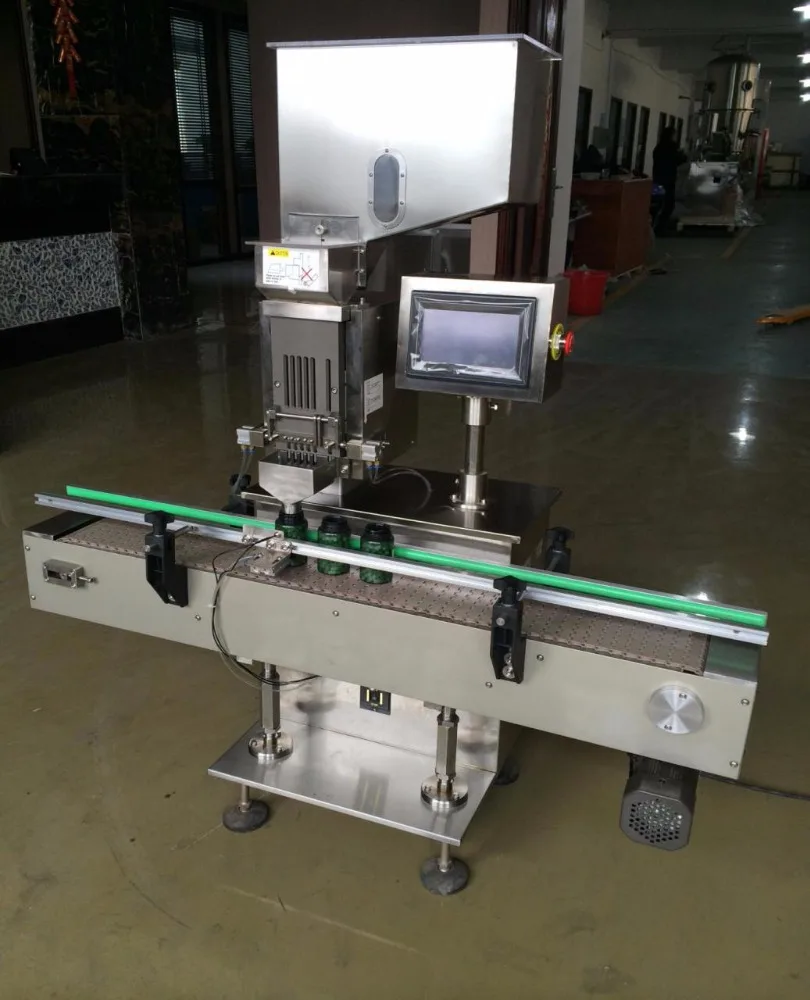

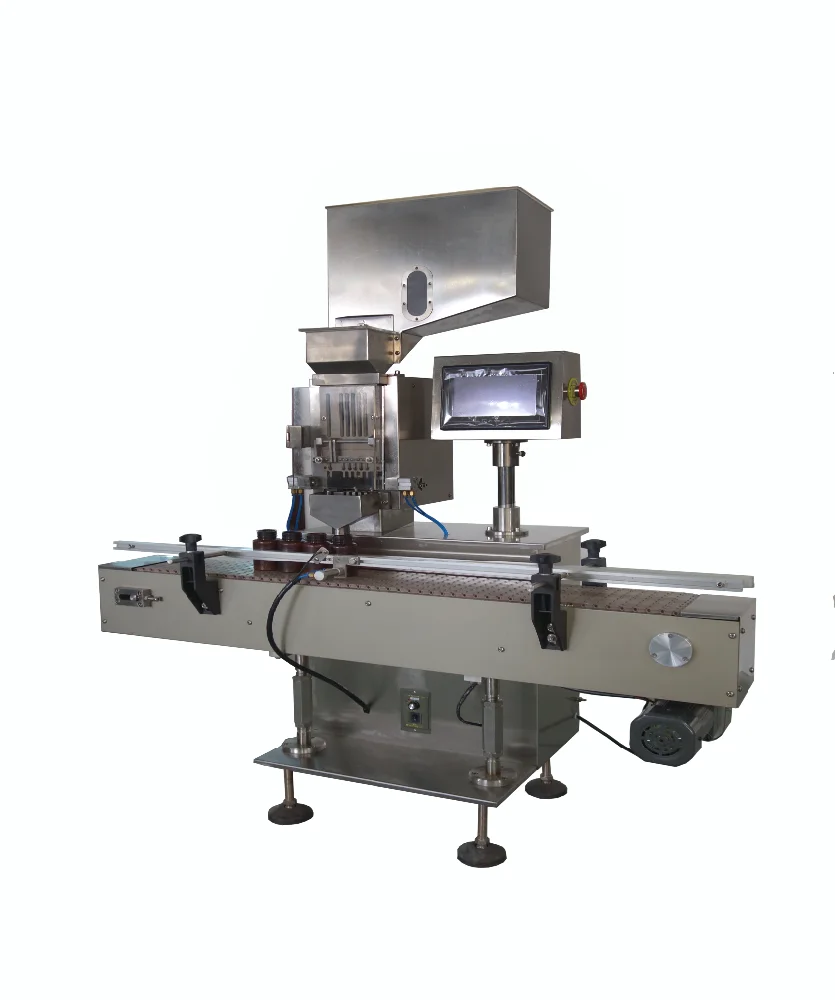

ZJS-A tablet capsule counter counting machine
ZJS-A Capsule Counter
This machine is widely in small scale production in hospital ,pharmaceutical factory,R&D center for capsule counting. ZJS-A Intelligent automatic capsule counting and filling machine adopts proprietary technology, PLC control, touch screen operating system. It can count automatically with high-accuracy. Some accessory equipment can be connected like feeding turntable, capping machine and Labeling machine.
Features:
Wide application for all size capsule
High counting precision
PLC control and touch screen
Adopt illuminating techniques
automatically alarm without bottle and bottle turned over
Easy to change mould within 5 minutes.
Stable operation and low noise.
304# stainless steel frame and contacting parts
GMP standard
Technical Parameter:
Model | ZJS-A |
5-8 Minutes(Beginner) | |
Capacity | 20,000-40,000Pcs/H |
Suitable capsule size | 000#,00L#,00#,0#,1#,2#,3#, 4#, 5# |
Max Bottle Diameter | 130mm |
Voltage | 220V, 50Hz, 1P |
Total Power | 1.2kw |
Air Pressure | 0.03m3/min 0.7Mpa |
Vacuum pump | 40m3/h |
Overall Size | 1.3*0.6*1.4 m |
Weight | 150kg |
Electric Configuration:
Name | Model | Brand | Qty |
Touch Screen | MT6070IH | Weinview,Taiwan | 1 |
PLC Programmable Controller CCCCCCCcontroller | DVP14ES00R2 | Delta | 1 |
Transducer | DVM-2S004G-02 | Drive, China | 1 |
Swicthing Power Supply | S-24-50 | Meanwell,Taiwan | 1 |
Worm and Gear Reducer | WPWD-40-40:1 | Xuya,China | 1 |
Breaker | 10A\\2P | Schneider | 1 |
Breaker | 3A\\1P | Schneider | 1 |
Optical Fiber Ampler | BF3RX | Autonics | 1 |
Optical Fiber | FT-420-10 | Autonics | 1 |
Proximity Switch | H12-D5NK | Ruixiang, China | 1 |
Emergency Stop Switch | LA37-11ZS | Chint China | 1 |
Adjustable-speed Motor |
| China | 1 |
Speed Setting Controller |
| China | 1 |
Locking cylinder | MAL100X80 | AirTac | 1 |
Air Filtration of Pressure regulating valve | AL-2000 | AirTac | 1 |
Three-Phase Asynchronous motor | Y263M2-4 | Zjejiang,China | 1 |
