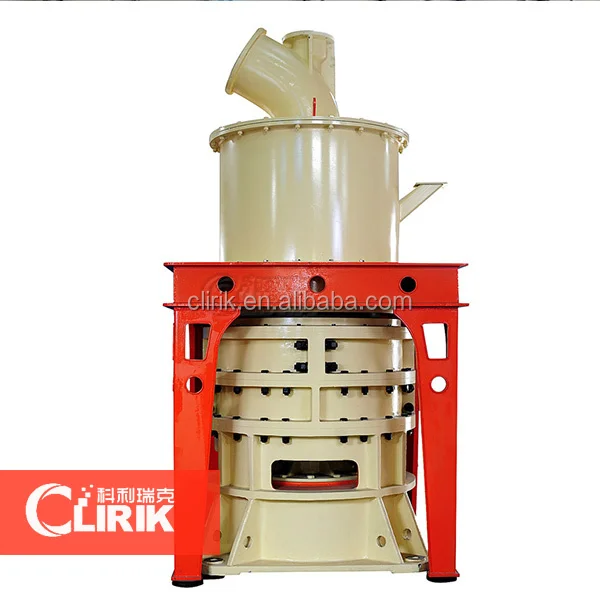

2500 mesh caco3 (calcium carbonate) powder  grinding mill







2500 mesh caco3 (calcium carbonate) powder  grinding mill  is the equipment specializing in producing fine and superfine powder of non-inflammable, non-explosive and brittle materials with Moh's hardness under six, such as calcite, chalk, limestone, dolomite, kaolin, bentonite, talc, mica, magnesite, illite, pyrophyllite and vermiculite, sepiolite, attapulgite, rectorite, diatomite, barite, gypsum, alunite, graphite, fluorite, rockphosphate, Kalium ore, pumice, etc., totally more than 100 kinds of materials.



2500 mesh caco3 (calcium carbonate) powder  grinding mill'S Working Principle:



After crushed by hammer crusher, the large materials become small ones and are sent to storage hopper by elevator, edge of then evenly sent to the upper distribution plate of the turnplate by vibrating feeder and sloping feeding pipe. When the grinding mill is at work, all the grinding rollers are rolling in the ring, and the materials are driven to the edge of the turnplate by the centrifugal force and fall down into the grinding chambers where the materials are repeatedly pressed, crushed and grinded by the rollers. The high-pressure air blower constantly inhales air within the grinding mill and,  in turn, the air flow with crushed materials are brought to the classifier whose high-speed impeller will screen the airflow: the unqualified particle size will fall and return to the mill for being reground while the qualified particle size mixed with air will go into the cyclone powder collector. Most of the qualified powders will fall an exit from the discharging valve at the bottom; a small proportion of the fine powders, with airflow, moves to the dust cleaner, and clings to the surface of the filter bags. At the same time, the fine powders clinging to the surface fall down by the sudden vibration of the filter bags, which is caused by the instantly ejected high-pressure gas controlled by the pulse valve. The materials from the above two lots are sent by the conveyor at the bottom to get finished powders packed. In addition, filtered clean air will be emitted from the air outlet of muffler in the end.







2500 mesh caco3 (calcium carbonate) powder  grinding mill Features:





1. High Efficiency



Under the same finished final size and the same motor power, the capacity of micro powder grinding mill is twice as much as jet mill, mixing grinder and ball mill, and energy consumption decreased 30%.



2. Long lifecycle of spare parts



The ring and roller are forged by special material with high utilization,the lifetime can reach 2-5 years for grinding calcite carbonate.



3. High safety and reliability



As no rolling bearings or screws in grinding cavity, there are no problems caused by bolts shedding or rapid wear of bearings and seal components.



4. High fineness, flexible adjustment



The final fineness of the grinding materials can be adjusted between 325 meshes and 2500 mesh (47-5 micron), and the product fineness can reach D97≤5μm.



5. Environment-friendly



The application of pulse bag filter and muffler greatly alleviates dust pollution and noise.



6. Advanced intelligent speed control device



Convenient adjust, more uniform particle size.





2500 mesh caco3 (calcium carbonate) powder  grinding mill  Main Specifications:





Main Specifications
Model	HGM80	HGM90	HGM100L	HGM125
Ring Diameter(mm)	800	900	1000	1300
Ring Number(layer)	3	3	4	4
Roller Number(piece)	21	27	36	44
Main Shaft Speed(r/p/m)	230-240	200-220	180-200	135-155
Input Size(mm)	no more than 20	no more than  20	no more than 25	no more than 25
Finished Size(um, mesh)	5-47 (325-2500)	5-47 (325-2500)	5-47 (325-2500)	5-47 (325-2500)
Capacity(t/h)	0.5-4.5	0.6-6.5	1-8.5	1.5-12
Overall Dimension(L*W *H,m)	13.9*4*6.2	14.7*4.8*7.2	18*4.6*8.6	14*9*10.25
Motor Powder (Kw)	123-143	168.35	243.95	344.4





2500 mesh caco3 (calcium carbonate) powder  grinding mill Flowing Chart
