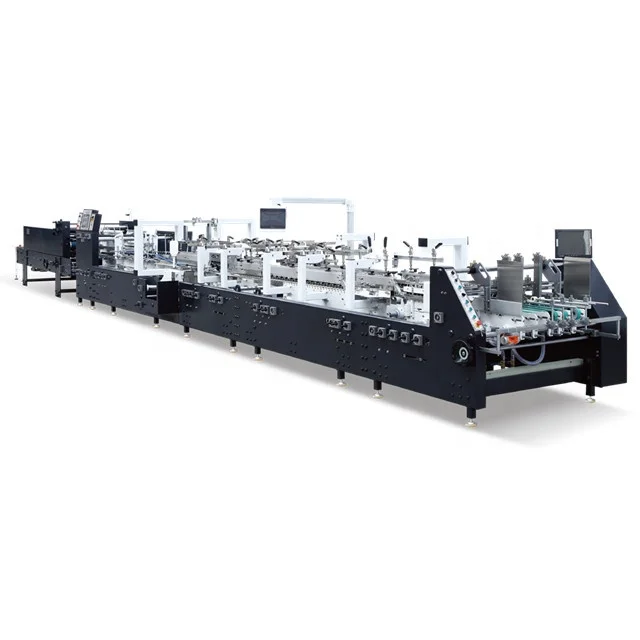

GS Series Automatic High-Speed Gluing Folding Machine
Product Description

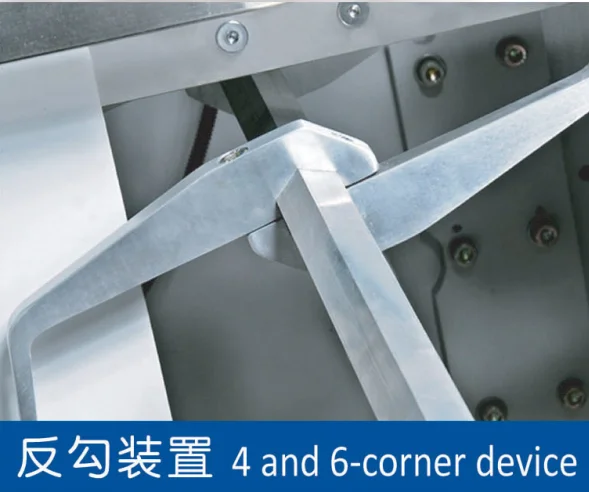

Series GS folding gluing machine is packet type machine, adopts advanced domestic technology, independent driving structure, two-purpose machine, adopts electrical regulating board, PLC imported electronic components, feeding section adopt mechanic continuously variable, stable and easy to control and operate. The machine is especially designed for all kinds of cardboard, corrugated packaging boxes, has correction function and four six corner box ,make corrugated boxes perfectly meet the requirements of auto packaging together. (We can customize of other size)
Main technical Parameter
GS Series Automatic High-Speed Gluing Folding Machine
GS Series
650GS
800GS
1100GS
Paper Material
Cardboaed210-800g A/B/E Corrugated
Max. Liner speed
Max. 400 meter/minute
Inching speed
10m/mim
Thickness of folder box max.
12 mm
20 mm
20 mm
Blank Width
650 mm
800 mm
1100 mm
Over dimension
13*1.4*1.8m
16.5 *1.4*1.8m
16.5*1.7*1.9m
Weight
5T
6T
7.2 T
Total power
22.5 kW
25.5kW
29 kW
Compressor air
6 bar
6 bar
6 bar
Air compressor capacity
10 m³/h
10 m³/h
10 m³/h
Air tank capacity
60 L
60 L
60 L
Carton GS and size:
Model
650GS
800GS
1100GS
A
650-100
800-100
1100-100
B
500-60
800-60
800-60
Size of two-sides glue box and folded box
Model
650GS
800GS
1100GS
A
500-100
800-150
1100-250
B
400-60
800-60
800-60
H
150-20
150-20
150-20
Size of bottom-locked carton and folding carton
Model
650GS
800GS
1100GS
A
650-146
800-146
1100-250
B
450-60
700-60
1700-80
H
180-20
180-20
100-25
Size of 4 corners box and folding box
Model
650GS
800GS
1100GS
A
500-120
800-120
1100-120
B
400-120
800-130
800-130
C
150-20
150-30
150-30
Size of 6 folds box and folding box
Model
650GS
800GS
1100GS
A
500-120
800-120
1100-250
B
400-100
800-130
800-130
C
150-30
150-30
150-30
