New conditionhigh efficiency YGM series fly ash grinding mill machine



      The raymond vertical grinding mill is used to grind barite, calcite, potash feldspar, talcum,marble, limestone, cream and slag below scale 7 of Moths hardness and 280-odd sorts of non-inflammable and non-explosive stuff in the traded of mining, building material, chemical engineering and metallurgy forpower generation and processing. Thefinal product size of raymond vertical grinding mill is adjustable onrequired in the range of 100-325 meshes.

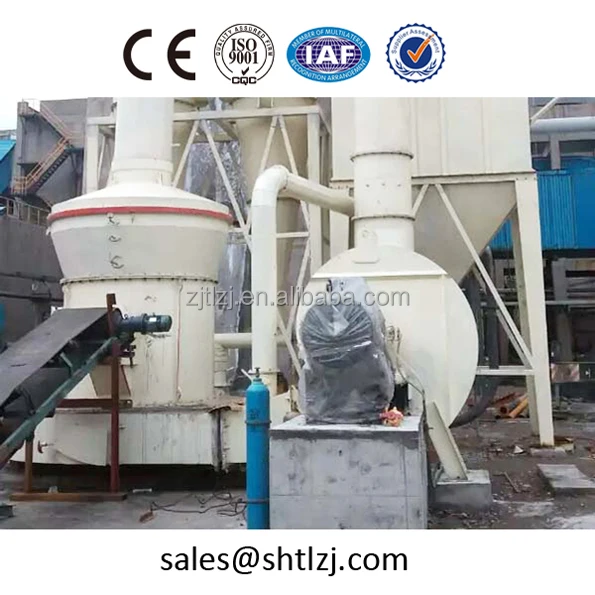

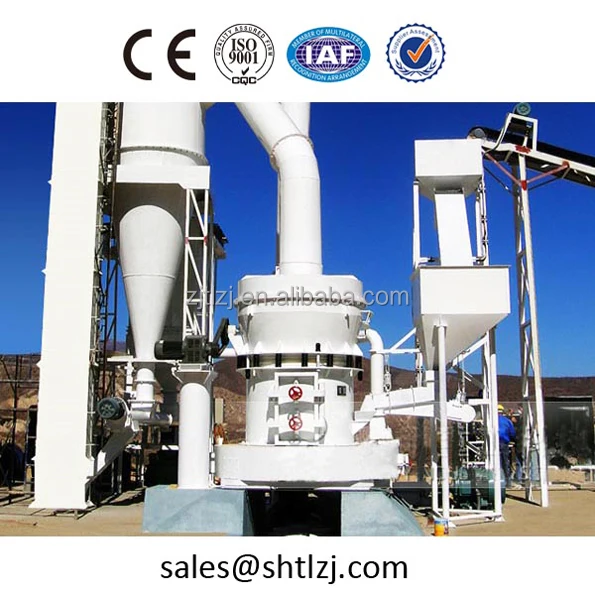

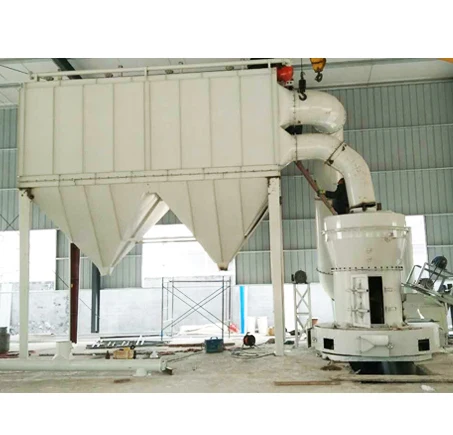

        Materials first enter the crusher to be crushed to smaller size. Then they are lift to storage room by elevator. Vibrating feeder will feed materials into raymond vertical grinding mill chamber evenly and gradually. After being grinded, the powder will be blowed to cyclone by blower. Then the material will be transferred to storage room through pipes, and then will be discharged as final products. The whole processof raymond vertical grinding mill works in a negative pressure environment. First, through pipes, the air from the blower enters the cyclone collector above the storage room along with powder, and then returns to the blower through return pipe. In the way, air can be recycled. There is a powder locking equipment under the cyclone in raymond vertical grinding mill , which isolates the outside positive air pressure and the negative air pressure inside cyclone. And this ensures high productivity. In addition, the residual air and dust under the main unit will be transferred to dust catcher equipment through pipes and be cleaned there. The clean air will be discharged so that environment will be protected.

1) The professional producer of raymond vertical grinding mill
 2) Powder-saving and Higher Production Capacity .
 3) Smooth and Reliable Performance.
 4) Fineness: 30—425Mesh (Adjustable)
5)Run for 1000 hours without Lubrication





Type	Roller			Max. feeding size(mm)	Fineness(mm)	Output(kw)	Power(kw)	Size (mm)
	No.	Dimension(mm)	Height(mm)
YGM7815	3	260	150	15	0.613-0.033	1-3	18.5	4300*3500*5100
YGM8314	3	270	140	20	0.613-0.033	1.2-4.6	22	5300*4100*5200
YGM9517	4	310	170	25	0.613-0.033	2.1-5.6	37	7100*5900*7900
YGM4121	5	410	210	30	0.613-0.033	2.8-10.5	75	9200*7250*9700
MTM1600	6	440	270	35	0.613-0.033	5-20	132	12550*5700*8350

           Zhejiang Tongli Heavy Machinery Manufacturing Co.,ltd is specialized intechnology R&D, engineering consultation , equipment debugging, engineering contracting and related technical services for manufacturing cement, building material, mining, environmental protection, metallurgy, chemical equipment. Tongli Heavy Machinery  Co.,ltd established in 1958year, is a member of the China Building Material Machinery Association, a leading enterprise of China Cement Machinery, on the vendor of designated manufacturers for coal industry mechanical and electrical equipments, ISO9001:2008 accredited and accredited as a high-tech & new technology enterprise of Zhejiang Province, national designated “defend the contract heavy credit enterprise”, modern enterprise of national top ten cement grinding system of technologies and equipment , at the top of cement equipment manufacturing in Zhejiang Province.



       The Tongli Co.ltd occupies 153800m2 and the construction area of the workshop is 85000m2,the maximum lifting capacity of a single head crane is 200t. The company is equipped with more than 100 sets of heavy machinery manufacturing equipments such asφ5.3×18m(The lifting capacity is 200t)digital control horizontal lathe, φ5.5×18m lathe for machining shell, φ8m heavy digital display vertical lathe, φ8.0m heavy hobbing machine, 14×5m CNC vertical milling & boring machine, 3.4×10m CNC gantry milling & boring machine, 120mm digital control plate bending rolls, φ6.5×20m large size annealing furnace, φ6.5×20m sand blasting room, 1800t four columns hydraulic press, 10t electric arc furnace, etc, the integrated machinery processing ability is very strong.



          After working hard for more than 56 years, the company has the first-class science and technology development centers and craftsmen team who have much experience and skilled technology, specially manufactures series of cement machinery main equipments with independent intellectual property such as slag vertical mill, raw material vertical mill, cement vertical mill, coal vertical mill and rotary kiln, cement mill, wind swept coal mill, dryer, etc; in the meantime, manufactures the equipments and large- sized structural workpieces such as compound fertilizer, mining, power generating, sewage sludge (waste)incineration systems, etc, the products are exported widely toover 1000 companies from sixty or more countries such as Germany, Russia, Brazil, Egypt ,Iran, Bangladesh, Pakistan, Turkey, Myanmar, Vietnam, Columbia, Bolivia, South Africa, etc.
