Универсальный стандартный капиллярный и упакованный Газовый

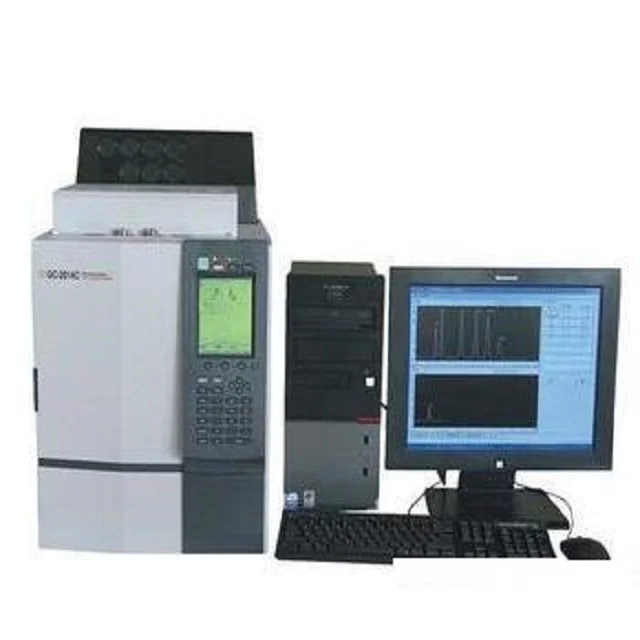

GC-2014C gas chromatograph not only can provide full manual flow control models, but also can provide full automatic flow control models to meet different analytical requirements.
Automatic flow control model with GC-2010 series and GC-2014 series of identical electronic flow control unit (AFC), the flow of gases with high precision control, constant pressure, constant flow and provide SHIMADZU unique "carrier gas constant line speed control mode, improve the retention time and peak area reproducibility, to achieve accurate analysis.

FID-2014 hydrogen flame ionization detector
Applicable to all organic compounds detection, automatic ignition and automatic ignition function. By installing APC or solenoid valve assembly, the feedback function of the gas supply can be automatically cut off when the hydrogen flame is extinguished. There are two types of single FID and double FID.

TCD-2014 thermal conductivity detector
Suitable for the analysis of organic gases and concentrated organic compounds. TCD-2014 is a semi diffused testing cell, which can reduce pollution and prolong the service life of the test cell. Equipped with automatic filament protection circuit.

ECD-2014 electron capture detector
Analysis of compounds suitable for electronegativity. A radiation pool similar to ECD-14 can be used as a common source of radioactivity. High sensitivity is achieved by increasing the thermal insulation of the pool and reducing pollution.

FPD-2014 flame photometric detector
Applicable to the analysis of organic sulfur compounds and organophosphorus compounds, such as the analysis of residual pesticides and odor components. Based on the FPD-2010, the new design nozzle system supports the packed column analysis, while ensuring high sensitivity. FPD-2014 withstand higher temperature limit (350 degrees Celsius).

FTD-2014 flame thermionic detector
Suitable for analysis of organic nitrogen compounds and organophosphorus compounds, such as pesticide residues. A FTD-14 based detector design using FTD-14 and FTD-17 collector supports the packed column analysis.

FTD-2014C flame thermionic detector
Applicable to the analysis of organic nitrogen compounds and organophosphorus compounds, such as pesticide residues. Capillary column specific detector using FTD-2010 structure. Replacing the collector without the use of tools. The cost of running can be reduced by using the optional alkali source regeneration kit.
