Приемник FTTH CATV от 47 до 1000 МГц без питания
- Категория: Radio & TV Broadcasting Equipment >>>
- Поставщик: Yantai,Yatai,Photoelectricity,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 1.51 $* | 1.44 $* |
| Jul-19-2025 | 1.99 $* | 1.40 $* |
| Jun-19-2025 | 1.3 $* | 1.20 $* |
| May-19-2025 | 1.73 $* | 1.94 $* |
| Apr-19-2025 | 1.95 $* | 1.16 $* |
| Mar-19-2025 | 1.9 $* | 1.84 $* |
| Feb-19-2025 | 1.82 $* | 1.10 $* |
| Jan-19-2025 | 1.64 $* | 1.86 $* |
Характеристики
FTTH CATV receiver 47 to 1000mhz power less ftth node
Product Description
FTTH CATV optical receiver without power is a specialty product which is specially designed for FTTH-Fiber to the home network structure. Compact and reasonable internal circuit structure, the housing adopt dedicated aluminum alloy, wire drawing oxidation treatment the surface. The performance indicators are good.
Optical parameter | |
Parameter | Index |
optical input power (dBm) | -15 ~ 0 |
loss (dB) | >45 |
optical wavelength (nm) | 1310 ~ 1550 |
optical connector type | SC/APC |
| Link Path parameter | |
| C/N (dB) | ≥ 51 |
| C/CTB(dB) | ≥ 65 |
| C/CSO(dB) | ≥ 62 |
| RF parameter | |
frequency range (MHZ) | 47 ~ 1000 |
flatness in band (dB) | 1.5 |
output level (dBμV) | 46(-15dBm test) 56(-10dBm test) 66(-5dBm test) 70(-3dBm test) 76(0dBm test) |
| RF output reflection (dB) | ≥ 16 |
| RF out resistance (Ω) | 75 |
| MER (dB) | 30(-15dBm test) 35(-10dBm test) 37(-5dBm test) 37(-3dBm test) 36(0dBm test) |

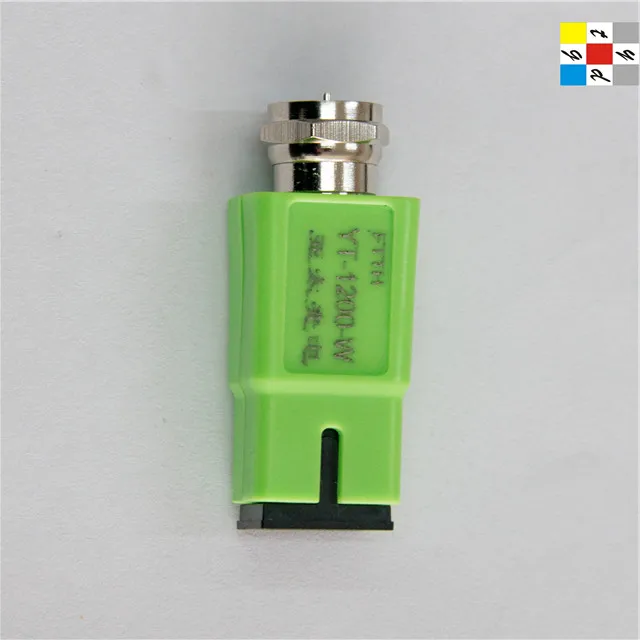

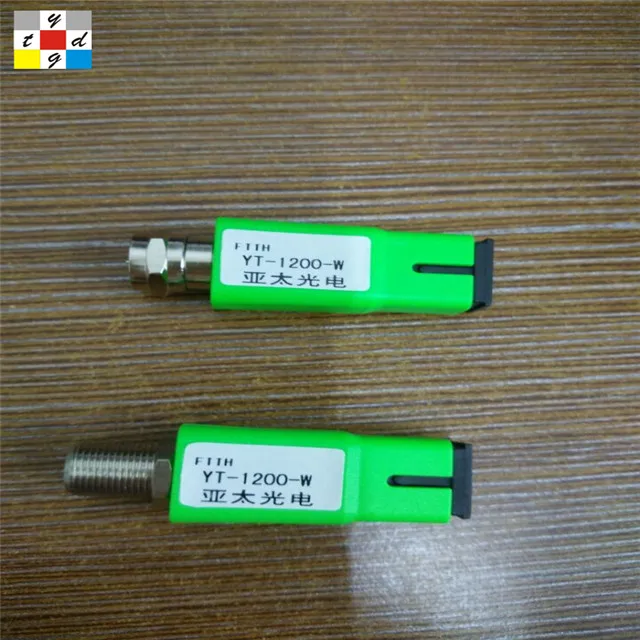

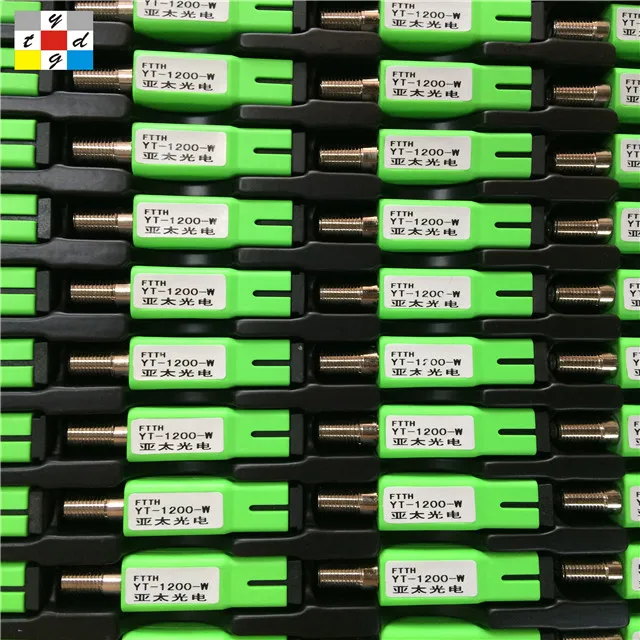

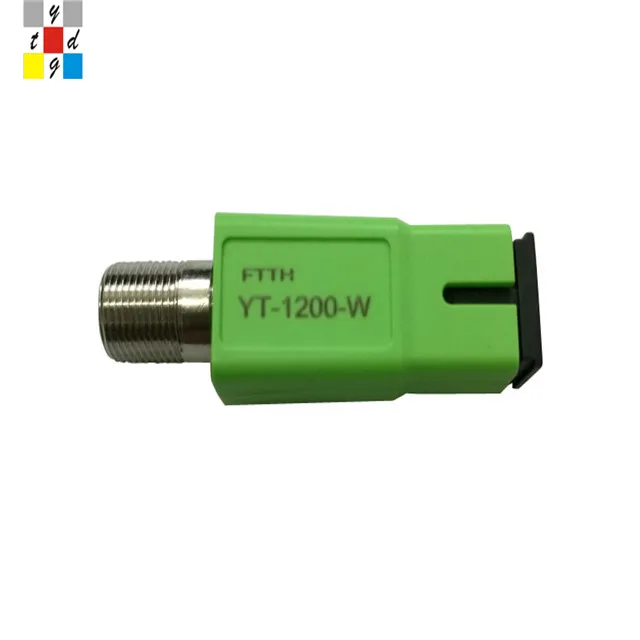

Detail image
Company Information
Yantai Yatai Photoelectricity Equipment Co.,Ltd was founded in 1997. We are a hi-tech enterprise engaged in research, development, production and sale of optoelectronic products, with advanced proprietary intellectual property rights. 150 workers,1000 square meter non-dust workshop, 20 years experience, many domestic and overseas government projects for CATV, ISO certificated, this is how we keep good quality and reliable cooperation for global valued customers.
Workshop

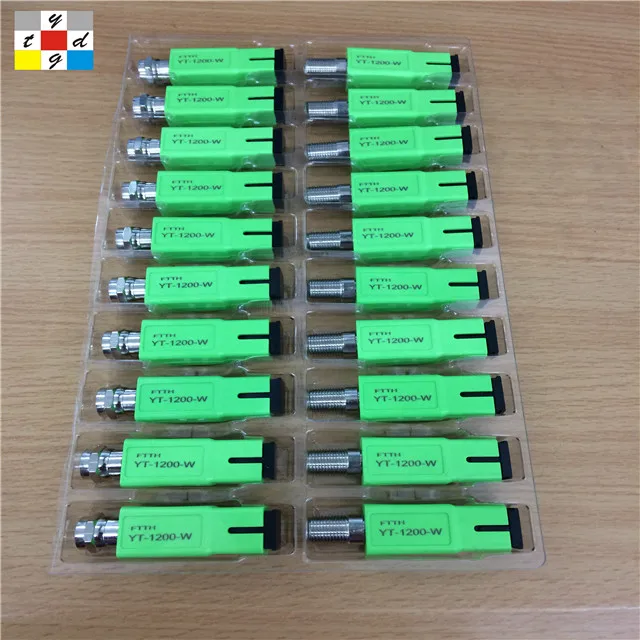

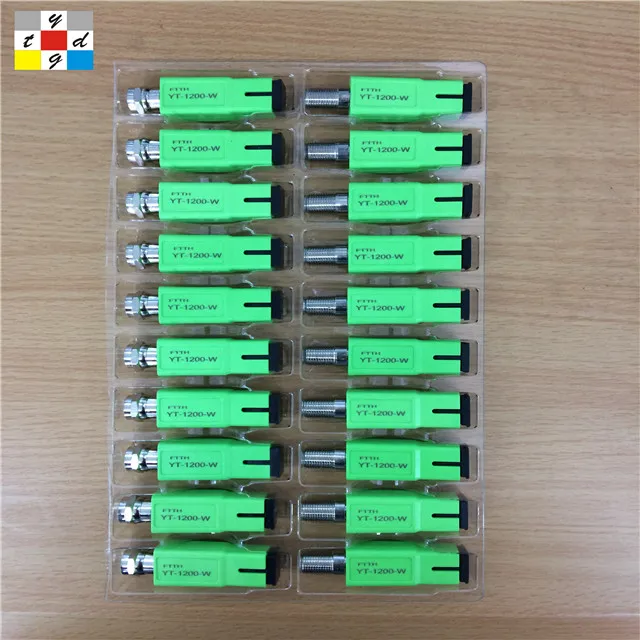

Packaging & Shipping
How to contact us?
