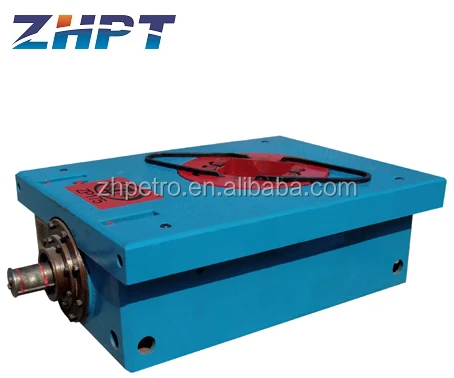

Роторный стол ZP175 для сверления и обслуживания

Description

ZP175 type rotary table is mainly used as supporting device to petroleum, natural gas, geothermal and deep water well drilling rigs. This product is manufactured according to API spec 7K (2001 edition) and the SY/T5080-2004 standard (standards of petroleum and natural gas industries). It is also named turntable. Its gear wheel and pinions are all made of alloy steel. Our rotary table features higher load capacity, small size and lighter weight.

Features

1. Master bushing and kelly roller bushing can be square drive type or pin drive type.
2. Pin drive type master bushing conforms to API standard.
3. ZP175 type rotary table have full lubrication and steady seal.
4. Long clips and short clips are both applicable for the turntable.
5. The driving mechanism of this product is Spiral bevel gear. It runs steady and has long lifespan.
6. The shell of this device is wielded with metal structure. It features good rigidity and high accuracy.
7. Splash lubrication is adopted in the gear and bearing of the rotary table. The lubrication is reliable.

Application

1. In drilling process and salvage procedure, the turntable is used for spinning drill pipe.
2. Rotary table can bear the restoring torque of the drill pipe in turbo drilling.
3. It is also used to hole the pipe when pulling drill pipe or casing.
4. When pulling out the drill bit, the turntable is used to unload drill pipe pin.

Maintenancey

1. When installing the rotary table, operator should level the device and adjust the direction of the sprocket wheel.
2. Oil in new turntable is bled off during transportation. Clients should flush the product before using it and fully lubricate it.
3. Maintainer should open the cover plate on top every month and clean the mud once or twice a month. If the rotary table is frozen in winter, it should be cleaned more frequently.
4. After running a new turntable for 30 days, lubrication oil should be renewed. After that, lubrication oil should be changed every three months.

Parameters

Standard export packing or according to client's requirements.

Shipping according to client's requirements

1. We possess a 24 hours response system to provide convenient, fast, and effective pre-sale, during sale and after-sale service.

2. Our promise: any equipment sold by Zhuohong at any place in the world, we will provide after-sale service promptly and efficiently. Any equipment component damaged by manufacturing defect or quality problem during the warranty period, Zhuohong will bear the direct cost of the damaged parts.

3. Warranty period: 18 months from the day that the unit leaves factory or 12 months from the date that the unit is put into use (choose the earliest one which comes to an end as the calculation standard).

Zhuohong engages in oil drilling engineering and technical services; technology development and application of automatic control equipment; overhaul and maintenance of oil and gas well testing; sales of oil drilling equipment and accessories, drilling tools, drill pipe and tubing, instrumentation and accessories, electromechanical equipment. We have been committed to being the world's leading suppliers and technical service providers in petroleum equipment industry.

Zhuohong takes "Be the world’s first-class equipment provider of oil & gas development and utilization." as a goal and "provide customers with the highest quality products and technical services" as our mission. It has always put great emphasis on integrity, met customer needs and offered customer best service wholeheartedly.
