Характеристики
"BANCO" Fan Coil Unit is widely used in Villa, Apartment, Hotel, Commercial office, School, Hospital, Shopping mall, Villa, Sauna room etc.![]()
![]()
![]()
Feature
1) Ultra thin design, the thickness of fcu is only 130m.
2) Air return direction is optional, both side re-turning and bottom re-turning is optional, adjust to fit different environment, inner LED thermostat(temperature controller) is optional.
3) Left/right water connecting direction can be selected.
4) Wind amount could be controlled in a breeze status, very quiet, it is the best alternative to the radiator.
4.1 Radiators only offer heating, but our ultra-thin FCU can offer both heating and cooling.
4.2 Heating speed of radiators is slow and radiation of radiators is narrow, inefficient air convection. FCU have higher speed of heat exchange.
5) Using metal cross flow fan, not only decrease operating noise,but also increase air pressure.
6) Auto swing is optional and also manual adjusting to air flowing is optional.
7) Left and right side panels can be removed independently. It is easy for installation and maintenance;
8) AC motor is standard, DC motor is optional.
9) 2-way(3-way)water valve can be build-in, which is benifit to the cost saving of installation.
10) Easy-removable and washable filter was built-in, Touch screen controller is optional for DC type fan coil units. The appearance is very fashionable and technically.
1) Ultra thin design, the thickness of fcu is only 130m.
2) Air return direction is optional, both side re-turning and bottom re-turning is optional, adjust to fit different environment, inner LED thermostat(temperature controller) is optional.
3) Left/right water connecting direction can be selected.
4) Wind amount could be controlled in a breeze status, very quiet, it is the best alternative to the radiator.
4.1 Radiators only offer heating, but our ultra-thin FCU can offer both heating and cooling.
4.2 Heating speed of radiators is slow and radiation of radiators is narrow, inefficient air convection. FCU have higher speed of heat exchange.
5) Using metal cross flow fan, not only decrease operating noise,but also increase air pressure.
6) Auto swing is optional and also manual adjusting to air flowing is optional.
7) Left and right side panels can be removed independently. It is easy for installation and maintenance;
8) AC motor is standard, DC motor is optional.
9) 2-way(3-way)water valve can be build-in, which is benifit to the cost saving of installation.
10) Easy-removable and washable filter was built-in, Touch screen controller is optional for DC type fan coil units. The appearance is very fashionable and technically.

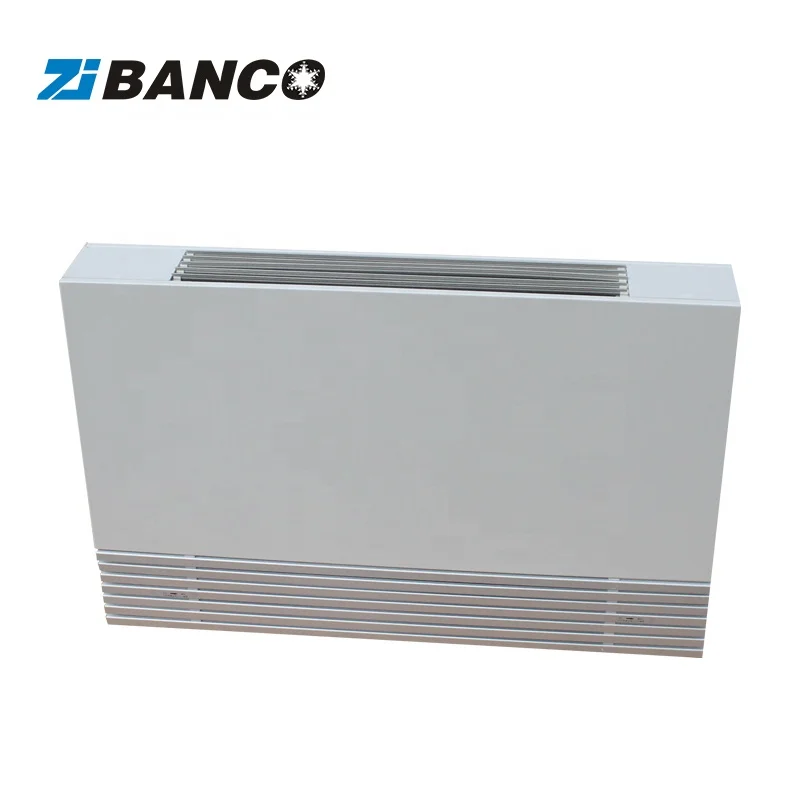

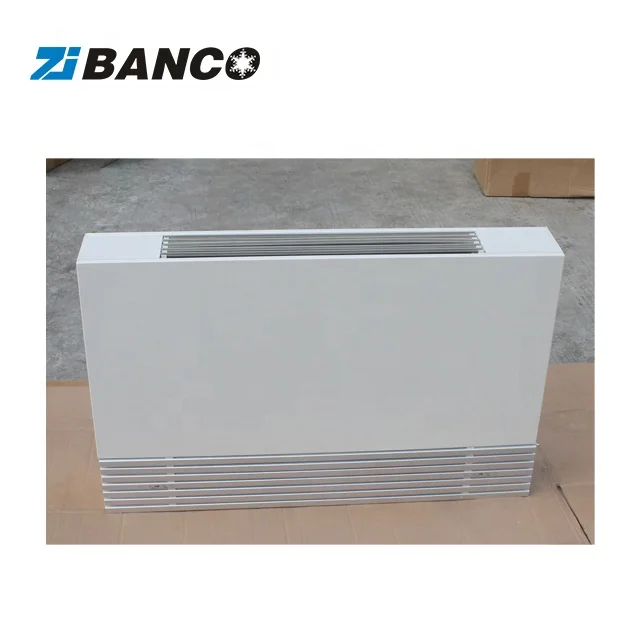

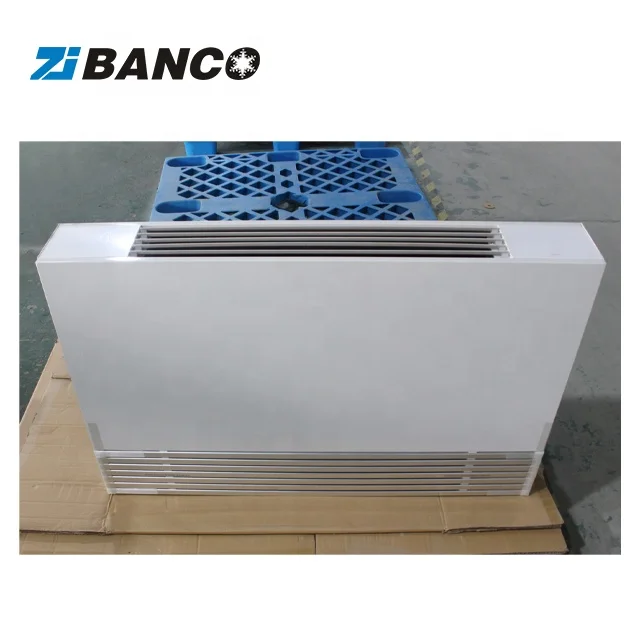

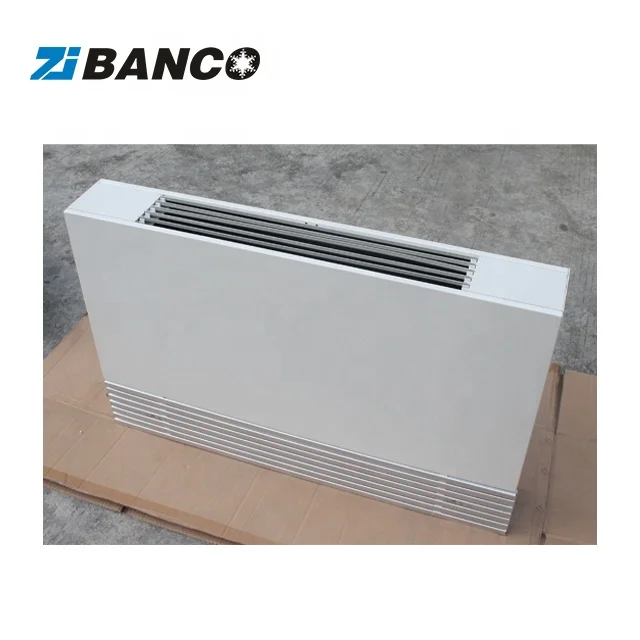

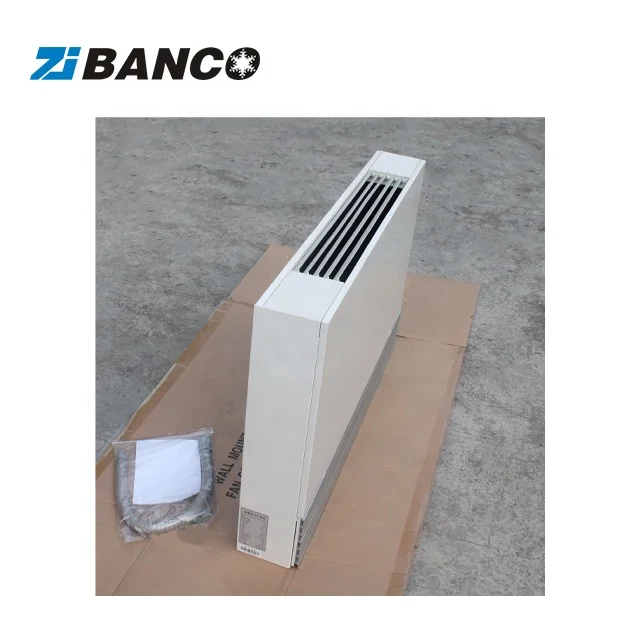

Ultra-thin Vertical Fan Coil Unit (2 Tube, Touch Screen Thermostat Inside)
| Model BC~ | 20UT | 30UT | 40UT | 50UT | 60UT | |
| Power supply | 220V,50Hz,1Ph/110V,60Hz,1Ph | |||||
| Air flow max | m3/h | 200 | 300 | 400 | 500 | 600 |
| CFM | 118 | 176 | 235 | 294 | 353 | |
| Air flow min | m3/h | 80 | 120 | 180 | 220 | 260 |
| CFM | 47 | 71 | 106 | 129 | 153 | |
| Cooling capacity | W | 1000 | 1900 | 2800 | 3500 | 4000 |
| Btu/h | 3400 | 6500 | 9550 | 12000 | 13700 | |
| Heating capacity(1) | W | 1500 | 2850 | 4200 | 5250 | 6000 |
| Btu/h | 5100 | 9700 | 14300 | 17900 | 20500 | |
| Heating capacity(2) | W | 2000 | 3800 | 5600 | 7000 | 8000 |
| Btu/h | 6800 | 12950 | 19100 | 23900 | 27300 | |
| Noise | dB(A) | 38 | 39 | 40 | 41 | 42 |
| Power input | W | 15 | 18 | 20 | 26 | 32 |
| Water flow | m3/h | 0.17 | 0.33 | 0.49 | 0.6 | 0.64 |
| Pressure dropping | kPa | 12 | 14 | 18 | 20 | 24 |
| Water tube connection(inlet) | R1/2" | |||||
| Water tube connection(outlet) | R1/2" | |||||
| Coil | Type | High efficient copper pipe to wear Hydrophilic aluminum coil | ||||
| Maximum working pressure | Mpa | 1.6 | ||||
| Condensation pipe(diameter) | mm | φ21 | ||||
| Net dimension(L*W*H) | mm | 700×130×581 | 900×130×581 | 1100×130×581 | 1300×130×581 | 1500×130×581 |
| Packing dimension(L*W*H) | mm | 750×180×630 | 950×180×630 | 1150×180×630 | 1350×180×630 | 1550×180×630 |
| Net weight | KG | 14.7 | 18.5 | 21.6 | 24 | 28 |
| Gross weight | KG | 16.5 | 20.6 | 24 | 28 | 33.5 |
Testing condition:
Cooling
Entering air temperature: Dry bulb 27ºC, Wet bulb 19.5ºC
Entering/out water temperature: 7ºC/ 12℃
Heating(1)
Entering air temperature: 20ºC
Entering water temperature: 60ºC, Same water flow rate as for the cooling
Heating(2)
Entering air temperature: 20ºC
Entering water temperature: 70ºC, Same water flow rate as for the cooling
