Характеристики
Details
| Automatic straight line single edge glass grinding machine ce approved | |
| Model | SY-1500-6 |
| Type | Automatic |
| Max. glass size | 1500mm |
Product Description

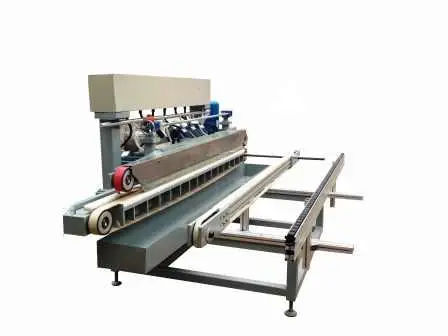

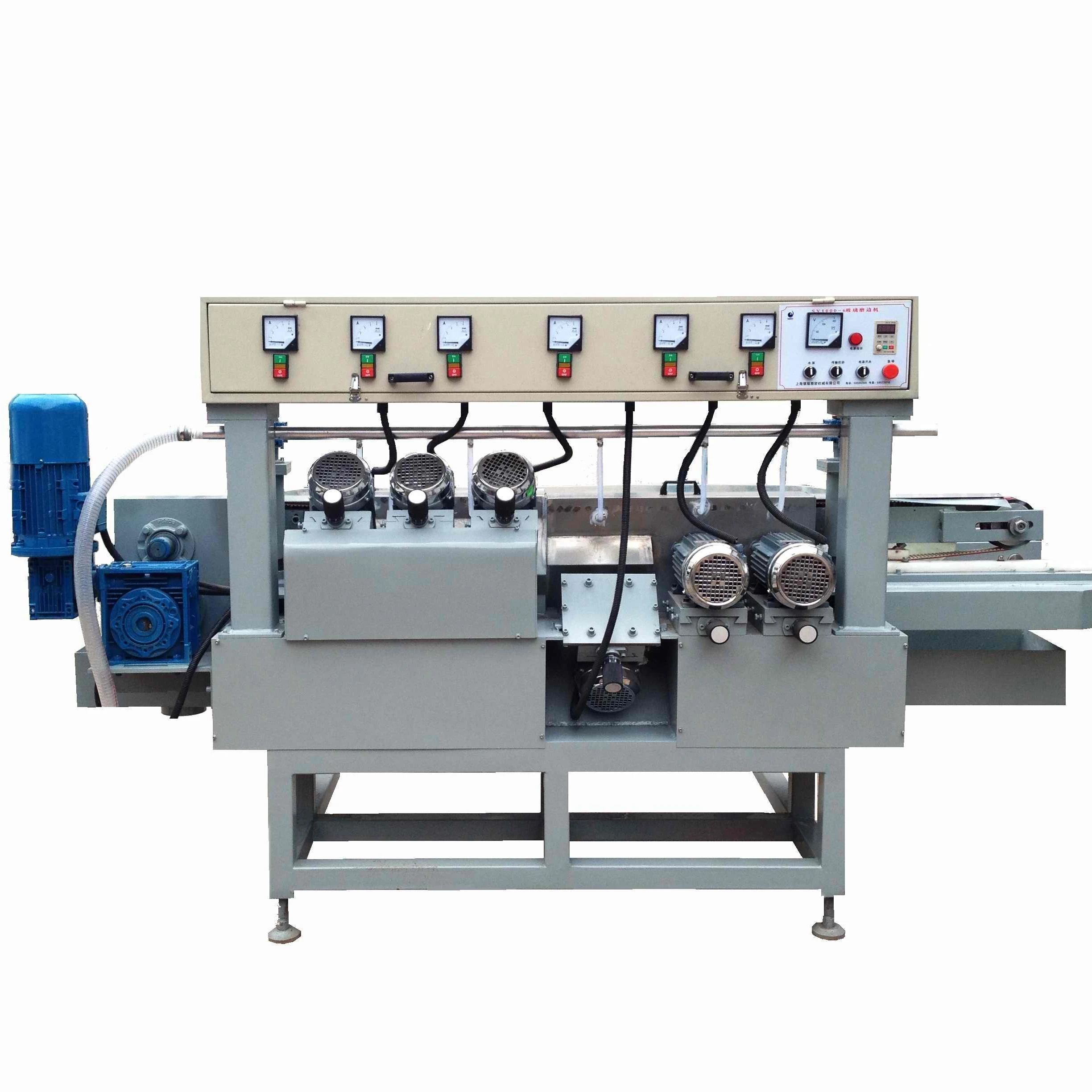

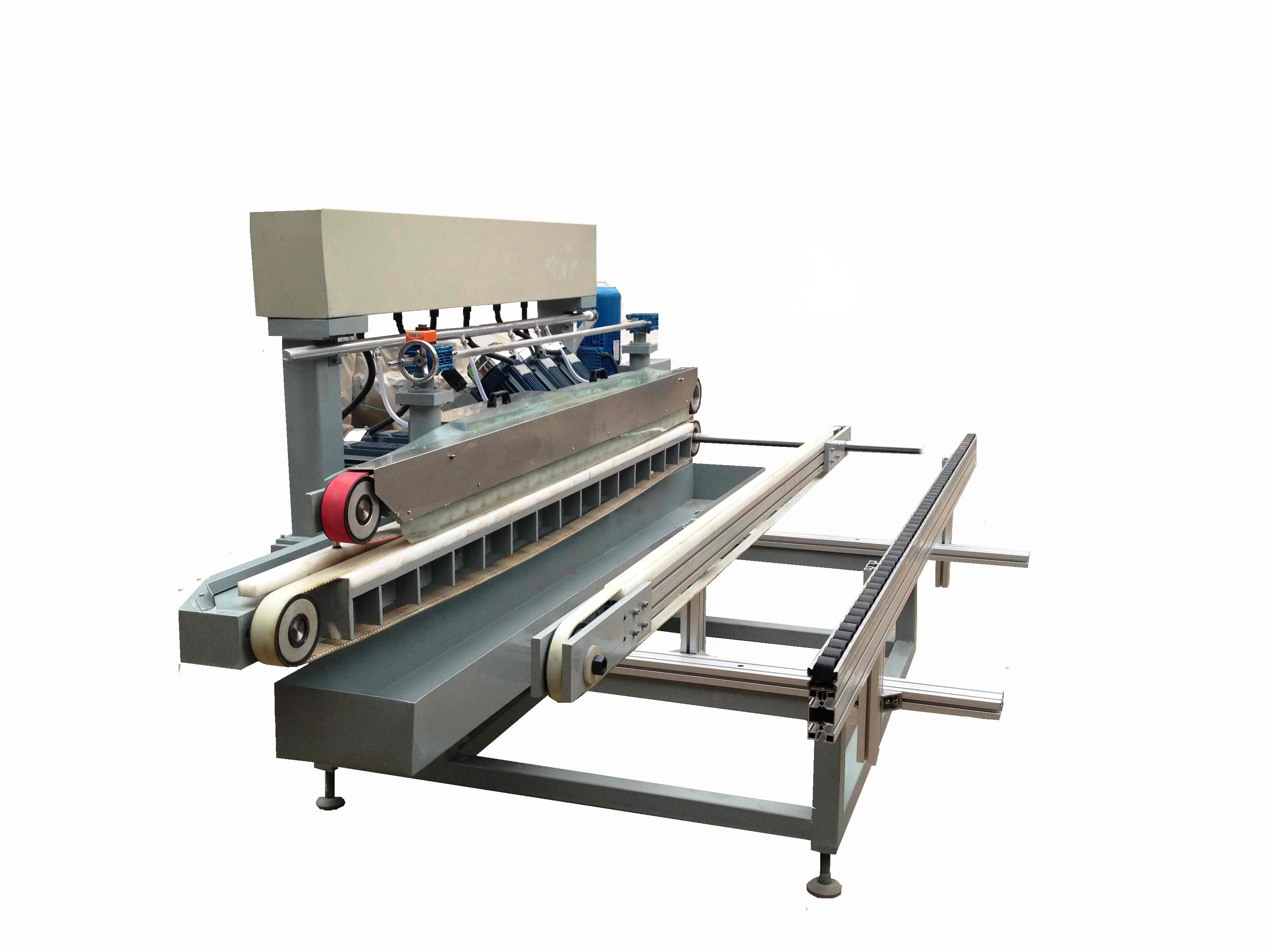

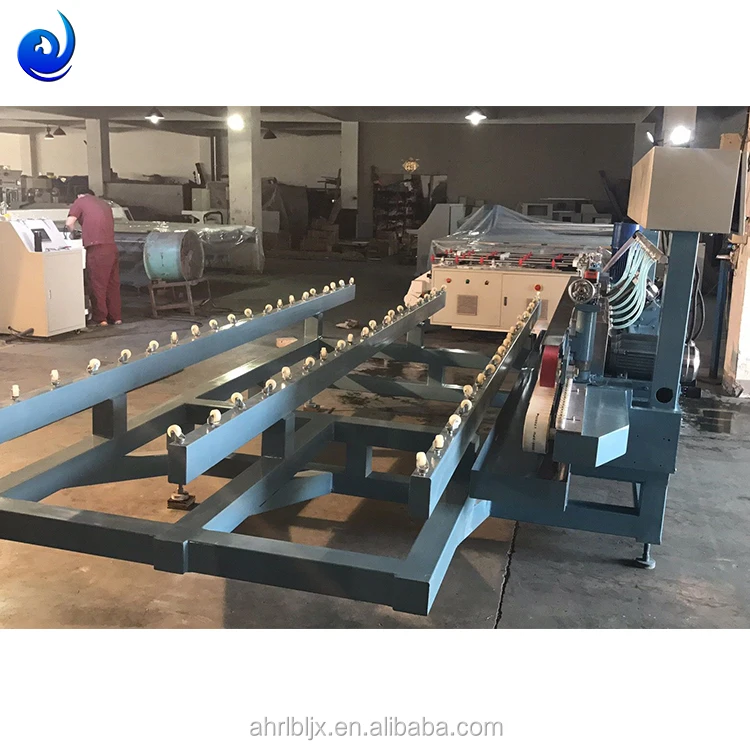

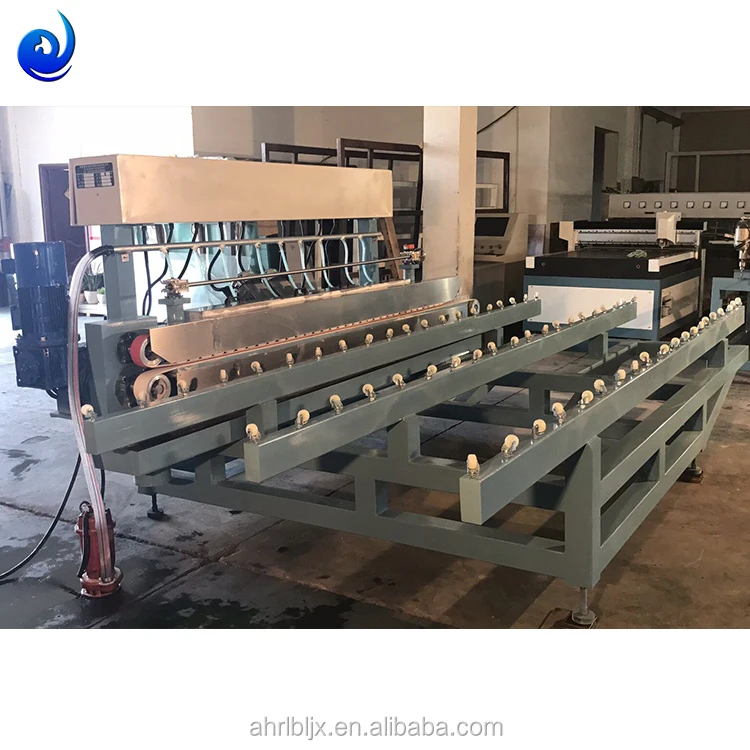

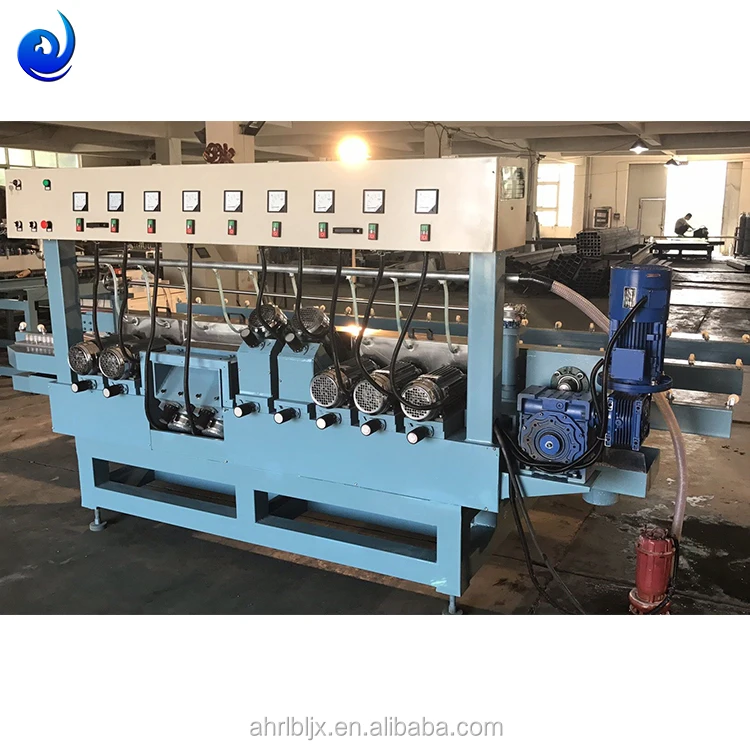

Automatic straight line single edge glass grinding machine ce approved
Automatic straight line single edge glass grinding machine ce approved is a precise and efficient glass processing equipment, can fill the big, small glass grinding function, more widely applicable to small and medium-sized glass grinding, and low cost, the single-phase electric work, the operation is simple.
Horizontal unilateral glass edge grinding machine for conventional glass, especially ambry door plank, king kong door plank, sanitary ware, hollow, spell mirror, Mosaic, and other industries use.
Parameter
Machine parameters
Weight: 850kg
Dimension: 2900*1700*1550mm
Motor: special grinding motor 2.2KW, 1.1kw
Power : 10.2KW
Voltage: 380V
Process parameter
1 Processing glass size: 50*50mm--15000*1500mm (Extended bracket can grind a larger size)
2 Chamfer width 0-3mm
3 Chamfer angle 45 degrees
4 Glass thickness : 2-15mm
5 Grinding amount: 0-2mm
Configuration
1 GB square tube welded frame. Motor base is cast iron.
2 Motor: New East Asia
3 Belt: Shanghai
4 Plate: spring steel production
5 Electrical: Greatwall or Chint products
6 Wheel: Nanhua Quality BD round
Voltage: 380v, 50HZ
7 8kw Power : 10.2kw
8.Feed speed: 0.5m/min ~ 5m/min stepless
9. Process range:
a)Max. gridning amount: 3mm
b)angular maximum grinding width: 2.5mm
c)angular angle: 45°
d)glass dimensions:. max: 2000 × 1500 min: 50 × 50
e)glass thickness: 2~19mm
f)precision: parallelism plus or minus 15s/m; diagonal plus or minus 50s/m
Packaging & Shipping
Company Information
At first, Anhui Ruilong glass machinery Co., Ltd. named Anhui Sadavax glass Machinery Co., Ltd. the products are mainly sold to domestic glass processing factories and foreign trade companies. Increased with the development of glass processing industry, Ruilong add production lines and expanded workshops began to do foreign business directly, in this way customer's can save purchasing cost. Ruilong's products is going high-end route, have been uphold the quality and technology first.
