Сертификат CE высокоэффективный аппарат для переработки муки перьев

Сертификат CE высокоэффективный аппарат для переработки муки перьев

Категория: Сельскохозяйственная техника >>>
Поставщик: Shandong,Sensitar,Machinery,Manufacturing,Co.,Ltd.

Цена:10 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	11900.51 $*	12495.8 $*
Aug-15-2025	11800.29 $*	12390.81 $*
Jul-15-2025	9900.43 $*	10395.43 $*
Jun-15-2025	11600.64 $*	12180.66 $*
May-15-2025	10100.41 $*	10605.2 $*
Apr-15-2025	11400.42 $*	11970.63 $*
Mar-15-2025	11300.1 $*	11865.39 $*
Feb-15-2025	11200.80 $*	11760.70 $*
Jan-15-2025	11100.42 $*	11655.40 $*

Характеристики

Product Description

CE certificate PLC high efficient recycling waste poultry feather meal processing machine

We are committed to the animal waste rendering plant, and are in the leading position in the field of organic waste resource recycling technology. With the crystallization of advanced environmental and ecological science and technology in the world, advanced animals innocuous treatment equipment has been developed, and a complete set of innocuous treatment has been manufactured.

Introduction

The system adopts the most advanced dry system process. The high temperature and high pressure of can to livestock and poultry

carcasses is preparing sterilization, which will then be completely decomposed into fat and flesh powder after drying, degreasing,
crushing and other procedures.

Product

The oil is used as the industrial oil, feed oil and bio-diesel.
The flesh powder can produce high protein feed and organic fertilizer, both of which have very high market potential. Its products are widely applied to agriculture, forestry, fisheries, animal husbandry, machinery and chemical industry etc.

Advantage

Complete set of equipment for the processing automation, totally enclosed treatment process with no pollution and treatment results for environmental protection, harmless treatment, recycling, high utilization have been concerned. All the suits are praised by the users of the suit.

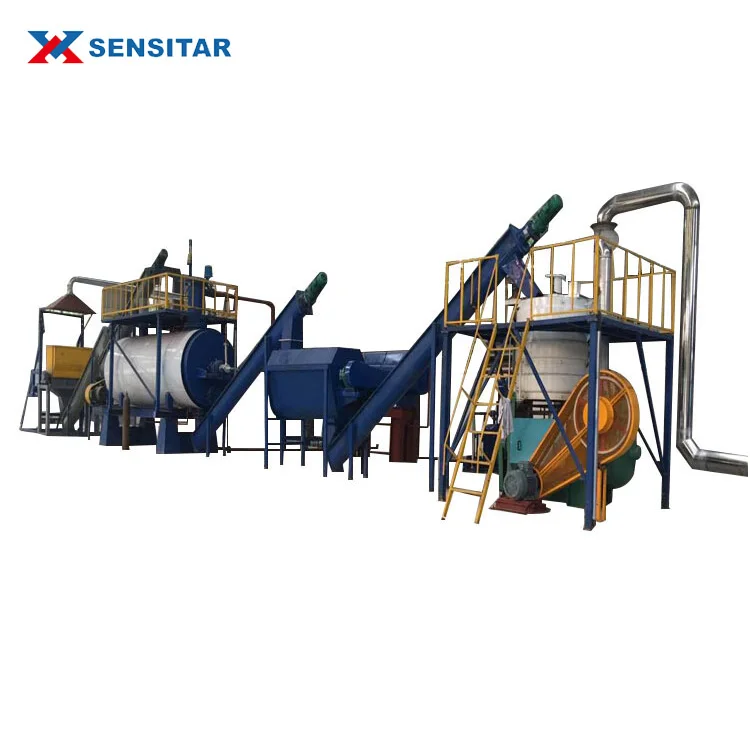

The production process

The whole set of equipment includes: feeding system, cold water tower, washing tower and other systems. The suit has the advantages of full-automatic control, simple operation, no need to add auxiliary materials in the processing process, green environmental protection, ect.

The main products

Bin

The size and design of the bins will depend on the amount of material, be handled. We supply all kinds of bins, from small

charging/dosing bins(2-5m³)to large storage bins of approximately 150-200m³.

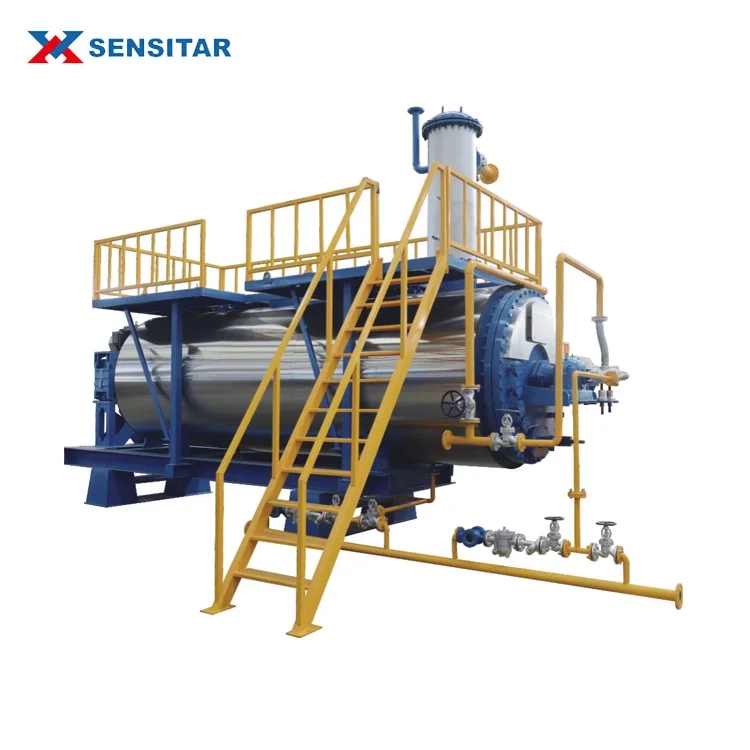

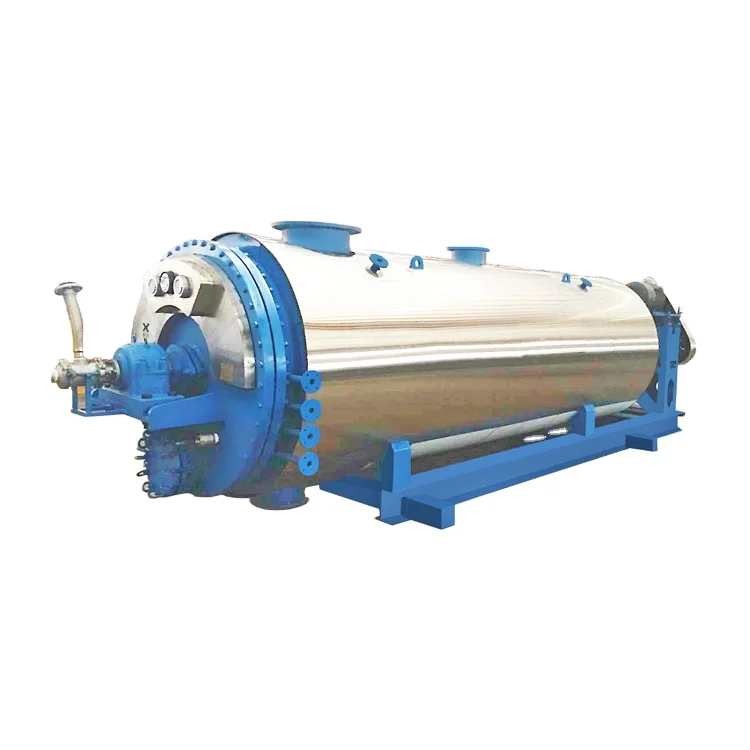

Batch cooker

The XZD Batch Cooker is designed for sterilization, dehydration hydrolysation, and drying of animal by-products. The batch cooker is one of the most important parts of dry rendering plant and is manufactured in 5 standard size to suit various plant capacities.

Technical specifiations	unit	Type
Technical specifiations	unit			XBC5000	XBC6500	XBC8500	XBC10000	XBC16000
Dimension A	mm	5450	7100	7425	8400	9000
B	mm	2070	2070	2305	2035	2500
C	mm	1600	1600	1775	1775	2100
Design ressure Jacket / rotor	Bar	10	10	10	10	10
Design pressure cooker	Bar	5	5	5	5	5
Heating surface	㎡	27	35	41	49	63
Power	Kw	37	45	55	75	110
Shipping weight	Kg	12000	13500	19000	22000	36000

The conveyor belt

Send the material

Cooler

The quick water-flow type cooler will cool down the power and granular material. When the material gets cool, this machine will
select out different size products.

Air Condenser

The Air Condition is designed for condensing the processing vapours emitted from cooking or drying of meat or fish by products.

The condensed water can be recycled to other plant.

Vacuum pump station

Assist drying and spend up drying.

Maximum negative pressure value -0.09mpa
The impeller and shaft of vacuum pump are made of stainless steel.
It is stable to record liquid level with tuning fork.
External water supplement is not required.

Packer

A machine that packages products for protection and beauty.

Size Information

Technical Specifications

Capacity(kg/batch)

Cooker Type	Mixed meat bones	Raw blood	Wet feathers	Mixed pourltry offal
XBC5000	3000kg/batch	2000kg/batch	2700kg/batch	3000kg/batch
XBC8500	5000kg/batch	3400kg/batch	4600kg/batch	5000kg/batch
XBC1600	10000kg/batch	7000kg/batch	9000kg/batch	10000kg/batch

Company Introduction

Shandong Sensitar Machinery Manufacturing Co. Ltd. is a well-known supplier of complete sets of harmless treatment at home and abroad. The company has the manufacturing qualification of pressure (Certificate No.TS2237474-2020). It has more than 20 new patents, 2 invention patents and strong technical force.

Our Services & Strength

The company has high quality technical personnel, equipped with professional engineers to answer customers' questions, at the same time to "service first, quality win" as the service purpose, to provide customers with quality after-sales service.
