Гидравлический шланговый обжимной станок YONG FENG Y120
US $1950-$4100
Одобренный CE быстрой смены инструментов P52 резиновый продукт делая машину/шланговая прессовочная
- Категория: Оборудование для производства резиновых изделий >>>
- Поставщик: Tianjin,Henghua,Pipeline,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 1150.80 $* | 1208.66 $* |
| Aug-16-2025 | 1140.77 $* | 1197.77 $* |
| Jul-16-2025 | 956.73 $* | 1004.78 $* |
| Jun-16-2025 | 1121.75 $* | 1177.40 $* |
| May-16-2025 | 976.79 $* | 1025.8 $* |
| Apr-16-2025 | 1101.54 $* | 1156.98 $* |
| Mar-16-2025 | 1092.4 $* | 1147.52 $* |
| Feb-16-2025 | 1082.78 $* | 1136.12 $* |
| Jan-16-2025 | 1072.49 $* | 1126.33 $* |
Характеристики
Product Description

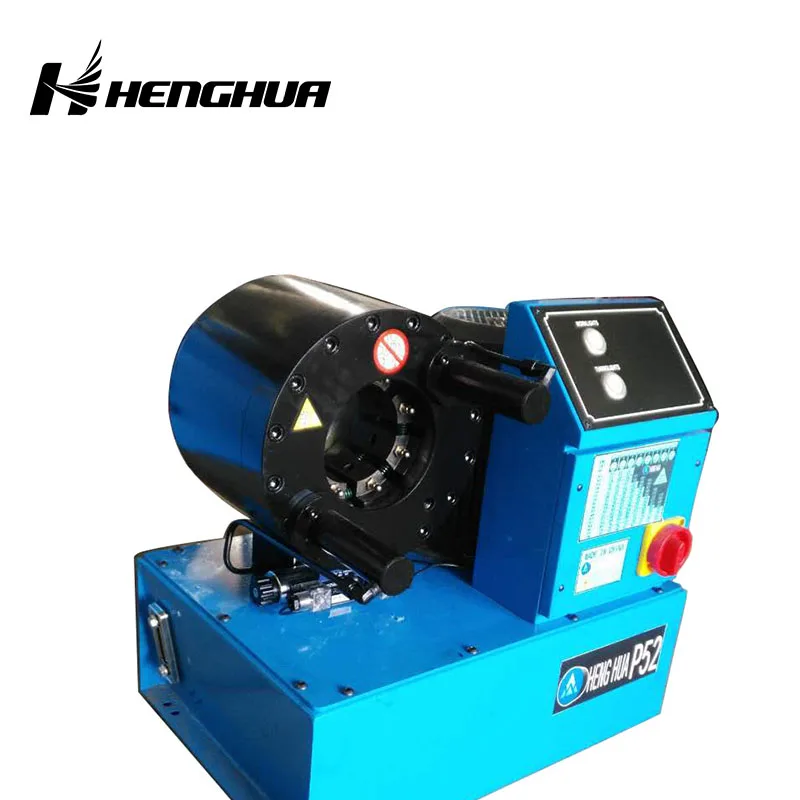

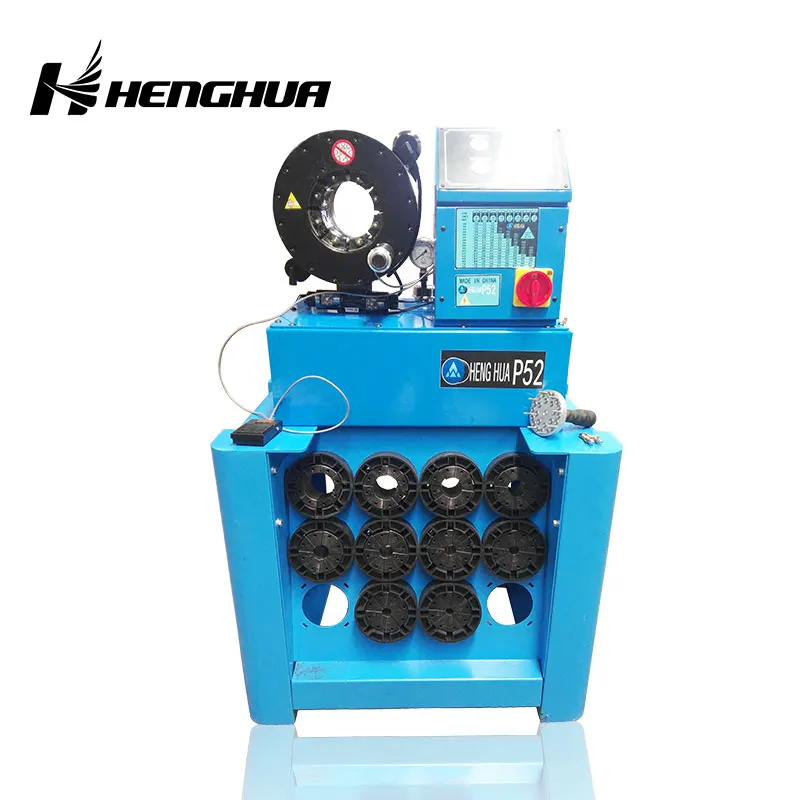

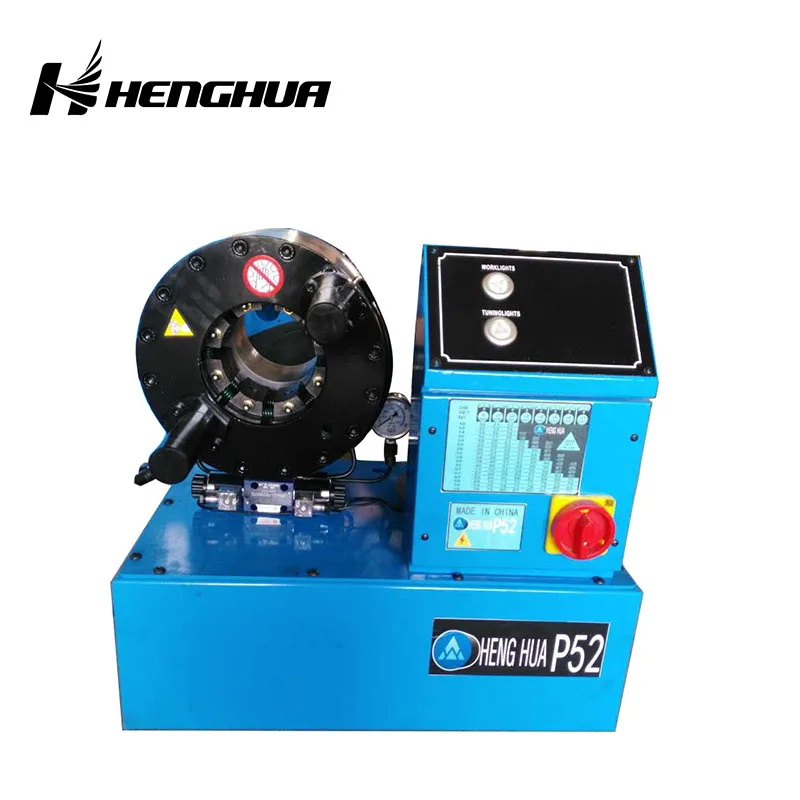

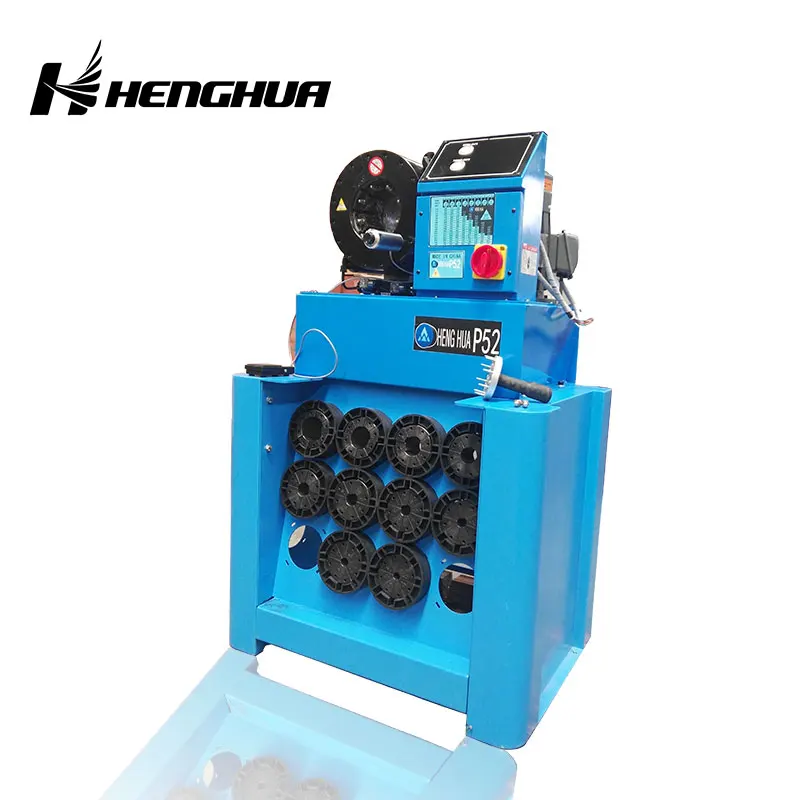

Model HHP52 hose crimping machine is mainly used for buckling processing for high pressure rubber pipe assembly in the mechanical engineering. It can also be used for buckling the two-way bends, especially large bends and irregular shape bends.
| P52 FINN POWER HOSE CRIMPING MACHINE | |
| Crimping Range (Inner Diameter): | 6~51mm ( 1/4~2" ) |
| Free Dies: | 12 Sets (14 16 20 22 26 30 38 46 51 54 64 69) |
| Accuracy: | 0.01mm |
| Volume of oil tank: | 2.5L / 5L / 10L (Optional) |
| System Pressure: | 26MPa / 31.5MPa(Optional) |
| Motor Power (as your requirements): | 3kW |
| Voltage (as your requirements): | 220V/240V/380V/415V (Optional) |
| Buckling Pressure: | 640T |
| Efficiency: | 250pcs/h |
| Maximum Open Diameter: | 114mm |
| The max open tolerance: | ± 30mm |
| Hydraulic oil: | 46# |
| Net Weight: | 350KG |
| Gross Weight: | 365KG |
| Package Dimension: | 700*900*1400 mm |
| quickly change: | including |
This machine features small and portable appearance, big force, low noise and easy to operate. The buckling amount can be precise adjusted through a scale. It makes the mould base division to be more even through the double inclined plane eight-flap mould seat equipped with a high accuracy guiding device.
1) Using forge steel machine head, more durabler than general steel.
2) CNC operation panel, simple controls and operation.
3) CNC system, high crimp accuracy which is within 0.01mm.
4) Equipped with a foot pedal, very convenient for free hand operate.
5) Magnetic dies (Patented), very convenient to remove and install dies.
Machine Head
Attribute: Forge Steel
Original: Germany Technology
Front cover, cylinder and piston use Chrome40, forging integrity, increase its fatigue resistance. Surface hardness is HRC26-30°, hardness of inside layer is HRC59-63°, Eht 2mm.
Dies & Mold Base
Attribute: Strong Magnetic Connection
Original: HENGHUA(Patented)
Use Cr12 standard die steel which is a classical alloy tool steel, domestic implementation standard is GB/T 1299-2000. Dies and die base is connected by cutting-the-edge technology of strong magnetic connection, for which our company holds the patent
Electromagnetic Valve
Control Panel
Electromagnetic Valve
Attribute: 39.852N Pushing Force
Original: Germany SED
It is used to adjust the hydraulic oil flow direction, quantity, speed etc. With high precision and good flexibility. The reversing valve spool is original Germany SED. Working with stability, no shaking, no blocking.
Control Panel
Attribute: CNC Operation Panel
Original: China(Mainland)
HHP52 crimping machine has equipped with computer numerical control operation panel which is more humanized than the ordinary ones. Computer numerical control operation system makes crimping more accurate, faster and simpler.
Packaging & Delivery
FAQ
1. What level of service do you provide ?
*Your inquiry will be replied in 24 hours.
*Eight continuous years as an Alibaba Gold supplier and more than 25 years industrial technology and manufacturing experience .
* We offer free spare parts and service within 14 month warranty period.
* Technology Support by providing operation training videos .
* Professional after-sales service team.
* Give reasonable offers with the best quality.
2. What is our advantages?
* Competitive price: We can meet your budget and best-selling business very well.
* OEM Accepted: We can produce customized design.
* Good Service: We treat clients as friends and provide problem solving anytime you need.
* Good Quality: We have strict quality control system. Good reputation in the market.
* Fast & Delivery: We have big discount from forwarder (Long-term Contract).
* Door To Door Service.
3. Can you customize the machine for the customer?
Yes. We can, we also provide OEM for customers; If you need customized services, please contact us
4. What is the MOQ?
We usually provide 1 set for customers to test.
