Может делать вертикальные и горизонтальные отверстия небольшая гидравлическая гусеничная Dth буровая установка для бурения взрывоупорных
- Категория: Горное оборудование >>>
- Поставщик: Zhengzhou,Qugong,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.68 $* | 0.78 $* |
| Aug-17-2025 | 0.7 $* | 0.83 $* |
| Jul-17-2025 | 0.76 $* | 0.1 $* |
| Jun-17-2025 | 0.87 $* | 0.12 $* |
| May-17-2025 | 0.74 $* | 0.59 $* |
| Apr-17-2025 | 0.98 $* | 0.25 $* |
| Mar-17-2025 | 0.57 $* | 0.55 $* |
| Feb-17-2025 | 0.63 $* | 0.44 $* |
| Jan-17-2025 | 0.42 $* | 0.46 $* |
Характеристики

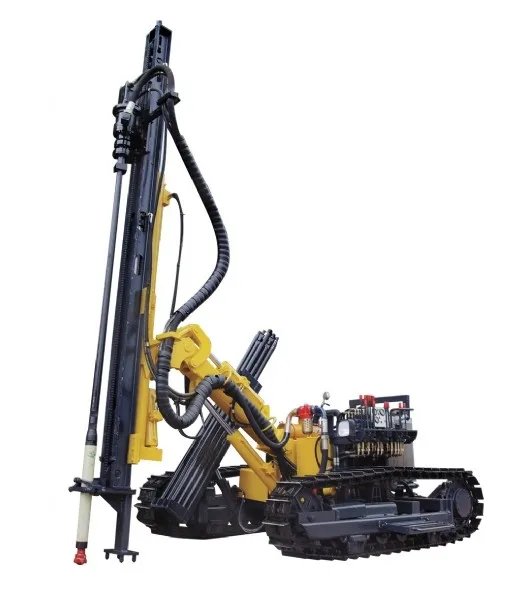

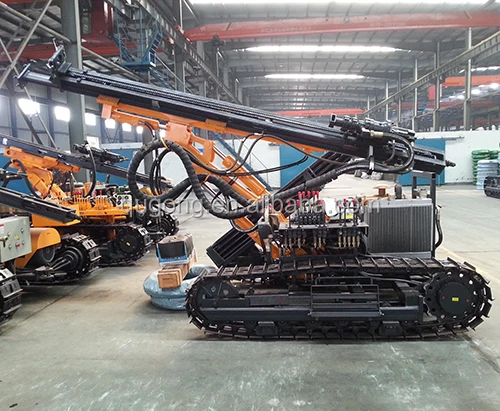

Can Do Vertical Hole and Horizontal Hole, Small Hydraulic Crawler Dth Rock Drill Rig For Blast-Hole Drilling
Product Description
Description of DTH rock drill
medium wind pressoure crawler drilling rig for blast hole drilling ;
This machine for blast hole can used for Granite,Basalt ,Marble,Quartz or other rocks and stones.
Technical parameter
Technical Details Of DTH rock drill
Rock rigidity | F=6-20 |
Diameter of hole | Φ80-105mm |
Optium drilling depth | 25m |
Rotation speed | 120r/min |
Rotation torque | 980N.m |
Lift power | 15 KN |
Feed way | oil cylinder-chain |
Feed distance | 2000mm |
Walk speed | 2.0 km/h |
gradeability | 30° |
Ground clearance | 290mm |
Weight | 3900kg |
Size of drill machine | 4600*2120*1800mm |
Sliding carriage pitch angle | down 145°,up55°, total 185° |
Sliding carriage swing angle | Left100°,right45°,total 145° |
Drill boom pitch angle | Down 50°,up25°, total 75° |
Sliding carriage suppling length | 900mm |
power | YC2108(33kw 2200r/min) |
Drill pipe | Φ60 |
Working air pressure | 0.7-1.4Mpa |
Air consumption | 9-13 m³/min |
Component Air Compressor BKCY-12/10
Technical parameters | ||||
Model | Capacity |
|
|
|
*BKCY-12/10 | 12 | 1.0 | diesel engine 110kw | 3650×1880×2060 |
