SURELINK UY UY2 Butt Splice drop wire connector gel filled 22-26AWG K1 K4 Lock Wire Joint Connector UR UR2 U1B





Production Description

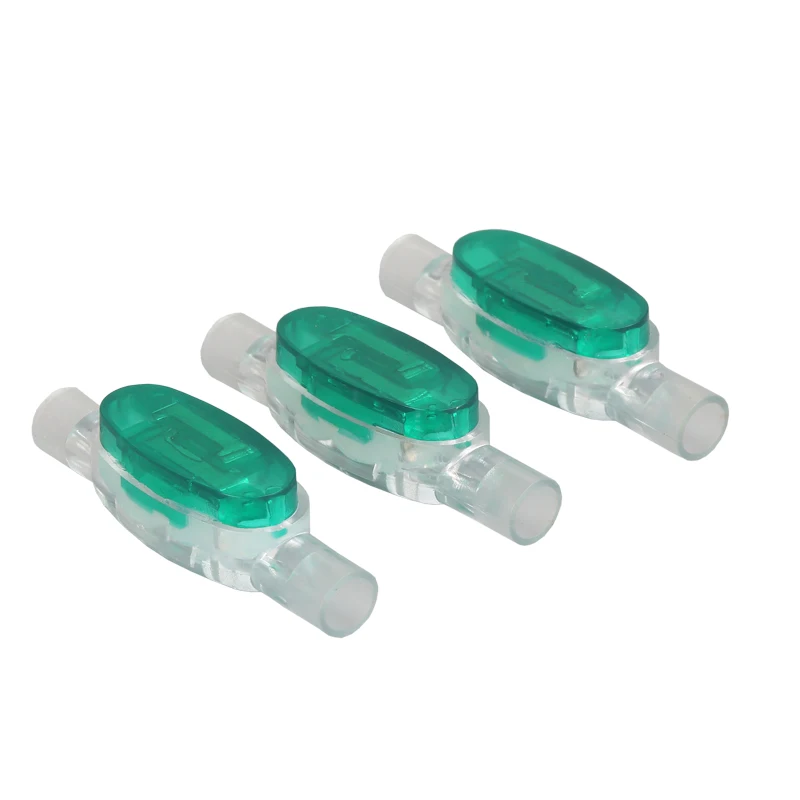

UY Butt Splice 2-Wire IDC conductor Splices 22-26 AWG Wire K1 Lock Wire Joint UY/UY2

Feature

1.Two wire inline joints on telephone drop wire of 0.4mm-0.7mm(26-21 AWG) copper or copper-clad steel connector with insulation diameters 1.52mm(0.06"), and Cat.5 compliant.

2.The connector is filled with a moisture resistant compound in order to provide moisture proof connections.

3.All materials is suitable for operation in the tropic with maximum temperature up to 70℃.

4.All materials used in the connectors shall be non-toxic and dermatologically safe.

5.Connectors can retain the electrical & mechanical properties in the test report over working temperature

range -30℃  to 70℃  and humidity range of 0% to 95%.



UY Butt Splice 2-Wire IDC conductor Splices 22-26 AWG Wire K1 Lock Wire Joint UY/UY2



Detail

Product Type	UY2
Wire Type	1 wire or 2 wire
Gender	Female
Materials	PC/Brass/Grease
Conductor	BC
Certification	CE ROHS CSA ISO
Color	yellow,red and other



The wire connectors includes a variety of butt splices and inline tap splices.The IDC butt splices in the Series employ a specially designed wire insulation displacement contact to make a reliable electrical connection to each wire. A "live-spring" joint is made by driving the wire down into the "U" contact connector. This simple process displaces the insulation and grasps all conductors with a firm, resilient pressure, all in one motion. These connectors include a factory installed sealant to protect against corrosion and seal out moisture.



The Series in-line tap wire splices are real time savers. They enable the user to tap into another wire without interrupting service. A U-shaped element inside each connector displaces insulation material and makes contact with the copper conductor. These wire splices also include factory-installed sealant to protect against corrosion and seal out moisture. Tap connectors are fast to install, easy to work with and available in a wide range of common wire gauges.



Tap connectors allow direct tapping into existing solid copper conductors without interrupting service. The pre-crimp feature helps hold the wires in place until the connector is crimped and the splice is complete.
