Оборудование для переработки меда
100-200 кг в час концентратор меда оборудование для сохранения

100-200 кг в час концентратор меда оборудование для сохранения

Категория: Оборудование для переработки меда >>>
Поставщик: Xinxiang,Sanyuantang,Machine,Co.,Ltd.

Цена:3 200,00 $ - 3 300,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	3808.88 $*	3998.1 $*
Aug-17-2025	3776.84 $*	3965.8 $*
Jul-17-2025	3168.19 $*	3326.41 $*
Jun-17-2025	3712.6 $*	3898.99 $*
May-17-2025	3232.21 $*	3394.44 $*
Apr-17-2025	3648.33 $*	3830.35 $*
Mar-17-2025	3616.92 $*	3797.60 $*
Feb-17-2025	3584.37 $*	3763.15 $*
Jan-17-2025	3552.46 $*	3730.7 $*

Характеристики

100-200kg per hour honey concentrating machine bee keeping equipment

Product Description

Honey processing equipment parameters

Model	FM-400	FM-600
Output	0.5t /8hrs	1.2-1.5t /8hrs
Voltage	220v/380v 3phase	220v/380v 3phase
Power	16kw	16kw
Dimension	16005001555 mm	17506001660 mm

600 mm diameter

The height to 600 mm

The overall volume of 140 L

The effective volume of 120 L

A single heating tube (preheating tank is 6 kw ,and vacuum concentrator is 9 kw)

Vacuum pump SK - 0.8 voltage 380 v power 1.5 KW

: preheating tank motor slowdown micromotor voltage 220v power 180w ratio 25 60r/min

Production capacity: 1.2 to 1.5 t per day

Concentrated temperature: 50 ℃ or less

Vacuum: 0.092 Mpa or less

The maximum total power: 16Kw

Introduction of honey processing equipment:
Currently, honey processing main used mechanical filters and low-temperature vacuum concentrated to remove impurities and excess water, Get a higher degree of vacuum systems and the reasonable structure of the low temperature evaporation device is the key to the processing technology of bee products. This equipment has fully realized honey enrichment process special requirements, and to meet the aspirations of bee products processing enterprises.

machine structure.jpg

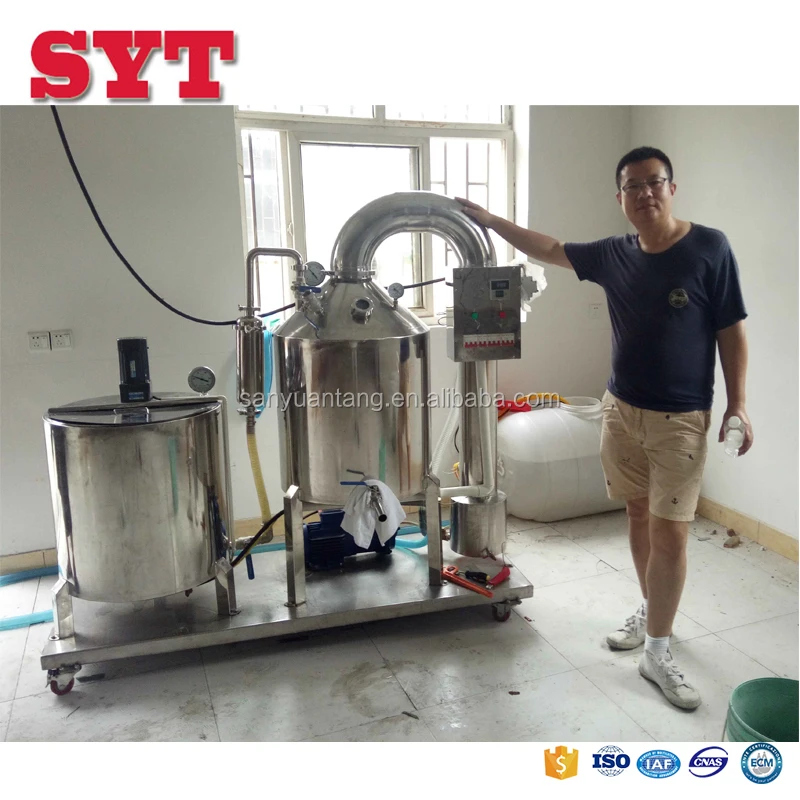

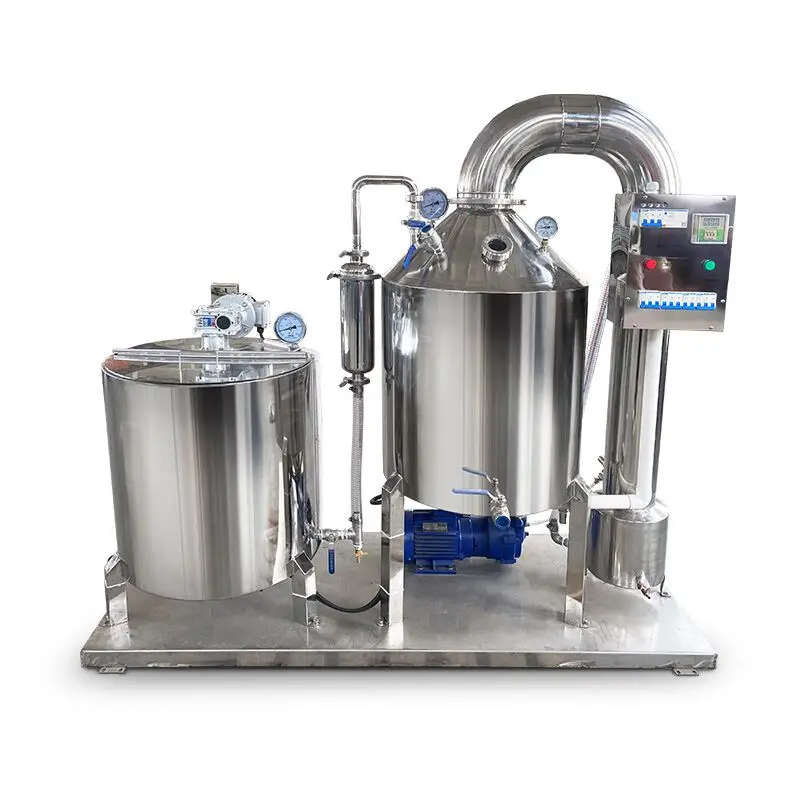

honey processing machine

Process of honey processing equipment:
The original honey → coarse filtration → Agitation, preheating → sterilization, melt crystallization nucleation → Fine filtration → low temperature, concentrated → filling

Principle of honey processing equipment:

By the theory that Under high Vacuum condition ,boiling point of water will become low and then water in honey can evaporate rapidly and the to get high concentration honey , this set can melt honey crystals , remove dust inside , sterilization ,and ext to guarantee quality of honey.

Photos

honey concentrator 1

honey concentrator 3.jpg

honey machine 3

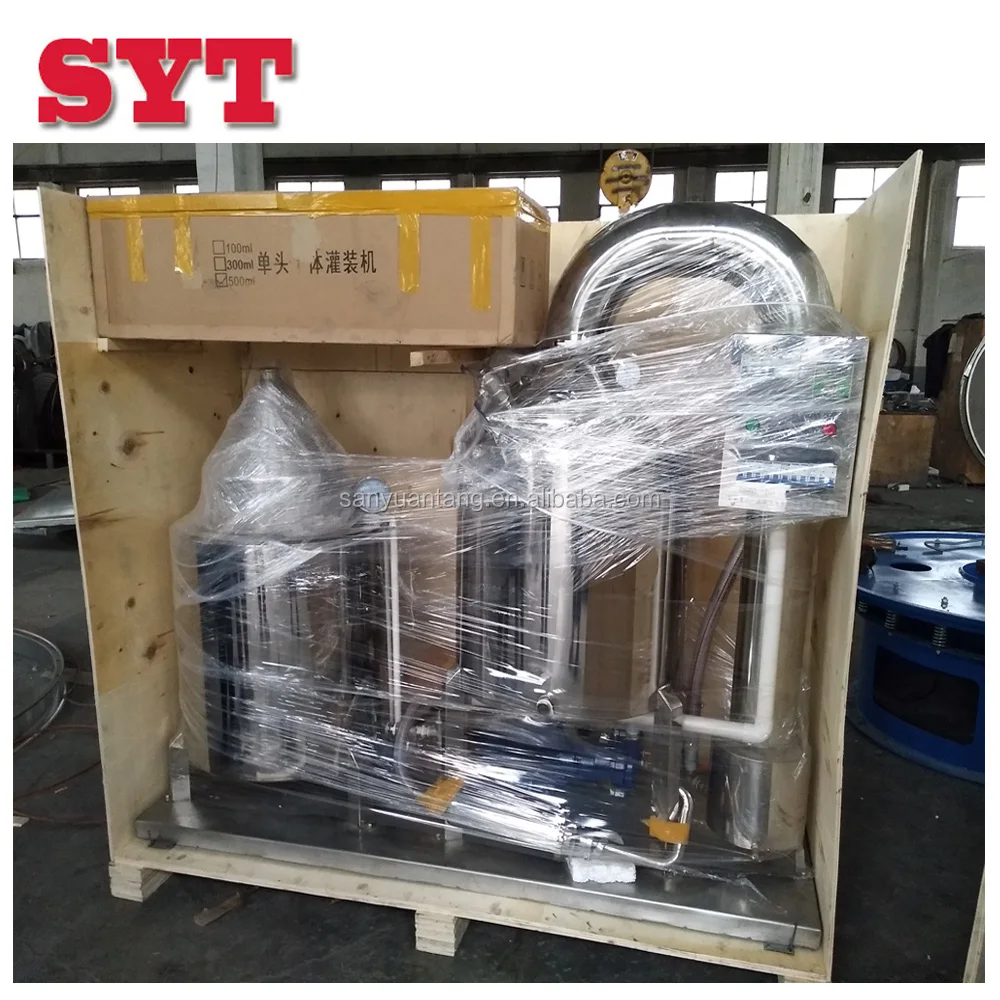

Packaging & Shipping

Export standard plywood package are supplied with well packed. we can make the packages according to customer's request. Sea packages or Air packages are both available.

Usually to ship machine by sea way.
