Product Description
Technical parameter of honey processing machine:
Model
FM-600
FM-400
Production capacity
1.2-1.5t/8h
0.4-0.5t/8h
Machine dimension
1750*600*1660
1600*500*1555
Tank diameter
600mm
400mm
Tank height
600mm
600mm
The overall volume
140L
70L
Effective volume
120L
60L
Preheat tank power
6KW
Vacuum concentration tank power
9KW
Introduction of honey processing machine:
Currently, honey processing main used mechanical filters and low-temperature vacuum concentrated to remove impurities and excess water, Get a higher degree of vacuum systems and the reasonable structure of the low temperature evaporation device is the key to the processing technology of bee products. This equipment has fully realized honey enrichment process special requirements, and to meet the aspirations of bee products processing enterprises.
Process of honey processing machine:
The original honey → coarse filtration → Agitation, preheating → sterilization, melt crystallization nucleation → Fine filtration → low temperature, concentrated → filling
Principle of honey processing machine:
By the theory that Under high Vacuum condition ,boiling point of water will become low and then water in honey can evaporate rapidly and the to get high concentration honey , this set can melt honey crystals , remove dust inside , sterilization ,and ext to guarantee quality of honey.
Features of honey processing machine:
1.This set of Equipment are made of 304 stainless steel, easy to operate, reliable, efficient, vacuum suction honey. 2.They can achieve high vacuum and low concentration temperature is ideal for honey processing equipment. 3.Apparatus comprising: a preheating tank, filter, concentrate tank, a condenser, a vacuum pump. 4.The honey thickener machine can reach high vacuity and lower thickening temperature. After concentrating the materials will not change color, not change flavor, the quality of materials after concentrating will be very good. 5.Good designed of the structure make the machine small, low noise, easy to operate.
Structural drawing of honey processing machine:
1. Thermometer 2. Pipe filter 3. Exhaust port 4. Thermometer 5. Viewing port 6. Vacuum gauge 7. Electric control box 8. Condenser pipe 9. Concentrate tank 10. Water outlet 11. Water outlet 12. Honey outlet 13. Vacuum pump 14. Heater 15. Water outlet 16. Pedestal 17. Heater 18. Preheating tank 19. Filter net 20. Motor

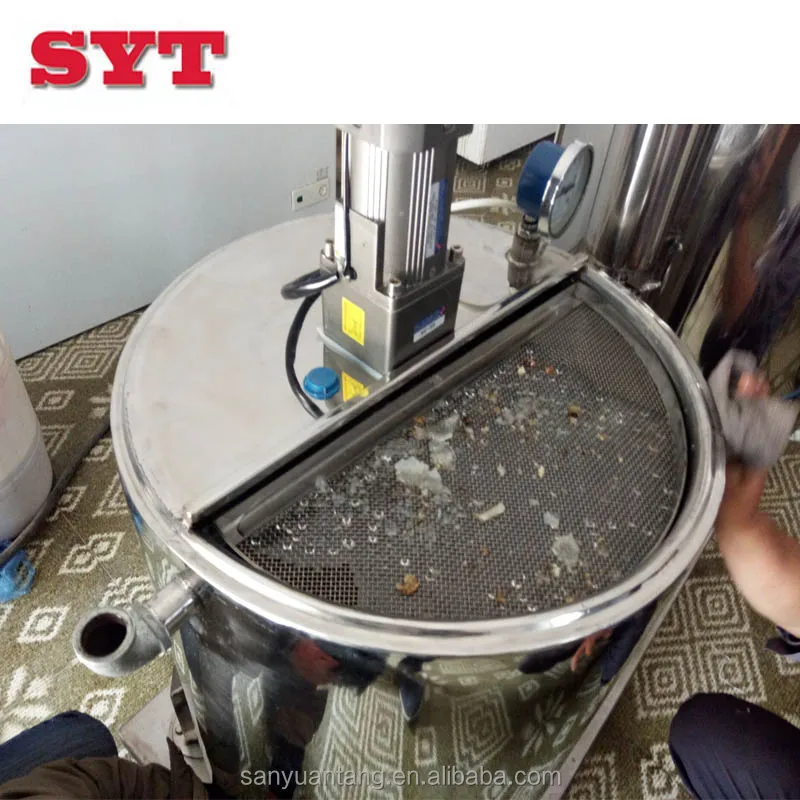

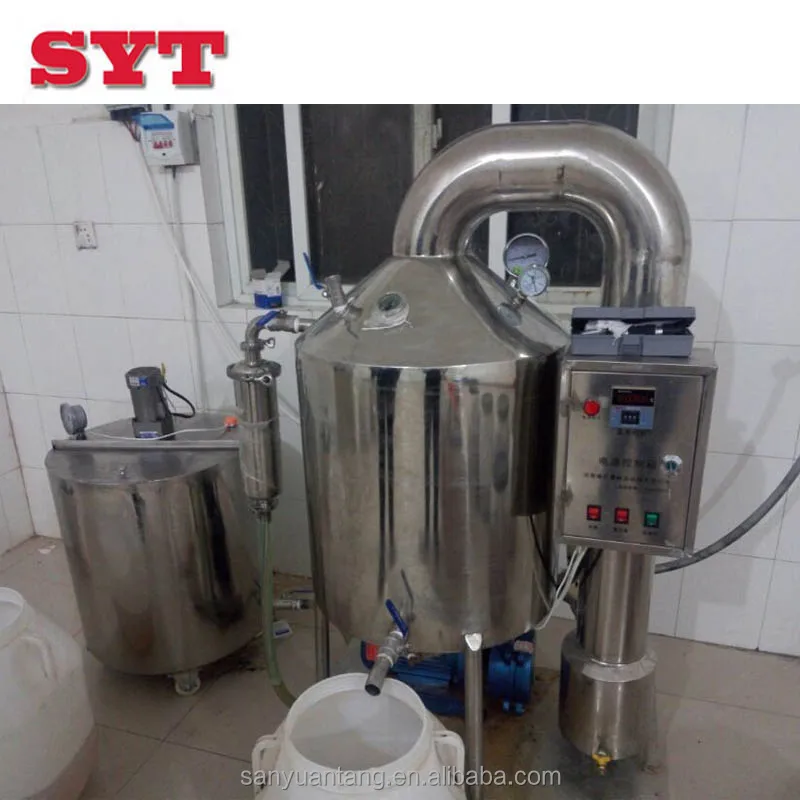

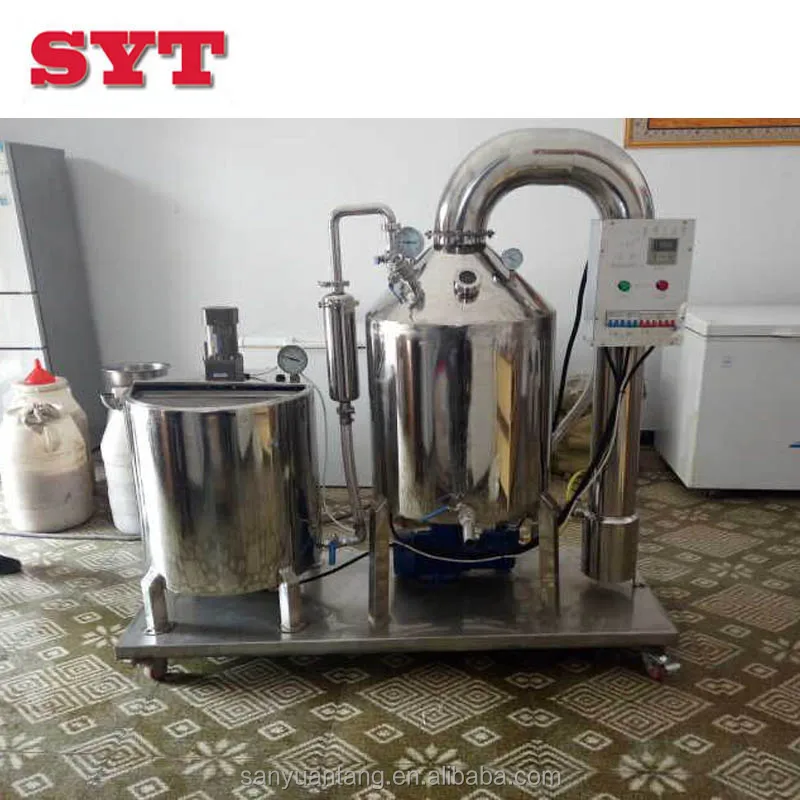

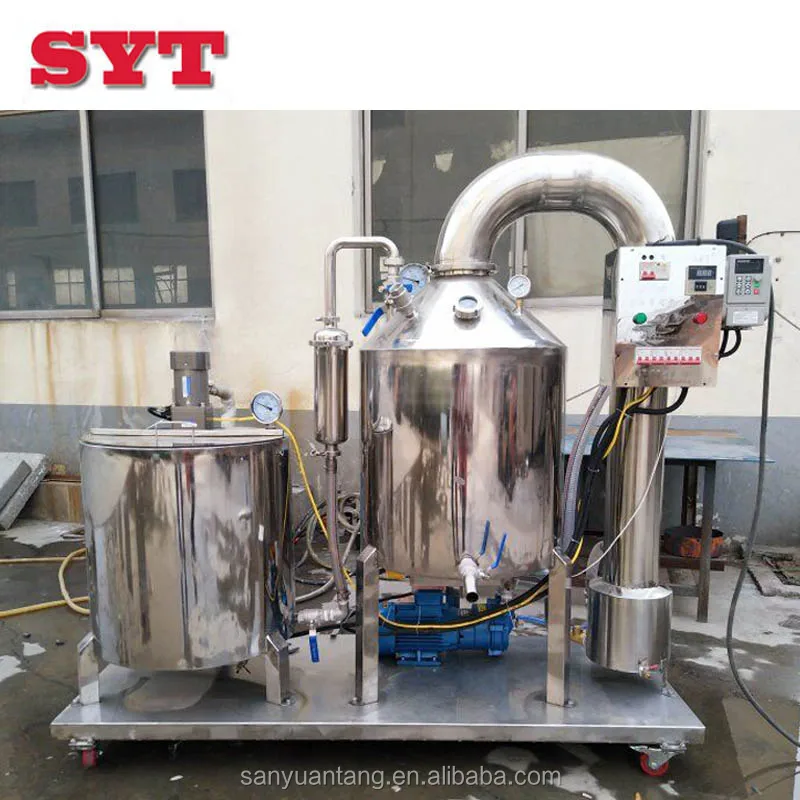

Actual pictures of honey processing machine:

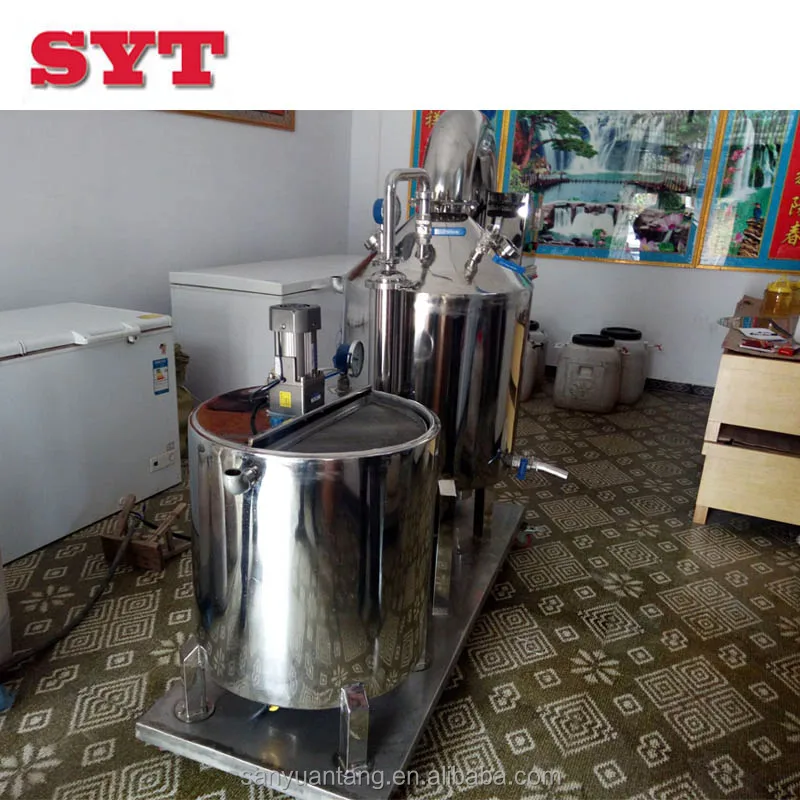

Working pictures of honey processing machine:
Packaging & Shipping
Export standard plywood package are supplied with well packed. we can make the packages according to customer's request. Sea packages or Air packages are both available. Usually to ship machine by sea way.
Our Services
All produts purchased in our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free.
a, Before sending the machine, we will test and adjust, so you can use directly when you get it. b, Operation video & instruction will be sent to clients, to help them use the machines better.
Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we will solve your problems in time. If you are caught in some problems when using our products, welcome to contact us at any time.
a, Any problems occur while using, professional advice will be offered.
b, All kinds of frequently used parts are supplied all the year round.
c, 24 hours hot line +86-15836135921
