2018 Eco-Friendly Water-Proof Delivery Open body cargo dumper
Electric mini dumper truck tricycle is one of our best selling products.It is popular in many countries and has won good reputation. now we have exported to Africa, Europe,United states,and North American. It uses battery as power source, widely used in farm, mining, concentrator, quarries, refractory factory, flour mill, brick factory, furnace charge factory, forest and other places. With 14 years continuous improving, now it is with the advantage of large power, longer working hours, eco-friendly, heavy load and suitable for any road.
SPECIFICATIONS FOR DIESEL TRICYCLE | |||
Model | ZY155II | ZY165II | ZY180II |
Diesel engine | 190/195 | ZS1110 | ZS1115 |
Loading capacity | 1000kg | 1500kg | 2000kg |
Horse power | 10/12HP | 15HP | 18HP |
Overall sizes | 2600*900*1200mm | 3000*1100*1200mm | 3600*1200*1400mm |
Cargo box sizes | 1400*900*400mm | 1700*1100*500mm | 2000*1200*500mm |
Weight | 520kg | 850kg | 1000kg |
Tire size(F/R) | 400-12/450-14 | 450-14/500-14 | 450-14/650-16 |
Work platform height | 600mm | 700mm | 720mm |
Brake system | Oil brake | ||
Operating speed | 40-60km/h | ||
Maximum gradeability | 35 degrees | ||
Maximum tilt angle of car bucket | 45 degrees | ||
Product Description
Factory mini dumper tricycle is our main product, using electric as power source in mining, brickyard, sanitation and cleaning. It has been improved many times with the advantage of large power, long work hours, heavy load and suitable for any road, well received by the customer’s favorite.
Main Features
1) No pollution, high performance, low loss and energy saving.
2) Easy to operate and maintain without technical training.
3) Heavy load,wide applying.
4) It is the ideal transport in mining,flourmill,brickyard,etc.
Detailed Images
Main part 1

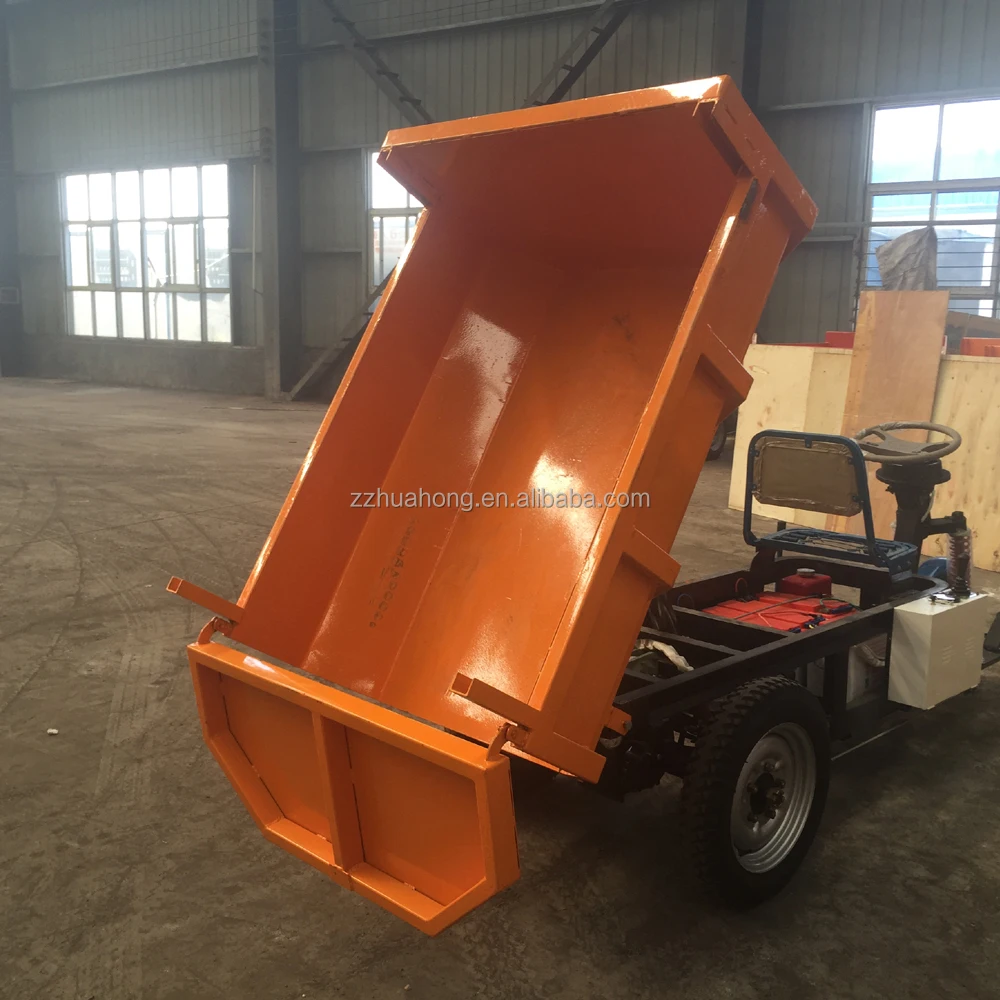

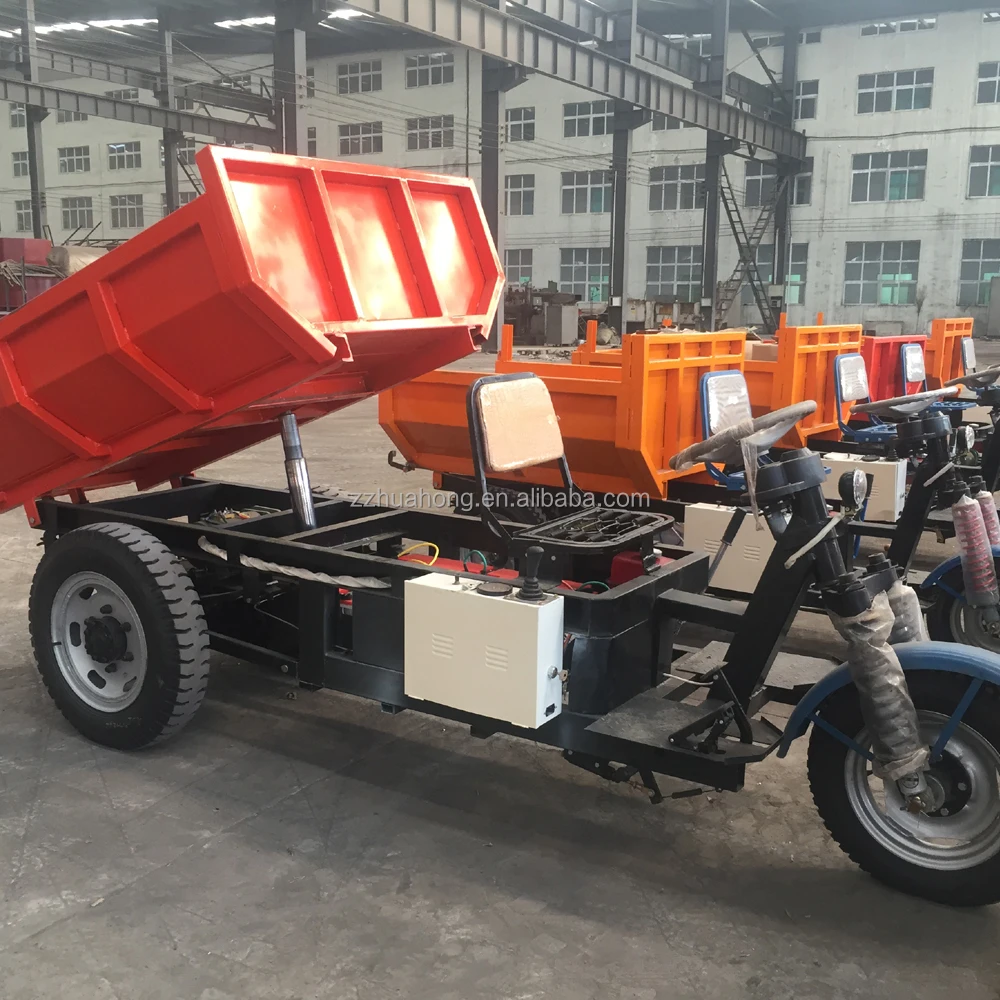

Name: Hydraulic lift system
Work quickly and efficiently
Hydraulic lift system can achieve the freedom of dumping cargo, so that it can save time, manpower and material resource for improving work
efficiency.
Main part 2

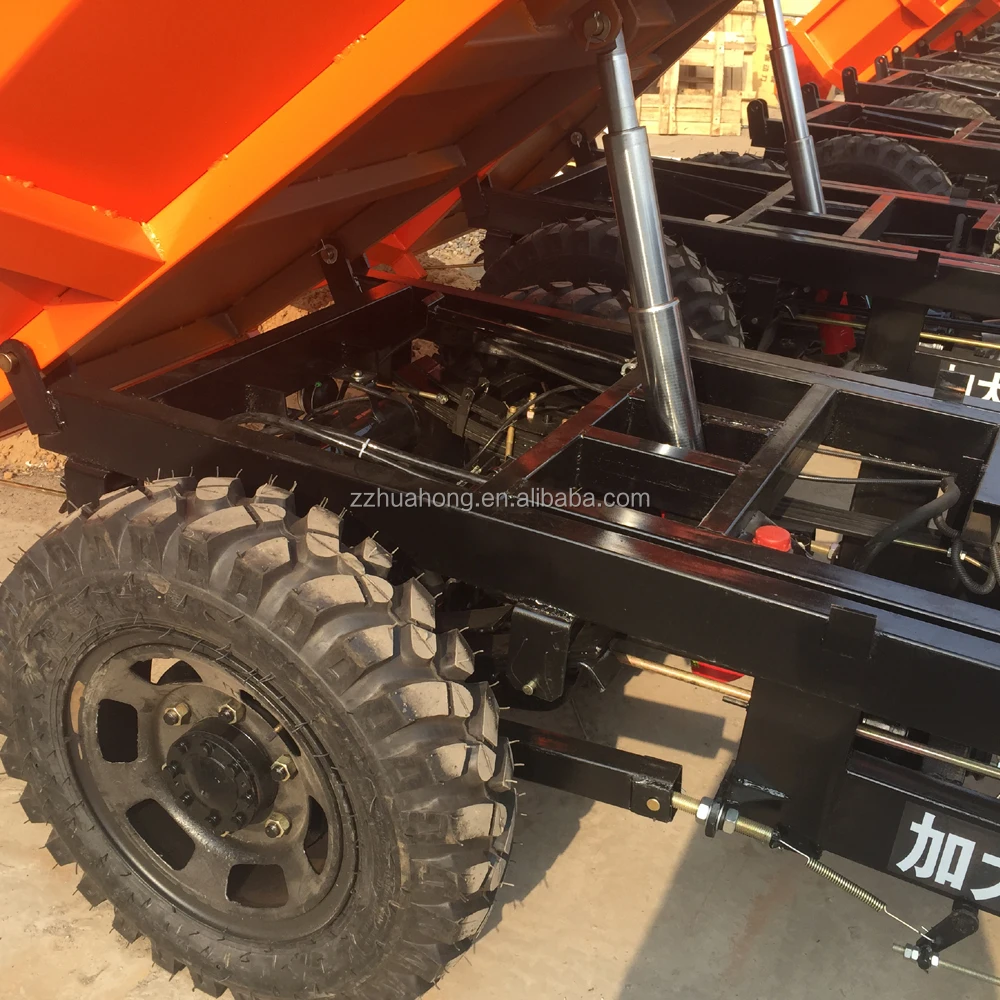

Name: Steel spring plate
Great load capacity, wide application range
Because all of them have the steel spring plate,compared with same level of the electric dump truck, ours' maximum load can reach 2 tons.
Main part 3
Name: Rear axle
As shown in the figure, our machines's load capacity is very strong, so the rear axle use a very strong material. It including the main axle; both sides of the gearbox; two brake drum
Main part 4
Name: Tire
As to tire, our factory adopts the high quality tire of chaoyang brand, which is heavy-duty and durable. So it can apply to any road condition.
Main part 5
Name: Battery
No pollution, no noise, energy saving, and low cost
They use battery as power source, and an electric charge can achieve sustained discharge 10-12
hours. Effectively reduce the cost.
Main part 6
Name: connection bridge
Connecting the front of the car body and rear axle,Increase the stability of running,Length can be automatically adjusted,the bending and extension can be reduced When fully loaded,Prolong the service life of the vehicle.
Packaging & Shipping
Packaging:
One set electric mini dumper usually using wooden box package,can be packaged according to customer requirements.
20 GP can load 12 sets loading 1 ton dumper,can load 10 sets loading 1.5 tons dumper,can load 8 sets loading 2 tons dumper.
40 HC can load 30 sets loading 1 ton dumper,can load 24 sets loading 1.5 tons dumper,can load 20 sets loading 2 tons dumper.
