Спецификация Ce сертифицированный Солнечный нагреватель горячей

Цена:*

Количество:

name	split pressure solar water heater
meterial of inner tank	Food grade 1.2mm-2.5mm thickness sus304 stainless
meterial of out tank	colar steel or stainless steel
inlet and outlet hole	male G3/4
max pressure	0.6mpa
vacuum tubes	3.3 borosilicate glass with ss-aln(L)/ALnor cu/ss/aln coating
absorption	as=0.93-0.96(AM1.5)
emisstion ratio	εh=0.04-0.06(80°C±5°C)
idle sunning property parameters	Y=220˜260m2.c/kw
average heat loss coefficient	ULT=0.6˜0.7W/(M2.C)
bracket	2.0mm thickness aluminum alloy
tank capacity	80L-1000L
solar collector	10/1215/18/20/24/30 tubes
thickness of glass
vacuum tube tightness	P≤0.005 pa
welding	argon arc welding
cooper coils (heat exchanger length)	10m/12m/15m/25/30m...... etc
working station	SP116/SP228/SR961
OEM	OEM is ok

Capacity(L)		80L-1000L
Material of inner tank		Food grade SUS 304-2B stainless steel1.2-2.5mm
Dimensions of inner tank		Ø370mm-800mm, T1.5mm-2.5mm
Material of outer tank		Colorful steel /stainless steel
Outer tank diameter		Ø470mm-1000mm, T0.5mm
Tank insulating layer		50mm-100mm high-density polyurethane foamed
Foam density		45kg/m3 minimum
Heat preservation		96 hours
Tank connections		water Inlet /water outlet / 2×1’’ female thread for integrating the heating circuit
		1''thread electric heating and 1/2'' temperature sensor
Female thread connections		SUS 304-2B stainless steel, 1.0mm thickness
Tank welding		Argon arc welding

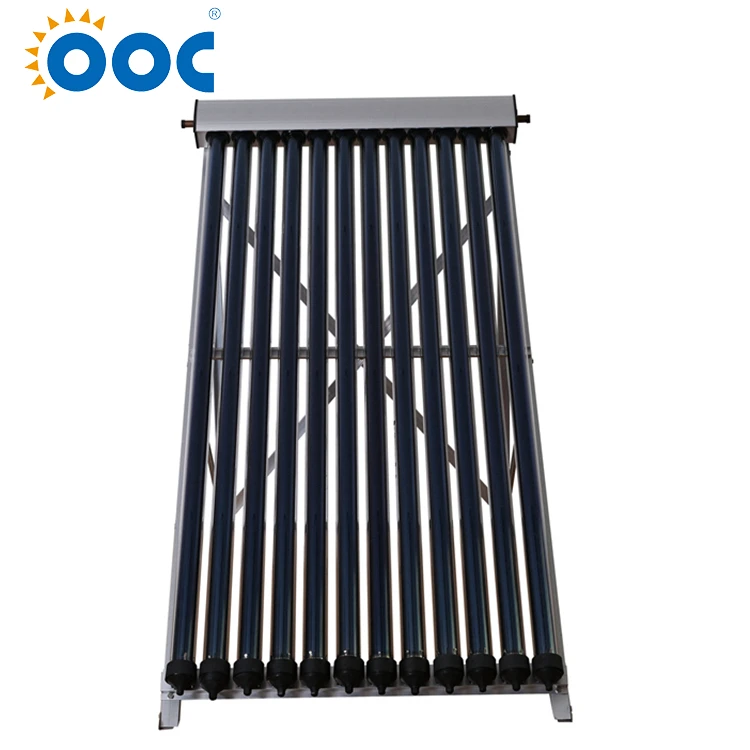

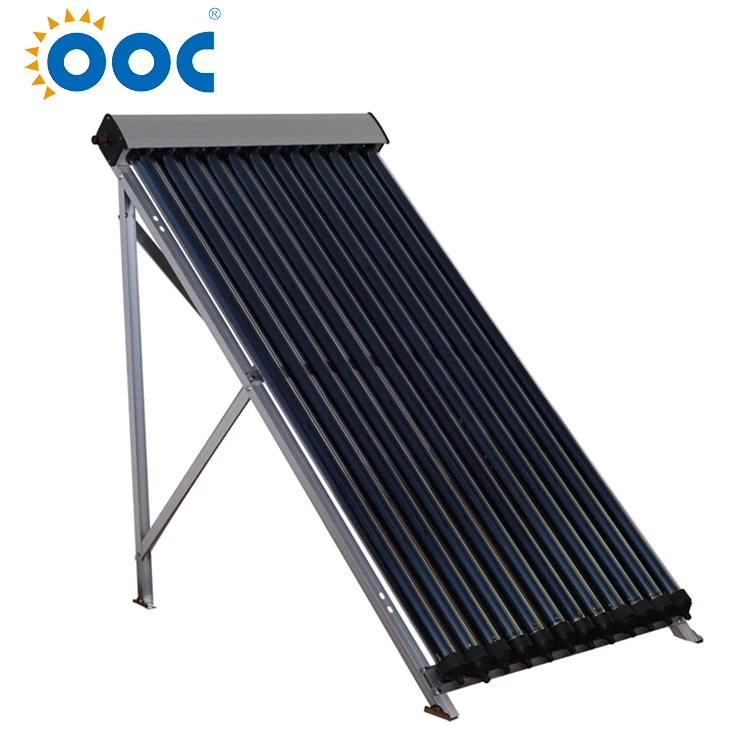

Heat pipe vacuum tube Solar Collector Quantity		10 pcs to 30pcs
Lengh of upper coil and heat exchange area		8M/0.4m2
Lengh of bottom coil and heat exchange area		12M/0.6m2
Material of coil		Copper coil of Ø12T0.8mm/ Ø16T1.0mm/ Ø19*T1.0mm
Tank welding		Argon arc welding
