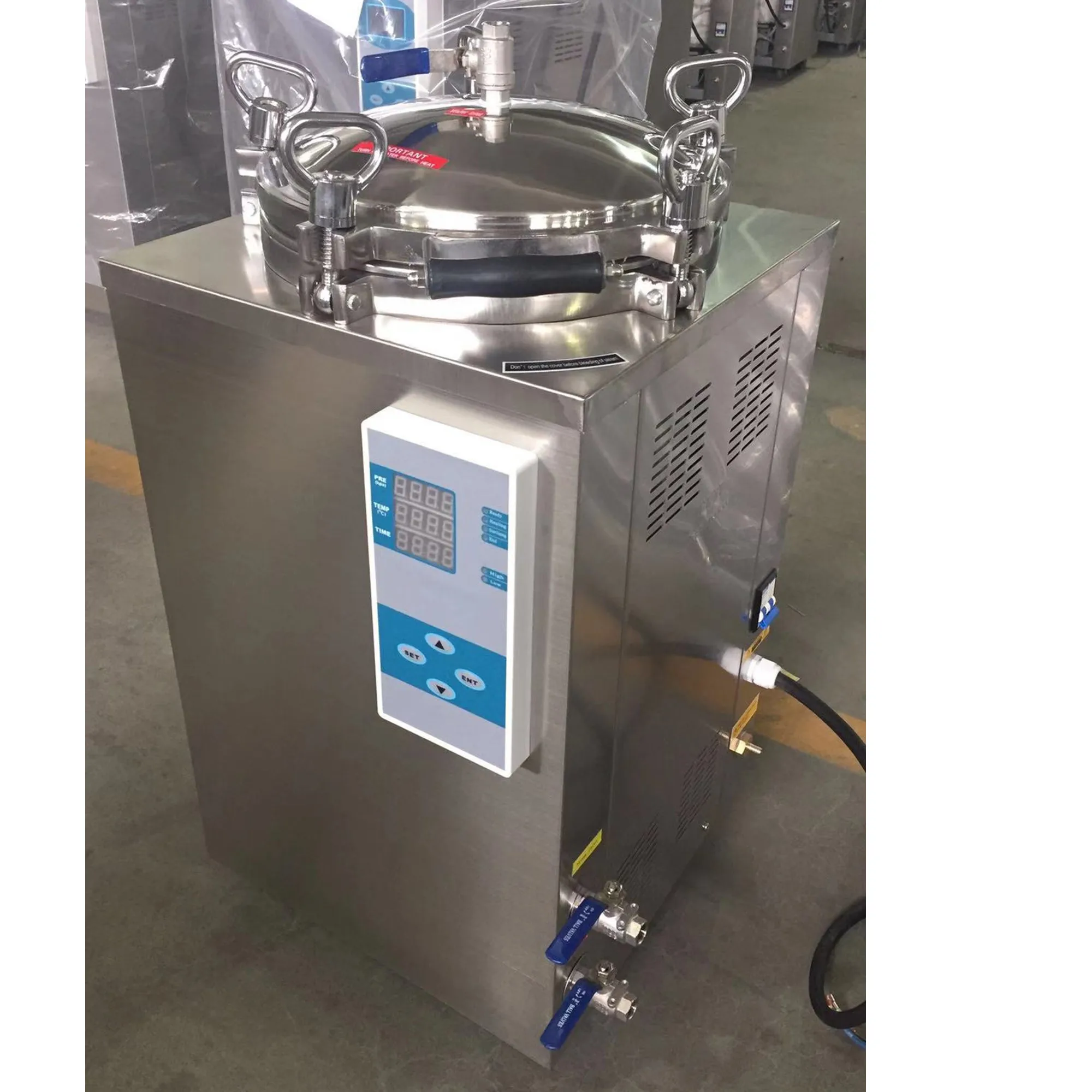

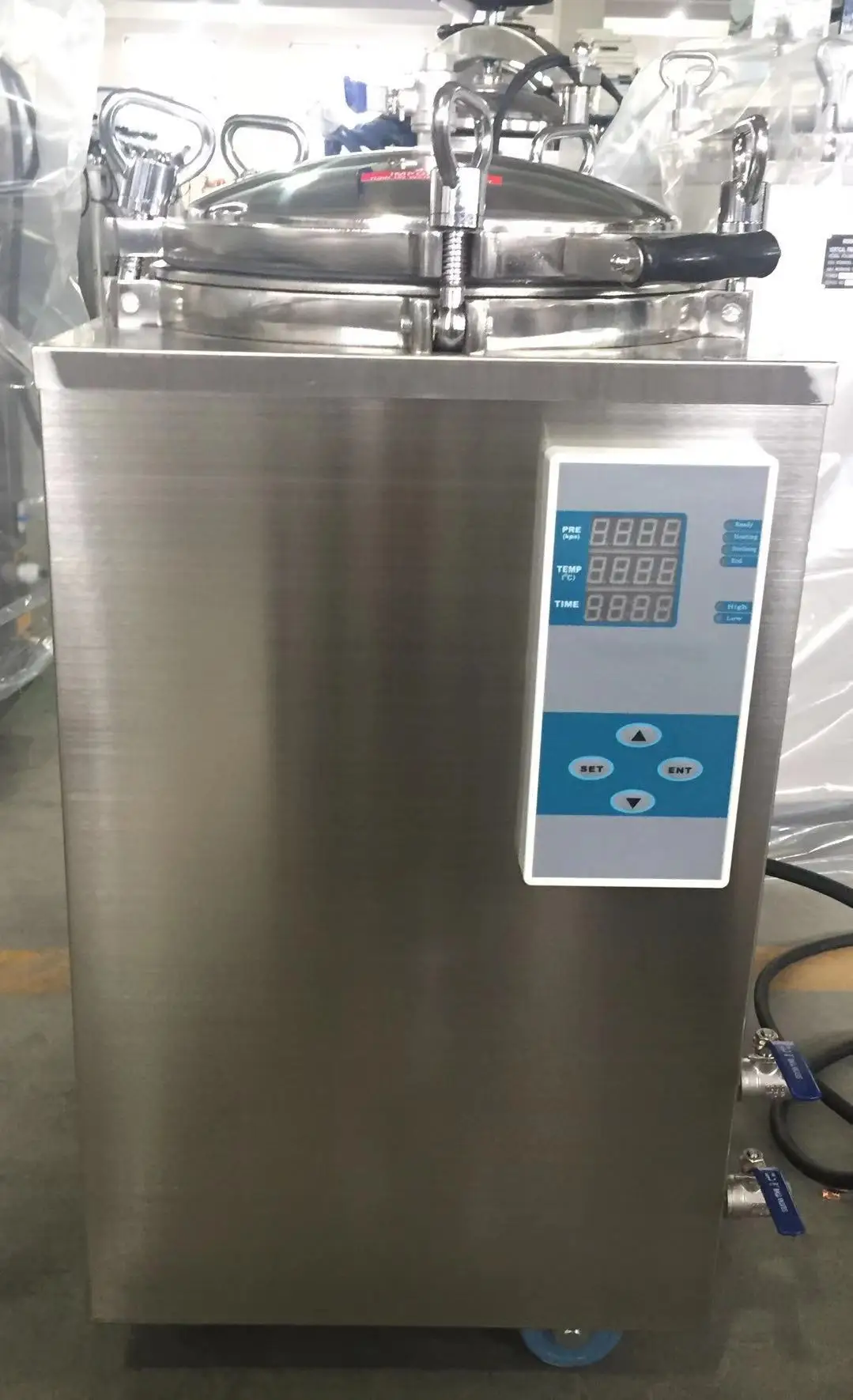

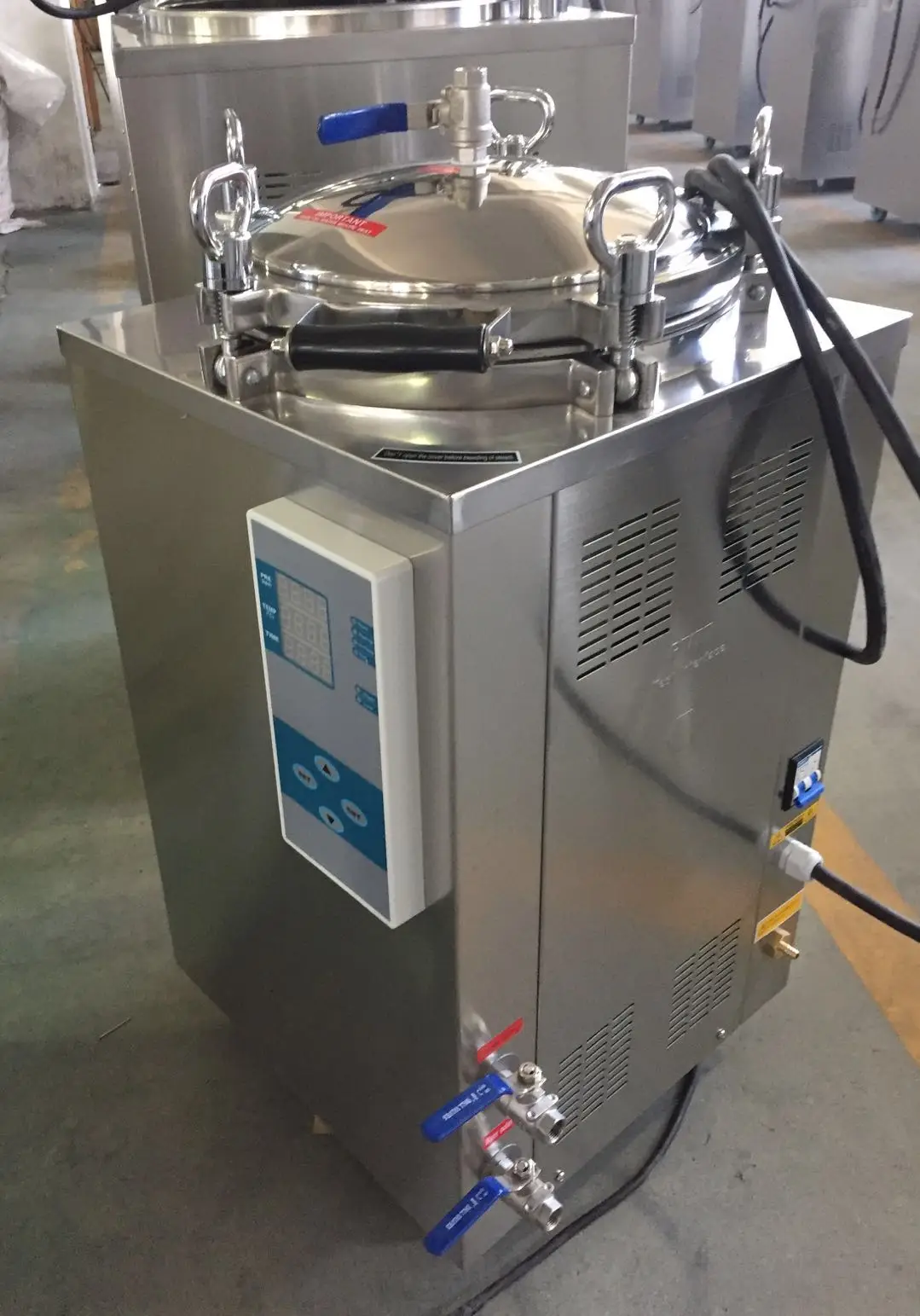

 High Pressure Cooking Pot  Food Secondary Sterilization Equipment vertical type 50L

The use of the environment and working conditions requirements:

1) Ambient temperature: 5 ~ 40 ℃;

2) relative humidity: ≤ 80%;

3) Atmospheric pressure range: 86 ~ 106kPa;

4) Power requirements: AC220V ± 22V, 50Hz ± 1Hz (should have a ground wire must meet the conditions



5) Water pressure: 0.15 ~ 0.5P (must meet the conditions)



6) Air supply pressure: 0.24 MPa Balance (must meet the conditions)

Transport and storage conditions:

1) Ambient temperature: -10 to 50 ℃

2) relative humidity: 10% to 90%;

3) Atmospheric pressure range: 50 ~ 106kPa.

      This product is equipped with safety valve, with steam overpressure 0.25MPa self-pressure, over-temperature to 140 ℃, the power automatically cut off the double safety protection, water overheating protection, current overload automatically cut off the safety chain device protection, the use of safe and reliable.

Technical characteristics

1. Maximum working pressure: 0.22MPa (30Psi);

2. Maximum operating temperature: 135 ℃;

3. Sterilization temperature selection: 101 ~ 135 ℃;

4. Boiling temperature selection: ≤ 100 ℃;

5. Timer timing range: 1 ~ 60min;

6.Chamber volume:35liter (318*450mm)

7.Overall dimension:480*460*850mm

8.Transport dimension:570*550*970mm

G.W/N.W:56/42kg



Operating procedures



  Add water → stack → seal → set the sterilization time → preset sterilization temperature → heating (discharge cold air) → sterilization → back pressure cooling → end.



Illustration:

  1, intake valve

 2, shell

  3, exhaust valve

  4, control panel

  5, overload protection power switch

  6, light

  7, the timer

  8, wrench

  9, pressure and temperature control knob

10, handle

11, put the valve

12, inlet valve

13, safety valve

14, container cover

15, fastening bolts

16, sealing gaskets

17, the flange seat

18, pressure gauge

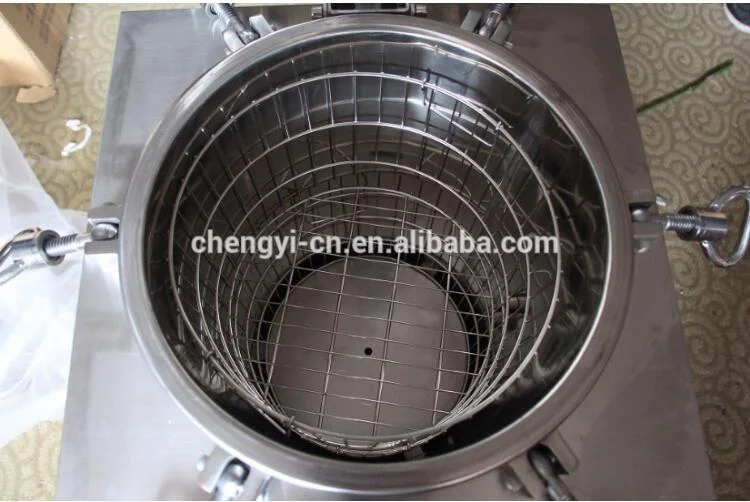

19, basket

20, container

21, water level device

22, power cord
