Характеристики
Products Description

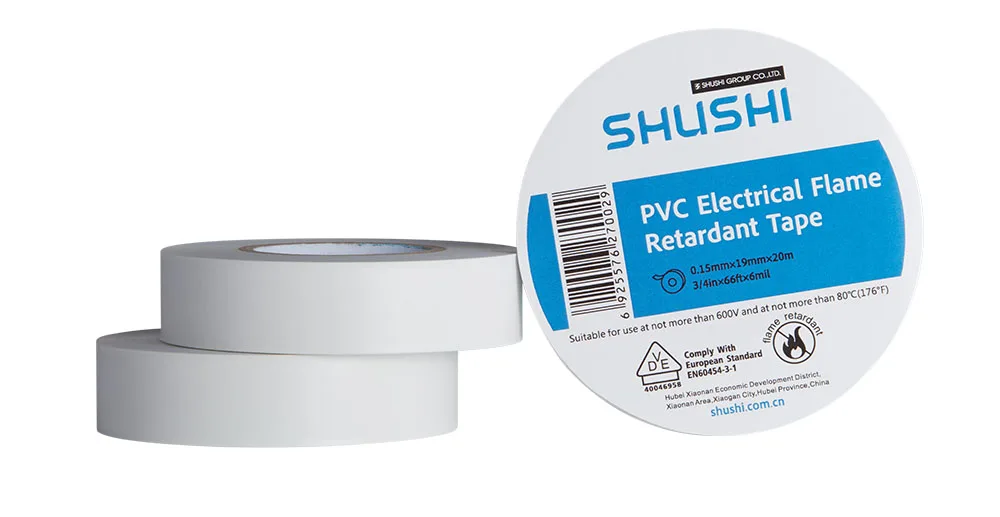

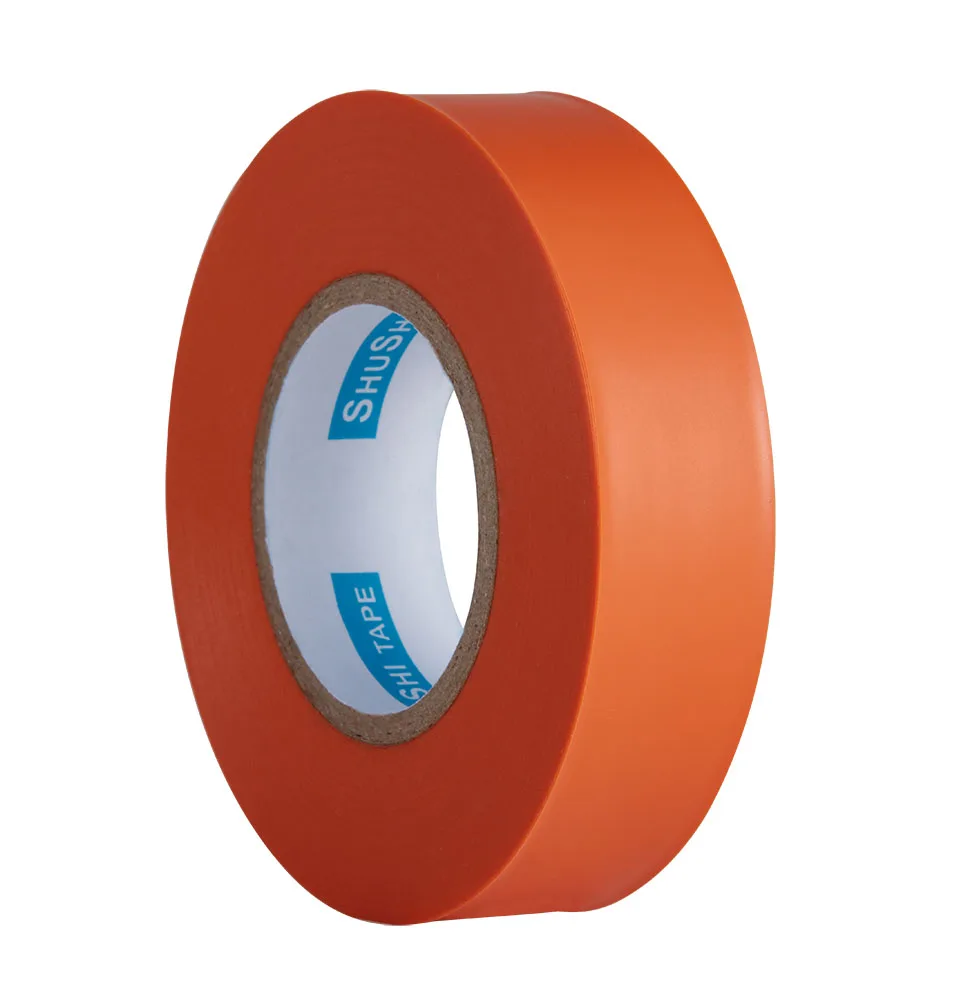

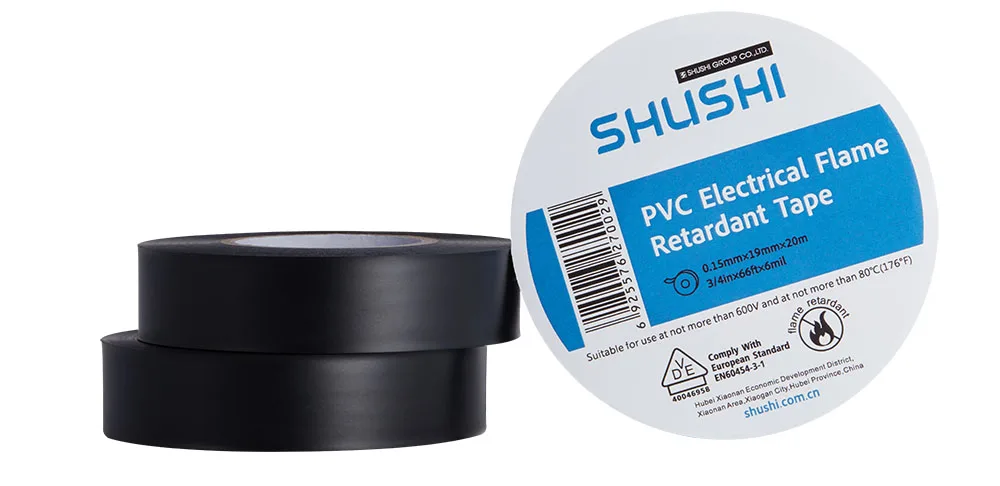

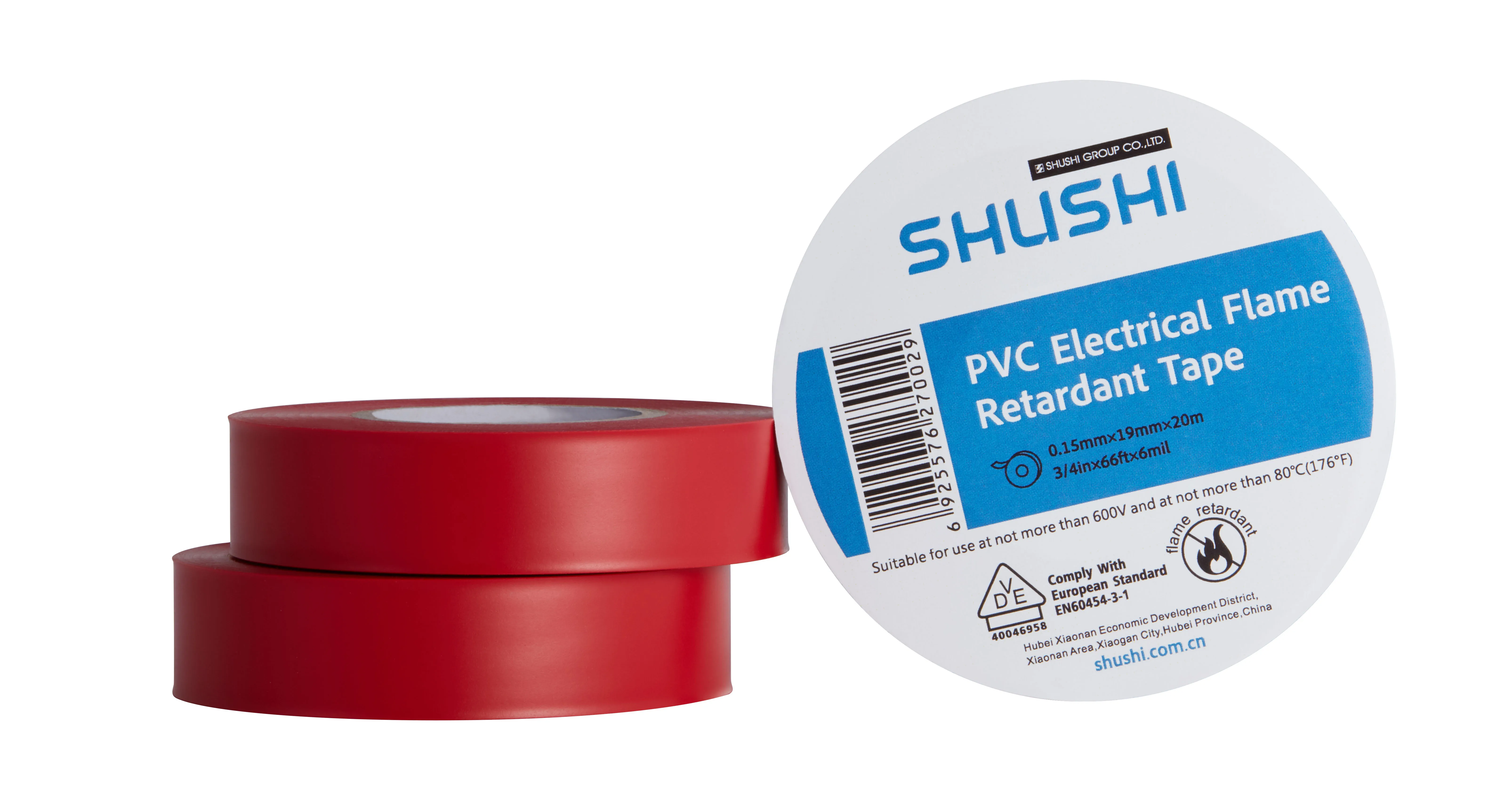

PVC Electrical Tape VDE Approval
Characteristics
VDE approved, RoHS approved Self made high-quality PVC film
High-performance pressure-sensitive adhesive
Excellent flame retardancy and insulation
Good adhesiveness and high peel strength
Specification
Various Length：5m 10m 20m 30ft 60ft
Various Width：12mm 18mm 19mm 25mm
Inner Core Diameter：32mm 38mm

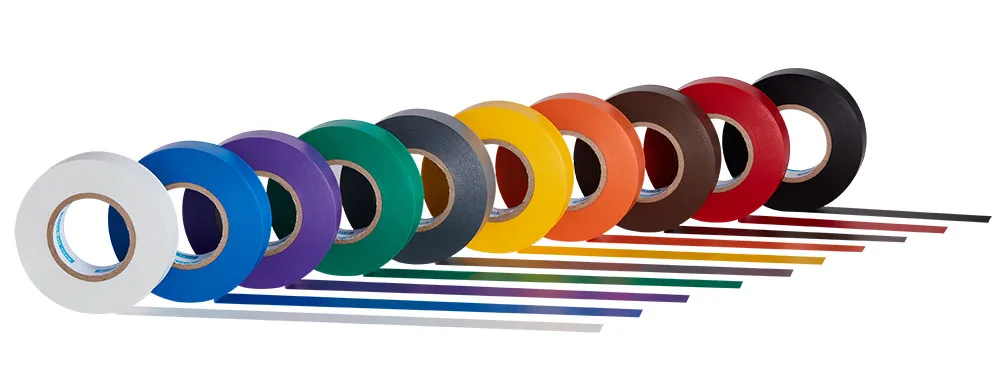

Colors：Black White Blue Green Yellow Red Purple Brown Orange Grey
VDE approved, RoHS approved Self made high-quality PVC film
High-performance pressure-sensitive adhesive
Excellent flame retardancy and insulation
Good adhesiveness and high peel strength
Specification
Various Length：5m 10m 20m 30ft 60ft
Various Width：12mm 18mm 19mm 25mm
Inner Core Diameter：32mm 38mm
Colors：Black White Blue Green Yellow Red Purple Brown Orange Grey
Product Parameters
PROPERTY | UNIT | SS1993-01 | TEST METHOD | |||
Thickness | mm | 0.15 | EN60454-2 | |||
Tensile Strength | N/cm | 23 | EN60454-2 | |||
Elongation | % | 190 | EN60454-2 | |||
Electrical Strength | KV/mm | 45 | EN60454-2 | |||
Peel Adhesion(180°) | N/cm | 2.0 | EN60454-2 | |||
Flame Test | --- | Pass | EN60454-2 | |||
Content of RoHS Restricted Substances | ||||||
Cadmium | ppm | ＜100 | EN60454-2 | |||
Lead, Mercury, Chromium(VI) | ppm | each ＜100 | EN60454-2 | |||
PBBs, PBDEs | ppm | each ＜100 | EN60454-2 | |||
DEHP, BBP, DBP, DIBP | ppm | each ＜100 | EN60454-2 | |||
Related products
Application
Electrical insulating, Marking or binding for wire and cable below 600V
Protection for sheath of high & low voltage wire and cable
Working temperature 0℃～80℃
Other occasions that fire prevention is strictly required
Protection for sheath of high & low voltage wire and cable
Working temperature 0℃～80℃
Other occasions that fire prevention is strictly required
Production Process
About SHUSHI
CHOOSE QUALITY , CHOOSE SHUSHI
ShuShi Group Co., Ltd. was founded in 1993. located in Xiaonan Economic Development District, which is only 40 kilo meters from Wuhan Tianhe International Airport and 60 kilo meters from Wuhan port. Our company covers an area of about 282,000 square meters and employees more than 600 and the annual output of PVC film reaches to 120 million square meters.
ShuShi is the executive member of the Council of Adhesive and Adhesive Tape Industry Association, national standard drafter of China Insulated Rubber Tape Industry, and also National High-Tech Enterprise.
We have dedicated our efforts in both the R&D and production of PVC electrical tape, high-voltage insulating self-amalgamating tape, automotive wire harness tape, industrial tape, insulating tape along with dozens of other types of products on long-term basis. Our company has the capability for one-stop production of PVC film, pressure-sensitive adhesive, and adhesive tape. We owns six brands: ShuShi, Wise Bird, Chutianshu, Dianlaohu, Yong\u0092an and The Great White Shark. The Shushi, Wise Bird brands are identified as the Famous Trademark in China. The Company has passed the IATF16949/ISO9001 system approvals and acquired UL/VDE/RoHS certifications. and now our sales network is spreading to America, Europe, Southeast Asia and other 60 countries and regions in the world, especially in UK, American, Germany, Mexico and Brazil.
ShuShi is the executive member of the Council of Adhesive and Adhesive Tape Industry Association, national standard drafter of China Insulated Rubber Tape Industry, and also National High-Tech Enterprise.
We have dedicated our efforts in both the R&D and production of PVC electrical tape, high-voltage insulating self-amalgamating tape, automotive wire harness tape, industrial tape, insulating tape along with dozens of other types of products on long-term basis. Our company has the capability for one-stop production of PVC film, pressure-sensitive adhesive, and adhesive tape. We owns six brands: ShuShi, Wise Bird, Chutianshu, Dianlaohu, Yong\u0092an and The Great White Shark. The Shushi, Wise Bird brands are identified as the Famous Trademark in China. The Company has passed the IATF16949/ISO9001 system approvals and acquired UL/VDE/RoHS certifications. and now our sales network is spreading to America, Europe, Southeast Asia and other 60 countries and regions in the world, especially in UK, American, Germany, Mexico and Brazil.
Packing and Shipping
FAQ
1.For PVC Electrical Insulating Tape, does the stronger stickiness mean the better quality? Why do some tapes seem not very stickywhen tested by hand touch?
The correct method to determine the stickiness of a PVC electrical insulating tape is to use the instrument to detect it
according to the tape viscosity standard of different thickness, rather than to feel it by hand. If simply use the hand feeling to determine the stickiness, coating the tape with more glue is enough, but finally it will cause glue overflowing.
ShuShi Group is a professional manufacturer of PVC electrical insulating tape with more than 20 years experience. We have excellent technical support to make our products have a reasonable proportion of glue, avoid glue overflowing and flagging problems.
2.Reasons For Using Electrical Tape
Electrical tape has a twofold job to do. When wrapped around an electrical wire, its job is to stop electrical current passing
to or from another wire by mistake, as this could create a short which could lead to the circuit breaker turning off and stopping electrical flow to the electrical device. Also, more dangerously, the short could start an electrical fire. Electrical tape's second purpose is to stop any possible electrocution if the wire happens to be live (hot) and is touched by someone.
3. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,CIP,FCA,CPT；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
4.How do you make our business long-term and good relationship?
We keep good quality and competitive price to ensure our customers benefit.
The correct method to determine the stickiness of a PVC electrical insulating tape is to use the instrument to detect it
according to the tape viscosity standard of different thickness, rather than to feel it by hand. If simply use the hand feeling to determine the stickiness, coating the tape with more glue is enough, but finally it will cause glue overflowing.
ShuShi Group is a professional manufacturer of PVC electrical insulating tape with more than 20 years experience. We have excellent technical support to make our products have a reasonable proportion of glue, avoid glue overflowing and flagging problems.
2.Reasons For Using Electrical Tape
Electrical tape has a twofold job to do. When wrapped around an electrical wire, its job is to stop electrical current passing
to or from another wire by mistake, as this could create a short which could lead to the circuit breaker turning off and stopping electrical flow to the electrical device. Also, more dangerously, the short could start an electrical fire. Electrical tape's second purpose is to stop any possible electrocution if the wire happens to be live (hot) and is touched by someone.
3. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,CIP,FCA,CPT；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
4.How do you make our business long-term and good relationship?
We keep good quality and competitive price to ensure our customers benefit.
